Preaction Valve Assemblies
Project-configured valve assemblies for preaction sprinkler systems, available in flanged and grooved connection versions. Buyers can match the required nominal size, connection and assembly scope without relying on domestic model codes.
Release method, working pressure, flange drilling or groove profile, trim scope and control arrangement are confirmed for each project before production.
Technical overview
Clear project data without unsupported claims.

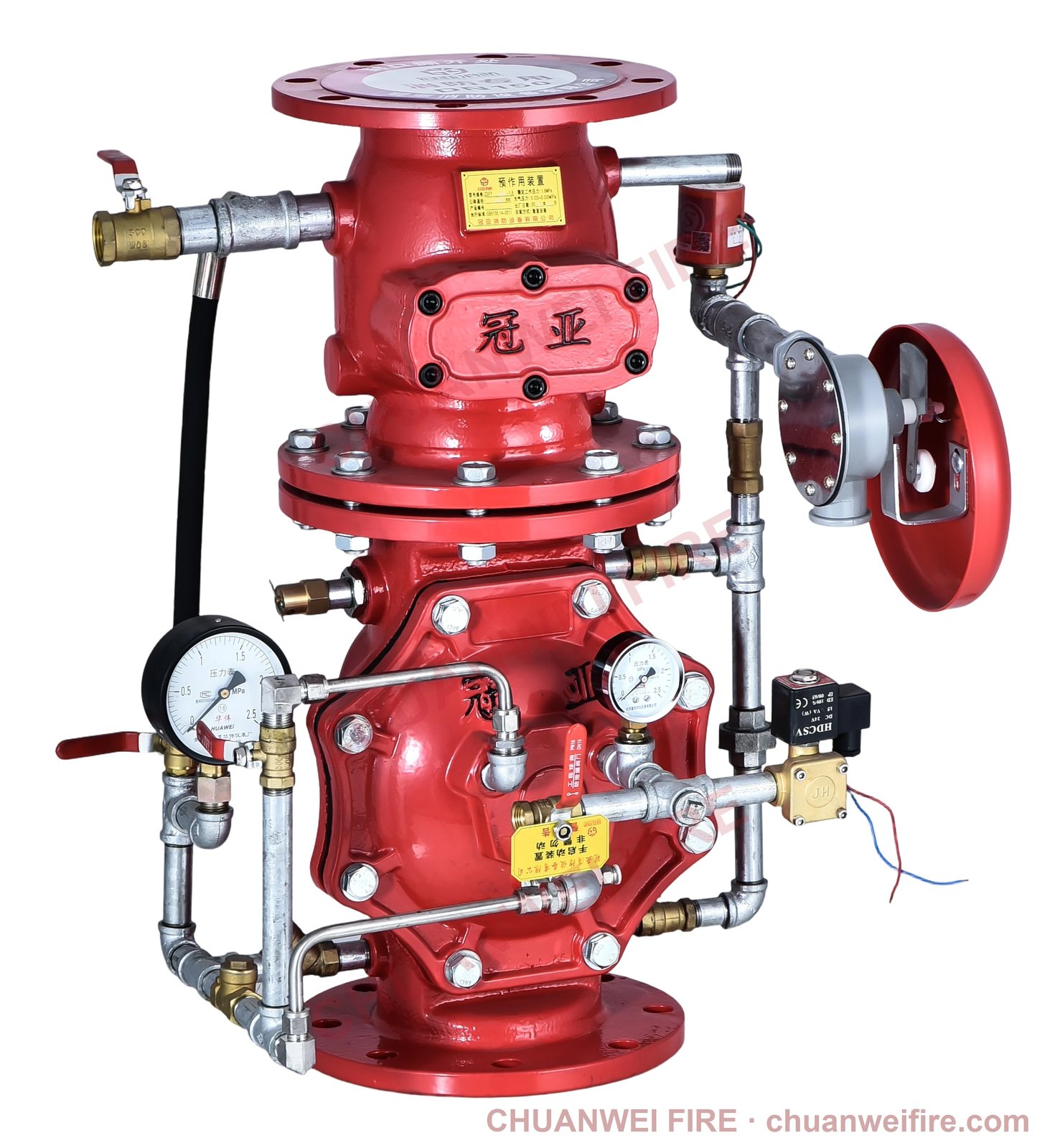

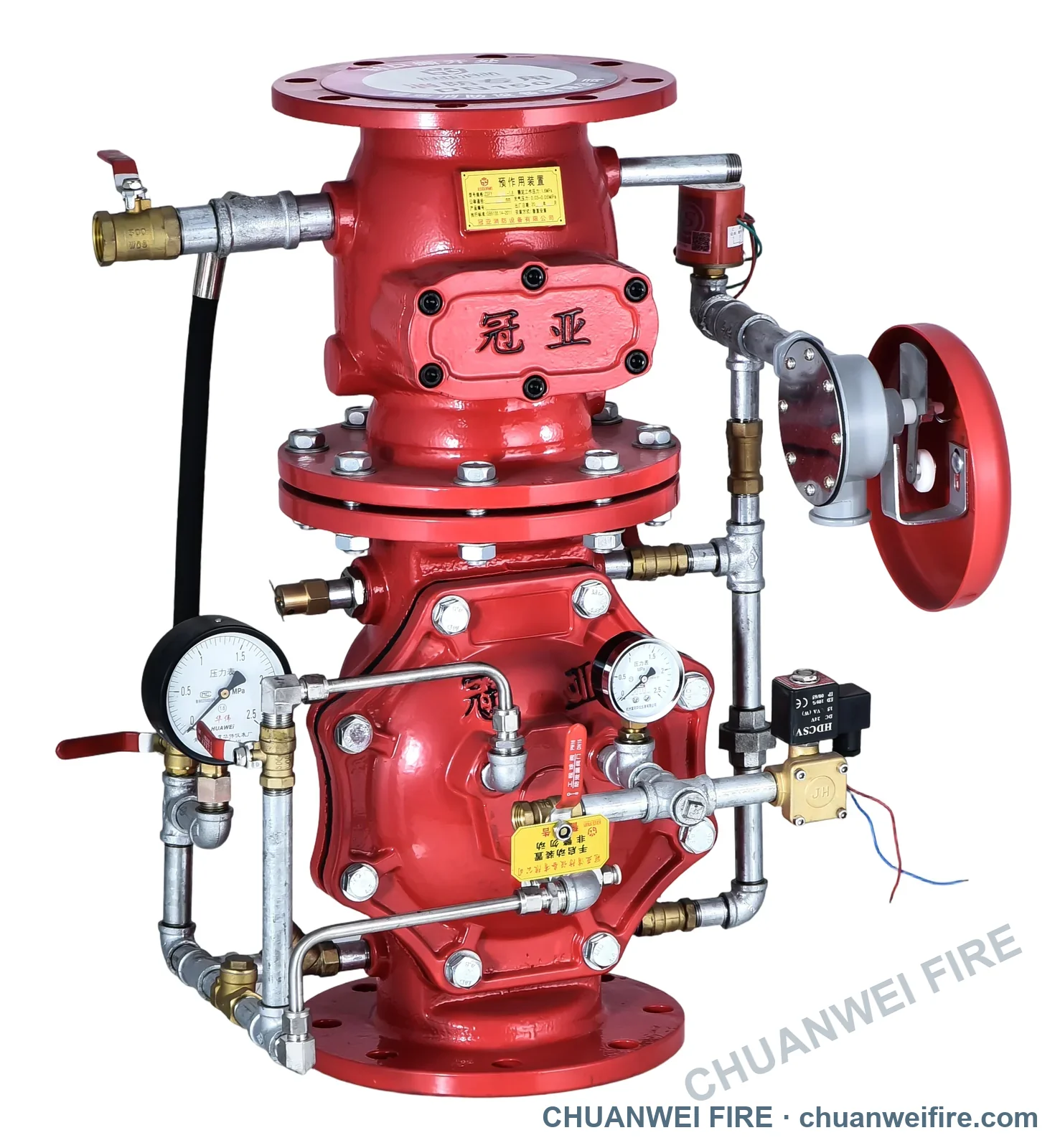

The photograph shows one assembled flanged configuration. Final components and dimensions depend on the selected model and approved project schedule.
Confirmed series information
- International product name
- Preaction Valve Assembly
- Available nominal sizes
- DN100 / 4 in; DN150 / 6 in; DN200 / 8 in; DN250 / 10 in
- Connection versions
- Flanged and grooved
- Factory references
- ZSFY series
- Assembly height
- 570–1000 mm depending on size, connection and design version
- Release method
- To be specified for the project
- Working pressure
- To be confirmed for the selected model
- Valve and trim materials
- Available on request; confirmed against the approved order
- Approval / execution standard
- No foreign approval claimed; documentary scope available on request
Available configurations
Models currently available for quotation
Domestic ZSFY codes are retained only as factory references. Heights are approximate factory records and must be reconfirmed before order approval.
| International configuration | Nominal size | Connection | Approx. assembly height | Factory reference |
|---|---|---|---|---|
| Preaction Valve Assembly | DN100 / 4 in | Flanged | 570 mm | ZSFY100 |
| Preaction Valve Assembly — standard design | DN150 / 6 in | Flanged | 665 mm | ZSFY150 |
| Preaction Valve Assembly — current design | DN150 / 6 in | Flanged | 690 mm | ZSFY150 |
| Preaction Valve Assembly — standard design | DN200 / 8 in | Flanged | 825 mm | ZSFY200 |
| Preaction Valve Assembly — current design | DN200 / 8 in | Flanged | 865 mm | ZSFY200 |
| Preaction Valve Assembly | DN250 / 10 in | Flanged | 1000 mm | ZSFY250 |
| Grooved Preaction Valve Assembly | DN100 / 4 in | Grooved | 590 mm | ZSFY100(G) |
| Grooved Preaction Valve Assembly | DN150 / 6 in | Grooved | 740 mm | ZSFY150(G) |
| Grooved Preaction Valve Assembly | DN200 / 8 in | Grooved | 905 mm | ZSFY200(G) |
Configuration scope
Quoted as an assembly, not only as a valve body.
The supply can be reviewed against a project valve schedule, piping diagram, drawing or approved sample. The final quotation identifies what is included, what remains by others and which technical documents require approval.
OEM / ODM support
Prepared for your drawing and market requirements.
Product marking, nameplate, connection arrangement, trim layout and export packaging can be reviewed against the customer drawing, technical schedule or approved sample.
Send your preaction valve schedule.
Include DN size, connection, working pressure, release method, trim scope, voltage, quantity and destination country.
