R1/2 · 1.6 MPa · pressure signalling
Fire Pressure Switch
Compact fire pressure switch with an R1/2 male connection, rated working pressure of 1.6 MPa and an actuation pressure range of 0.035–0.05 MPa. Electrical contact capacity is DC24V / 1A.
Request the matching model and wiring diagram with your quotation.

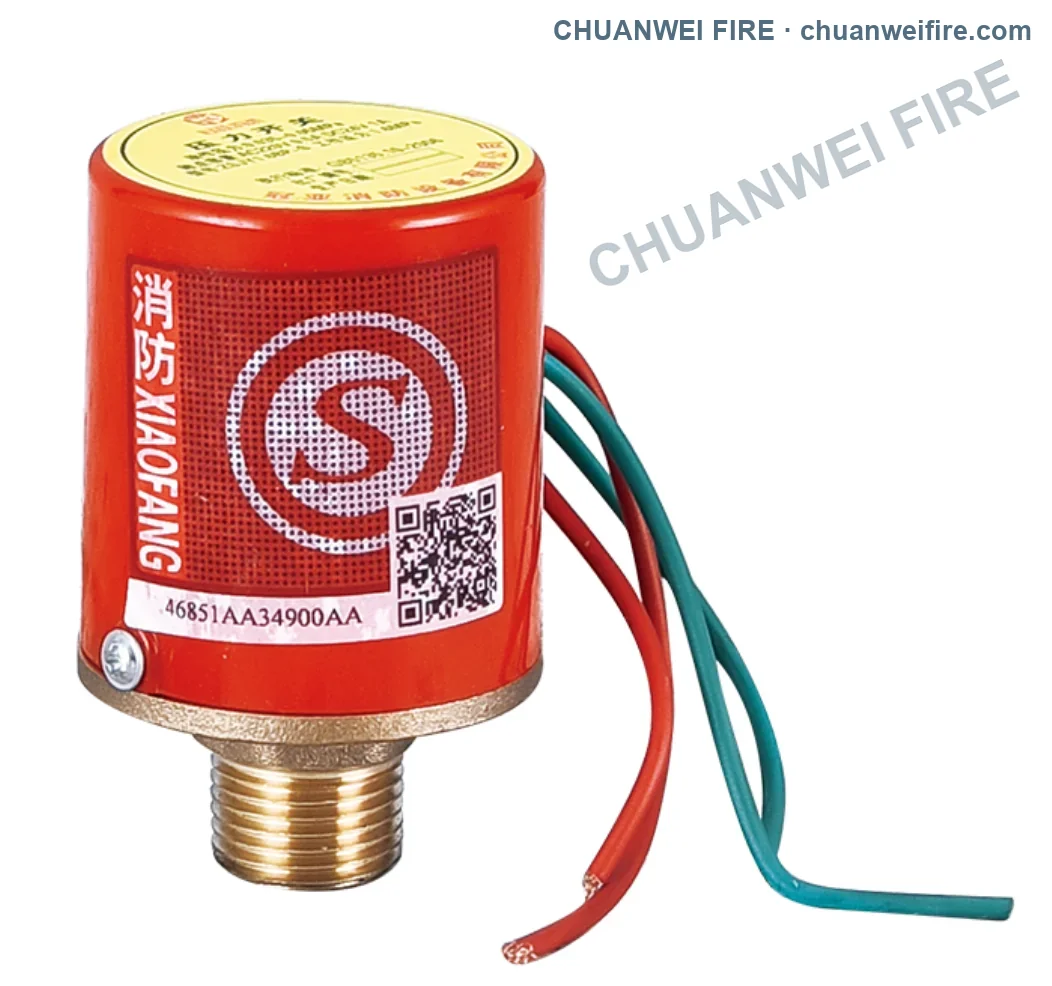

Product image
Compact pressure switch
Open the photo to inspect the pressure connection, leads and visible product markings.
Specifications
Product overview
Rated working pressure and actuation pressure are listed separately. DC24V / 1A is the electrical contact rating for the connected signal circuit.
- Product type
- Fire Pressure Switch
- Function
- Pressure signal converted to electrical switching output
- Pressure connection
- R1/2 male thread
- Rated working pressure
- 1.6 MPa / 16 bar
- Actuation pressure range
- 0.035–0.05 MPa / 0.35–0.5 bar
- Electrical contact capacity
- DC24V / 1A
- Photographed construction
- Red cylindrical housing · four leads
Product configuration
Product configuration
Compare the connection, rated working pressure, actuation pressure and contact capacity for the compact cylindrical configuration below.
| Pressure connection | Rated working pressure | Actuation pressure range | Electrical contact capacity |
|---|---|---|---|
| R1/2 male thread | 1.6 MPa / 16 bar | 0.035–0.05 MPa / 0.35–0.5 bar | DC24V / 1A |
Quotation confirmation
Request a matched configuration
Start with product and quantity. Add the required pressure connection, actuation point and signal-circuit requirements when available.
Request a fire pressure switch
Include quantity, destination and your pressure and electrical contact requirements.
