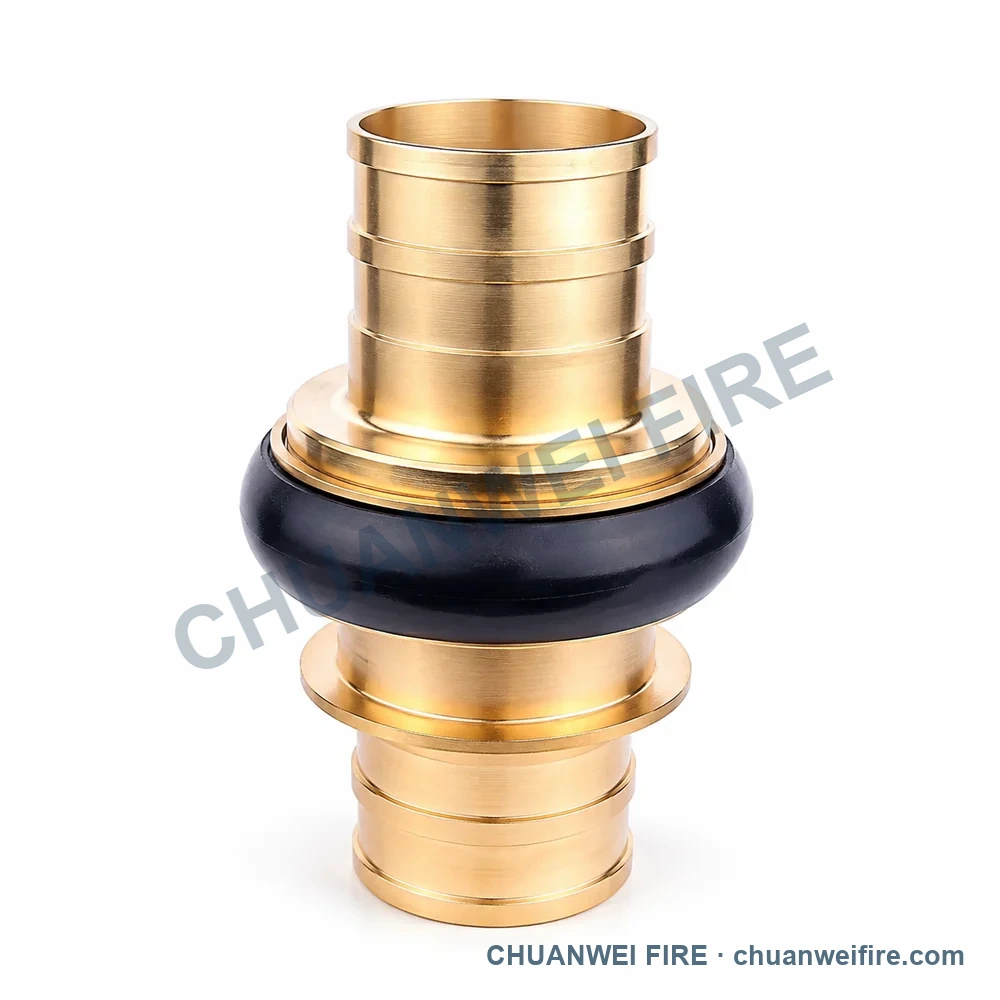

Brass-Finish Black-Seal Fire Hose Coupling
Source connection or dimension data: inlet 1.5 in; outlet 38 mm · inlet 2.5 in; outlet 63 mm
5 directly selectable configurations from the supplied catalog
Fire Hose Couplings and Adapters
Use the configuration images to identify the required product, then confirm connection, material and performance data with the quotation.
5 illustrated configurations
Supplied electronic catalog page 21
To be confirmed with the quotation
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Available configurations
Brass-Finish Hexagonal Ring-Type Fire Hose Coupling
Source connection or dimension data: inlet 1.5 in · inlet 2 in · inlet 2.5 in
Brass-Finish Short-Barrel Double-Lug Fire Hose Adapter
Source connection or dimension data: inlet 1.5 in NH; outlet 38 mm · inlet 2 in NH; outlet 51 mm · inlet 2.5 in NH; outlet 63 mm
Silver-Finish Double-Lug Fire Hose Adapter
Source connection or dimension data: inlet 1.5 in NH; outlet 38 mm · inlet 2 in NH; outlet 51 mm · inlet 2.5 in NH; outlet 63 mm
Brass-Finish Double-Lug Fire Hose Adapter
Source connection or dimension data: inlet 1.5 in NH · inlet 2 in NH · inlet 2.5 in NH
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Configuration images
5 configurations to compare
Open each image to compare the general arrangement. Confirm small details, threads and cast markings against an original photo, mating sample or approved drawing.
Brass-Finish Black-Seal Fire Hose Coupling1 / 5
Data scope
Confirmed source scope and quotation checks
Visible connection and dimension values were transcribed from the catalog to support configuration selection. Final order specifications are confirmed in the quotation.
- Product family
- Fire Hose Couplings and Adapters
- Available configurations
- 5 illustrated configurations
- Selection data source
- Supplied electronic catalog page 21
- CHUANWEI factory model
- To be confirmed with the quotation
- Technical data status
- Preliminary catalog data; order confirmation required
Available configurations
Configurations and linked source-catalog data
Each row shows a configuration and the connection or dimension entries visible in the supplied catalog.
| Configuration | Source connection or dimension data |
|---|---|
| Brass-Finish Black-Seal Fire Hose Coupling | inlet 1.5 in; outlet 38 mm · inlet 2.5 in; outlet 63 mm |
| Brass-Finish Hexagonal Ring-Type Fire Hose Coupling | inlet 1.5 in · inlet 2 in · inlet 2.5 in |
| Brass-Finish Short-Barrel Double-Lug Fire Hose Adapter | inlet 1.5 in NH; outlet 38 mm · inlet 2 in NH; outlet 51 mm · inlet 2.5 in NH; outlet 63 mm |
| Silver-Finish Double-Lug Fire Hose Adapter | inlet 1.5 in NH; outlet 38 mm · inlet 2 in NH; outlet 51 mm · inlet 2.5 in NH; outlet 63 mm |
| Brass-Finish Double-Lug Fire Hose Adapter | inlet 1.5 in NH · inlet 2 in NH · inlet 2.5 in NH |
Quotation confirmation
Confirm the configuration before production
Send the configuration image, size, connection, material, working pressure, quantity and destination. The quotation and approved drawing lock the final supply specification.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Fire Hose Couplings and Adapters requirement
Include the configuration, connection, material, pressure, quantity and destination country.
