Special fire-protection sprinklers and nozzles
Tubular Foam-Water Nozzles
Copper-body tubular nozzles for water and foam-water discharge, with BSPT male threads and metric K80 / K115 options. Upward and downward discharge forms are available. Working pressure: 0.4 MPa.

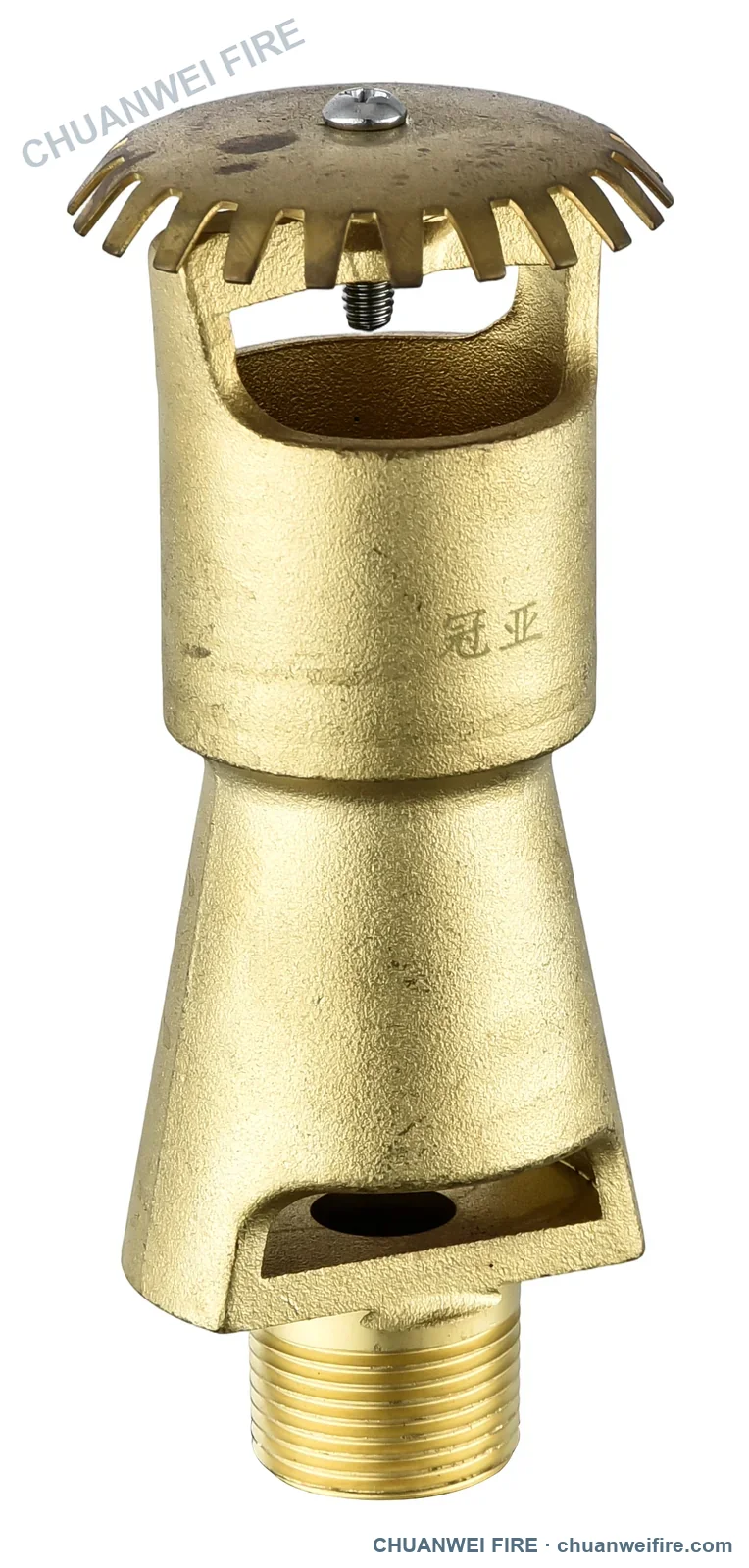

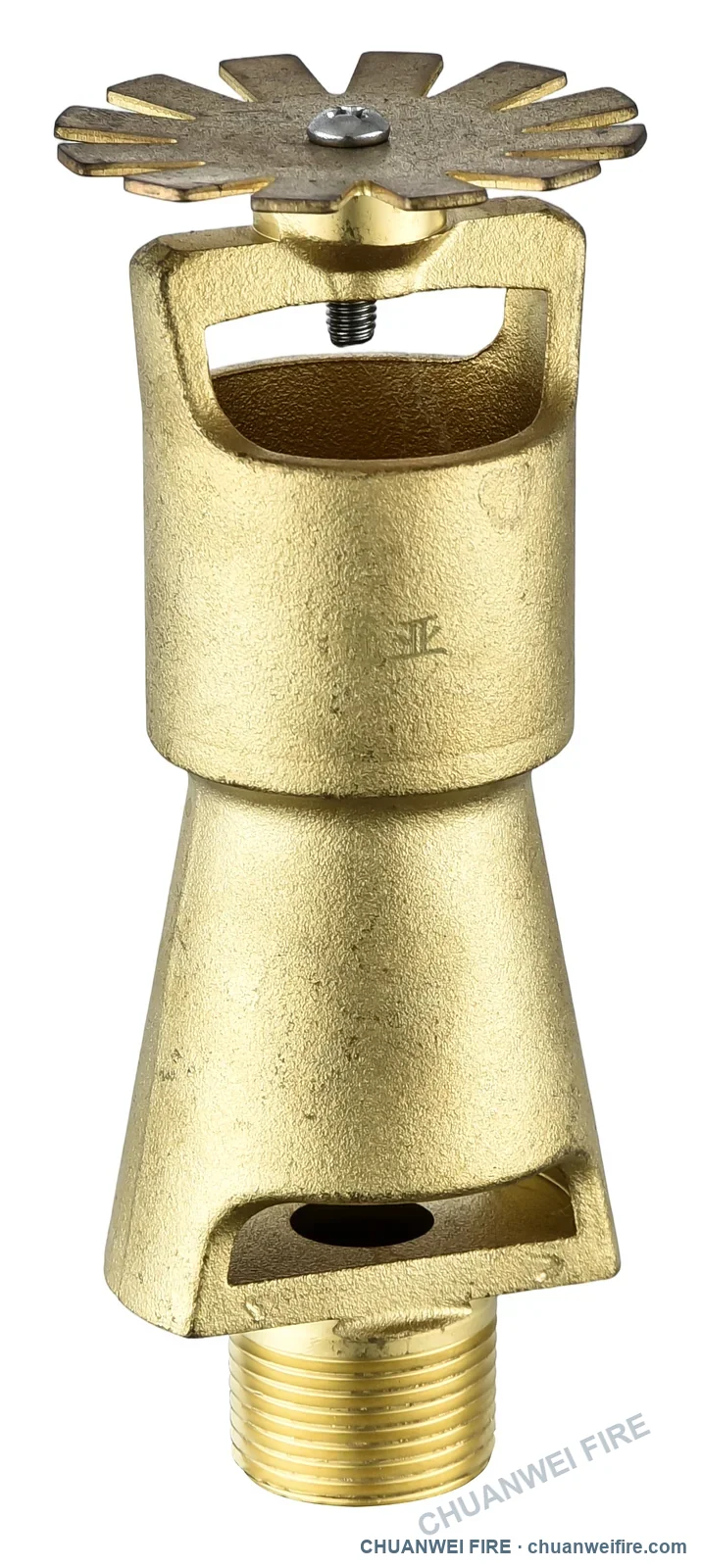

Both photographs show the smaller connection sample: the curved deflector is the upward-discharge form and the flat deflector is the downward-discharge form. Confirm the exact factory model and foam-concentrate compatibility for the selected nozzle.
Product images
Real product photographs
Compare the visible construction and product markings. Photographs identify the shown samples; they do not represent every size or supplied configuration.
Specifications
Product selection details
Use the confirmed details below to match your requirement. Request exact-model technical documents for the selected configuration.
- Factory series
- ZSPTX / ZSPTZ
- Working pressure
- 0.4 MPa / 4 bar / approx. 58 psi
- Nominal metric K-factor
- K80 / K115 metric
- Thread family
- BSPT male thread; exact size mapping confirmed with quotation
- Primary body material
- Copper
- Discharge forms
- Upward / Downward
Available configurations
Configurations for quotation
Match the factory reference and connection requirement with your order.
| Factory series | Nominal metric K-factor |
|---|---|
| ZSPTX-80 / ZSPTZ-80 | K80 |
| ZSPTX-115 / ZSPTZ-115 | K115 |
Quotation details
Details to send with your inquiry
Send the connection, operating conditions, quantity and destination so we can review the required configuration.
Request product details and a quotation
Include the product reference, connection, quantity and destination. Send the project specification when available.
