01 / FIRE HOSE

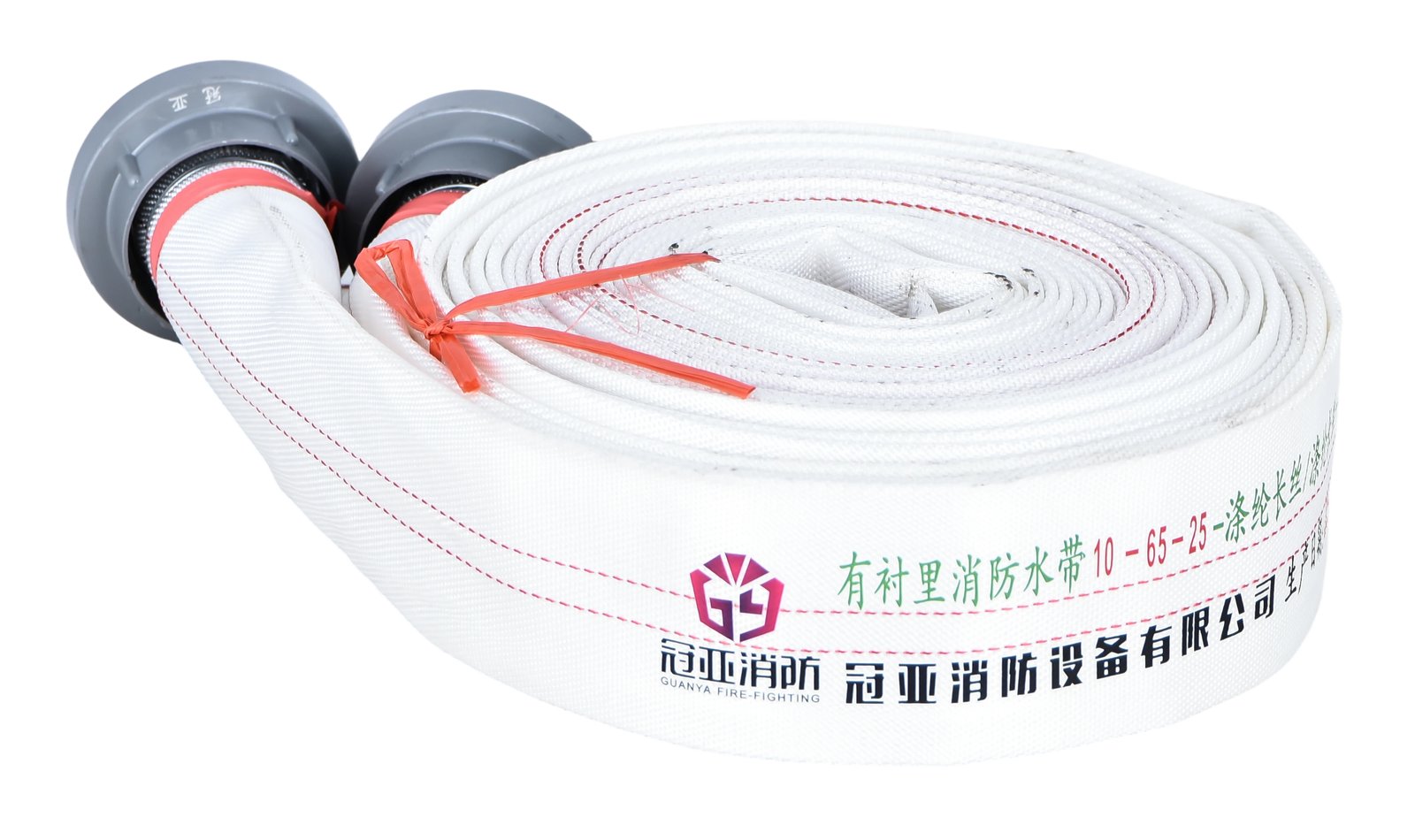

Layflat Fire Hoses
Collapsible fire hose supplied as hose-only or assembled with compatible couplings.
DN65 / 2½″8-65-2510-65-25Couplings optional
View configurations →Hose-line equipment for fire protection
Fire Hoses, Nozzles & Couplings—Matched as a System.
Source individual components or a matched hose assembly. Products are organized by discharge pattern, nominal hose size and connection type, with DN and inch notation for international buyers.
DN50 / 2″Nozzle & coupling optionDN65 / 2½″Hose-line sizeOEM / ODMComponents or complete sets
Product architecture
Five families, one hose-line solution.
Layflat hose, nozzle and coupling compatibility must be confirmed as one assembly. Coupling standards vary by market, so domestic factory codes remain references rather than the primary product name.
02 / STRAIGHT STREAM
Straight-Stream Fire Hose Nozzles
Fixed straight-stream branchpipe nozzles in DN50 and DN65 inlet sizes.
DN50 / 2″DN65 / 2½″QZ3.5/5QZ3.5/7.5
View specifications →03 / COMBINATION
Combination Jet / Fog Nozzles
Nozzle family for buyers requiring selectable straight-stream and spray/fog patterns. Exact model, inlet and flow data are quoted to the project schedule.
Pattern selectionProject configured
Request model options →04 / HOSE COUPLING
KD Instantaneous Hose Couplings
Domestic instantaneous-type couplings for connecting layflat hose sections and compatible hose-line equipment.
KD50 — DN50 / 2″KD65 — DN65 / 2½″
View coupling sizes →05 / THREADED ADAPTER
KN Threaded Instantaneous Adapters
Female-thread adapter with an instantaneous connection interface for matching hydrant, nozzle or hose-line components.
Size on requestThread standard on request
Confirm adapter requirements →Confirmed selection data
International sizes with factory references.
Pressure class, hose construction, coupling thread, spray-nozzle flow and applicable approvals must be confirmed before ordering. Hose coupling installation and binding are quoted separately.
01
Layflat Fire Hose
DN65 / 2½″
| International description | Nominal size | Factory reference | Supply format |
|---|---|---|---|
| Layflat Fire Hose | DN65 / 2½″ | 8-65-25 | Hose only; couplings optional |
| Layflat Fire Hose | DN65 / 2½″ | 10-65-25 | Hose only; couplings optional |
02
Straight-Stream Nozzles
DN50 / 2″ & DN65 / 2½″
| International description | Inlet size | Factory reference | Complete-set weight | Finish |
|---|---|---|---|---|
| Straight-Stream Fire Hose Nozzle | DN50 / 2″ | QZ3.5/5 | Approx. 0.725 kg | Electrophoretic coating |
| Straight-Stream Fire Hose Nozzle | DN65 / 2½″ | QZ3.5/7.5 | Approx. 0.85 kg | Electrophoretic coating |
03
KD Hose Couplings
DN50 / 2″ & DN65 / 2½″
| International description | Nominal size | Factory reference | Connection family |
|---|---|---|---|
| Instantaneous Fire Hose Coupling | DN50 / 2″ | KD50 | Domestic instantaneous type |
| Instantaneous Fire Hose Coupling | DN65 / 2½″ | KD65 | Domestic instantaneous type |
OEM / ODM
Components, branding or complete hose assemblies.
Available support includes hose-line printing, logo and product marking, export packaging, coupling/nozzle matching and complete assembly supply. Connection standards and technical data are confirmed against the destination market.
Hose printingLogo & packagingCoupling matchingComplete hose assembly
Hose-line inquiry
Tell us the market and required connection.
Include destination, hose size, nozzle type, coupling standard, quantity and whether you need components or a complete assembly.
