Victaulic grooved fittings · 07.01
- Ductile iron grade
- ASTM A536 65-45-12
- Groove system
- OGS
Match the pipe outside diameter and groove profile; the assembly pressure rating also depends on the coupling and pipe.
Grooved Pipe Fittings
Grooved Equal Crosses
Ductile iron equal crosses provide four grooved connections of equal nominal size for fire protection pipe branching. Select the nominal size and pipe outside diameter together.
Ductile iron
Four equal nominal-size outlets
Grooved ends
Specify both nominal DN and actual pipe outside diameter, with the mating groove profile or drawing.
Product gallery
Product views
Select an image to view the pictured product or configuration.

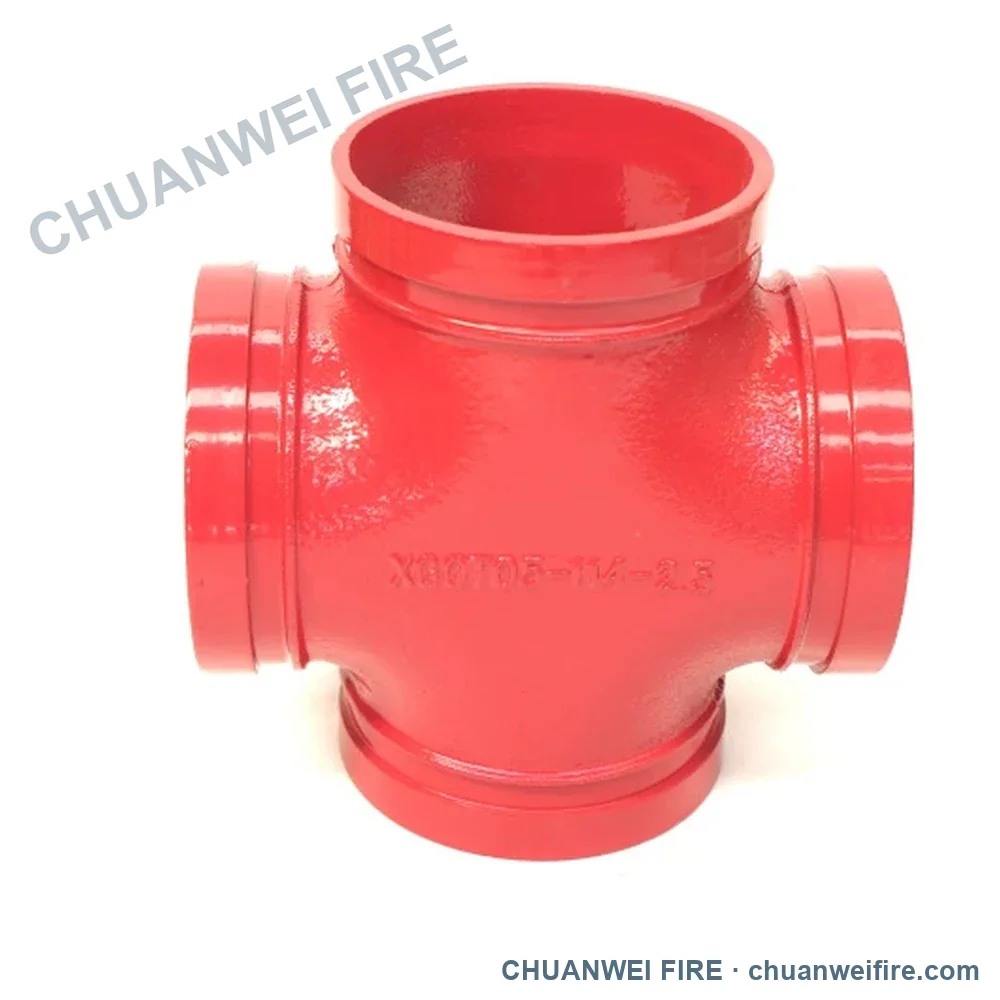

Equal cross with four grooved ends.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Material
- Ductile iron
- Configuration
- Four equal nominal-size outlets
- Connection
- Grooved ends
- Nominal size options
- DN65 / DN80 / DN100 / DN125 / DN150 / DN200
- Listed size and OD combinations
- 9
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Selection details |
|---|---|
| DN65 · Pipe OD 76 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN80 · Pipe OD 89 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN100 · Pipe OD 108 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN100 · Pipe OD 114 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN125 · Pipe OD 133 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN125 · Pipe OD 140 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN150 · Pipe OD 159 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN150 · Pipe OD 165 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
| DN200 · Pipe OD 219 mm | Select the exact listed size and pipe OD combination; match the groove dimensions. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Pipe and groove dimensionsSpecify both nominal DN and actual pipe outside diameter, with the mating groove profile or drawing.
Joint dutyProvide operating pressure, temperature and required gasket or coating details for the selected configuration.
Request product details and a quotation
Send your selected configuration, quantity and destination.
