Special fire-protection sprinklers and nozzles
Closed-Type Centrifugal Fire Sprinklers
Closed-type pendent sprinklers with a 5 mm glass bulb and centrifugal distribution structure. The series offers six nominal metric K-factor options with BSPT male threads.

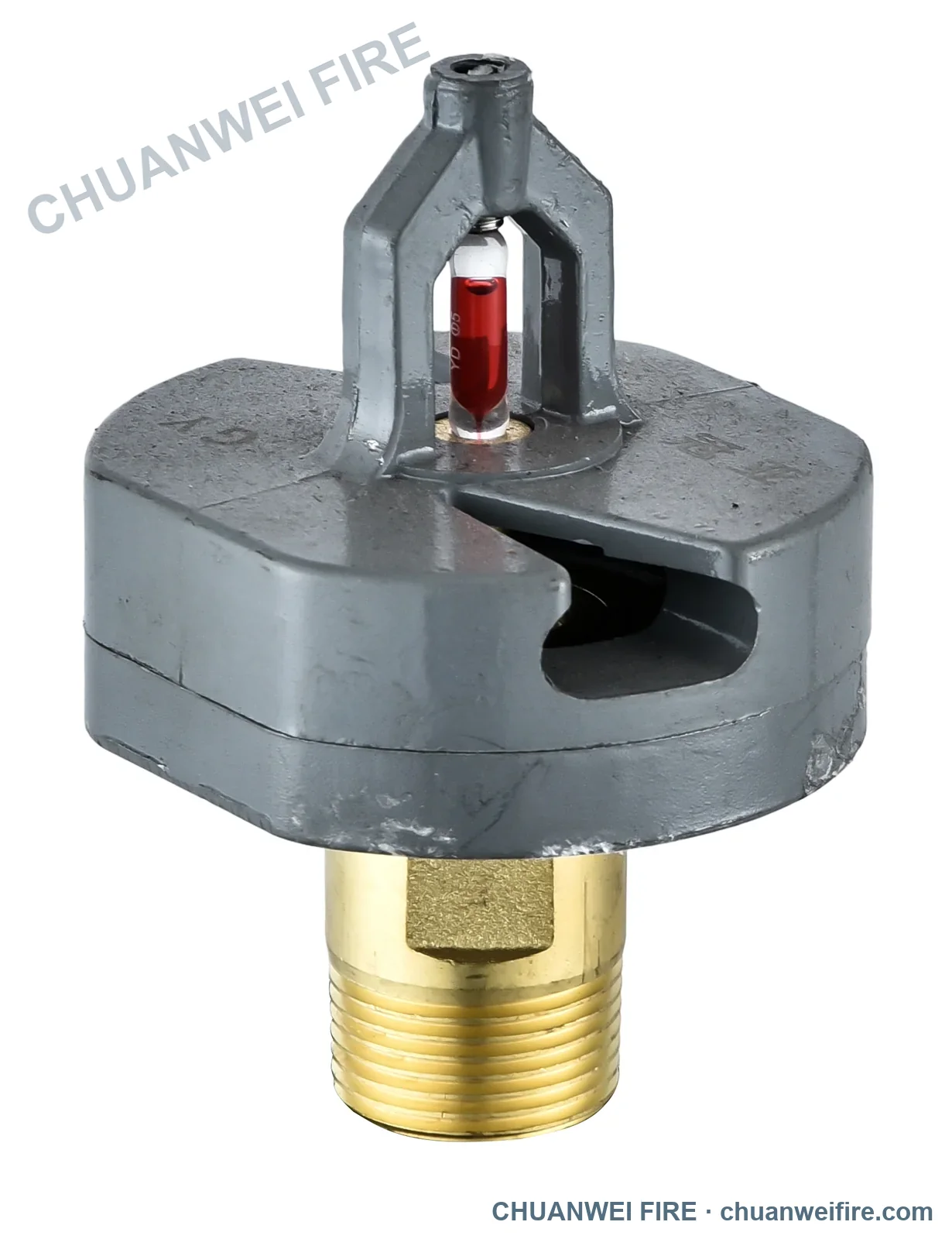

The photograph identifies the series and is not assigned to a specific K-factor or inlet size. Request the operating temperature, pressure and coverage data for the selected model.
Product images
Real product photographs
Compare the visible construction and product markings. Photographs identify the shown samples; they do not represent every size or supplied configuration.
Specifications
Product selection details
Use the confirmed details below to match your requirement. Request exact-model technical documents for the selected configuration.
- Nominal metric K-factors
- K90 / K115 / K145 / K155 / K175 / K200 metric
- Thread family
- BSPT male thread; exact size confirmed with the selected model
- Configuration
- Closed type / Pendent / Centrifugal
- Frame material
- Copper frame
- Glass bulb diameter
- 5 mm
Available configurations
Configurations for quotation
Match the factory reference and connection requirement with your order.
| Factory reference | Nominal metric K-factors |
|---|---|
| B-DSXC-90 | K90 |
| B-DSXC-115 | K115 |
| B-DSXC-145 | K145 |
| B-DSXC-155 | K155 |
| B-DSXC-175 | K175 |
| B-DSXC-200 | K200 |
Quotation details
Details to send with your inquiry
Send the connection, operating conditions, quantity and destination so we can review the required configuration.
Request product details and a quotation
Include the product reference, connection, quantity and destination. Send the project specification when available.
