Fire Alarm Equipment
Combined Smoke and Heat Detectors
Tanda combined smoke and heat detectors for compatible fire alarm systems, with 24 V DC operation. Standby and alarm current values are listed below.
Tanda
Combined smoke and heat
24 V DC
Provide the control panel model, protocol and existing device references so compatibility can be checked before supply.
Product gallery
Product views
Select an image to view the pictured product or configuration.

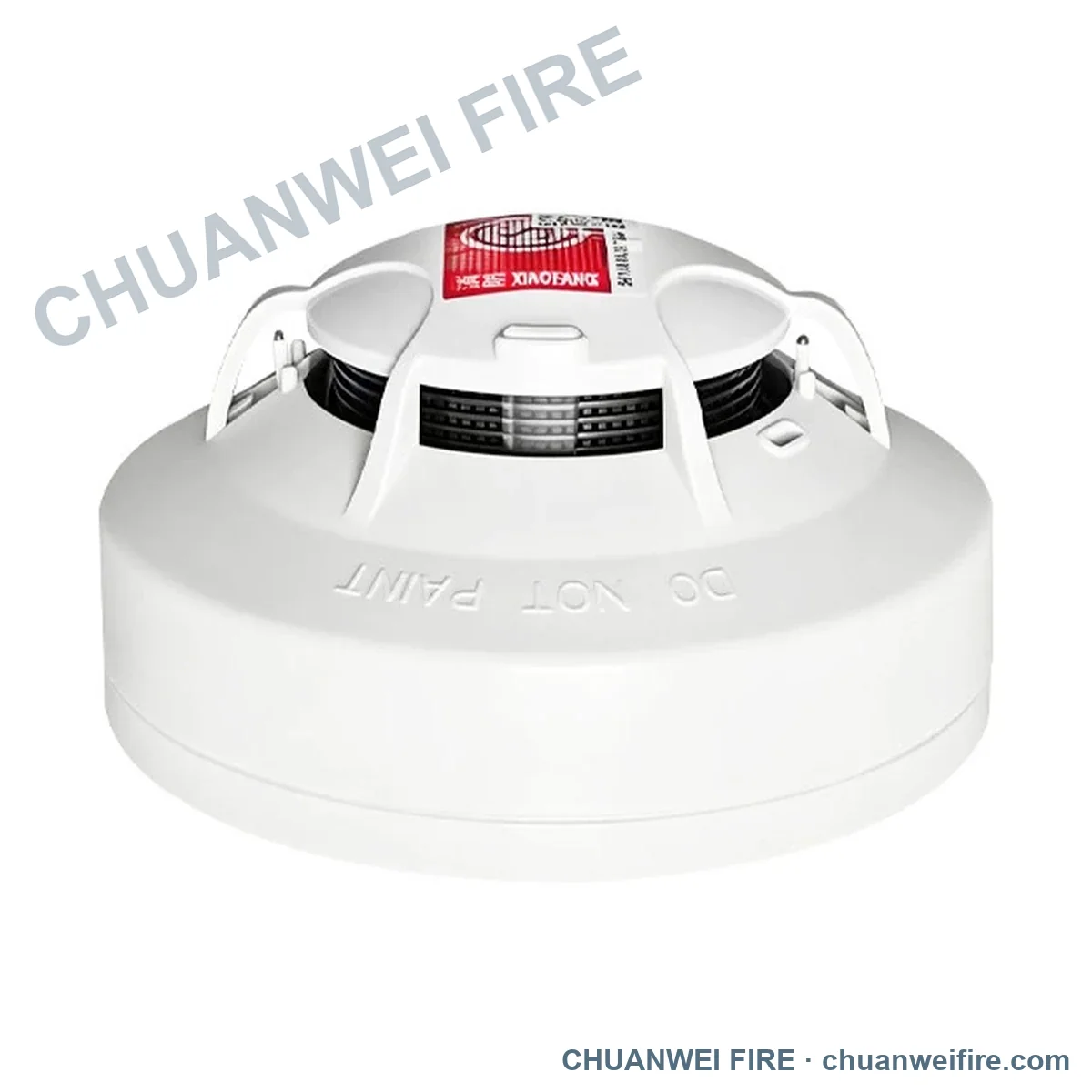

Tanda combined smoke and heat detector.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Product brand
- Tanda
- Detection
- Combined smoke and heat
- Supply voltage
- 24 V DC
- Standby current
- ≤0.4 mA
- Alarm current
- ≤0.7 mA
- Heat response class
- A2R
- Bus connection
- Non-polarized two-wire bus
- Addressing
- Electronic; addresses 1–242
- Matching base
- TX3986
- Operating temperature
- −10 to +50 °C
- Relative humidity
- ≤95% RH, non-condensing
- Housing material
- ABS
- Product weight
- Approx. 93 g
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Product reference | Selection details |
|---|---|---|
| Combined smoke and heat detector | JTF-GOM-TX3120A | A2R heat response; non-polarized two-wire bus; TX3986 base. |
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Control panel compatibilityProvide the control panel model, protocol and existing device references so compatibility can be checked before supply.
Base and installationSpecify whether the TX3986 base is required, together with the installation environment and quantity.
