Victaulic grooved fittings · 07.01
- Ductile iron grade
- ASTM A536 65-45-12
- Groove system
- OGS
Match the pipe outside diameter and groove profile; the assembly pressure rating also depends on the coupling and pipe.
Grooved Pipe Fittings
Grooved Equal Tees
Grooved equal tees form a branch connection using three grooved ports of the same nominal size. The red ductile iron body is shown with its end grooves and original casting marks.
Equal branch tee
Three grooved ends
Match the actual pipe dimensions and connection drawing when ordering. Size-specific dimensions and pressure data are available on request.
Product gallery
Product views

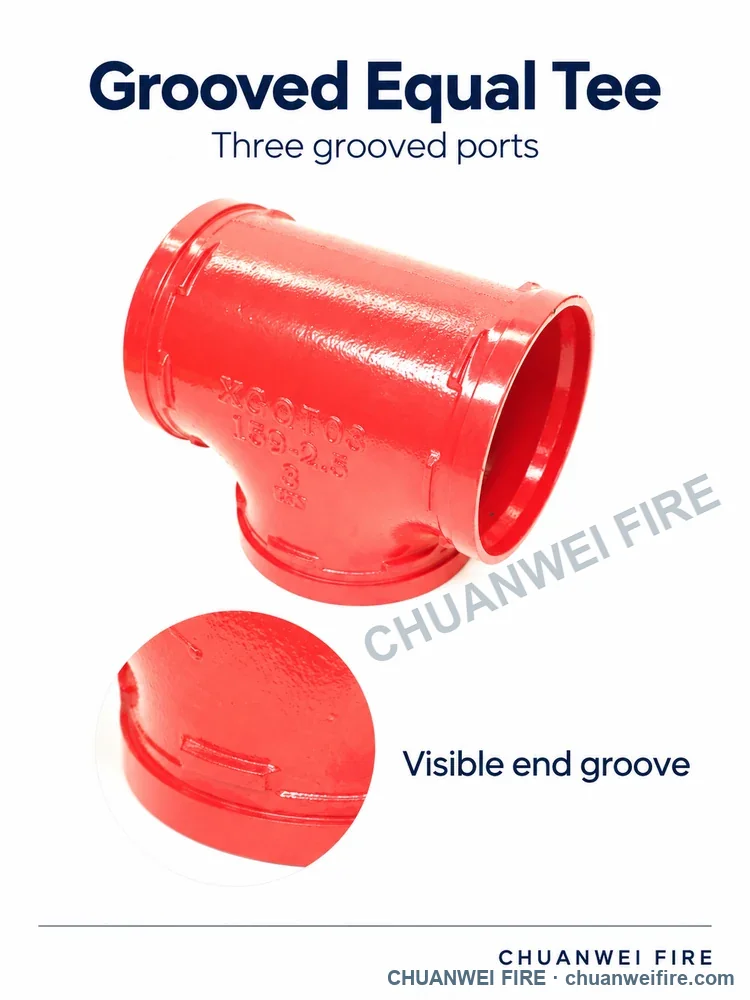

View the actual product photograph and the supporting feature illustration.

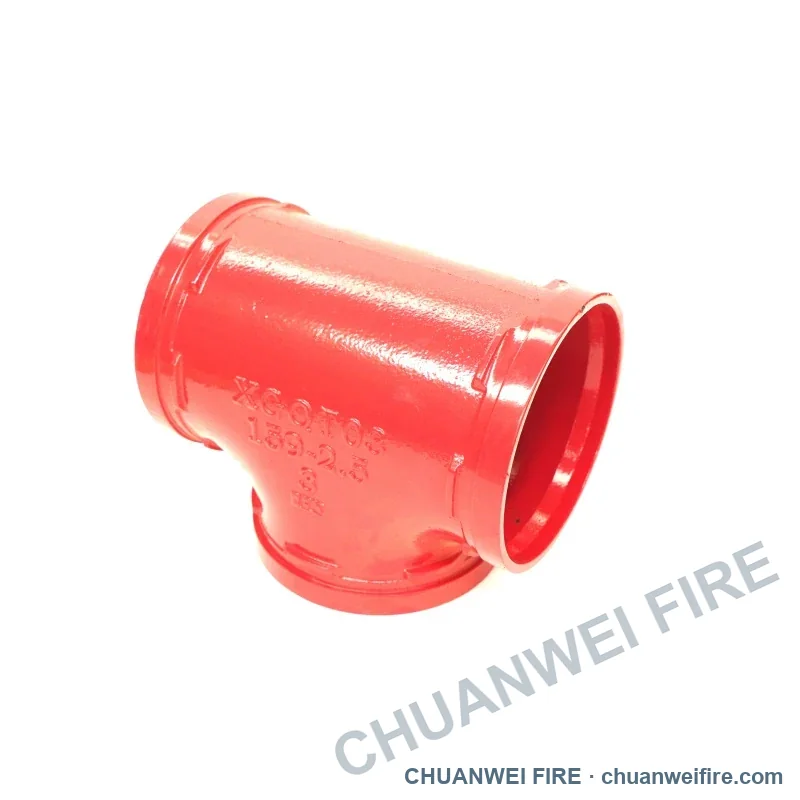

Grooved equal tee — actual product photograph1 / 2
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Configuration
- Equal branch tee
- Connection
- Three grooved ends
- Body material
- Ductile iron
- Application
- Fire protection water piping
- Origin
- Fujian, China
- Customization
- Available
- Nominal size / pipe outside diameter options
- DN50 / 60 mm; DN65 / 76 mm; DN80 / 89 mm; DN100 / 108 mm; DN100 / 114 mm; DN125 / 133 mm; DN125 / 140 mm; DN150 / 159 mm; DN150 / 165 mm; DN200 / 219 mm
Models & configurations
Models & configurations
The pictured configuration is available for quotation. Send the connection and service requirements below.
| Configuration | Selection details |
|---|---|
| Equal branch tee | Nominal size, actual pipe outside diameter, groove profile and quantity. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Connection and selectionNominal size, actual pipe outside diameter, groove profile and quantity.
Service and customizationSend the service requirements, quantity and destination. Customization is available; details are reviewed against your order.
Request product details and a quotation
Send your selected configuration, quantity and destination.
