Brass-Finish Female-Threaded Twin-Claw Coupling
Source connection or dimension data: inlet 2 in BSP; outlet 2 in · inlet 2.5 in BSP; outlet 2.5 in
5 directly selectable configurations from the supplied catalog
Threaded Adapters and Blank Caps
Use the configuration images to identify the required product, then confirm connection, material and performance data with the quotation.
5 illustrated configurations
Supplied electronic catalog page 25
To be confirmed with the quotation
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Available configurations
Silver-Finish Female-Threaded Twin-Claw Coupling
Source connection or dimension data: inlet 2 in BSP; outlet 2 in GOST · inlet 2.5 in BSP; outlet 2.5 in GOST
Brass-Finish Female-Threaded Disc-Type Coupling
Source connection or dimension data: inlet 2 in BSP; outlet 2 in Storz · inlet 2.5 in BSP; outlet 2.5 in Storz
Brass-Finish Chained Blank-Cap Coupling
Source connection or dimension data: inlet 1.5 in · inlet 2.5 in
Silver-Finish Chained Blank-Cap Coupling
Source connection or dimension data: inlet 1.5 in · inlet 2.5 in
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Configuration images
5 configurations to compare
Open each image to compare the general arrangement. Confirm small details, threads and cast markings against an original photo, mating sample or approved drawing.

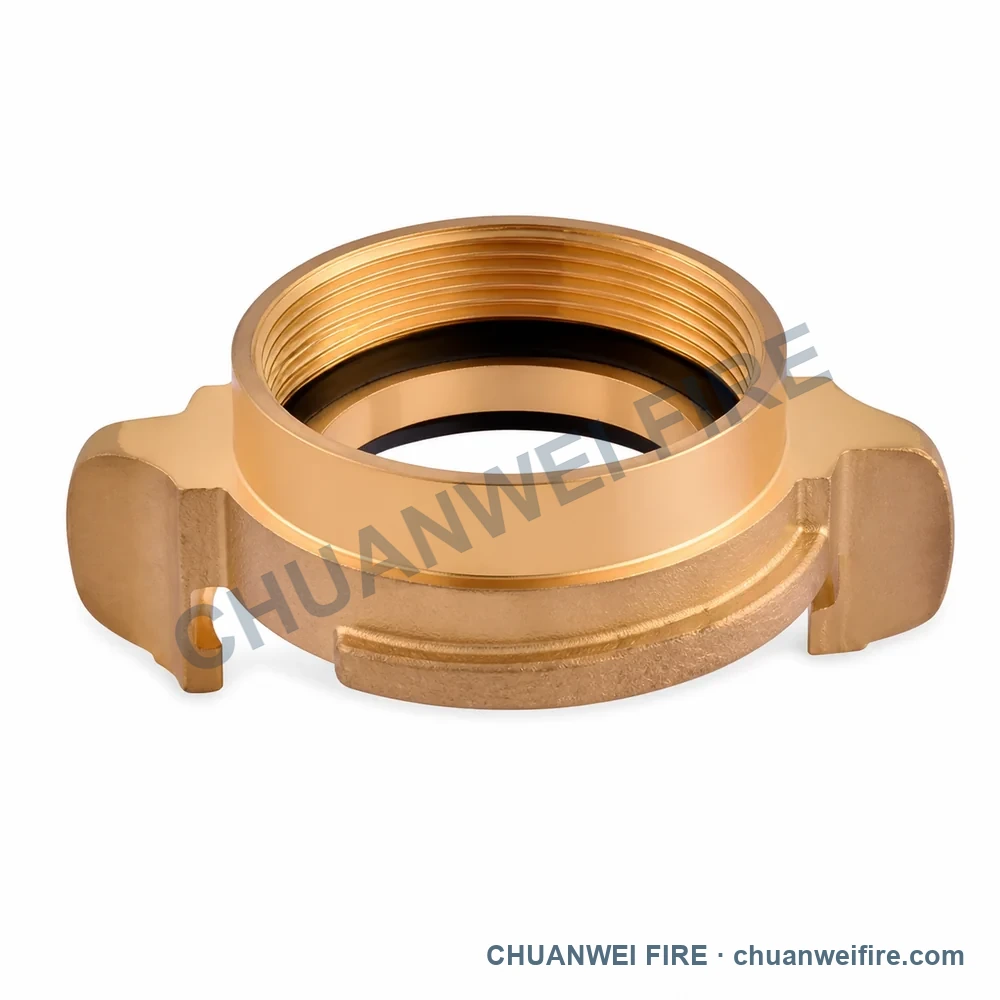

Brass-Finish Female-Threaded Twin-Claw Coupling1 / 5
Data scope
Confirmed source scope and quotation checks
Visible connection and dimension values were transcribed from the catalog to support configuration selection. Final order specifications are confirmed in the quotation.
- Product family
- Threaded Adapters and Blank Caps
- Available configurations
- 5 illustrated configurations
- Selection data source
- Supplied electronic catalog page 25
- CHUANWEI factory model
- To be confirmed with the quotation
- Technical data status
- Preliminary catalog data; order confirmation required
Available configurations
Configurations and linked source-catalog data
Each row shows a configuration and the connection or dimension entries visible in the supplied catalog.
| Configuration | Source connection or dimension data |
|---|---|
| Brass-Finish Female-Threaded Twin-Claw Coupling | inlet 2 in BSP; outlet 2 in · inlet 2.5 in BSP; outlet 2.5 in |
| Silver-Finish Female-Threaded Twin-Claw Coupling | inlet 2 in BSP; outlet 2 in GOST · inlet 2.5 in BSP; outlet 2.5 in GOST |
| Brass-Finish Female-Threaded Disc-Type Coupling | inlet 2 in BSP; outlet 2 in Storz · inlet 2.5 in BSP; outlet 2.5 in Storz |
| Brass-Finish Chained Blank-Cap Coupling | inlet 1.5 in · inlet 2.5 in |
| Silver-Finish Chained Blank-Cap Coupling | inlet 1.5 in · inlet 2.5 in |
Quotation confirmation
Confirm the configuration before production
Send the configuration image, size, connection, material, working pressure, quantity and destination. The quotation and approved drawing lock the final supply specification.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Threaded Adapters and Blank Caps requirement
Include the configuration, connection, material, pressure, quantity and destination country.
