Indoor First-Aid Fire Hose Reel
Straight-Stream Fire Hose Reel
A robust fire hose reel with a 19 mm semi-rigid hose and a copper straight-stream nozzle, for first-aid firefighting in indoor hydrant systems. Offered in 0.8, 1.0 and 1.6 MPa pressure classes.
Inlet connection, reel-plate diameter and marking are confirmed against the approved drawing, sample or order schedule before production.
Real product views

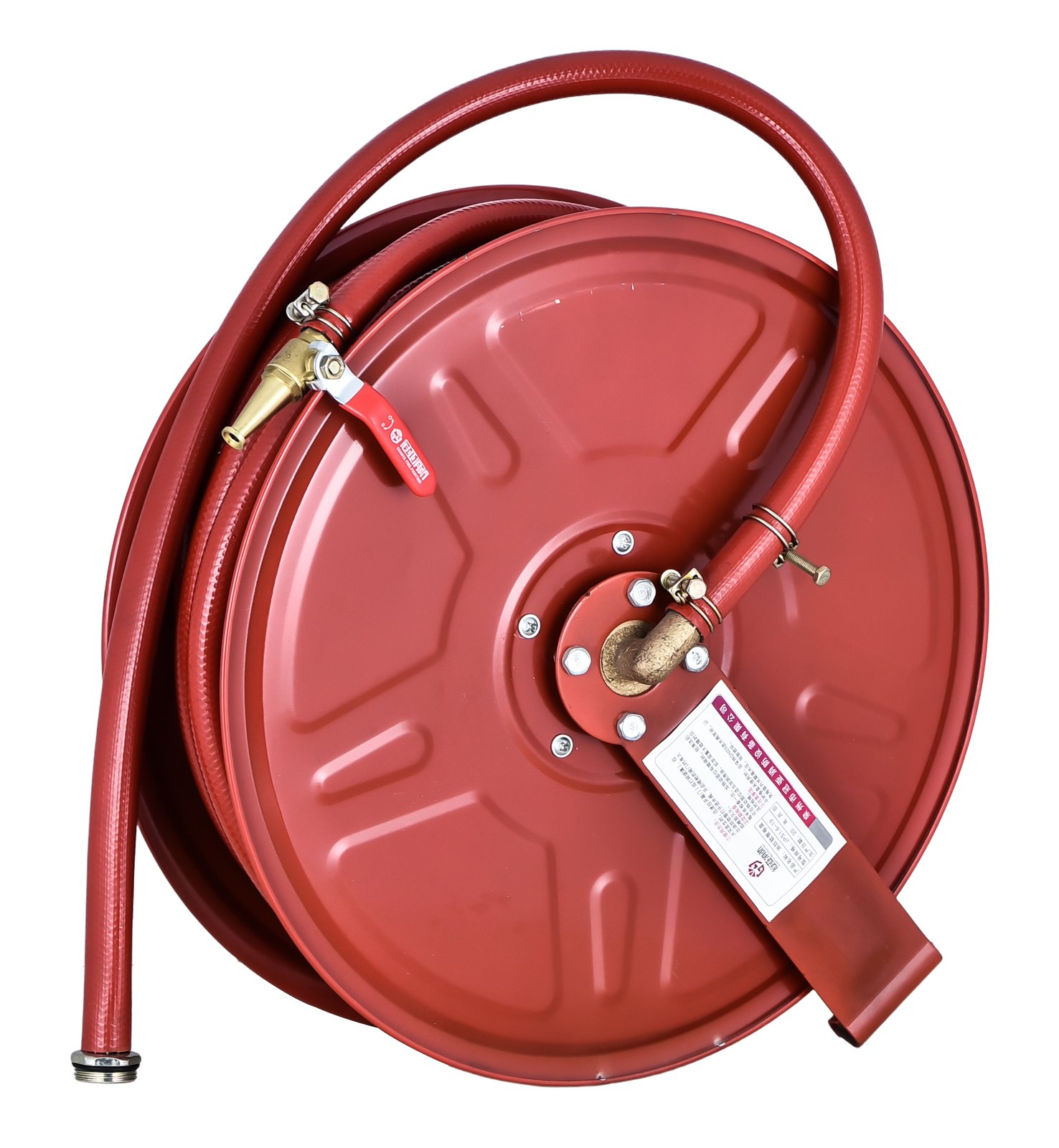

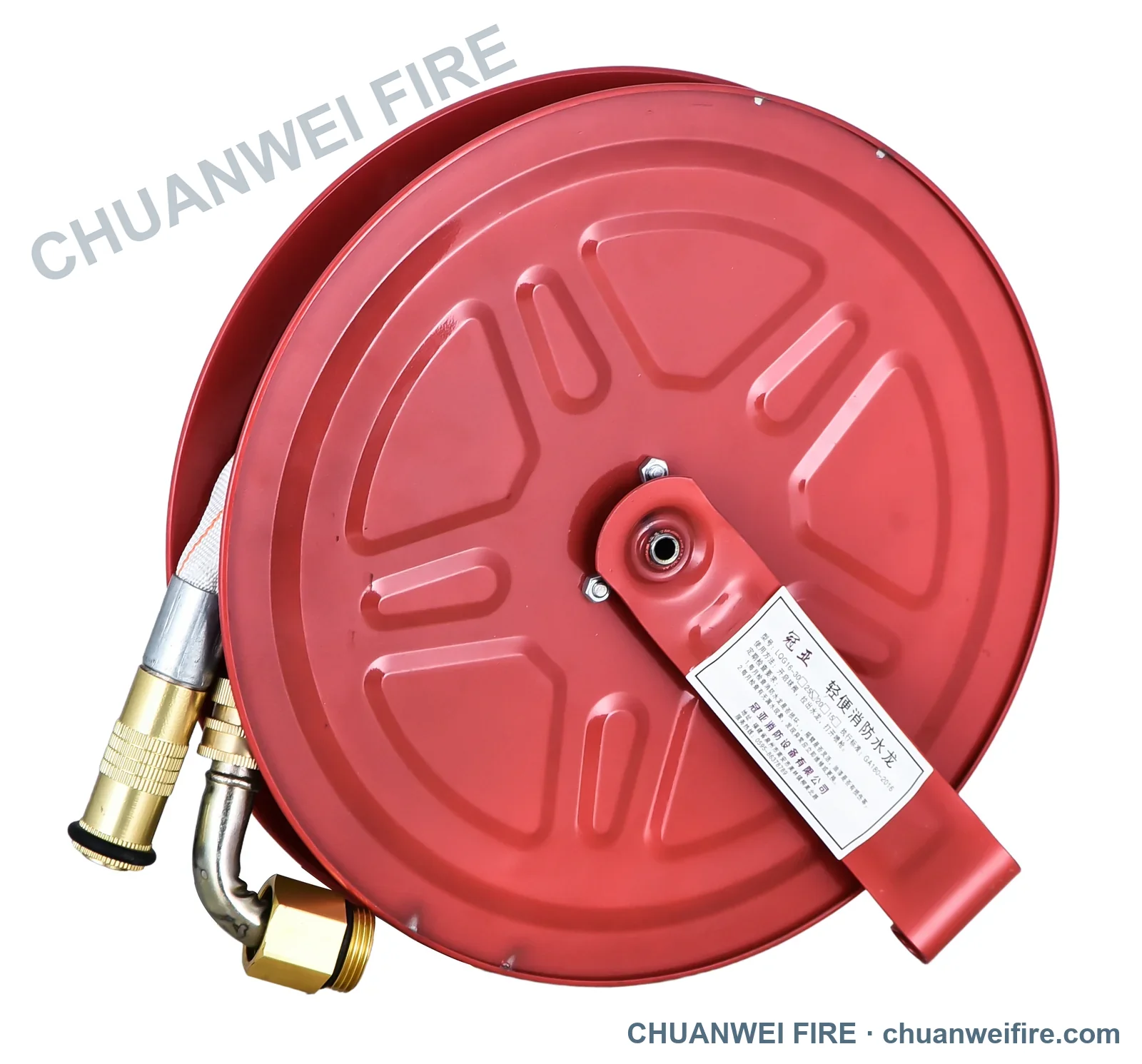

Reel assembly and nozzle detail
Photographs show the complete JPS hose reel assembly and the copper nozzle. The visible physical GUANYA / 冠亚 product markings are retained; CHUANWEI FIRE identifies the website and export-sales presentation.
Technical overview
Confirmed construction and operating data
Critical product data is presented in HTML for clear international sourcing. The reel is produced to a national standard; no foreign approval is claimed on this page.
Series specifications
- Product type
- Straight-Stream Fire Hose Reel
- Hose
- 19 mm / ¾ in semi-rigid hose
- Hose lengths
- 20 / 25 / 30 m
- Pressure classes
- 0.8 / 1.0 / 1.6 MPa
- Reel plate
- 400 / 430 / 450 mm (0.8, 1.0 MPa); 0.7 mm plate, diameter on request (1.6 MPa)
- Inlet
- Iron, DN25 / 1 in
- Nozzle
- Copper alloy; thicker copper nozzle on 1.0 / 1.6 MPa
- Hub
- Aluminium (0.8 MPa); iron (1.0 / 1.6 MPa)
- Installation
- Indoor hydrant box wall-mounted
- Standard
- GB 15090 (national fire hose reel standard); no foreign approval implied
Available models
Configurations for quotation
International size and pressure are the primary selection fields. JPS codes are retained only as factory references.
| International configuration | Pressure | Hose length | Reel diameter | Factory reference |
|---|---|---|---|---|
| Straight-Stream Fire Hose Reel | 0.8 MPa | 20 m / 65.6 ft | 400 mm | JPS0.8-19/20 |
| Straight-Stream Fire Hose Reel | 0.8 MPa | 25 m / 82 ft | 430 mm | JPS0.8-19/25 |
| Straight-Stream Fire Hose Reel | 0.8 MPa | 30 m / 98.4 ft | 450 mm | JPS0.8-19/30 |
| Straight-Stream Fire Hose Reel | 1.0 MPa | 20 m / 65.6 ft | 400 mm | JPS1.0-19/20 |
| Straight-Stream Fire Hose Reel | 1.0 MPa | 25 m / 82 ft | 430 mm | JPS1.0-19/25 |
| Straight-Stream Fire Hose Reel | 1.0 MPa | 30 m / 98.4 ft | 450 mm | JPS1.0-19/30 |
| Straight-Stream Fire Hose Reel | 1.6 MPa | 20 m / 65.6 ft | On request | JPS1.6-19/20 |
| Straight-Stream Fire Hose Reel | 1.6 MPa | 25 m / 82 ft | On request | JPS1.6-19/25 |
| Straight-Stream Fire Hose Reel | 1.6 MPa | 30 m / 98.4 ft | On request | JPS1.6-19/30 |
OEM / ODM capability
Configured to the approved drawing or sample
Manufacturing options are confirmed against the buyer's technical schedule. Standards and marking are confirmed together with the approved conformity documentation.
Send your hose reel schedule
Include pressure, hose length, inlet connection and quantity.
