Victaulic Styles 920 / 920N · 11.02
- Main × branch size range
- DN50 × DN15 – DN200 × DN100
Select the exact outlet connection and use the hole dimensions specified for that size.
Grooved Pipe Fittings
Threaded Mechanical Tees
Threaded mechanical tees provide a female-threaded branch outlet on a pipe. The pictured ductile iron assembly has a red two-piece saddle housing, side fasteners and a black gasket.
Female-threaded branch outlet
Bolted saddle with threaded outlet
Match the actual pipe dimensions and connection drawing when ordering. Size-specific dimensions and pressure data are available on request.
Product gallery
Product views

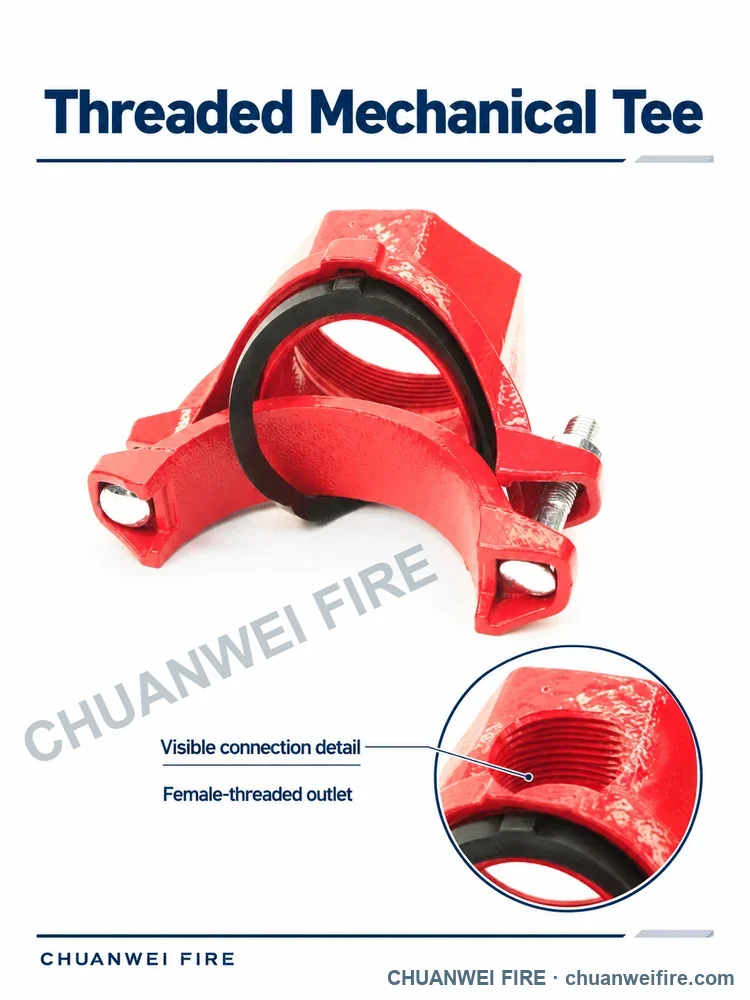

View the actual product photograph and the supporting feature illustration.

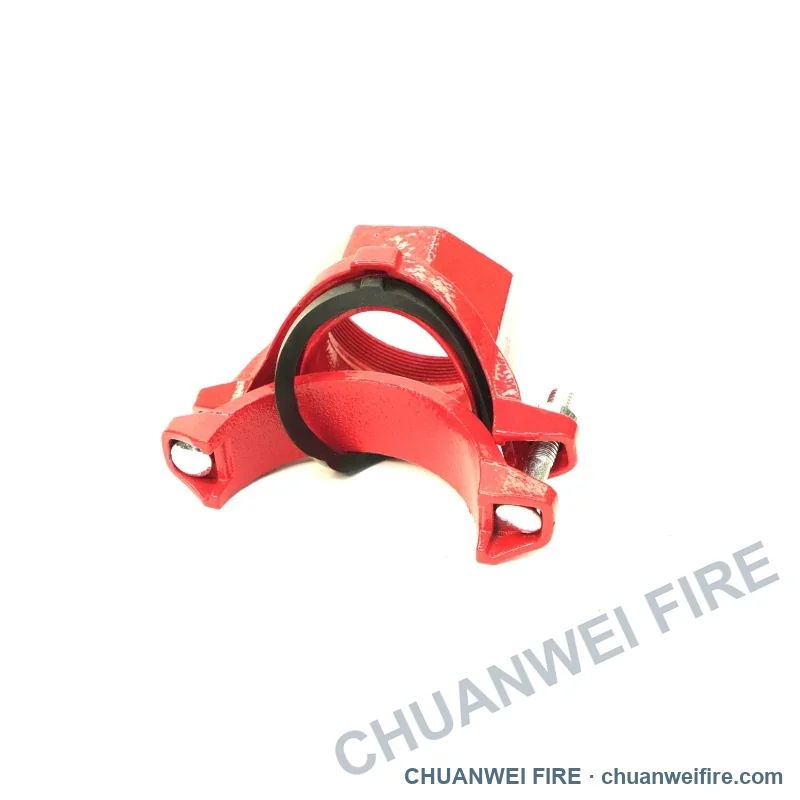

Threaded mechanical tee — actual product photograph1 / 2
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Configuration
- Female-threaded branch outlet
- Connection
- Bolted saddle with threaded outlet
- Body material
- Ductile iron body
- Application
- Fire protection water piping
- Origin
- Fujian, China
- Customization
- Available
Models & configurations
Models & configurations
The pictured configuration is available for quotation. Send the connection and service requirements below.
| Configuration | Selection details |
|---|---|
| Female-threaded branch outlet | Main pipe outside diameter, branch thread size and thread standard, gasket requirements and quantity. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Connection and selectionMain pipe outside diameter, branch thread size and thread standard, gasket requirements and quantity.
Service and customizationSend the service requirements, quantity and destination. Customization is available; details are reviewed against your order.
