Grooved Pipe Fittings
Grooved Flange Adapters
Grooved flange adapters connect a grooved pipe end to a flanged connection. The pictured range has a red surface, a short grooved neck, a central bore, bolt holes and radial reinforcing ribs.
Grooved-to-flanged adapter
Grooved neck and flange face
Match the actual pipe dimensions and connection drawing when ordering. Size-specific dimensions and pressure data are available on request.
Product gallery
Product views

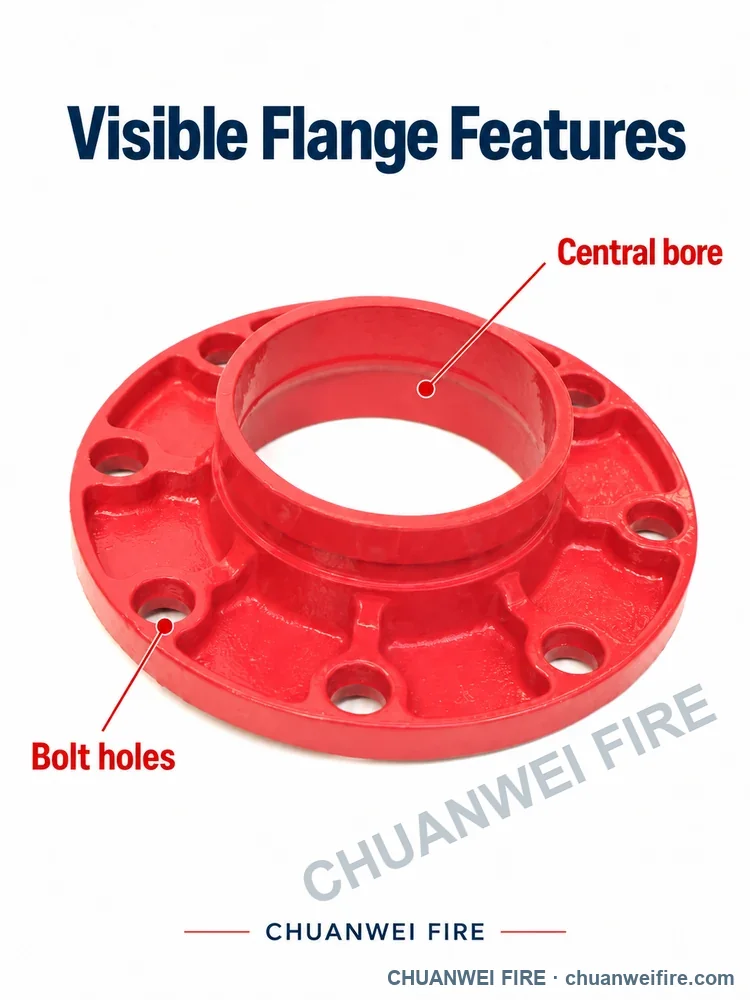

View the actual product photograph and the supporting feature illustration.
Grooved flange adapter range — actual product photograph1 / 2
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Configuration
- Grooved-to-flanged adapter
- Connection
- Grooved neck and flange face
- Body material
- Ductile iron
- Application
- Fire protection water piping
- Origin
- Fujian, China
- Customization
- Available
Models & configurations
Models & configurations
The pictured configuration is available for quotation. Send the connection and service requirements below.
| Configuration | Selection details |
|---|---|
| Grooved-to-flanged adapter | Pipe outside diameter, flange drilling standard or drawing, bolt-hole dimensions and quantity. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Connection and selectionPipe outside diameter, flange drilling standard or drawing, bolt-hole dimensions and quantity.
Service and customizationSend the service requirements, required body material, quantity and destination. Customization details are reviewed against your order.
Request product details and a quotation
Send your selected configuration, quantity and destination.
