NIBCO T-580-S6-R-66-LL
- Seat material
- Reinforced PTFE
- Operating rotation
- 90°
Specify the thread standard and the required pressure at the operating temperature.
Pipeline Valves & Strainers
Two-piece Stainless Steel Ball Valves
A 304 stainless steel two-piece ball valve with a manual lever and female threaded ends for pressure gauge connections. Connection options are PT1/4 and PT1/2.
304 stainless steel
Two piece
Female threaded ends
Choose PT1/4 or PT1/2 and provide the mating thread drawing for dimensional verification.
Product gallery
Product views
Select an image to view the pictured product or configuration.

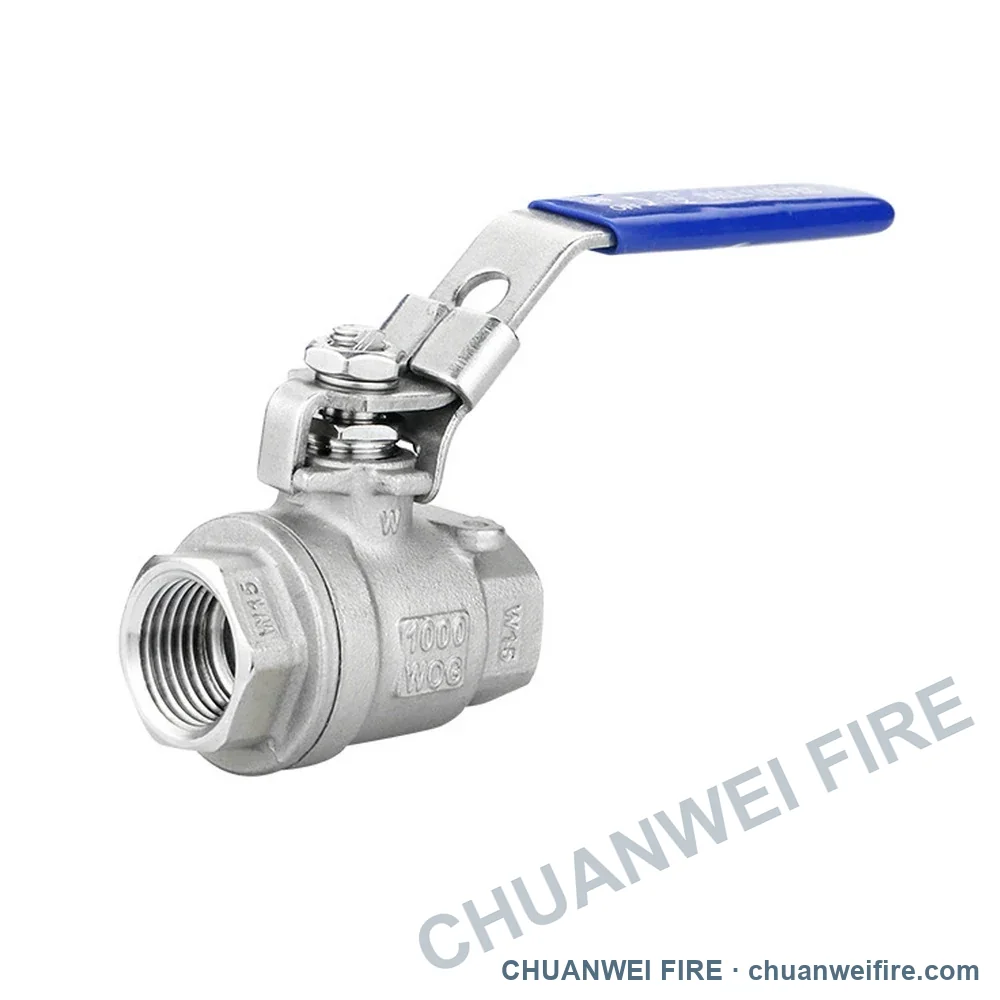

Two-piece stainless steel ball valve with manual lever.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Material
- 304 stainless steel
- Body construction
- Two piece
- Connection
- Female threaded ends
- Thread designations
- PT1/4 / PT1/2
- Operation
- Manual lever
- Application
- Pressure gauge connections
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Selection details |
|---|---|
| PT1/4 female × female | Match the thread designation to the mating connection drawing. |
| PT1/2 female × female | Match the thread designation to the mating connection drawing. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Thread matchChoose PT1/4 or PT1/2 and provide the mating thread drawing for dimensional verification.
Service conditionsState the working fluid, operating pressure and temperature for the exact supplied configuration.
Request product details and a quotation
Send your selected configuration, quantity and destination.
