Brass-Finish Plug-In White Fire Hose Assembly
Source connection or dimension data: inlet 1.5 in BS336 · inlet 2 in BS336 · inlet 2.5 in BS336
4 directly selectable configurations from the supplied catalog
Fire Hose Assemblies and Hose Reels
Use the configuration images to identify the required product, then confirm connection, material and performance data with the quotation.
4 illustrated configurations
Supplied electronic catalog page 28
To be confirmed with the quotation
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Available configurations
Brass-Finish Threaded White Fire Hose Assembly
Source connection or dimension data: inlet 1.5 in NH · inlet 2.5 in NH
Silver-Finish Claw-Coupled Striped Fire Hose Assembly
Source connection or dimension data: inlet 2 in GOST · inlet 2.5 in GOST
Silver-Finish Bracket-Mounted Red Fire Hose Reel
Source connection or dimension data: inlet Ø32 mm; outlet 15.6 mm
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Configuration images
4 configurations to compare
Open each image to compare the general arrangement. Confirm small details, threads and cast markings against an original photo, mating sample or approved drawing.

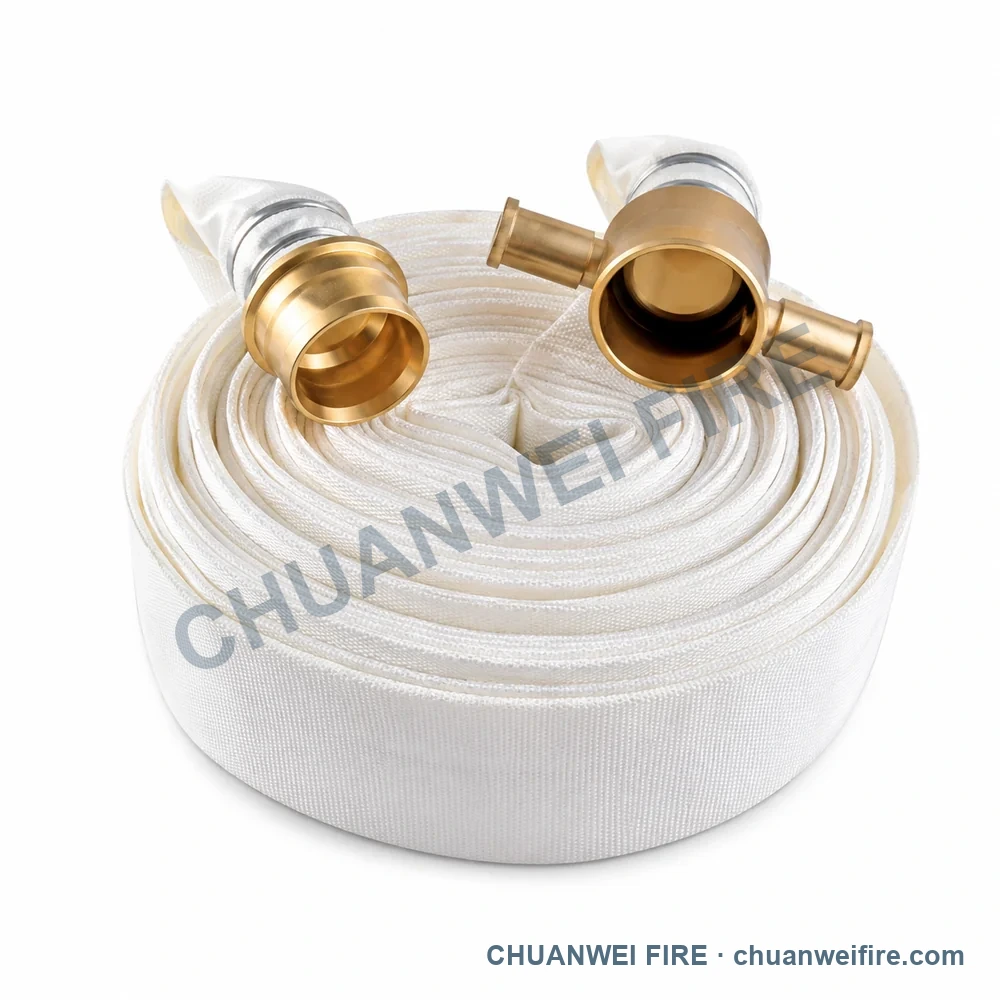

Brass-Finish Plug-In White Fire Hose Assembly1 / 4
Data scope
Confirmed source scope and quotation checks
Visible connection and dimension values were transcribed from the catalog to support configuration selection. Final order specifications are confirmed in the quotation.
- Product family
- Fire Hose Assemblies and Hose Reels
- Available configurations
- 4 illustrated configurations
- Selection data source
- Supplied electronic catalog page 28
- CHUANWEI factory model
- To be confirmed with the quotation
- Technical data status
- Preliminary catalog data; order confirmation required
Available configurations
Configurations and linked source-catalog data
Each row shows a configuration and the connection or dimension entries visible in the supplied catalog.
| Configuration | Source connection or dimension data |
|---|---|
| Brass-Finish Plug-In White Fire Hose Assembly | inlet 1.5 in BS336 · inlet 2 in BS336 · inlet 2.5 in BS336 |
| Brass-Finish Threaded White Fire Hose Assembly | inlet 1.5 in NH · inlet 2.5 in NH |
| Silver-Finish Claw-Coupled Striped Fire Hose Assembly | inlet 2 in GOST · inlet 2.5 in GOST |
| Silver-Finish Bracket-Mounted Red Fire Hose Reel | inlet Ø32 mm; outlet 15.6 mm |
Quotation confirmation
Confirm the configuration before production
Send the configuration image, size, connection, material, working pressure, quantity and destination. The quotation and approved drawing lock the final supply specification.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Fire Hose Assemblies and Hose Reels requirement
Include the configuration, connection, material, pressure, quantity and destination country.
