Datian J41T-16
- Nominal pressure
- 1.6 MPa
- Body material
- Grey cast iron
Match flange drilling, medium and operating temperature to the offered valve.
Pipeline Valves & Strainers
Flanged Globe Valves
The J41T globe valve provides manual flow shutoff in fire water supply pipelines, using a handwheel, ductile iron body and bolted bonnet.
J41T
Ductile iron
PN16 / 1.6 MPa
Specify the nominal size and provide the mating flange drilling and installation dimensions.
Product gallery
Product views
Select an image to view the pictured product or configuration.

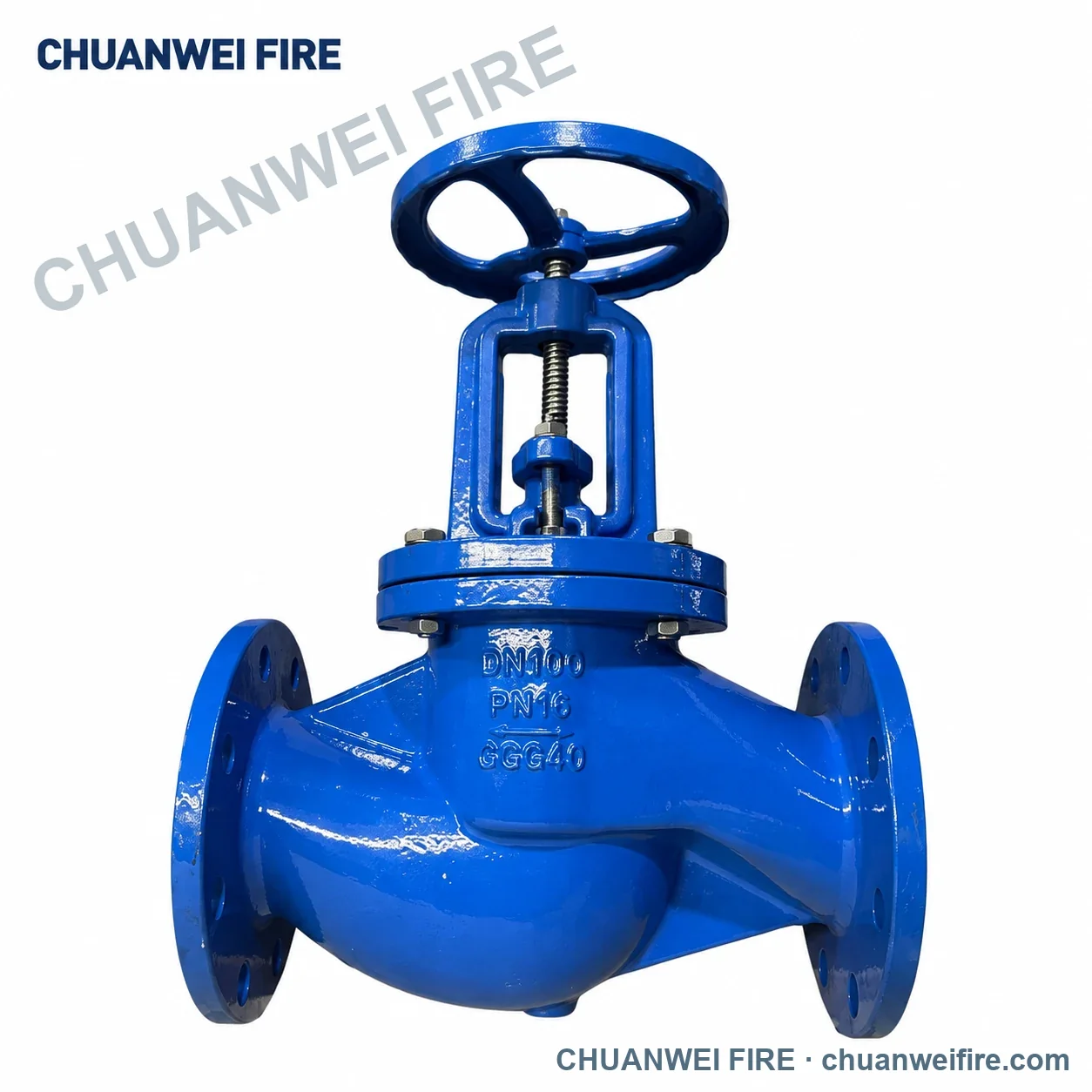

J41T flanged globe valve with manual handwheel.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Model
- J41T
- Body material
- Ductile iron
- Nominal pressure
- PN16 / 1.6 MPa
- Nominal sizes
- DN50 / DN80 / DN100 / DN150 / DN200
- Connection
- Flanged
- Operation
- Manual handwheel
- Bonnet
- Bolted
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Product reference | Selection details |
|---|---|---|
| DN50 | J41T | J41T · DN50 · flanged connection |
| DN80 | J41T | J41T · DN80 · flanged connection |
| DN100 | J41T | J41T · DN100 · flanged connection |
| DN150 | J41T | J41T · DN150 · flanged connection |
| DN200 | J41T | J41T · DN200 · flanged connection |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Size and mating flangeSpecify the nominal size and provide the mating flange drilling and installation dimensions.
Service conditionsState the working fluid, operating pressure and temperature for the exact supplied configuration.
Request product details and a quotation
Send your selected configuration, quantity and destination.
