Tornatech GPx series
- Supply frequency
- 50 / 60 Hz
- Starting methods
- Full or reduced voltage
This is a fire-pump controller reference. Inspection sequences, interlocks and bypass functions must be specified for the required cabinet.
Fire Pumps & Control Cabinets
Fire Pump Inspection & Control Cabinets
Choose an inspection control cabinet or a dual power cabinet for the required fire pump electrical arrangement. The photographed configurations are identified separately in the selection table.
JX-XFXJ-7.5 / JX-ATS-63A
Inspection control
Dual power supply control
State the number of connected pumps, each motor rating and the inspection or power-control function required.
Product gallery
Product views
Select an image to view the pictured product or configuration.

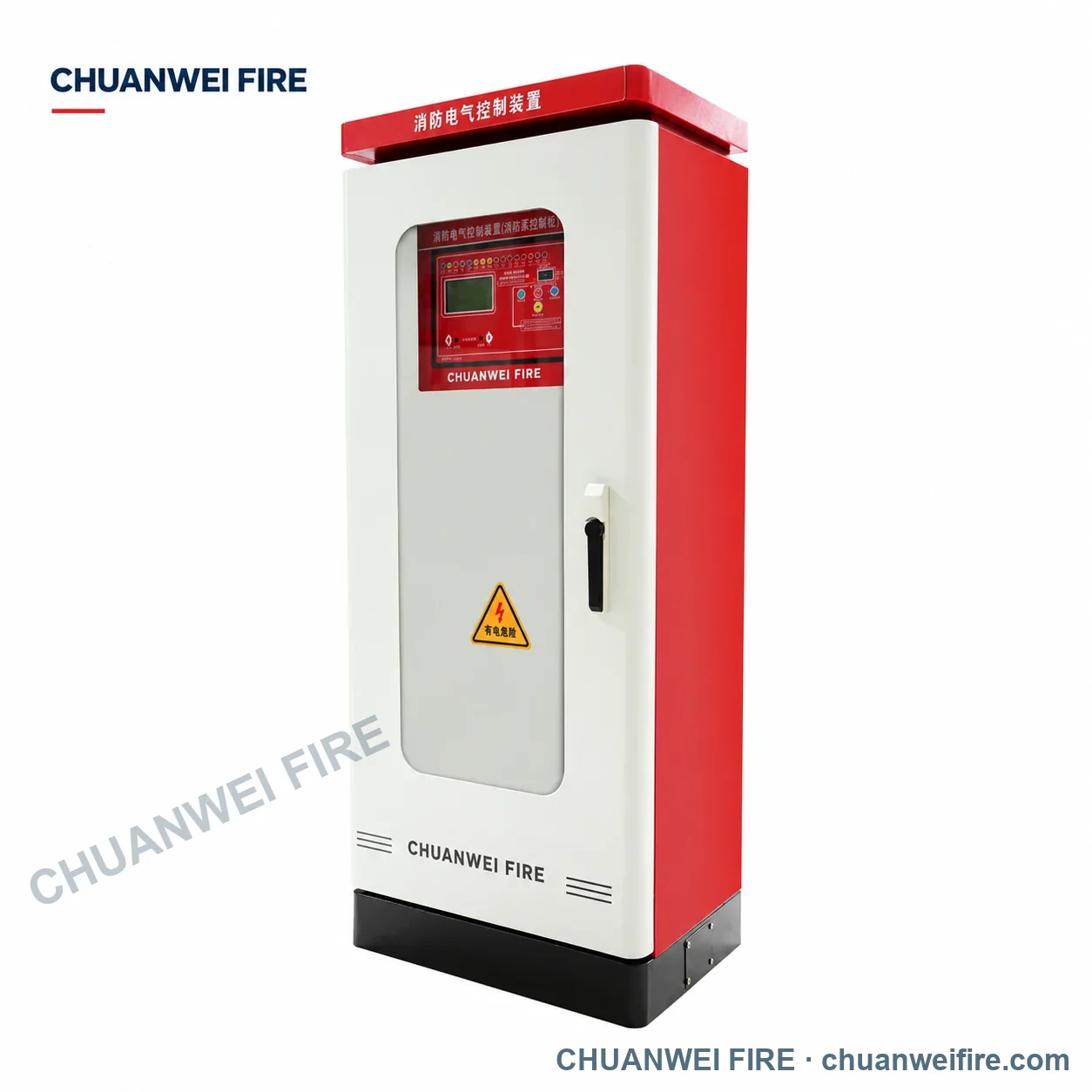

JX-XFXJ series inspection cabinet reference.1 / 2
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Named cabinet models
- JX-XFXJ-7.5 / JX-ATS-63A
- JX-XFXJ-7.5 function
- Inspection control
- JX-ATS-63A function
- Dual power supply control
- Named cabinet supply
- 380 V
- Named cabinet enclosure
- Cold rolled steel
- Additional photographed cabinet supply
- 380 V
- Additional photographed cabinet enclosure
- Cold rolled steel
- JX-XFXJ-7.5 / JX-ATS-63A cabinet dimensions
- 1200 × 600 × 400 mm
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Selection details |
|---|---|
| JX-XFXJ-7.5 inspection cabinet | Inspection control; 380 V. Request the model-specific cabinet layout and installation drawing. |
| JX-ATS-63A dual power cabinet | Dual power control; 380 V. Request the model-specific cabinet layout and installation drawing. |

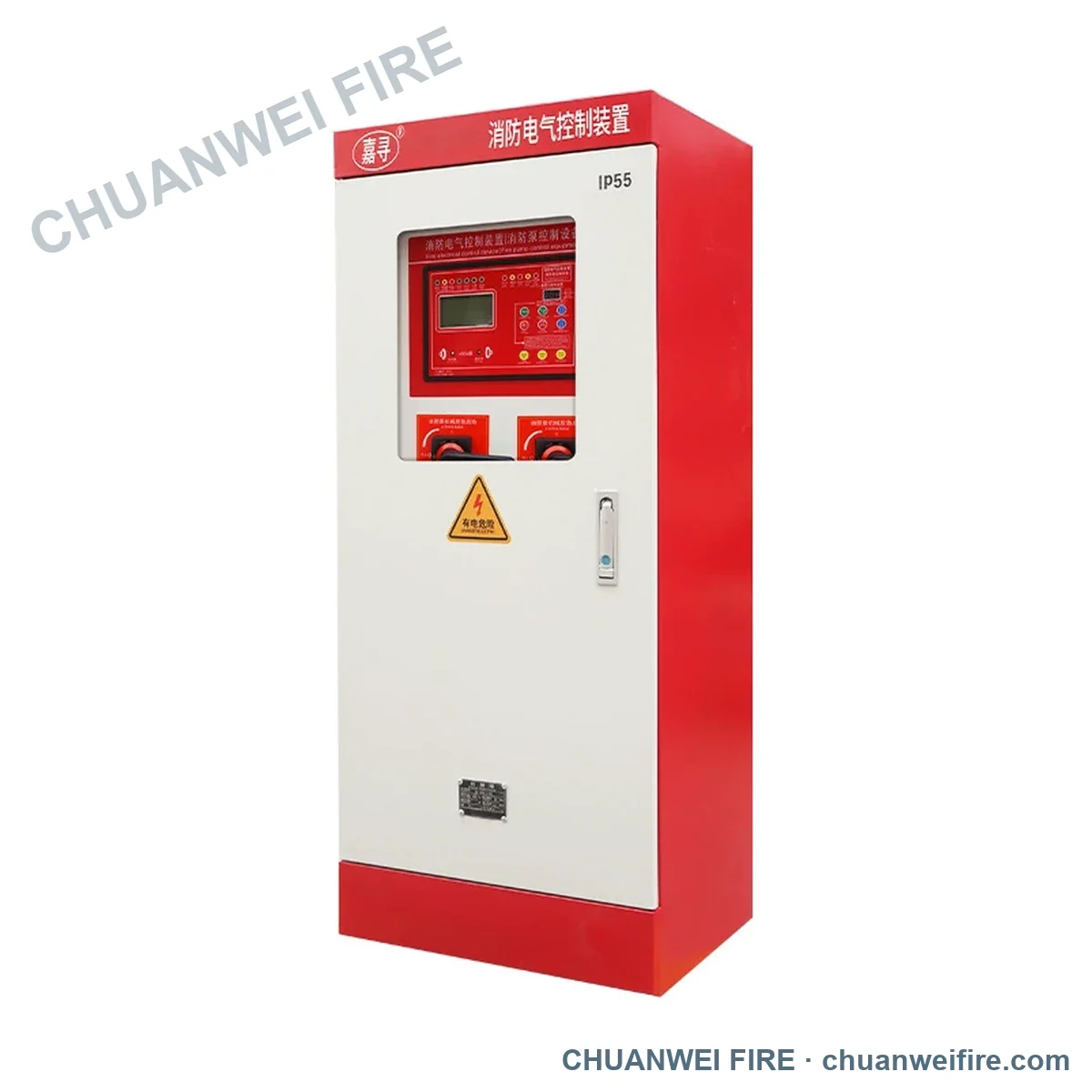

| Additional inspection cabinet configuration | 380 V, cold rolled steel enclosure. Include the pictured configuration with your enquiry. |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Pump and control dutyState the number of connected pumps, each motor rating and the inspection or power-control function required.
Schematic and installationSend the approved control schematic, supply frequency and cabinet layout; identify the photographed configuration to be supplied.
Request product details and a quotation
Send your selected configuration, quantity and destination.
