Red Two-Way Flanged Fire Department Connection
Source connection or dimension data: inlet 2.5 in BS336; outlet 4 in (100 mm)
5 directly selectable configurations from the supplied catalog
Fire Service Connections and Two-Way Distributors
Use the configuration images to identify the required product, then confirm connection, material and performance data with the quotation.
5 illustrated configurations
Supplied electronic catalog page 15
To be confirmed with the quotation
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Available configurations
Red Four-Way Fire Department Connection
Source connection or dimension data: inlet 2.5 in BS336; outlet 6 in (150 mm)
Red Twin-Lever Two-Way Fire Hose Distributor
Source connection or dimension data: inlet 4 in NH; outlet 2.5 in NH
Red Twin-Handwheel Flanged Two-Way Fire Hose Distributor
Source connection or dimension data: inlet 4 in (100 mm); outlet 4 in (100 mm)
Red-and-Brass-Finish Twin-Valve Two-Way Fire Hose Distributor
Source connection or dimension data: inlet 2.5 in BSP; outlet 1.5 in French · inlet 4 in BSP; outlet 2.5 in French
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Configuration images
5 configurations to compare
Open each image to compare the general arrangement. Confirm small details, threads and cast markings against an original photo, mating sample or approved drawing.

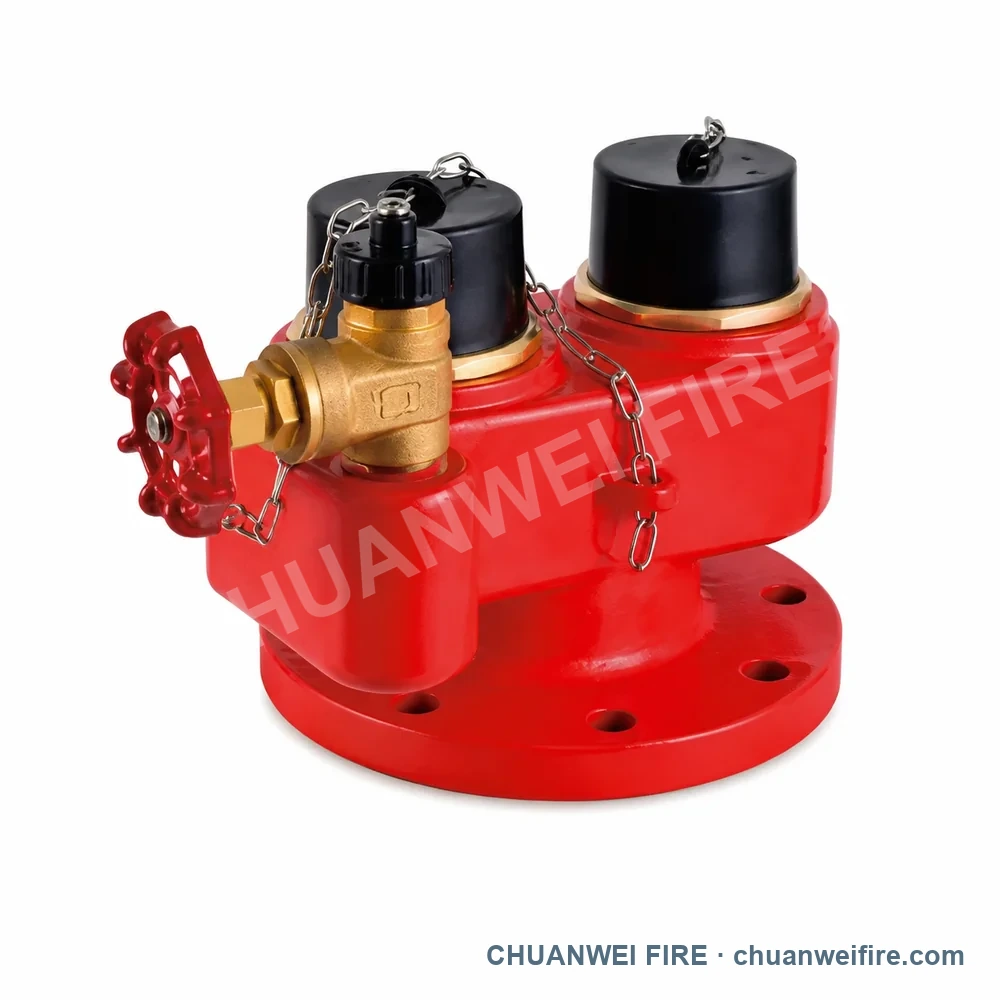

Red Two-Way Flanged Fire Department Connection1 / 5
Data scope
Confirmed source scope and quotation checks
Visible connection and dimension values were transcribed from the catalog to support configuration selection. Final order specifications are confirmed in the quotation.
- Product family
- Fire Service Connections and Two-Way Distributors
- Available configurations
- 5 illustrated configurations
- Selection data source
- Supplied electronic catalog page 15
- CHUANWEI factory model
- To be confirmed with the quotation
- Technical data status
- Preliminary catalog data; order confirmation required
Available configurations
Configurations and linked source-catalog data
Each row shows a configuration and the connection or dimension entries visible in the supplied catalog.
| Configuration | Source connection or dimension data |
|---|---|
| Red Two-Way Flanged Fire Department Connection | inlet 2.5 in BS336; outlet 4 in (100 mm) |
| Red Four-Way Fire Department Connection | inlet 2.5 in BS336; outlet 6 in (150 mm) |
| Red Twin-Lever Two-Way Fire Hose Distributor | inlet 4 in NH; outlet 2.5 in NH |
| Red Twin-Handwheel Flanged Two-Way Fire Hose Distributor | inlet 4 in (100 mm); outlet 4 in (100 mm) |
| Red-and-Brass-Finish Twin-Valve Two-Way Fire Hose Distributor | inlet 2.5 in BSP; outlet 1.5 in French · inlet 4 in BSP; outlet 2.5 in French |
Quotation confirmation
Confirm the configuration before production
Send the configuration image, size, connection, material, working pressure, quantity and destination. The quotation and approved drawing lock the final supply specification.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Fire Service Connections and Two-Way Distributors requirement
Include the configuration, connection, material, pressure, quantity and destination country.
