Standard Response Fire Sprinklers

A 5 mm glass bulb sprinkler family for wet-pipe automatic sprinkler systems, available in pendent, upright and horizontal sidewall configurations. Choose from two nominal sizes and seven temperature ratings.

K5.6 / K8.0 USDN15 / ½ in · DN20 / ¾ in5 mm Glass Bulb3 Installation StylesOEM / ODM

Ask on WhatsApp View available models

Factory references are shown for order matching. Thread form, marking and documentation are confirmed against the destination market and approved sample.

Product presentation

Three installation styles.

Use the arrows or thumbnails to review the complete range and each individual configuration. Product markings remain visible for factory identification and repeat-order matching.

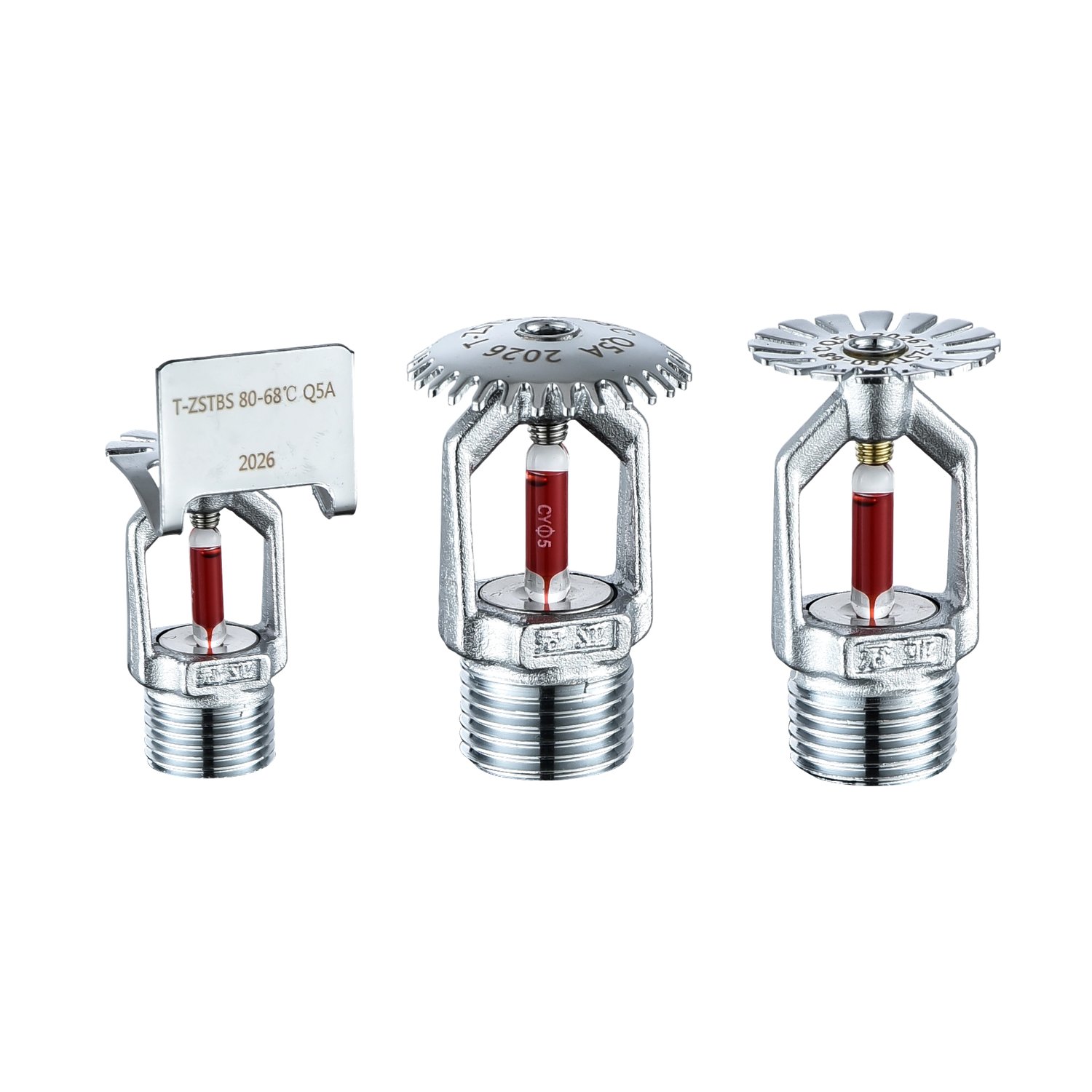

Three standard response sprinkler configurations

Available Configurations1 / 4

Technical overview

International buyer specifications

International product names and unit equivalents are presented first. Domestic codes are retained only for factory order matching.

Product specifications

Product type: Standard Response Standard Spray Sprinkler
Installation: Pendent, Upright or Horizontal Sidewall
Nominal sizes: DN15 / ½ in; DN20 / ¾ in
K-factor: K5.6 US / K80 metric; K8.0 US / K115 metric
Thermal element: 5 mm glass bulb
Temperature options: 57°C / 135°F, 68°C / 155°F, 79°C / 175°F, 93°C / 200°F, 141°C / 286°F, 182°C / 360°F, 260°C / 500°F
Frame material: Copper
Surface finish: Chrome-plated or natural copper finish
Thread form: Manufactured to the confirmed customer drawing or approved sample
Max. working pressure: 1.2 MPa / 12 bar / approx. 175 psi
Unit weight: Approx. 45–80 g, depending on size and configuration
Standard packing: 100 pcs per export carton
System application: Wet-pipe automatic sprinkler systems
Compliance: Documentation reviewed according to the confirmed order and destination market; no foreign approval is implied

Available configurations

Models you can order

All listed installation styles and temperature ratings are available in both nominal sizes. Factory references are secondary production identifiers.

Configuration	Nominal size	K-factor	Temperature options	Factory reference
Pendent, Standard ResponseDeflector facing downward when installed	DN15 / ½ in	K5.6 US / K80 metric	57, 68, 79, 93, 141, 182, 260°C	T-ZSTX80 series
Upright, Standard ResponseDeflector facing upward when installed	DN15 / ½ in	K5.6 US / K80 metric	57, 68, 79, 93, 141, 182, 260°C	T-ZSTZ80 series
Horizontal Sidewall, Standard ResponseSidewall installation	DN15 / ½ in	K5.6 US / K80 metric	57, 68, 79, 93, 141, 182, 260°C	T-ZSTBS80 series
Pendent, Standard ResponseDeflector facing downward when installed	DN20 / ¾ in	K8.0 US / K115 metric	57, 68, 79, 93, 141, 182, 260°C	T-ZSTX115 series
Upright, Standard ResponseDeflector facing upward when installed	DN20 / ¾ in	K8.0 US / K115 metric	57, 68, 79, 93, 141, 182, 260°C	T-ZSTZ115 series
Horizontal Sidewall, Standard ResponseSidewall installation	DN20 / ¾ in	K8.0 US / K115 metric	57, 68, 79, 93, 141, 182, 260°C	T-ZSTBS115 series

Specify orientation, nominal size, K-factor, operating temperature, finish, thread requirement and marking when requesting a quotation.

OEM / ODM support

Configured for your brand and market.

Product marking, finish, thread form and export packaging can be reviewed after the model and destination requirements are confirmed.

Product markingCustomer brand and model marking according to available marking space.

Surface finishChrome-plated and natural copper finish options.

ConnectionThread form manufactured to a confirmed drawing or approved sample.

Export packagingPrivate-label cartons, labels and shipping marks available for review.

Send us your sprinkler requirement.

Include country, orientation, size, temperature, thread, finish, quantity and OEM request.
