Fire Alarm Equipment
Manual Fire Alarm Call Points
Tanda manual fire alarm call points with a telephone socket. The supplied TX3142 configuration provides a manual alarm activation point for a compatible fire alarm system.
Tanda
Manual fire alarm call point
Manual
Provide the control panel model, protocol and existing device references so compatibility can be checked before supply.
Product gallery
Product views
Select an image to view the pictured product or configuration.

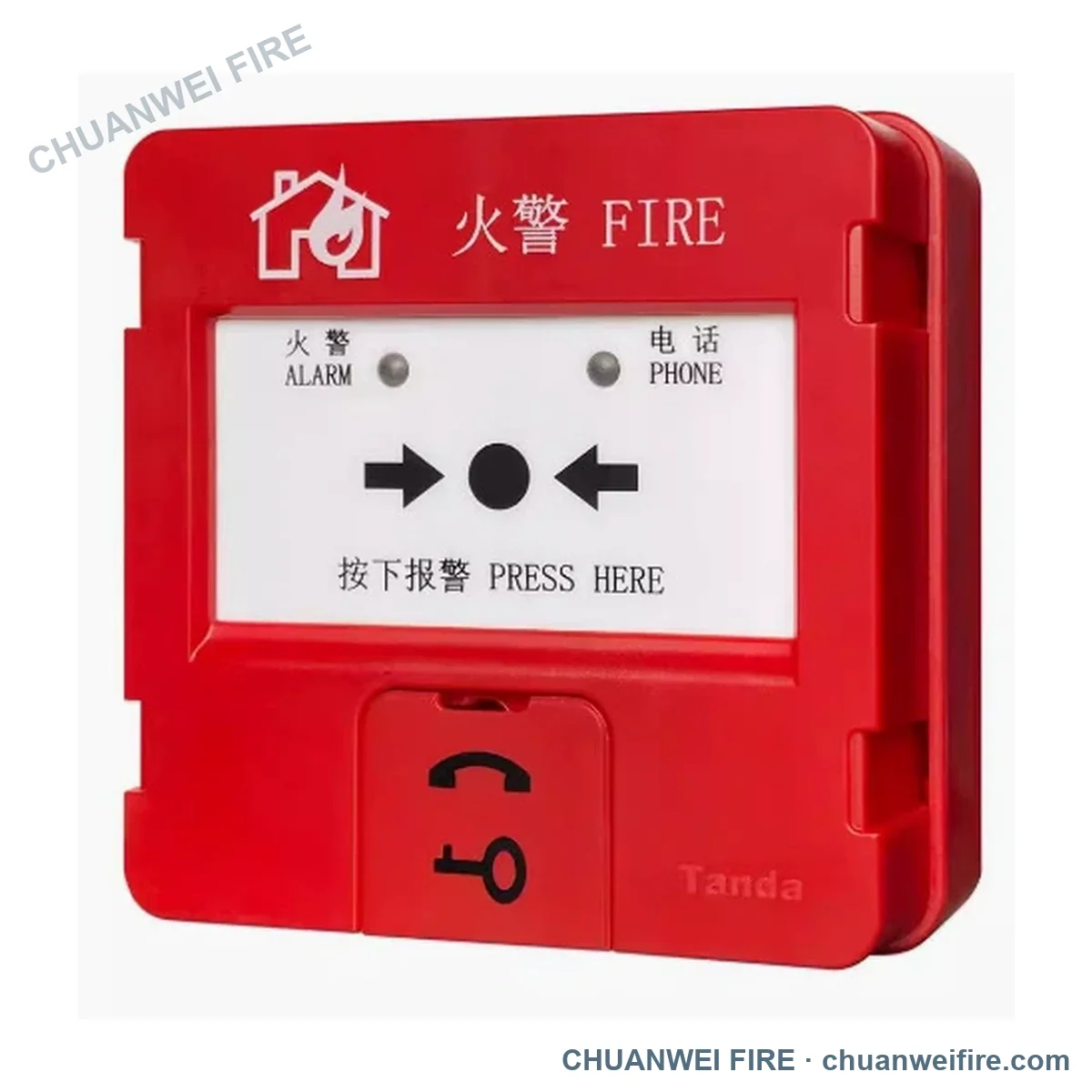

TX3142 manual call point with telephone socket.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Product brand
- Tanda
- Product type
- Manual fire alarm call point
- Alarm activation
- Manual
- Additional feature
- Telephone socket
- Bus voltage
- 15–28 V pulsed
- Bus current
- Standby ≤0.5 mA; alarm ≤0.8 mA
- Dry contact output
- 30 V DC / 100 mA rated
- Reset method
- Reusable element; dedicated reset key
- Bus connection
- Non-polarized two-wire bus
- Matching base
- TX3988
- Dimensions including base
- 90 × 90 × 34 mm
- Enclosure protection
- IP43; indoor use
- Operating temperature
- −10 to +55 °C
- Relative humidity
- ≤95% RH, non-condensing
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Product reference | Selection details |
|---|---|---|
| Manual call point with telephone socket | TX3142 | TX3988 base; resettable activation element; dedicated reset key; telephone socket. |
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Control panel compatibilityProvide the control panel model, protocol and existing device references so compatibility can be checked before supply.
Telephone and mounting requirementsSpecify the fire telephone system and whether the TX3988 base is required. The telephone connection uses separate terminals from the alarm bus.
