Automatic Sprinkler System Equipment
Project-configured valve assemblies for preaction sprinkler systems, available in flanged and grooved connection versions. Buyers can match the required nominal size, connection and assembly scope without relying on domestic model codes.
Release method, working pressure, flange drilling or groove profile, trim scope and control arrangement are confirmed for each project before production.
Technical overview
The standard materials, solenoid voltage and nominal pressure below apply to all listed flanged and grooved models, including standard and current designs. Final assembly dimensions depend on the selected model.
Available configurations
Use the ZSFY model references to identify the required assembly. Confirm overall height and trim layout for the selected configuration before ordering.
| International configuration | Nominal size | Connection | Approx. assembly height | Model |
|---|---|---|---|---|
| Preaction Valve Assembly | DN100 / 4 in | Flanged | 570 mm | ZSFY100 |
| Preaction Valve Assembly — standard design | DN150 / 6 in | Flanged | 665 mm | ZSFY150 |
| Preaction Valve Assembly — current design | DN150 / 6 in | Flanged | 690 mm | ZSFY150 |
| Preaction Valve Assembly — standard design | DN200 / 8 in | Flanged | 825 mm | ZSFY200 |
| Preaction Valve Assembly — current design | DN200 / 8 in | Flanged | 865 mm | ZSFY200 |
| Preaction Valve Assembly | DN250 / 10 in | Flanged | 1000 mm | ZSFY250 |
| Grooved Preaction Valve Assembly | DN100 / 4 in | Grooved | 590 mm | ZSFY100(G) |
| Grooved Preaction Valve Assembly | DN150 / 6 in | Grooved | 740 mm | ZSFY150(G) |
| Grooved Preaction Valve Assembly | DN200 / 8 in | Grooved | 905 mm | ZSFY200(G) |
Configuration scope
The supply can be reviewed against a project valve schedule, piping diagram, drawing or approved sample. The final quotation identifies what is included, what remains by others and which technical documents require approval.

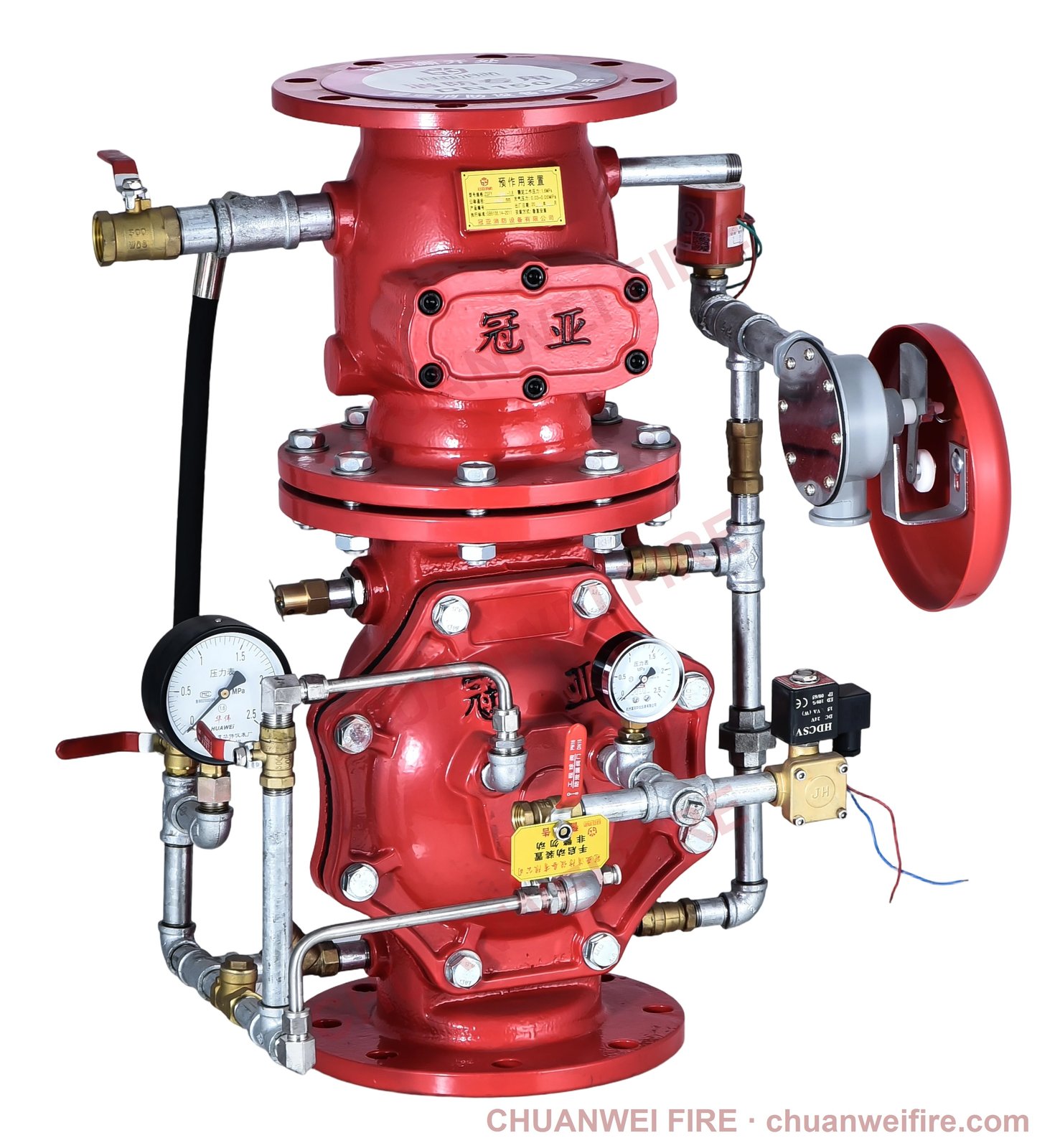

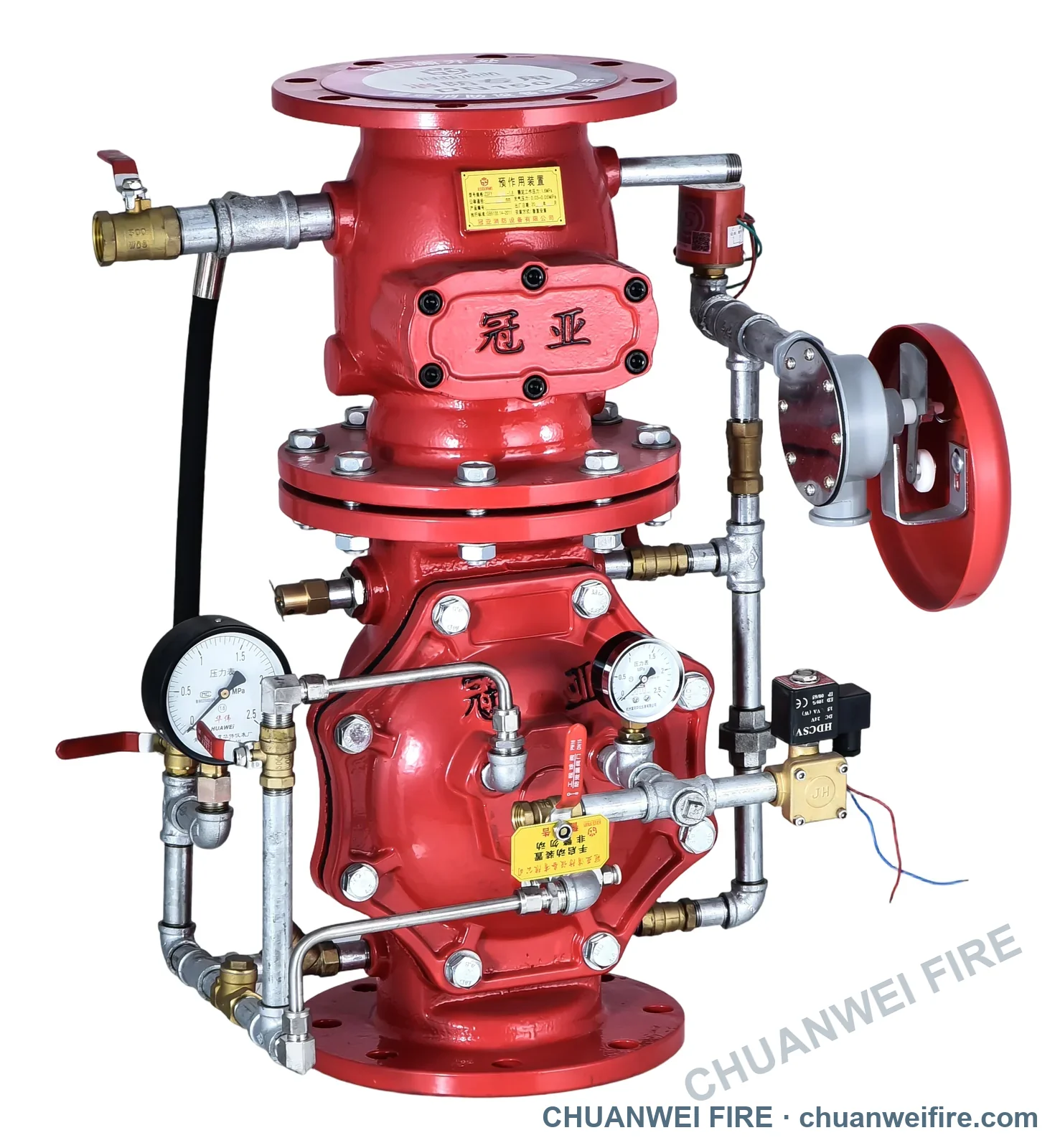

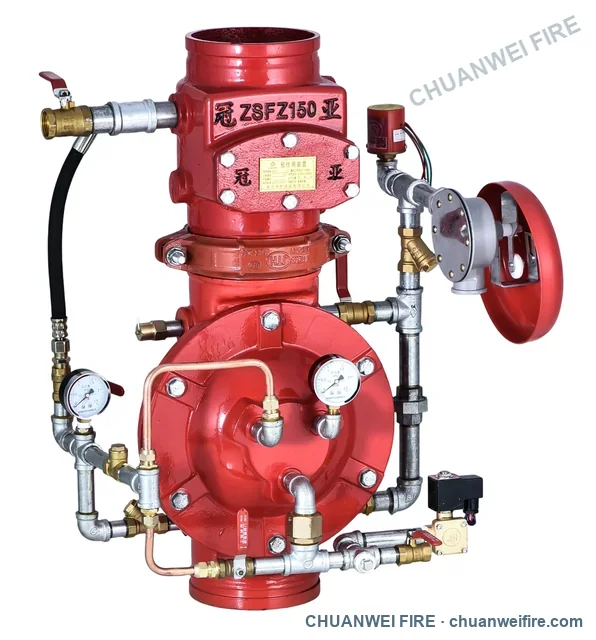

Compare the construction and visible markings. Open a photograph to enlarge it; confirm the required configuration with the quotation.
Compare the specifications for each named configuration below. Values apply only to the configuration shown.
These specifications apply to all listed flanged and grooved preaction assemblies, including standard and current designs. Nominal pressure is a designation, not a test-pressure value.
OEM / ODM support
Product marking, nameplate, connection arrangement, trim layout and export packaging can be reviewed against the customer drawing, technical schedule or approved sample.
Start with DN size, flanged or grooved connection, and quantity. Add system working pressure, release method, trim scope, control requirements and destination when available.
