Market-specific outdoor hydrant manufacturing
Wet-barrel and dry-barrel families for Indonesia, France, the UK, Russia and China. Send the required standard, mating coupling or drawing so our factory can review outlets, flange, pressure class, drainage and marking before quotation.
Standards named on this page are specification references for project review, not certification claims. Final compatibility follows the approved drawing and sample.
Product families
The photos identify each construction family. Exact inlet, outlets, pressure, flange drilling and operating key remain configurable until the buyer drawing is approved.
Above-ground wet pillar hydrant with DN100 inlet and two 2½-inch BS336 outlets.

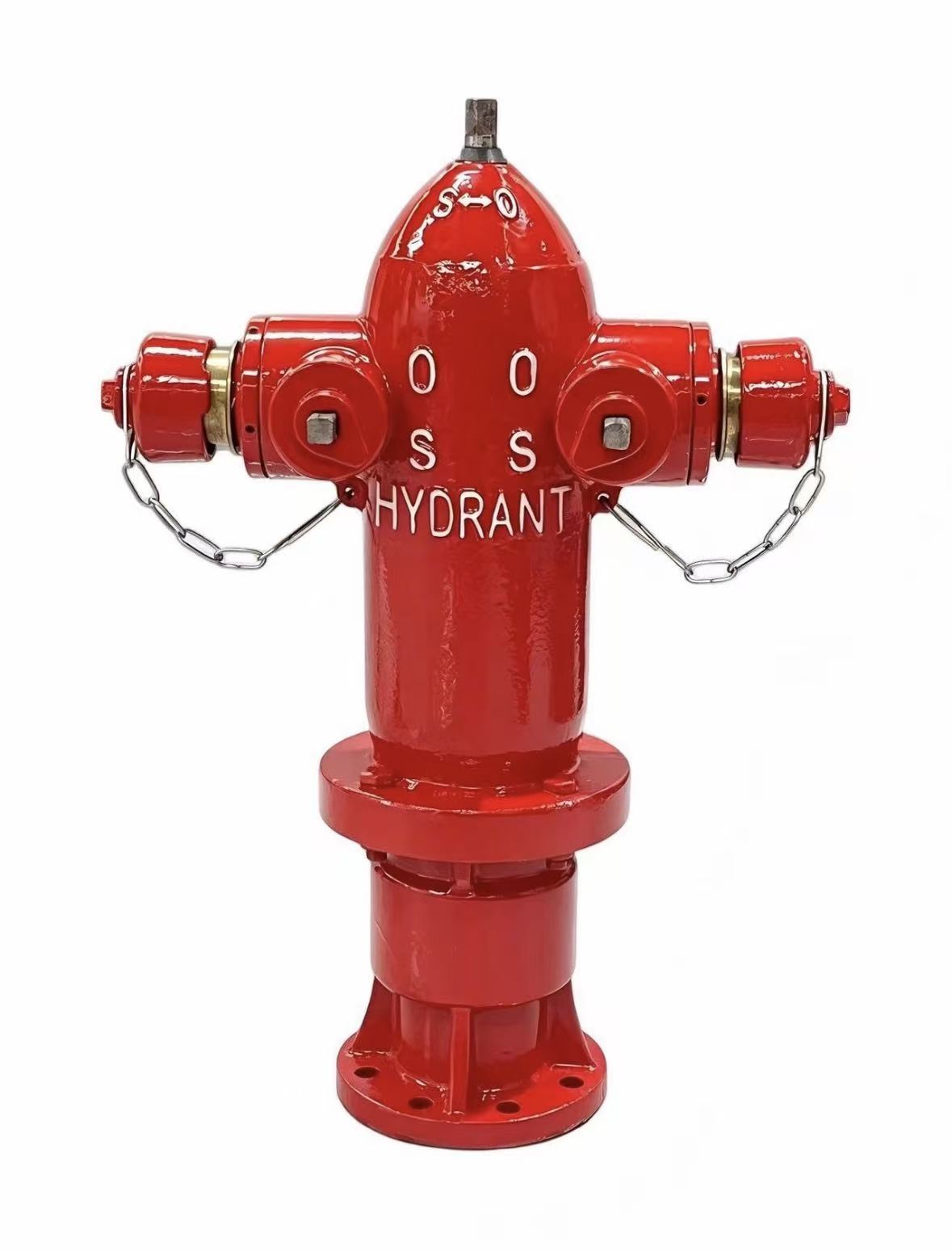

Above-ground wet-barrel arrangement for warm climates without freezing exposure. Individual outlet valves and coupling interfaces are configured to the project.
Dry-barrel pillar configuration with the main valve below the frost line and a drainable upper barrel. French operating and symmetric-coupling details require drawing confirmation.
Twin-valve arrangement with independent handwheel control and removable operating handle. Outlet heads, inlet, pressure and cold-climate drainage follow the project drawing.
Available models
The references below identify products and outlet arrangements already shown on this page. They are website quotation references, while the final factory model is assigned after the connection drawing is approved.
Four product families currently available for inquiry
| Quotation reference | Available model | Visible configuration | Installation |
|---|---|---|---|
| CW-ID-WB-2 | Indonesian-Pattern Wet-Barrel Hydrant | Twin side outlets · independently operated outlet valves · flanged base | Above ground · wet barrel |
| CW-FR-DB-3 | French-Pattern Dry-Barrel Hydrant | Two side outlets + one front outlet · drainable upper barrel · lower main valve body | Above ground · dry barrel |
| BS-750 | British-Type Pillar Fire Hydrant | Two 2½ in BS336 outlets · DN100 flanged inlet · wet pillar | Above ground · wet pillar |
| CW-RU-AG-2V | Russian-Pattern Above-Ground Hydrant | Twin outlets · two independent handwheel valves · removable operating handle | Above ground · twin-valve type |
Available customization choices shown as product options
| Option group | Available choices | Applies to |
|---|---|---|
| Barrel construction | Wet-barrel configuration · dry-barrel configuration | Market-specific series |
| Outlet arrangement | Twin side outlets · two side plus one front outlet · independently valved twin outlets | According to the four models above |
| Outlet interface | Indonesian pattern · French symmetric coupling pattern · British pattern (BS-750) · Russia/CIS pattern | Matching model or approved custom drawing |
| Inlet connection | Vertical flanged base · lower flanged elbow · project-specific mating flange | Selected hydrant body |
| Operation | Top operating nut · independent handwheels · removable operating handle | According to photographed configuration |
| Appearance & marking | Coating color · cast lettering · nameplate language · customer logo · export packaging | OEM / ODM orders |
OEM / ODM
Our factory can review casting geometry, outlet arrangement, flange interface, operating components, coating color, cast lettering, nameplate and export packaging. CNC machining supports project-specific interface development; feasibility and tooling follow drawing review.
Custom hydrant RFQ
Include market, wet/dry barrel, inlet DN/inch, outlet coupling, pressure, flange, installation depth, quantity and required approval.
