NIBCO F-918-B
- Body / trim
- Cast iron / bronze
- Cold non-shock pressure
- 200 psi / 13.8 bar
This rating applies to the named valve under cold, non-shock conditions; flange class alone is not its working pressure.
Pipeline Valves & Strainers
Swing Check Valves
H44T swing check valves provide a flanged non-return connection with a ductile iron body. The documented range covers DN50 to DN200 at 1.6 MPa nominal pressure.
H44T
Swing check valve
Ductile iron
Specify the nominal size and provide the mating flange drilling and installation dimensions.
Product gallery
Product views
Select an image to view the pictured product or configuration.

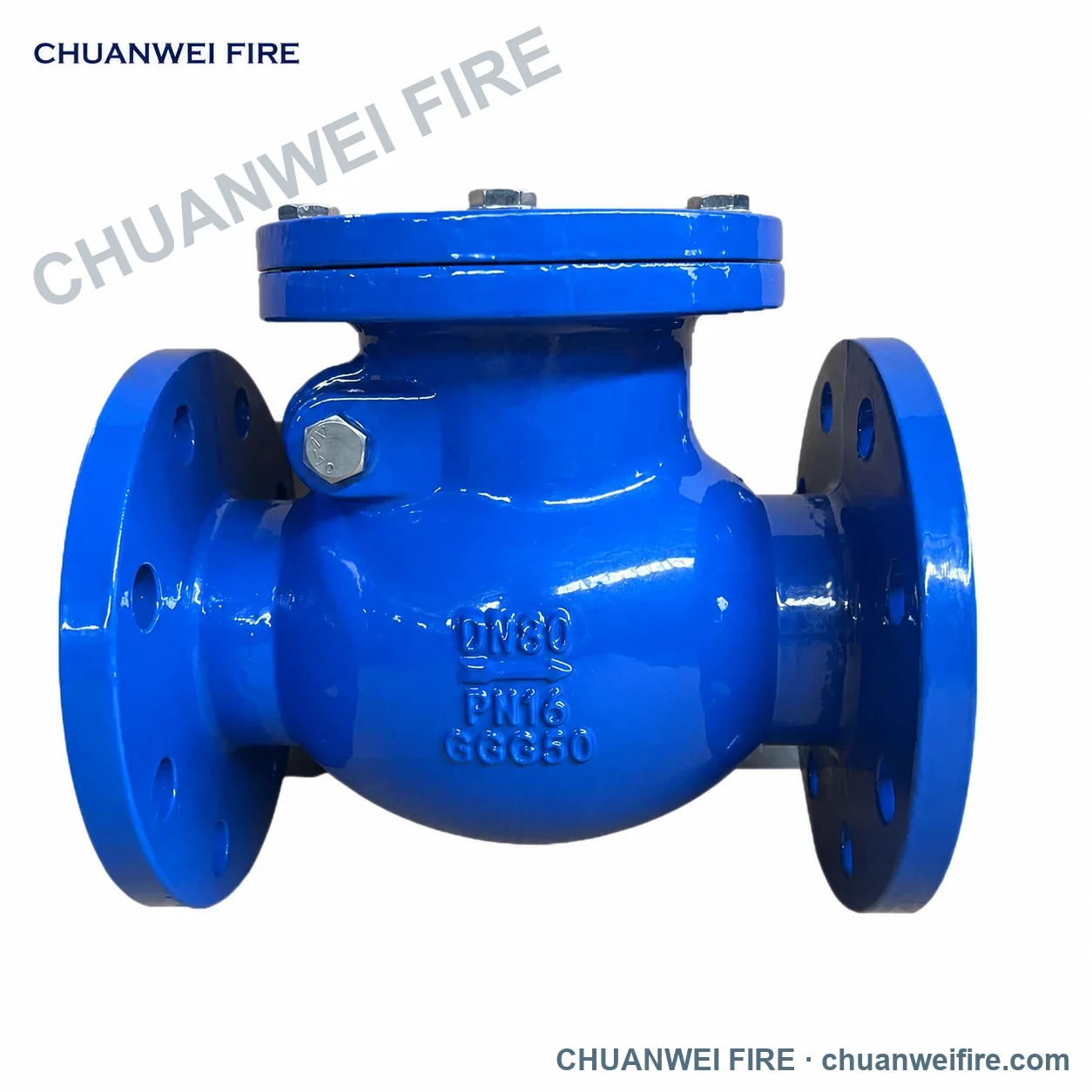

H44T swing check valve with flanged ends.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Model
- H44T
- Valve type
- Swing check valve
- Body material
- Ductile iron
- Nominal pressure
- 1.6 MPa
- Nominal sizes
- DN50 / DN65 / DN80 / DN100 / DN150 / DN200
- Connection
- Flanged
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Product reference | Selection details |
|---|---|---|
| DN50 | H44T | H44T · DN50 · flanged connection |
| DN65 | H44T | H44T · DN65 · flanged connection |
| DN80 | H44T | H44T · DN80 · flanged connection |
| DN100 | H44T | H44T · DN100 · flanged connection |
| DN150 | H44T | H44T · DN150 · flanged connection |
| DN200 | H44T | H44T · DN200 · flanged connection |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Size and mating flangeSpecify the nominal size and provide the mating flange drilling and installation dimensions.
Service conditionsState the working fluid, operating pressure and temperature for the exact supplied configuration.
