Pango GL41H-16Q
- Body material grade
- QT450-10
- Screen material grade
- 304
- Nominal pressure
- PN16
Choose the screen aperture for the water quality and allowable pressure loss; mesh size is a separate selection.
Pipeline Valves & Strainers
Flanged Y Strainers
The GL41H-16Q Y strainer removes solid particles from water with a perforated screen in a ductile iron body. Five nominal sizes are listed at 1.6 MPa nominal pressure.
GL41H-16Q
Ductile iron
1.6 MPa
Specify the nominal size and provide the mating flange drilling and installation dimensions.
Product gallery
Product views
Select an image to view the pictured product or configuration.

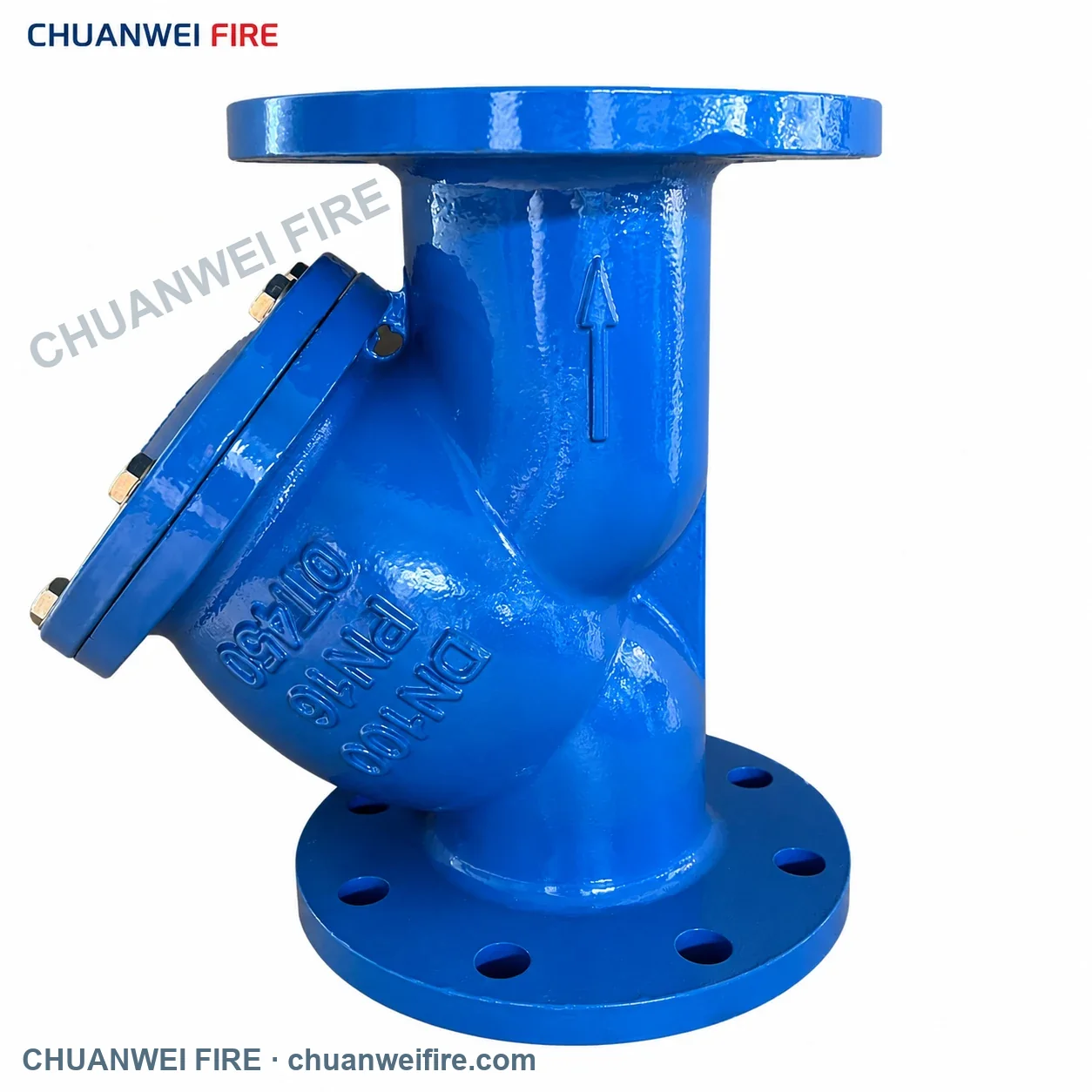

GL41H-16Q flanged Y strainer.1 / 1
Specifications
Product specifications
Use the specifications together with the configuration table below.
- Model
- GL41H-16Q
- Body material
- Ductile iron
- Nominal pressure
- 1.6 MPa
- Nominal sizes
- DN50 / DN65 / DN80 / DN100 / DN125
- Connection
- Flanged
- Seal material
- EPDM
- Screen and cover
- Perforated screen; bolted cover
Models & configurations
Models & configurations
Match the product reference and selection details to your order.
| Configuration | Product reference | Selection details |
|---|---|---|
| DN50 | GL41H-16Q | GL41H-16Q · DN50 · flanged connection |
| DN65 | GL41H-16Q | GL41H-16Q · DN65 · flanged connection |
| DN80 | GL41H-16Q | GL41H-16Q · DN80 · flanged connection |
| DN100 | GL41H-16Q | GL41H-16Q · DN100 · flanged connection |
| DN125 | GL41H-16Q | GL41H-16Q · DN125 · flanged connection |
Selection reference
The manufacturer example below helps you specify an enquiry. Its values describe the named reference model, not the CHUANWEI product pictured above. Request the offered model’s datasheet for your order.
Request a quotation
Select your configuration
Include the product reference, quantity and delivery destination, together with the requirements below.
Size and mating flangeSpecify the nominal size and provide the mating flange drilling and installation dimensions.
Filtration dutySpecify particle size or screen opening, required flow and water operating conditions.
Request product details and a quotation
Send your selected configuration, quantity and destination.
