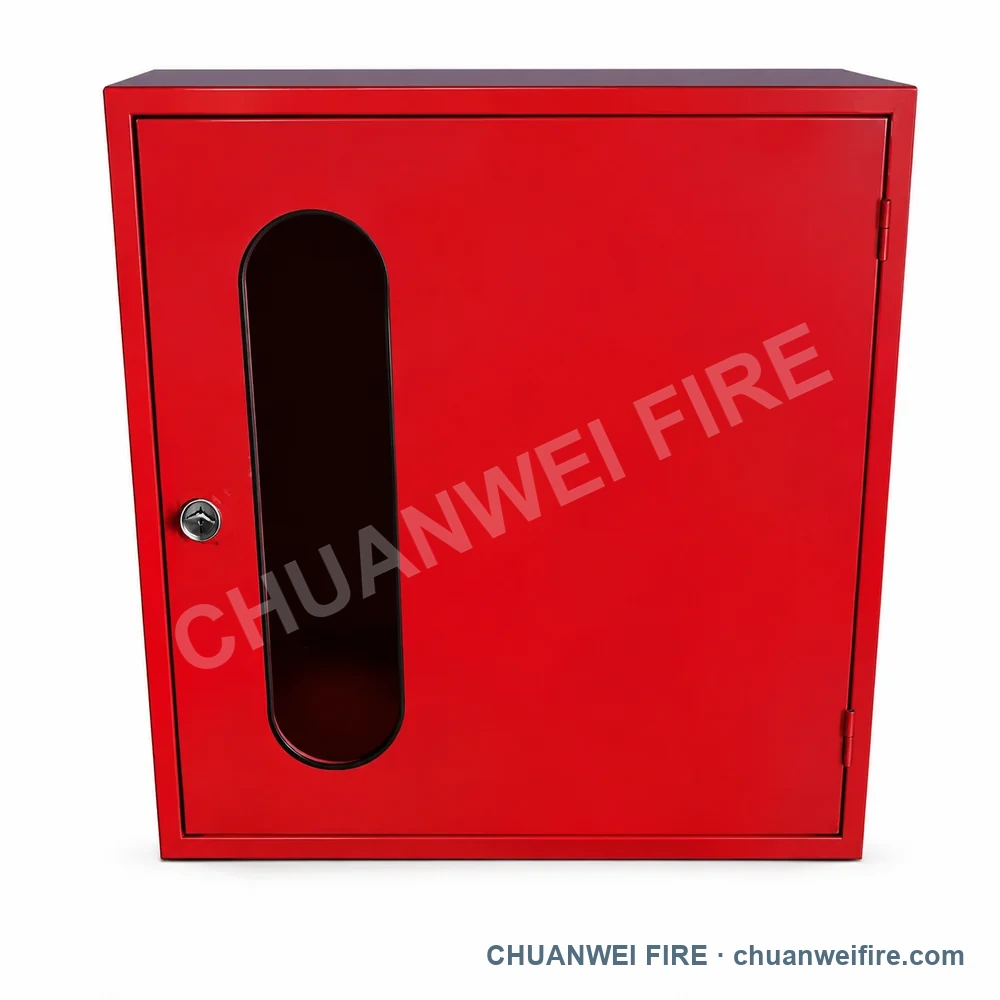

Narrow-Window Hose Reel Cabinet — BX-025
Connection or dimension references: dimension 750 × 750 × 250 mm
4 configurations to compare
Hose Reel, Extinguisher and Combined Cabinets
Four additional cabinet configurations available in carbon steel or with an aluminium frame and steel sheet panels, with sheet thickness customizable for the order.
4 illustrated configurations
Configuration images are illustrations. Request the product photo, connection and performance details for your selected configuration before ordering.
Available configurations
Single-Extinguisher Cabinet — BX-026
Connection or dimension references: dimension 350 × 750 × 350 mm
Center-Window Fire Equipment Cabinet — BX-027
Connection or dimension references: dimension 400 × 600 × 300 mm
Stacked Solid-Door Fire Equipment Cabinet — BX-028
Connection or dimension references: dimension 1700 × 800 × 300 mm
Configuration images
4 configurations to compare
Illustrations for comparing available configurations. Request the product photo and drawing for your selected configuration to confirm connections and dimensions.
Narrow-Window Hose Reel Cabinet — BX-0251 / 4
Specifications
Product selection details
Compare connection and dimension references to choose your configuration. Final order specifications are confirmed with the quotation.
- Product family
- Hose Reel, Extinguisher and Combined Cabinets
- Available configurations
- 4 illustrated configurations
- Cabinet material options
- Carbon steel; or aluminium frame with steel sheet panels; customizable sheet thickness
Available configurations
Configurations and connection references
Compare the configuration and connection or dimension references in each row.
| Configuration | Connection or dimension references |
|---|---|
| Narrow-Window Hose Reel Cabinet — BX-025 | dimension 750 × 750 × 250 mm |
| Single-Extinguisher Cabinet — BX-026 | dimension 350 × 750 × 350 mm |
| Center-Window Fire Equipment Cabinet — BX-027 | dimension 400 × 600 × 300 mm |
| Stacked Solid-Door Fire Equipment Cabinet — BX-028 | dimension 1700 × 800 × 300 mm |
Quotation confirmation
Confirm the configuration before production
Start with the configuration and quantity. Add size, connection, working pressure and destination when available; we will review the supply details with you.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Hose Reel, Extinguisher and Combined Cabinets requirement
Start with the configuration and quantity. Size, connection and project requirements can follow.
