R1/2 · 1.6 MPa · pressure signalling
Explosion-Proof Pressure Switch
Explosion-proof pressure switch with an R1/2 male connection, rated working pressure of 1.6 MPa and an actuation pressure range of 0.035–0.05 MPa. Contact capacity is DC24V / 1A.
Request the selected model’s technical data, wiring diagram and explosion-protection documents with your quotation.
Product image
Pressure switch sample

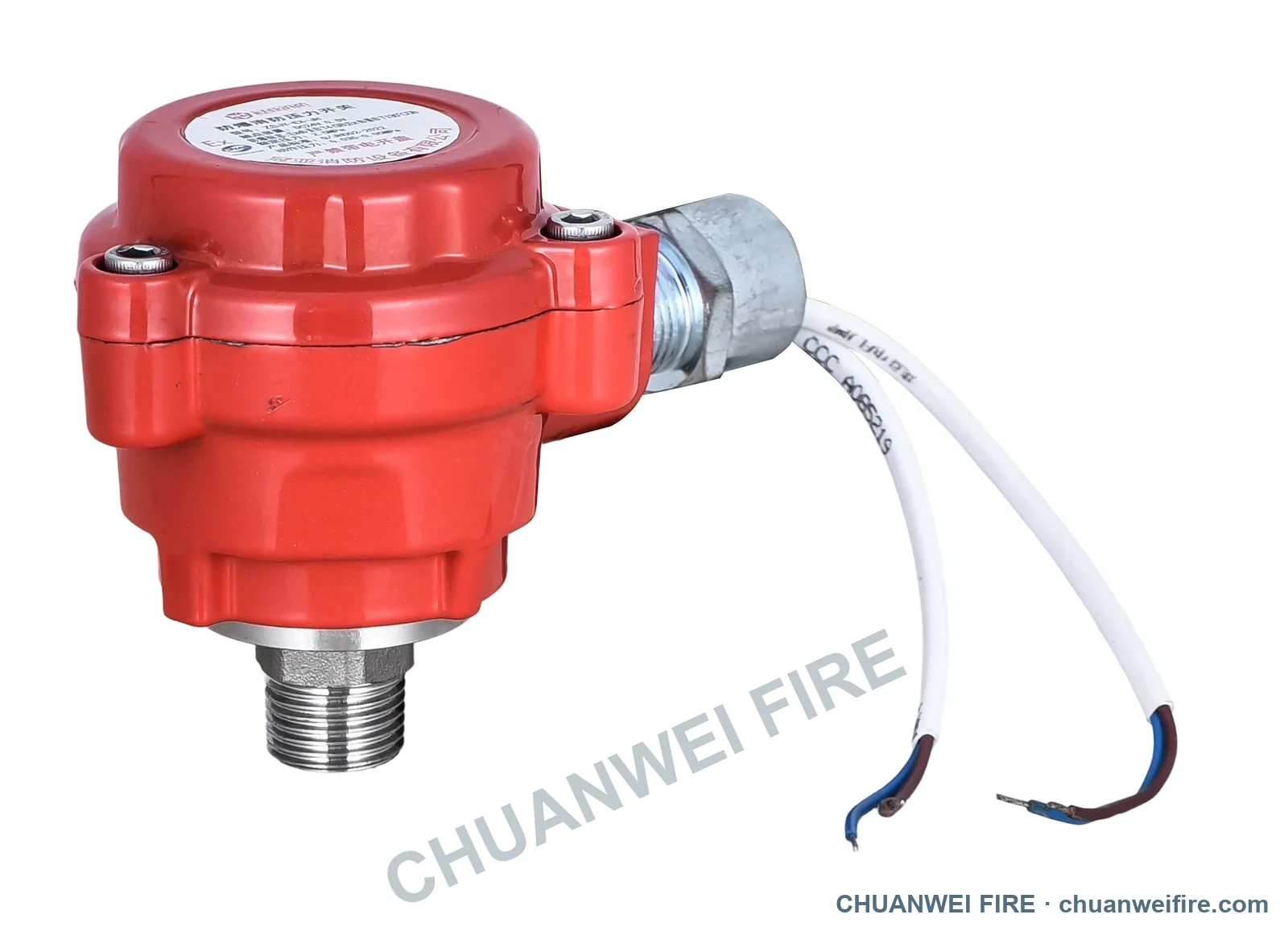

The supplied photograph shows a red bolted enclosure, bottom male-threaded connection and side cable entry. Open the image to inspect the configuration and visible markings.
Specifications
Product overview
Working pressure and actuation pressure are listed separately. DC24V / 1A is the electrical contact rating for the connected signal circuit.
- Product type
- Explosion-Proof Pressure Switch
- Function
- Pressure signal converted to electrical switching output
- Connection shown
- R1/2 male thread
- Rated working pressure
- 1.6 MPa / 16 bar
- Actuation pressure range
- 0.035–0.05 MPa / 0.35–0.5 bar
- Electrical contact capacity
- DC24V / 1A
- Photographed construction
- Red bolted enclosure · side cable entry
Product configuration
Photographed configuration
Compare the confirmed connection, rated working pressure, actuation pressure and contact capacity below. Request the matching factory model and drawing with your quotation.
| Connection shown | Rated working pressure | Actuation pressure range | Electrical contact capacity |
|---|---|---|---|
| R1/2 male thread | 1.6 MPa / 16 bar | 0.035–0.05 MPa / 0.35–0.5 bar | DC24V / 1A |
Quotation confirmation
Request a matched configuration
Start with the product and quantity. Add the pressure connection, actuation point and signal-circuit requirements when available.
Request an explosion-proof pressure switch
Include quantity, destination and your pressure and electrical contact requirements.
