DN15 · DC24V · normally closed
Explosion-Proof Solenoid Valve
Explosion-proof solenoid valve with a DN15 connection, G1/2 female thread and brass body. The DC24V normally closed configuration opens when energised and closes when de-energised. Working pressure is 0.04–1.6 MPa.
Request the selected model’s technical data, operating sequence and explosion-protection documents with your quotation.
Product image
Solenoid valve sample

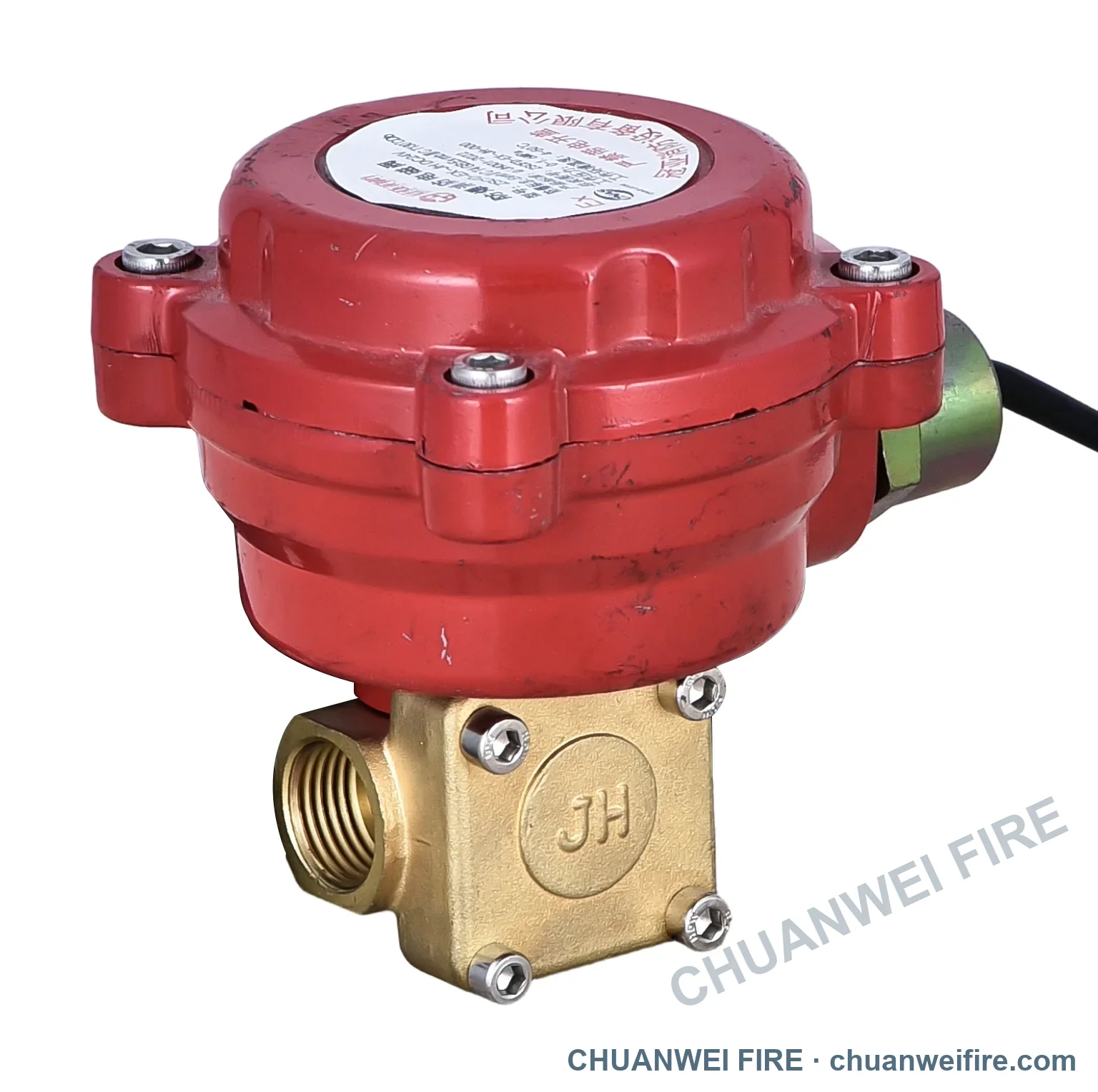

The supplied photograph shows a red bolted enclosure, side cable entry and a female-threaded valve port. Open the image to inspect the configuration and visible markings.
Specifications
Product overview
The confirmed configuration is DN15, G1/2 female thread, DC24V, brass and normally closed, with a working pressure range of 0.04–1.6 MPa.
- Product type
- Explosion-Proof Solenoid Valve
- Nominal size
- DN15 / 1/2 in
- Connection shown
- G1/2 female thread
- Coil voltage
- DC24V
- Valve body material
- Brass
- Valve state
- Normally closed
- Operation
- Energised: open · de-energised: closed
- Working pressure range
- 0.04–1.6 MPa / 0.4–16 bar
Product configuration
Photographed configuration
Compare the confirmed connection, coil voltage, valve state and working pressure below. Request the matching factory model and drawing with your quotation.
| Nominal size | Connection shown | Coil voltage | Valve state | Working pressure range |
|---|---|---|---|---|
| DN15 / 1/2 in | G1/2 female thread | DC24V | Normally closed | 0.04–1.6 MPa / 0.4–16 bar |
Quotation confirmation
Request a matched configuration
Start with the product and quantity. Add the connection, fluid, pressure and control-circuit requirements when available.
Request an explosion-proof solenoid valve
Include quantity, destination and your fluid, pressure, voltage and valve-state requirements.
