Indoor Fire-Water Outlet
Standard Indoor Fire Hydrant
A single-outlet indoor fire hydrant for building fire-water systems, installed in the hydrant cabinet with the inlet at the bottom and the outlet connecting to the fire hose. The outlet coupling is produced to the confirmed standard for your market.
Outlet coupling and connection are confirmed against the required standard, drawing or approved sample for the destination market.
Real product views
Product views and models

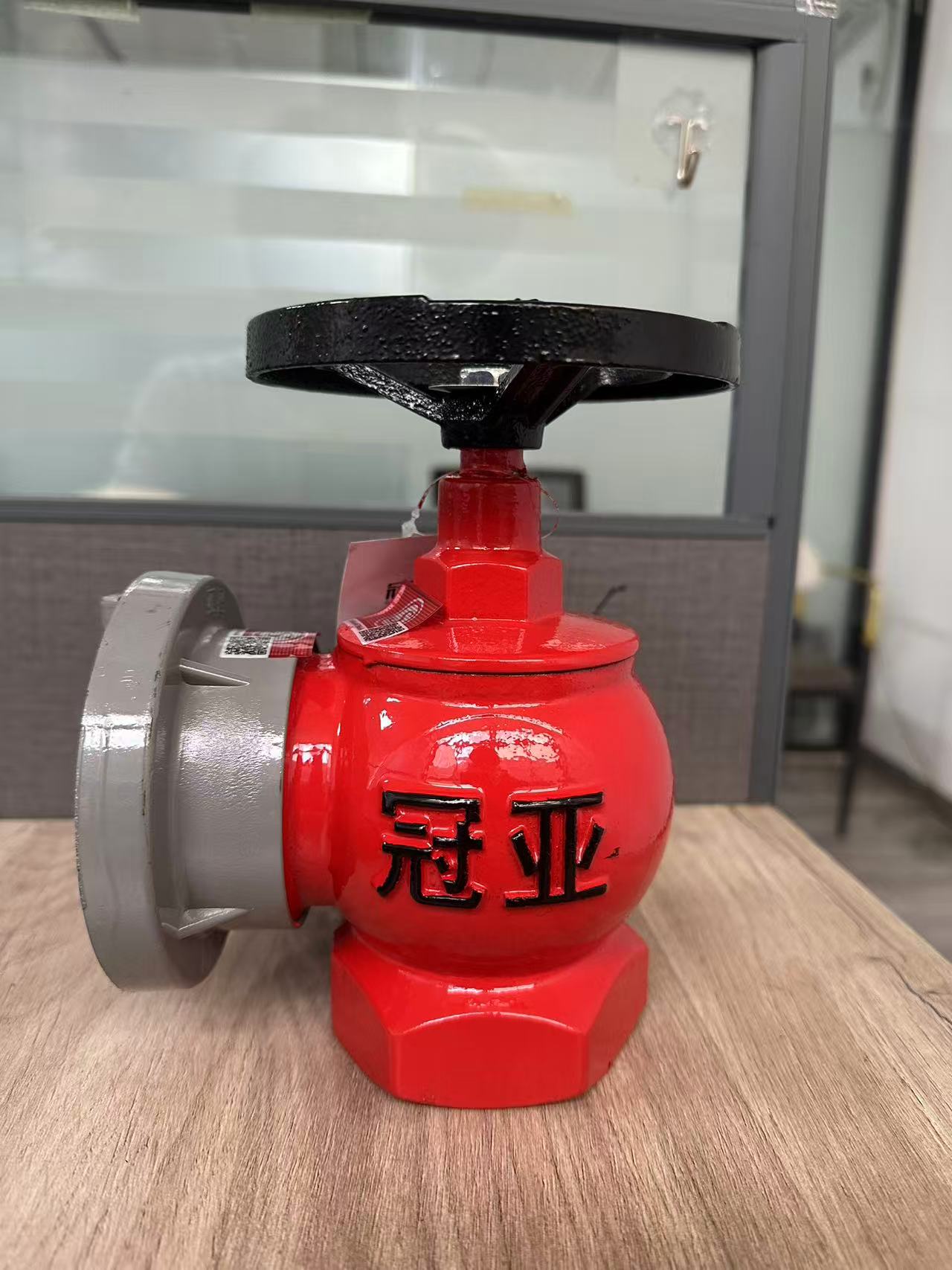

Photographs show the standard single-outlet indoor hydrant from multiple angles. The visible physical GUANYA / 冠亚 product markings are retained; CHUANWEI FIRE identifies the website and export-sales presentation.
Series specifications
- Product type
- Standard Indoor Fire Hydrant (single outlet)
- Nominal size
- DN65 / 65 mm / 2½ in
- Working pressure
- PN1.6 MPa / 16 bar
- Standard
- GB 3445-2018 (national indoor hydrant standard); no foreign approval implied
- Inlet
- Rp 2½ (female thread)
- Outlet
- KN65 quick coupling — confirmed; BS336, NH, Storz or other couplings per market
- Closed height H
- ≤ 205 mm
- Stem center distance B
- ≤ 120 mm
- Outlet center height h
- 71 mm
- Application
- Indoor hydrant cabinet; bottom inlet, side hose connection
Available models
Configurations for quotation
International size is the primary selection field. SN codes are retained only as factory references.
| International configuration | Nominal size | Working pressure | Factory reference |
|---|---|---|---|
| Standard Indoor Fire Hydrant | DN65 / 2½ in | PN1.6 MPa | SN65 |
OEM / ODM capability
Configured to the approved drawing or sample
Manufacturing options are confirmed against the buyer's technical schedule. Connection-standard names describe available machining patterns and do not imply third-party product approval.
Send your hydrant schedule
Include size, outlet coupling, quantity and destination country.
