Export Fire Hydrant Valve
Export Slanted Single-Outlet Hydrant Valve
A 45° slanted single-outlet fire hydrant valve for building riser and hydrant-cabinet systems, with a BS336 outlet coupling for international fire-hose connection. Bottom BSP inlet connects to the fire-water riser.
DN65 / 2½ in45° outlet1.6 MPa / 16 barBS336 coupling
Outlet coupling is produced to the confirmed standard for the destination market (BS336, NH, Storz or other, per drawing).
Real product views

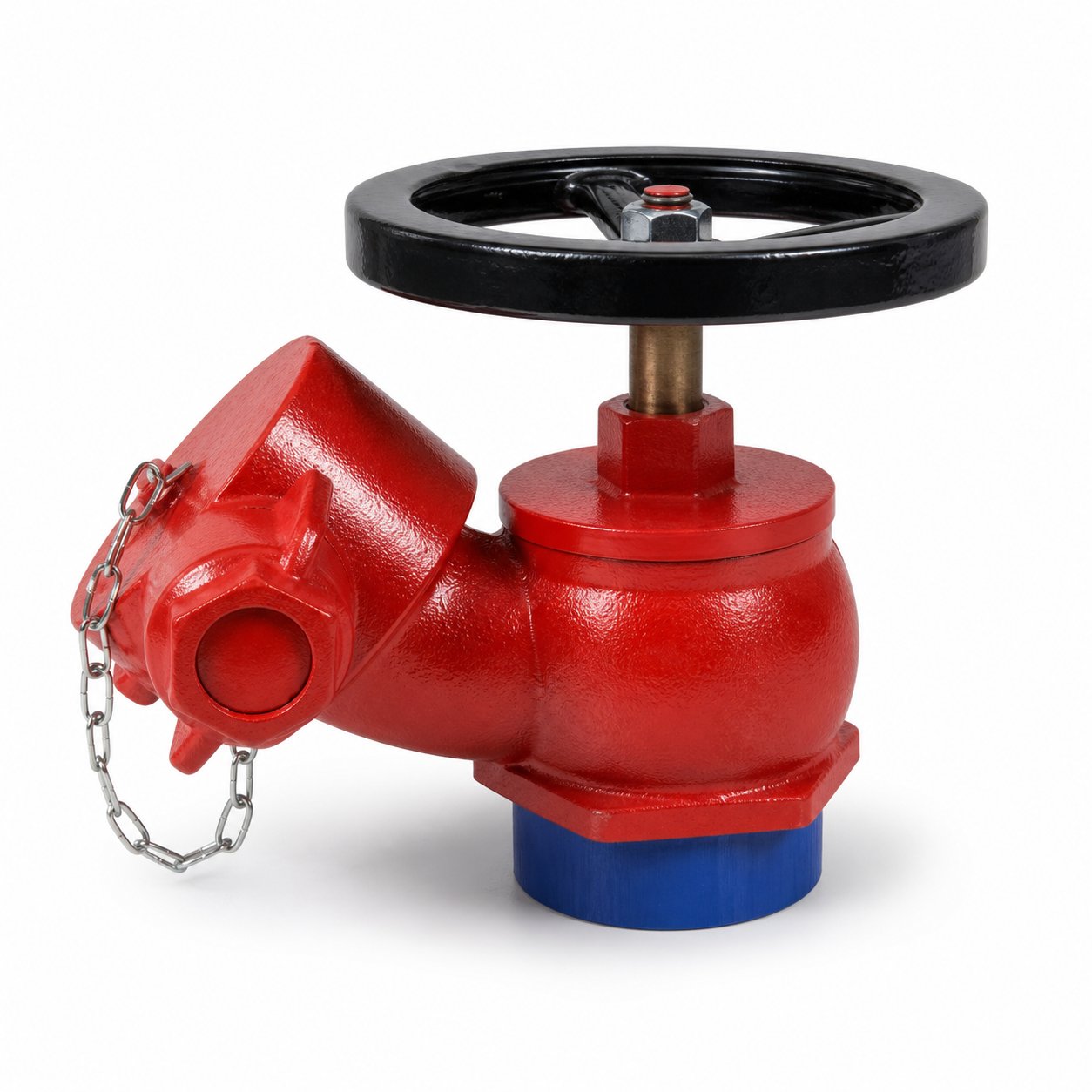

Front and three-quarter views
Photographs show the 45° slanted outlet, black handwheel, red ductile-iron body and outlet coupling.
Series specifications
- Product type
- Export Slanted Single-Outlet Hydrant Valve
- Common name
- Slanted hydrant valve / angle hydrant valve
- Nominal size
- DN65 / 2½ in
- Inlet
- 2½ in BSP male (bottom)
- Outlet
- BS336 quick coupling — confirmed; other couplings per market
- Outlet angle
- 45°
- Working pressure
- 1.6 MPa / 16 bar / approx. 232 psi
- Strength test pressure
- 2.4 MPa
- Seal test pressure
- 1.76 MPa
- Body & cover
- Ductile iron QT450-10
- Stem
- HPb59-1 lead brass
- Handwheel
- Cast iron
- Seal
- NBR (nitrile rubber)
- Dimensions
- Height ≈ 170 mm; length ≈ 250 mm; width ≈ 200 mm
- Installation
- Vertical, bottom connection to building riser; indoor application
OEM / ODM capability
Configured to the approved drawing or sample
Manufacturing options are confirmed against the buyer's technical schedule. Connection-standard names describe available machining patterns and do not imply third-party product approval.
Outlet couplingBS336, NH, Storz or other couplings produced to the confirmed standard or drawing.
Brand presentationCustom product marking, nameplate and coating color.
Connection reviewInlet thread and outlet coupling details reviewed before manufacturing.
Export packingCarton or wooden-case packing prepared according to the order.
Send your hydrant valve schedule
Include outlet coupling, quantity and destination country.
