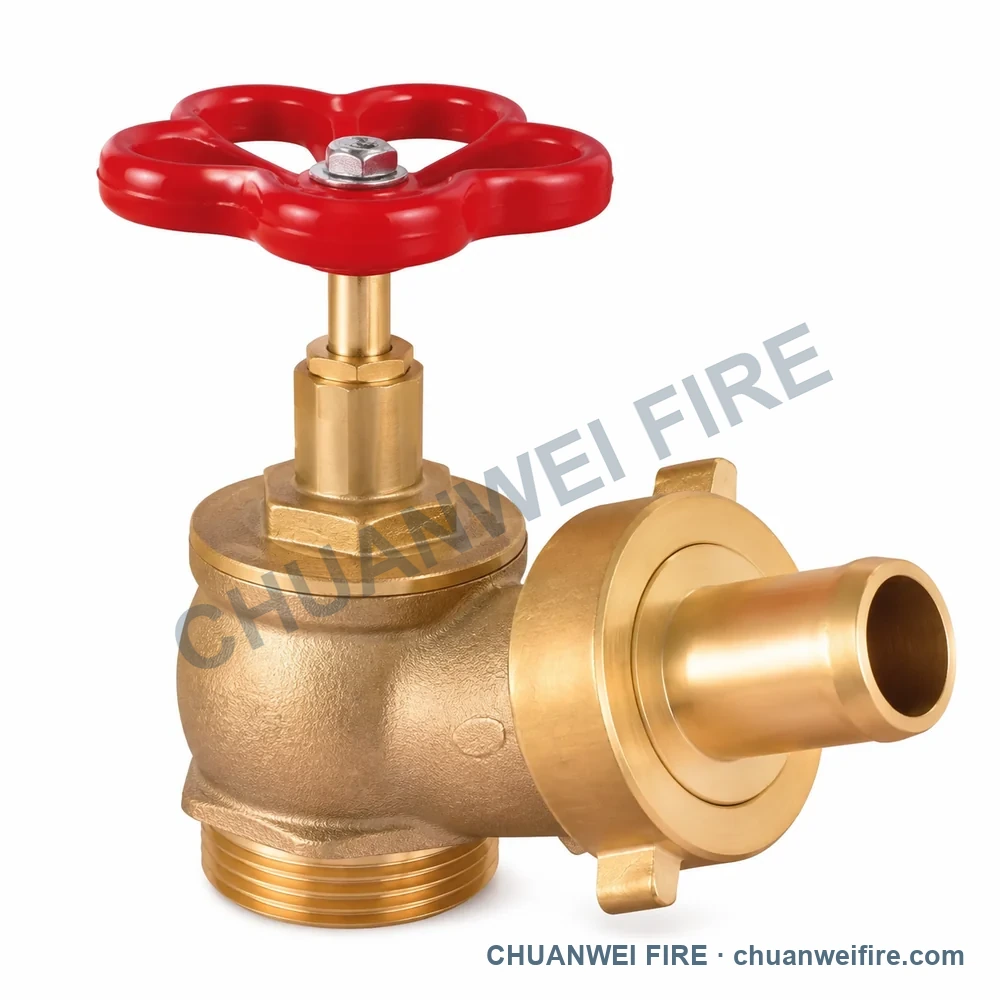

Brass-Finish Hose-Tail Fire Hose Valve
Source connection or dimension data: inlet 1.5 in BSP; outlet Ø25 mm
5 directly selectable configurations from the supplied catalog
Brass- and Silver-Finish Fire Hose Valves
Use the configuration images to identify the required product, then confirm connection, material and performance data with the quotation.
5 illustrated configurations
Supplied electronic catalog page 9
To be confirmed with the quotation
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Available configurations

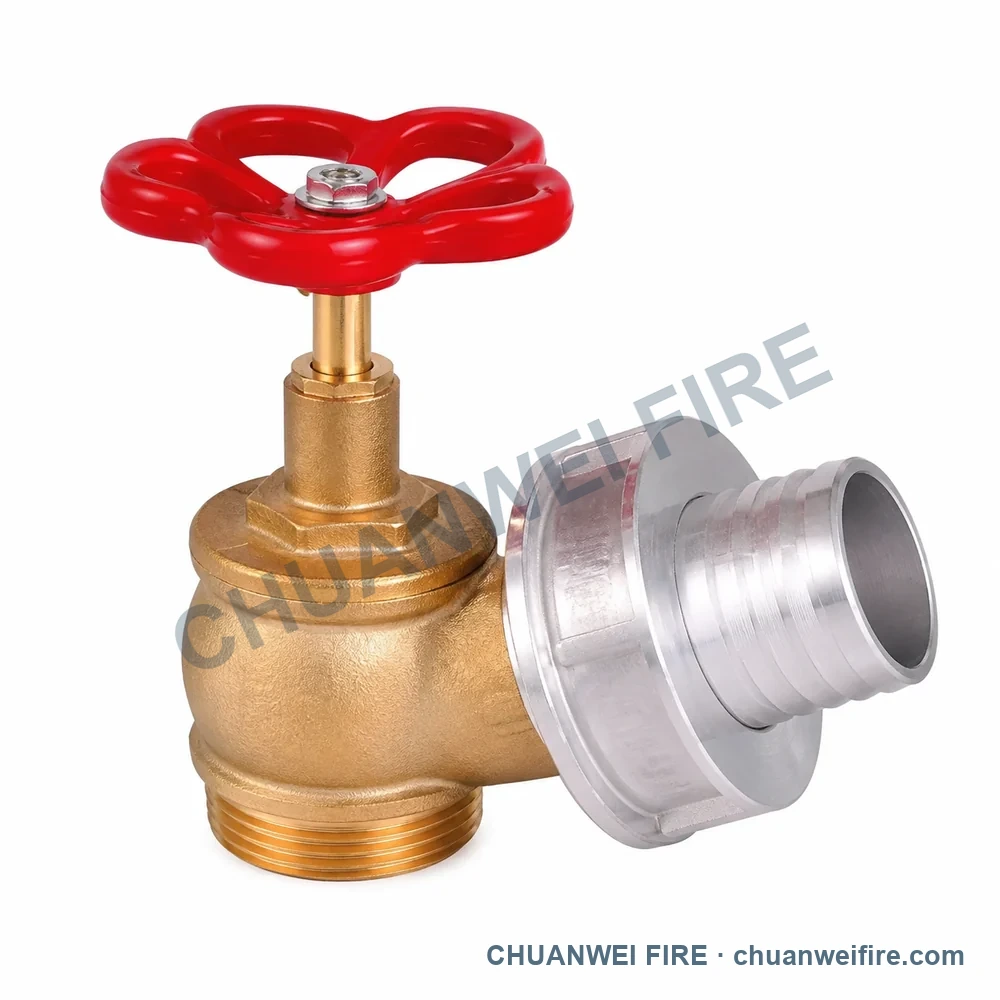

Brass-Finish Fire Hose Valve with Silver-Finish Hose Tail
Source connection or dimension data: inlet 1.5 in BSP; outlet Ø45 mm

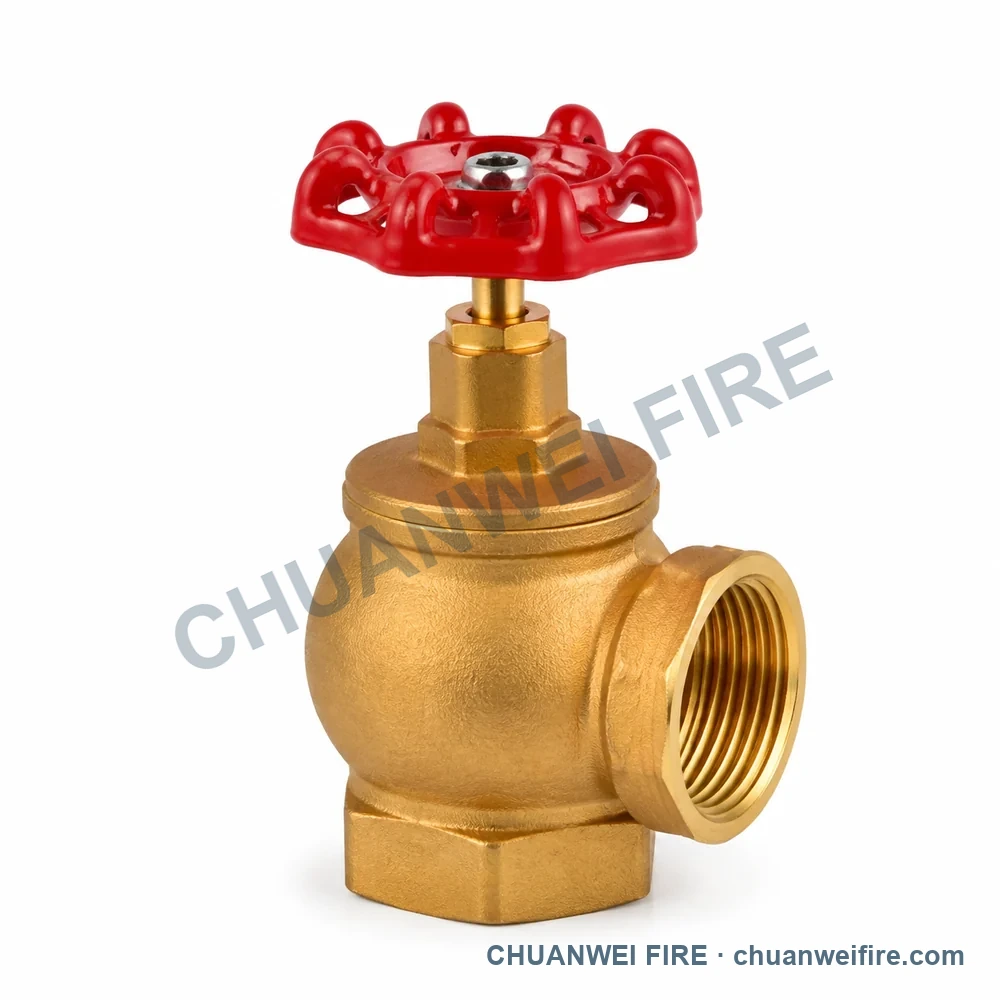

Brass-Finish Round-Body Female-Threaded Fire Hose Valve
Source connection or dimension data: inlet 1.5 in NPT; outlet 1.5 in NPT · inlet 1.5 in BSP; outlet 1.5 in BSP
Brass-Finish Barrel-Body Right-Outlet Fire Hose Valve
Source connection or dimension data: inlet 1.5 in NPT; outlet 1.5 in NPT · inlet 1.5 in NPT; outlet 1.5 in NH

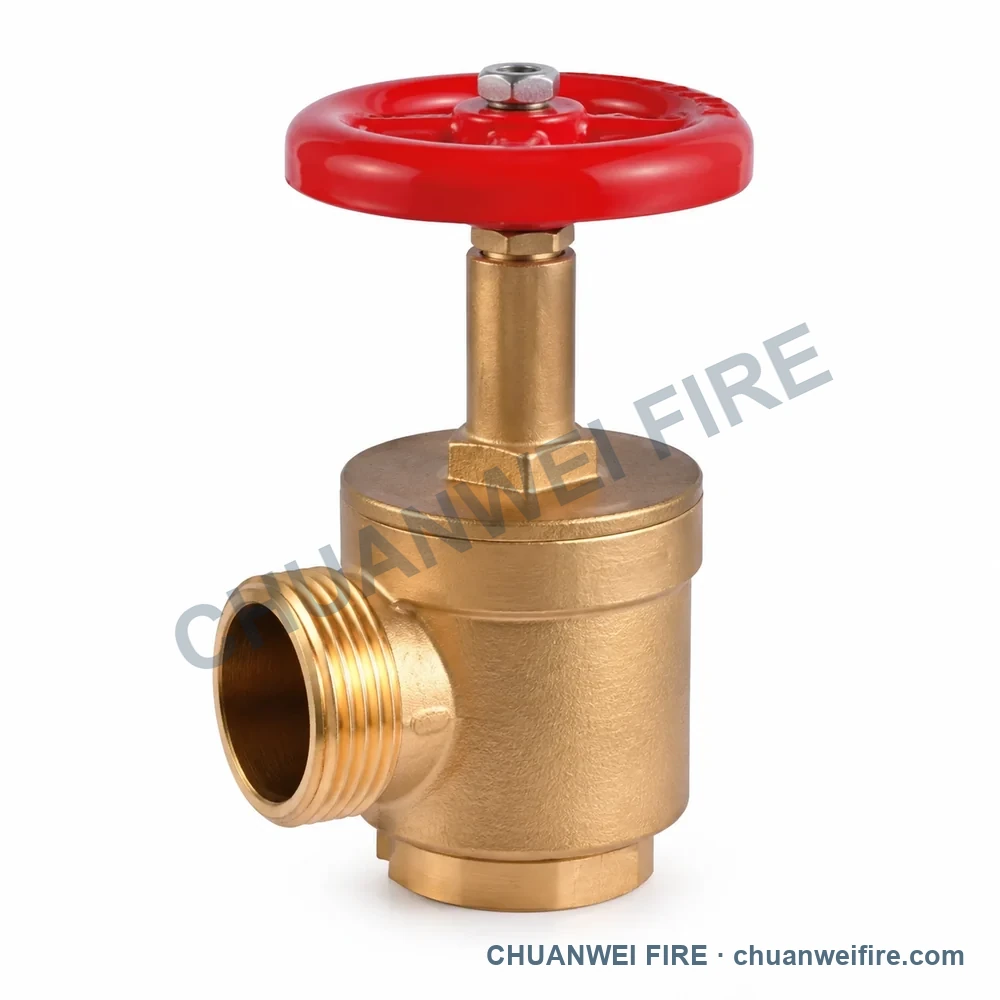

Brass-Finish Barrel-Body Left-Outlet Fire Hose Valve
Source connection or dimension data: inlet 1.5 in NPT; outlet 1.5 in NH · inlet 2 in NPT; outlet 2 in NH
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Configuration images
5 configurations to compare
Open each image to compare the general arrangement. Confirm small details, threads and cast markings against an original photo, mating sample or approved drawing.
Brass-Finish Hose-Tail Fire Hose Valve1 / 5
Data scope
Confirmed source scope and quotation checks
Visible connection and dimension values were transcribed from the catalog to support configuration selection. Final order specifications are confirmed in the quotation.
- Product family
- Brass- and Silver-Finish Fire Hose Valves
- Available configurations
- 5 illustrated configurations
- Selection data source
- Supplied electronic catalog page 9
- CHUANWEI factory model
- To be confirmed with the quotation
- Technical data status
- Preliminary catalog data; order confirmation required
Available configurations
Configurations and linked source-catalog data
Each row shows a configuration and the connection or dimension entries visible in the supplied catalog.
| Configuration | Source connection or dimension data |
|---|---|
| Brass-Finish Hose-Tail Fire Hose Valve | inlet 1.5 in BSP; outlet Ø25 mm |
| Brass-Finish Fire Hose Valve with Silver-Finish Hose Tail | inlet 1.5 in BSP; outlet Ø45 mm |
| Brass-Finish Round-Body Female-Threaded Fire Hose Valve | inlet 1.5 in NPT; outlet 1.5 in NPT · inlet 1.5 in BSP; outlet 1.5 in BSP |
| Brass-Finish Barrel-Body Right-Outlet Fire Hose Valve | inlet 1.5 in NPT; outlet 1.5 in NPT · inlet 1.5 in NPT; outlet 1.5 in NH |
| Brass-Finish Barrel-Body Left-Outlet Fire Hose Valve | inlet 1.5 in NPT; outlet 1.5 in NH · inlet 2 in NPT; outlet 2 in NH |
Quotation confirmation
Confirm the configuration before production
Send the configuration image, size, connection, material, working pressure, quantity and destination. The quotation and approved drawing lock the final supply specification.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Brass- and Silver-Finish Fire Hose Valves requirement
Include the configuration, connection, material, pressure, quantity and destination country.
