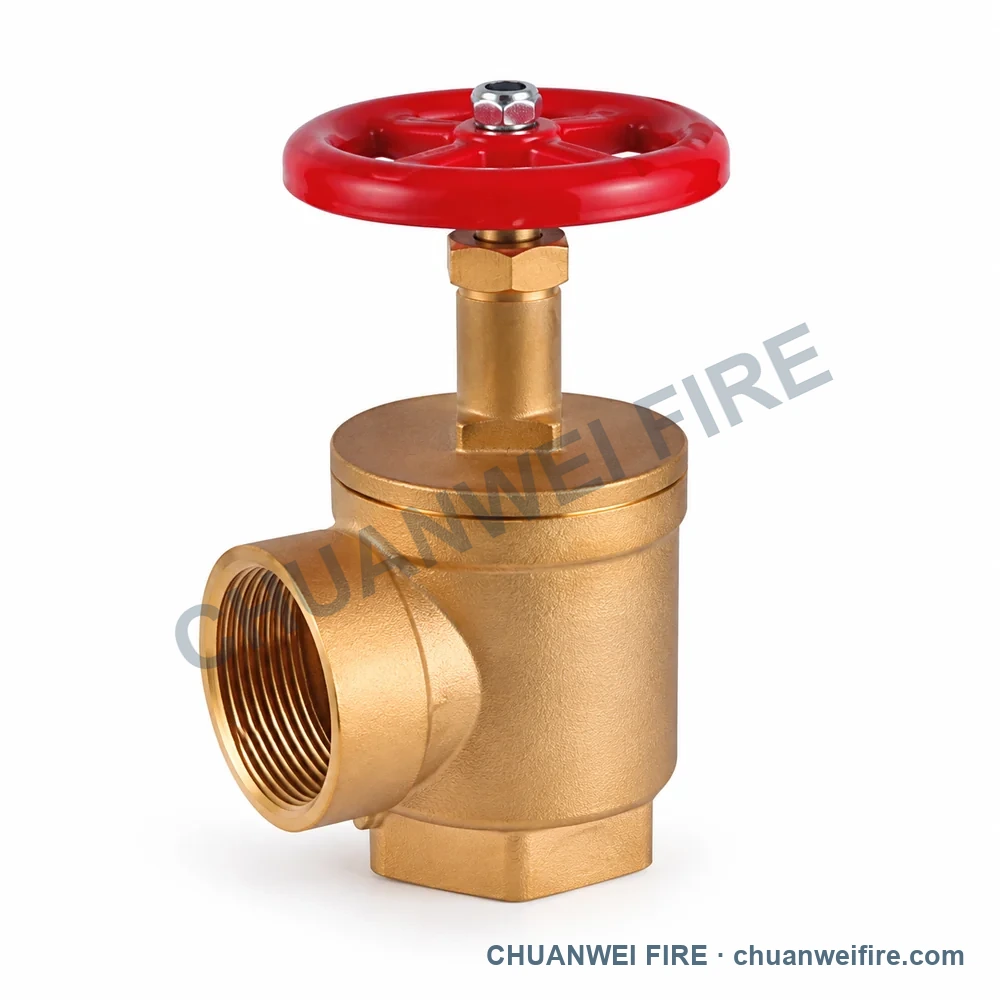

Female-Threaded Fire Hose Valve — US-040 / US-041 / US-042
Connection or dimension references: inlet 1.5 in NPT; outlet 1.5 in NPT · inlet 2.5 in NPT; outlet 2.5 in NPT · inlet 2.5 in BSP; outlet 2.5 in NPT
5 configurations to compare
Regional-Connection Fire Hose Valves
Use the configuration images to identify the required product, then confirm connection, material and performance data with the quotation.
5 illustrated configurations
Configuration images are illustrations. Request the product photo, connection and performance details for your selected configuration before ordering.
Available configurations

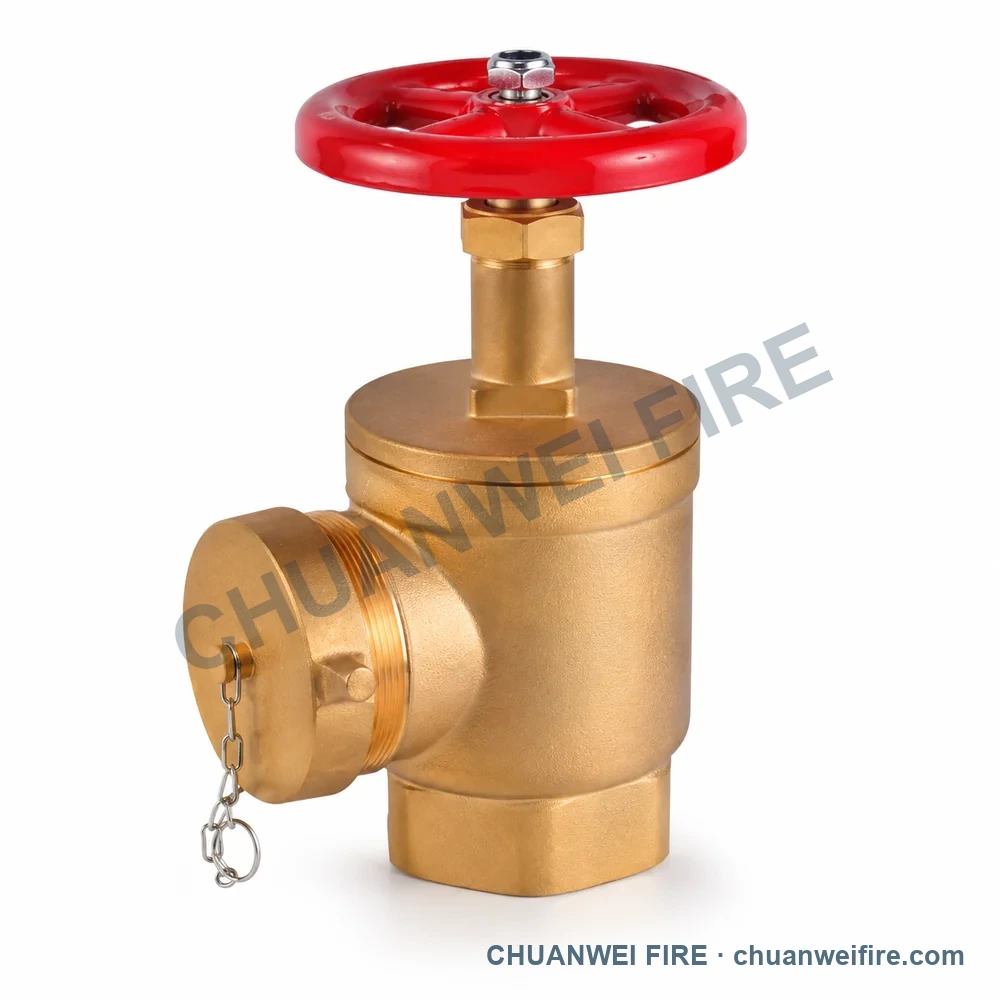

Capped Fire Hose Valve — US-043 / US-044
Connection or dimension references: inlet 1.5 in NPT; outlet 1.5 in NH · inlet 2.5 in NPT; outlet 2.5 in NH

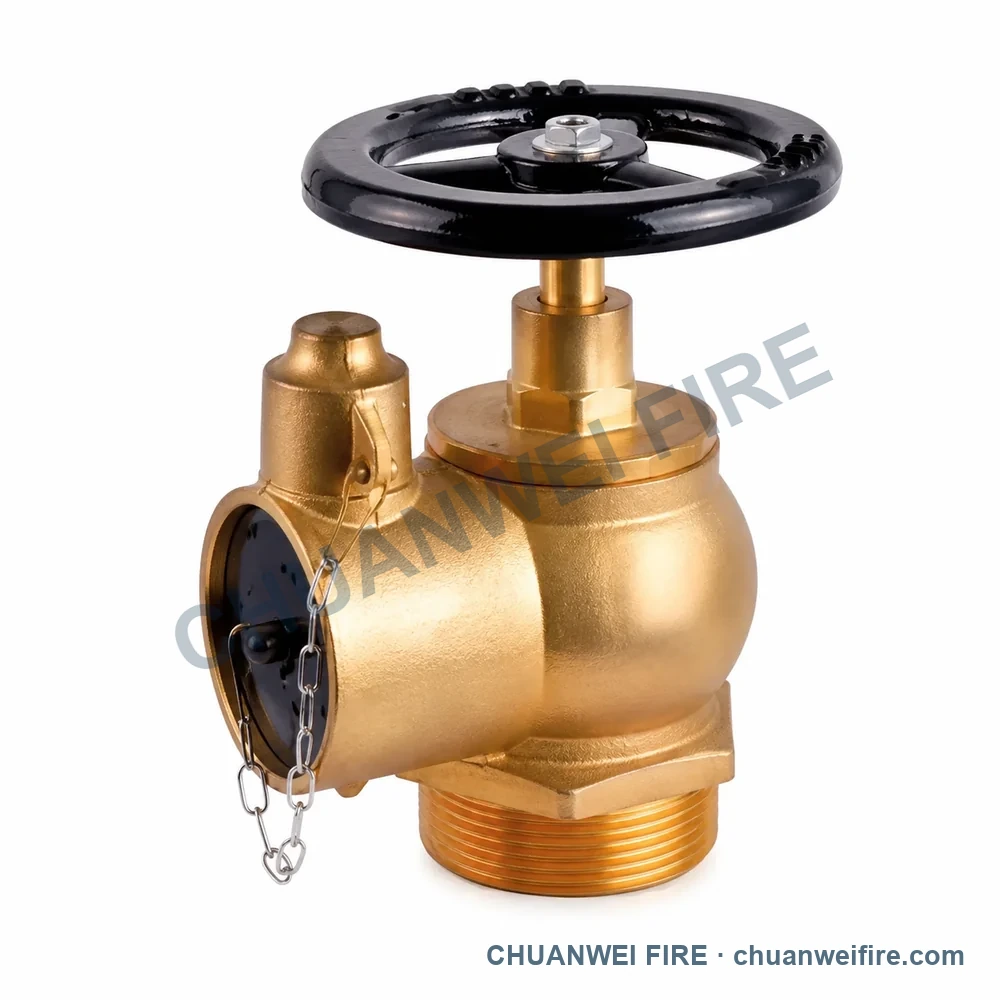

Top-Latch BS336 Fire Hose Valve — S-031 / S-032 / S-033
Connection or dimension references: inlet 2.5 in BSP; outlet 2.5 in BS336 · inlet 3 in BSP; outlet 2.5 in BS336 · inlet 2.5 in BS4504; outlet 2.5 in BS336

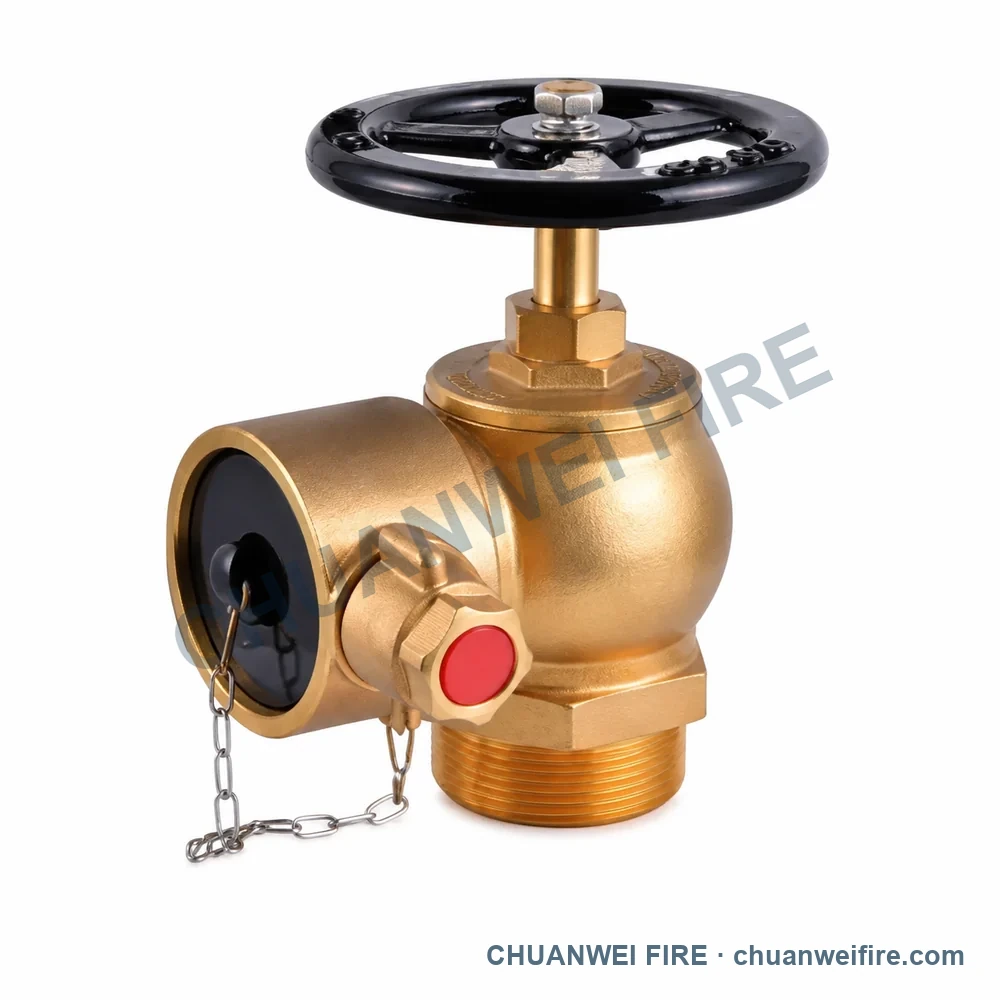

Latch-Outlet BS336 Fire Hose Valve — S-034 / S-035
Connection or dimension references: inlet 2.5 in BSP; outlet 2.5 in BS336 · inlet 3 in BSP; outlet 2.5 in BS336

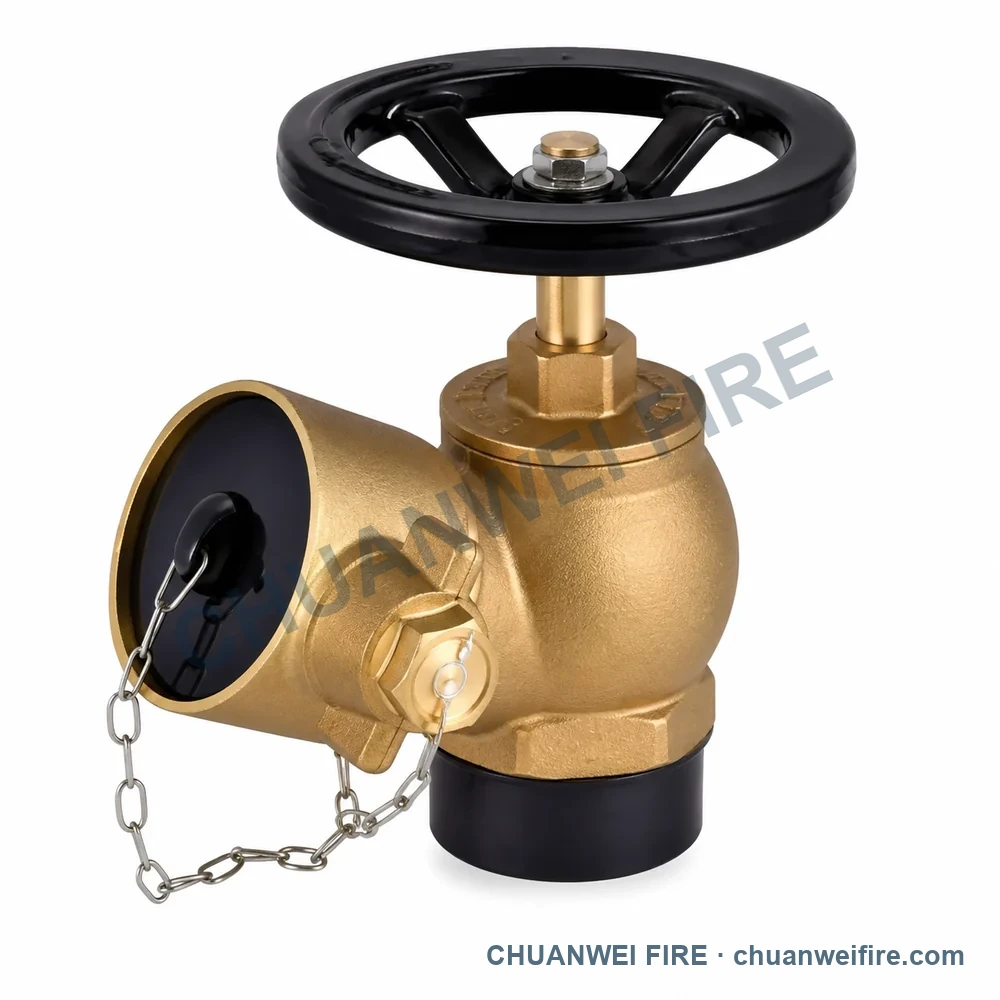

Angled-Outlet BS336 Fire Hose Valve — S-070
Connection or dimension references: inlet 2.5 in BSP; outlet 2.5 in BS336
Configuration images
5 configurations to compare
Illustrations for comparing available configurations. Request the product photo and drawing for your selected configuration to confirm connections and dimensions.
Female-Threaded Fire Hose Valve — US-040 / US-041 / US-0421 / 5
Specifications
Product selection details
Compare connection and dimension references to choose your configuration. Final order specifications are confirmed with the quotation.
- Product family
- Regional-Connection Fire Hose Valves
- Available configurations
- 5 illustrated configurations
Available configurations
Configurations and connection references
Compare the configuration and connection or dimension references in each row.
| Configuration | Connection or dimension references |
|---|---|
| Female-Threaded Fire Hose Valve — US-040 / US-041 / US-042 | inlet 1.5 in NPT; outlet 1.5 in NPT · inlet 2.5 in NPT; outlet 2.5 in NPT · inlet 2.5 in BSP; outlet 2.5 in NPT |
| Capped Fire Hose Valve — US-043 / US-044 | inlet 1.5 in NPT; outlet 1.5 in NH · inlet 2.5 in NPT; outlet 2.5 in NH |
| Top-Latch BS336 Fire Hose Valve — S-031 / S-032 / S-033 | inlet 2.5 in BSP; outlet 2.5 in BS336 · inlet 3 in BSP; outlet 2.5 in BS336 · inlet 2.5 in BS4504; outlet 2.5 in BS336 |
| Latch-Outlet BS336 Fire Hose Valve — S-034 / S-035 | inlet 2.5 in BSP; outlet 2.5 in BS336 · inlet 3 in BSP; outlet 2.5 in BS336 |
| Angled-Outlet BS336 Fire Hose Valve — S-070 | inlet 2.5 in BSP; outlet 2.5 in BS336 |
Quotation confirmation
Confirm the configuration before production
Start with the configuration and quantity. Add size, connection, working pressure and destination when available; we will review the supply details with you.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Regional-Connection Fire Hose Valves requirement
Start with the configuration and quantity. Size, connection and project requirements can follow.
