Threaded and flanged inlet selections

Horizontal-Handwheel Landing Valves

Threaded and flanged inlet selections with a horizontal operating handwheel and a catalog-listed common 2.5 in BS336 outlet.

Horizontal operating handwheel 2.5 in BSP / BSPT / JIS10K / BS4504 · 3 in BS4504 2.5 in BS336 Selection references only · final specification by quotation

Ask on WhatsApp Available selections

These products are not pressure-reducing or pressure-stabilizing valves. HSW references and interface descriptions are catalog selection aids, not confirmed CHUANWEI factory models or certification claims. Confirm material, pressure, exact compatibility and the approved sample before production.

Configuration images

Two catalog display configurations

Use these catalog display renditions to distinguish the threaded-inlet and flanged-inlet arrangements. They are not precision evidence for dimensions, mating interfaces or internal construction.

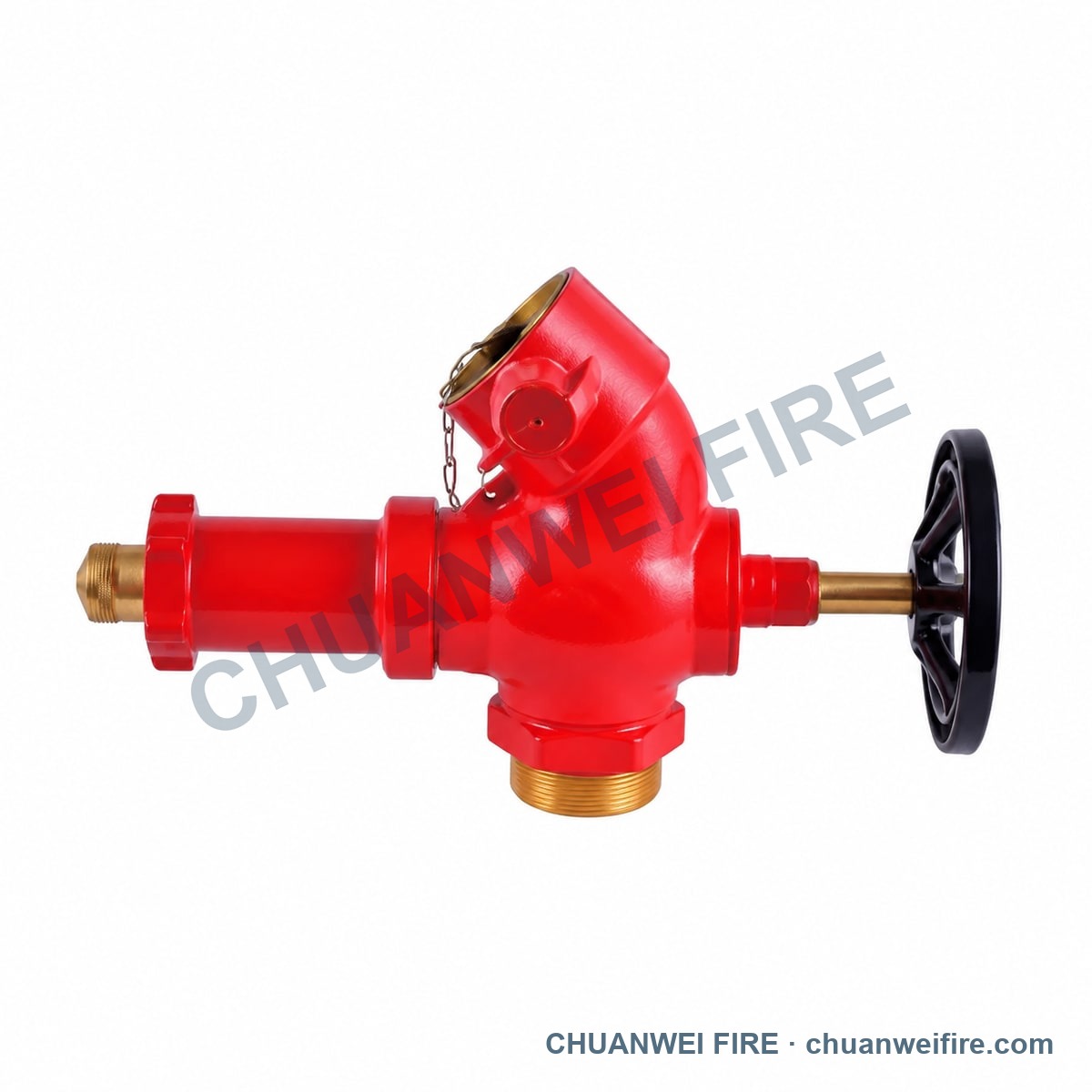

Catalog display of a red landing valve with a horizontal black handwheel, threaded bottom inlet and capped outlet

Threaded inlet1 / 2

Specifications

Confirmed selection scope

Only the approved v11 operating arrangement and interface table is stated as selection data. Factory construction and performance remain quotation-specific.

Product family: Indoor fire-hose landing-valve configurations with horizontal handwheel
Operating arrangement: Horizontal operating handwheel
Catalog inlet options: 2.5 in BSP / BSPT / JIS10K / BS4504 · 3 in BS4504
Catalog common outlet: 2.5 in BS336
Selection references: HSW-010 · HSW-011 · HSW-012 · HSW-013 · HSW-014
Pressure-regulation classification: Not pressure-reducing or pressure-stabilizing
Factory Model: To be confirmed with the quotation
Material and finish: To be confirmed with the quotation
Working and test pressure: To be confirmed with the quotation
Interface compatibility: To be confirmed with the quotation
Dimensions and accessories: To be confirmed with the quotation
Packing: To be confirmed with the quotation
Image evidence scope: Catalog display renditions for configuration identification only

Available selections

Catalog selection-reference table

Choose the required inlet first. Every listed selection uses the catalog's common 2.5 in BS336 outlet description; mating compatibility still requires order confirmation.

Selection reference	Inlet	Outlet
HSW-010	2.5 in BSP	2.5 in BS336
HSW-011	2.5 in BSPT	2.5 in BS336
HSW-012	2.5 in JIS10K	2.5 in BS336
HSW-013	2.5 in BS4504	2.5 in BS336
HSW-014	3 in BS4504	2.5 in BS336

HSW references are retained only for selection matching. They are not presented as CHUANWEI factory model numbers or evidence of approval to a named standard.

Quotation confirmation

Lock the exact ordered connection

Send the selected inlet and outlet requirement so the quotation can confirm the factory model, materials, pressure class, mating components and accessories.

Inlet and outlet selectionSpecify the required inlet size and interface plus the mating outlet connection.

Pressure and materialProvide the required working/test pressure, body material and finish.

Mating components and accessoriesConfirm the destination-market coupling, flange drilling, cap, chain and accessory requirements.

Order informationProvide quantity, destination, packing and required documents.

Send your landing-valve requirement

Include the HSW selection reference or inlet interface, outlet requirement, pressure, quantity and destination.
