Indoor First-Aid Fire Hose Reel
Straight-Stream Fire Hose Reel
A robust fire hose reel with a 19 mm semi-rigid hose and a copper straight-stream nozzle, for first-aid firefighting in indoor hydrant systems. Offered in 0.8, 1.0 and 1.6 MPa pressure classes.
Inlet connection, reel-plate diameter and marking are confirmed against the approved drawing, sample or order schedule before production.
Real product views

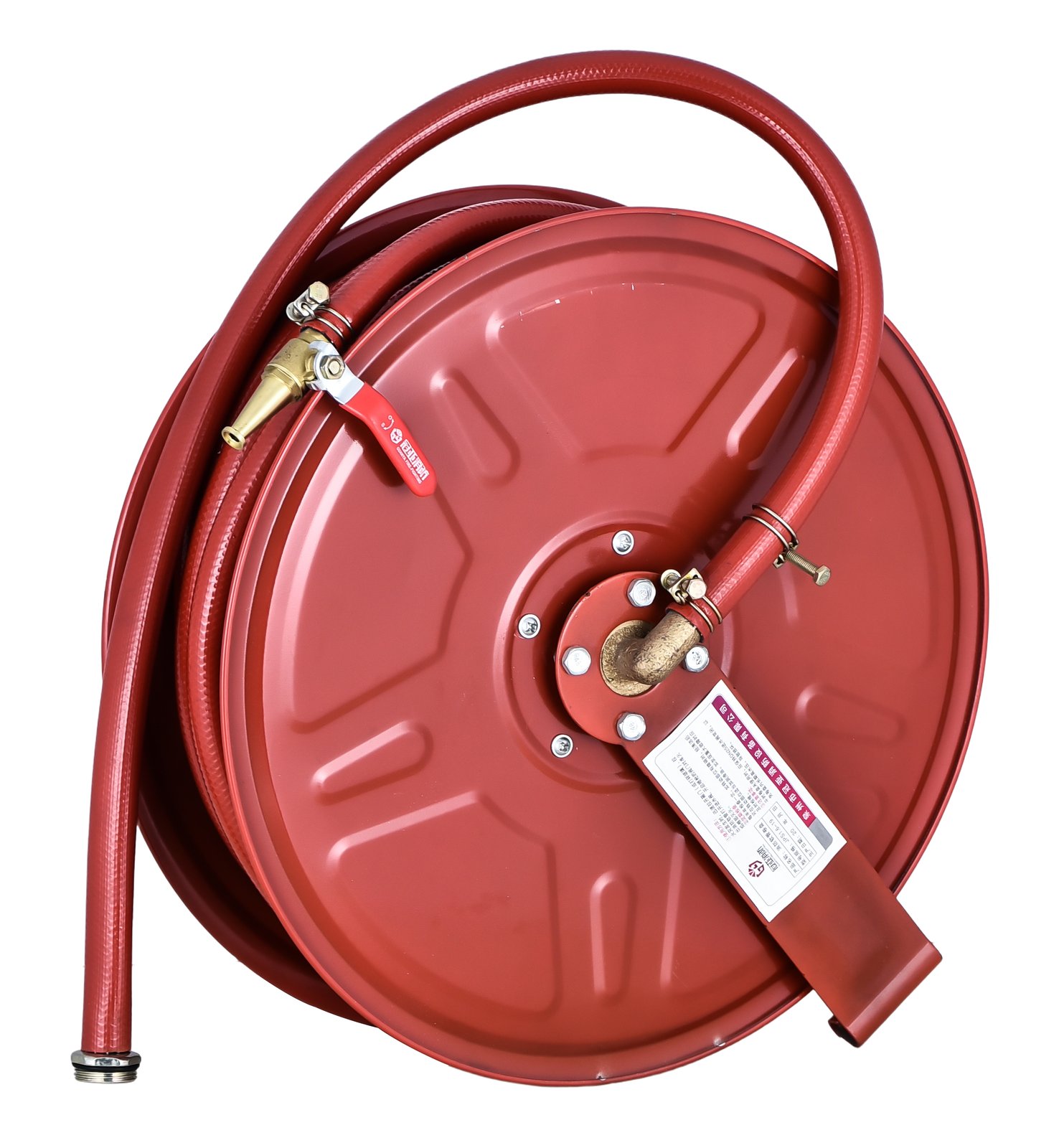

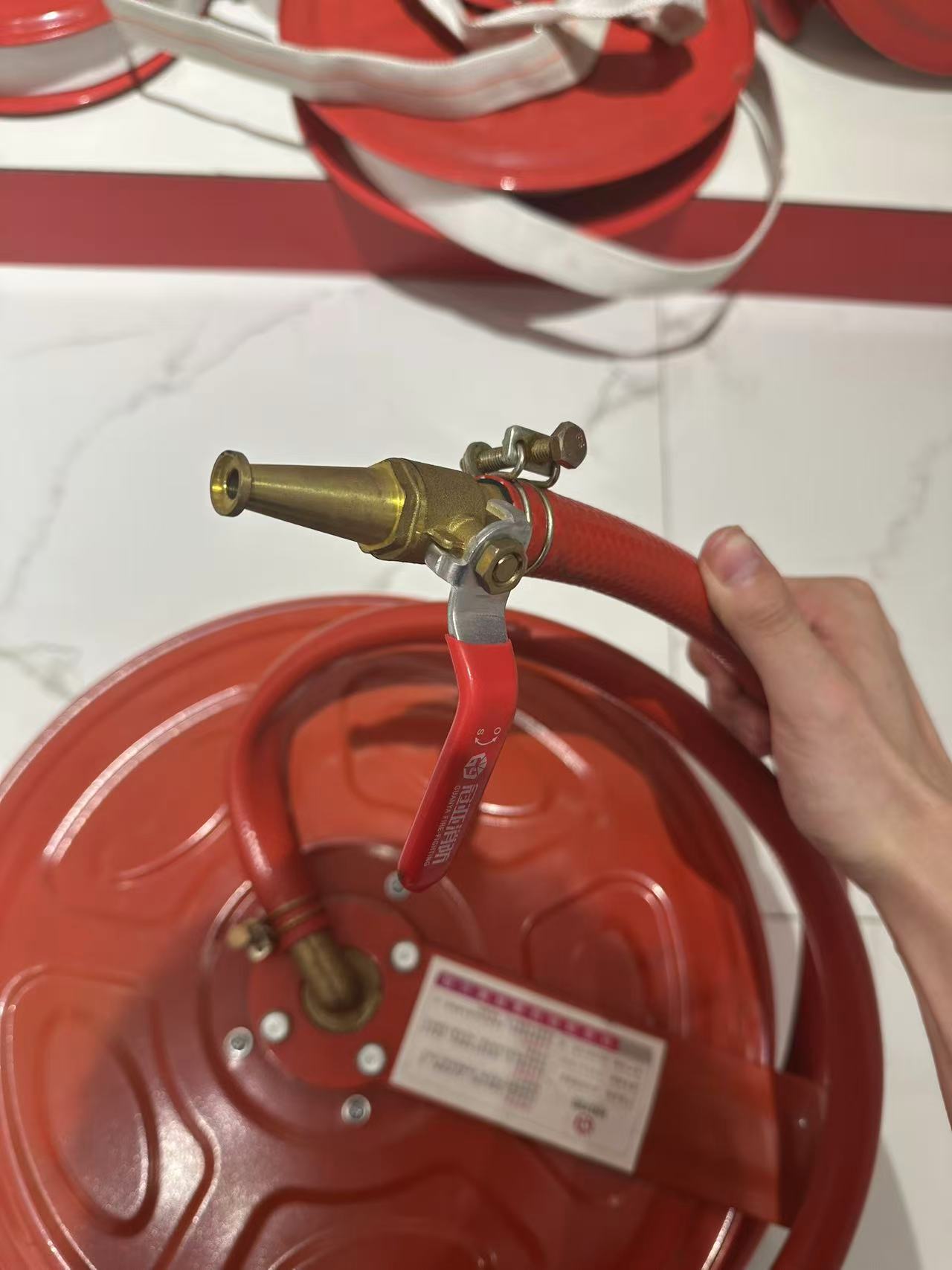

Reel assembly and nozzle detail
Photographs show the complete JPS hose reel assembly and the copper nozzle.
Technical overview
Confirmed construction and operating data
Critical product data is presented in HTML for clear international sourcing. No foreign approval is claimed on this page.
Series specifications
- Product type
- Straight-Stream Fire Hose Reel
- Hose
- 19 mm / ¾ in semi-rigid hose
- Hose lengths
- 20 / 25 / 30 m
- Pressure classes
- 0.8 / 1.0 / 1.6 MPa
- Reel plate
- 400 / 430 / 450 mm (0.8, 1.0 MPa); 0.7 mm plate, diameter on request (1.6 MPa)
- Inlet
- Iron, DN25 / 1 in
- Nozzle
- Copper alloy; thicker copper nozzle on 1.0 / 1.6 MPa
- Hub
- Aluminium (0.8 MPa); iron (1.0 / 1.6 MPa)
- Installation
- Indoor hydrant box wall-mounted
Available models
Configurations for quotation
International size and pressure are the primary selection fields. JPS codes are retained only as factory references.
| International configuration | Pressure | Hose length | Reel diameter | Model |
|---|---|---|---|---|
| Straight-Stream Fire Hose Reel | 0.8 MPa | 20 m / 65.6 ft | 400 mm | JPS0.8-19/20 |
| Straight-Stream Fire Hose Reel | 0.8 MPa | 25 m / 82 ft | 430 mm | JPS0.8-19/25 |
| Straight-Stream Fire Hose Reel | 0.8 MPa | 30 m / 98.4 ft | 450 mm | JPS0.8-19/30 |
| Straight-Stream Fire Hose Reel | 1.0 MPa | 20 m / 65.6 ft | 400 mm | JPS1.0-19/20 |
| Straight-Stream Fire Hose Reel | 1.0 MPa | 25 m / 82 ft | 430 mm | JPS1.0-19/25 |
| Straight-Stream Fire Hose Reel | 1.0 MPa | 30 m / 98.4 ft | 450 mm | JPS1.0-19/30 |
| Straight-Stream Fire Hose Reel | 1.6 MPa | 20 m / 65.6 ft | On request | JPS1.6-19/20 |
| Straight-Stream Fire Hose Reel | 1.6 MPa | 25 m / 82 ft | On request | JPS1.6-19/25 |
| Straight-Stream Fire Hose Reel | 1.6 MPa | 30 m / 98.4 ft | On request | JPS1.6-19/30 |
OEM / ODM capability
Configured to the approved drawing or sample
Manufacturing options are confirmed against the buyer's technical schedule. Standards and marking are confirmed together with the approved conformity documentation.

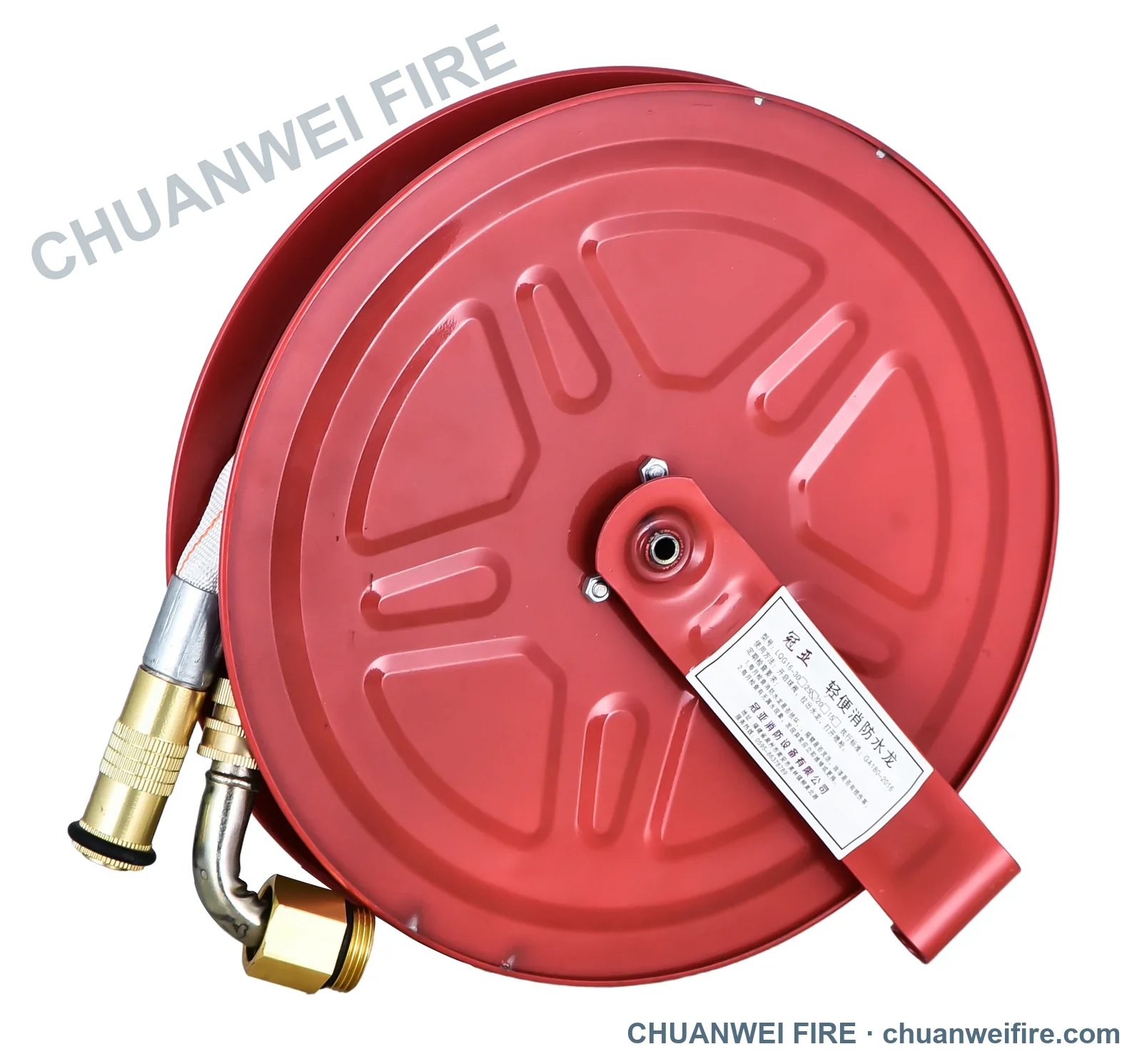

Product photographs
Compare the construction and visible markings. Open a photograph to enlarge it; confirm the required configuration with the quotation.
Send your hose reel schedule
Include pressure, hose length, inlet connection and quantity.
