Indoor First-Aid Fire Hose Reel
Jet / Spray Fire Hose Reel
A fire hose reel with a 19 mm semi-rigid hose and a full-copper jet/spray nozzle with copper quick coupling, for first-aid firefighting in indoor hydrant systems.
Inlet connection, reel-plate diameter and marking are confirmed against the approved drawing, sample or order schedule before production.

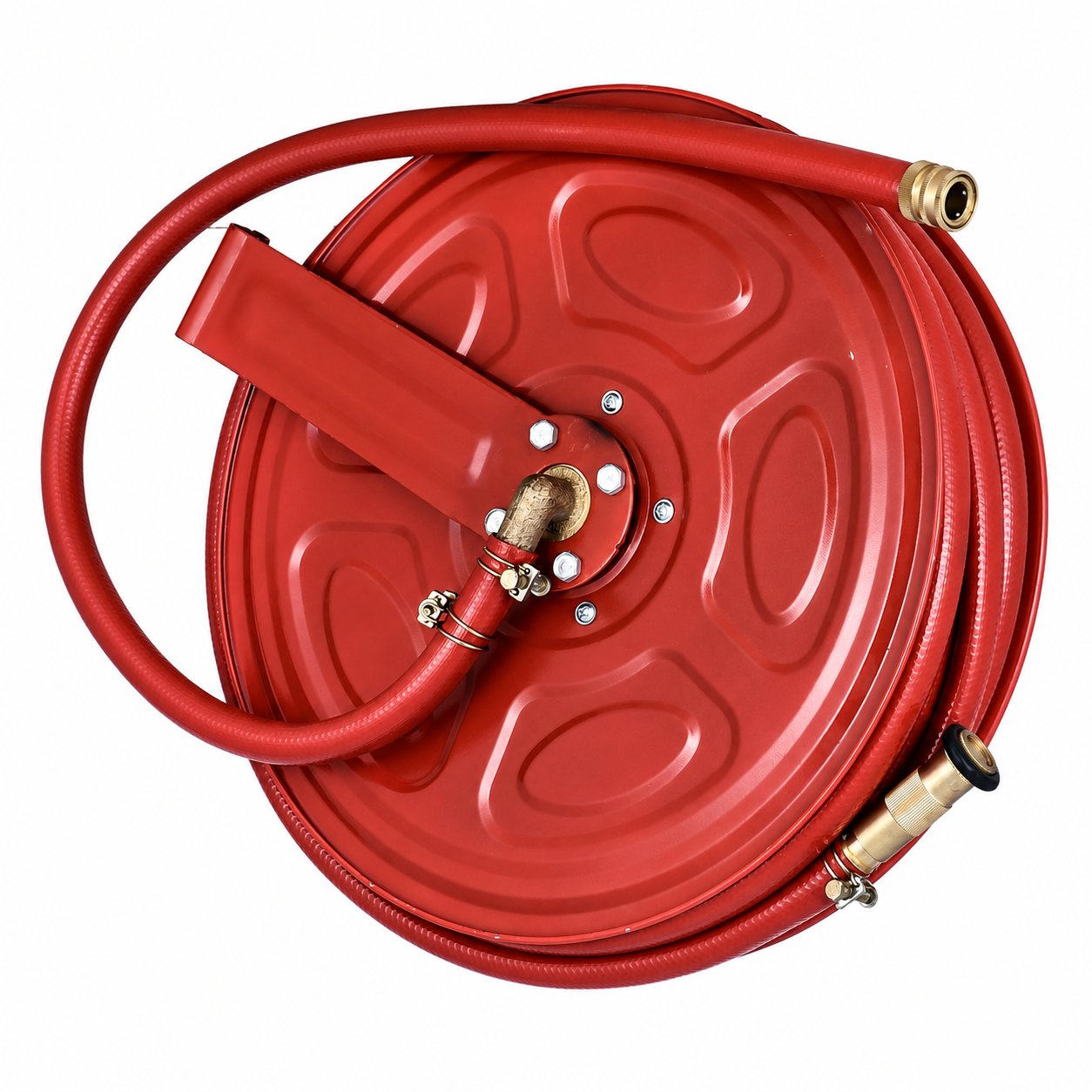

Real product view

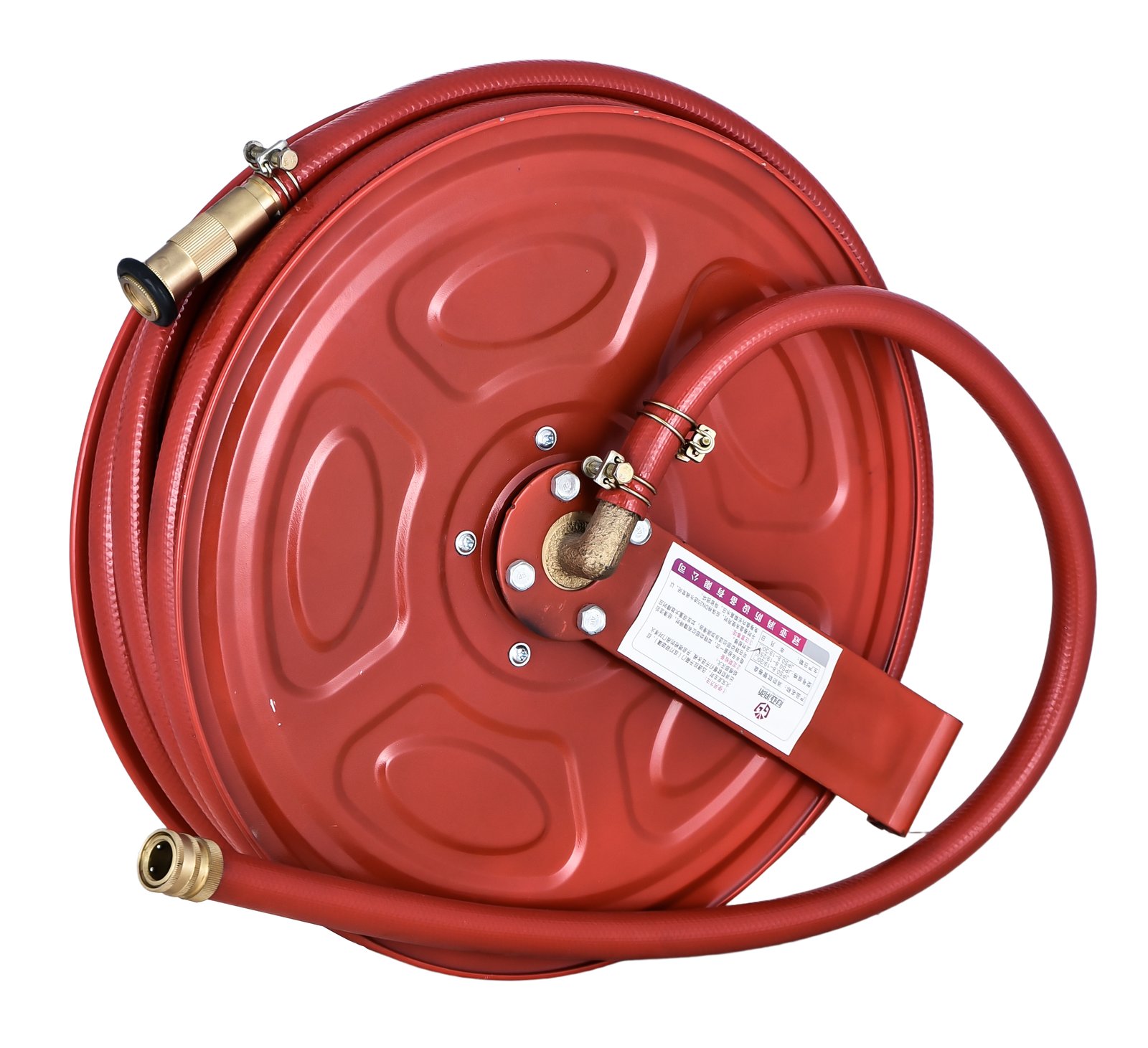

Complete jet/spray reel assembly

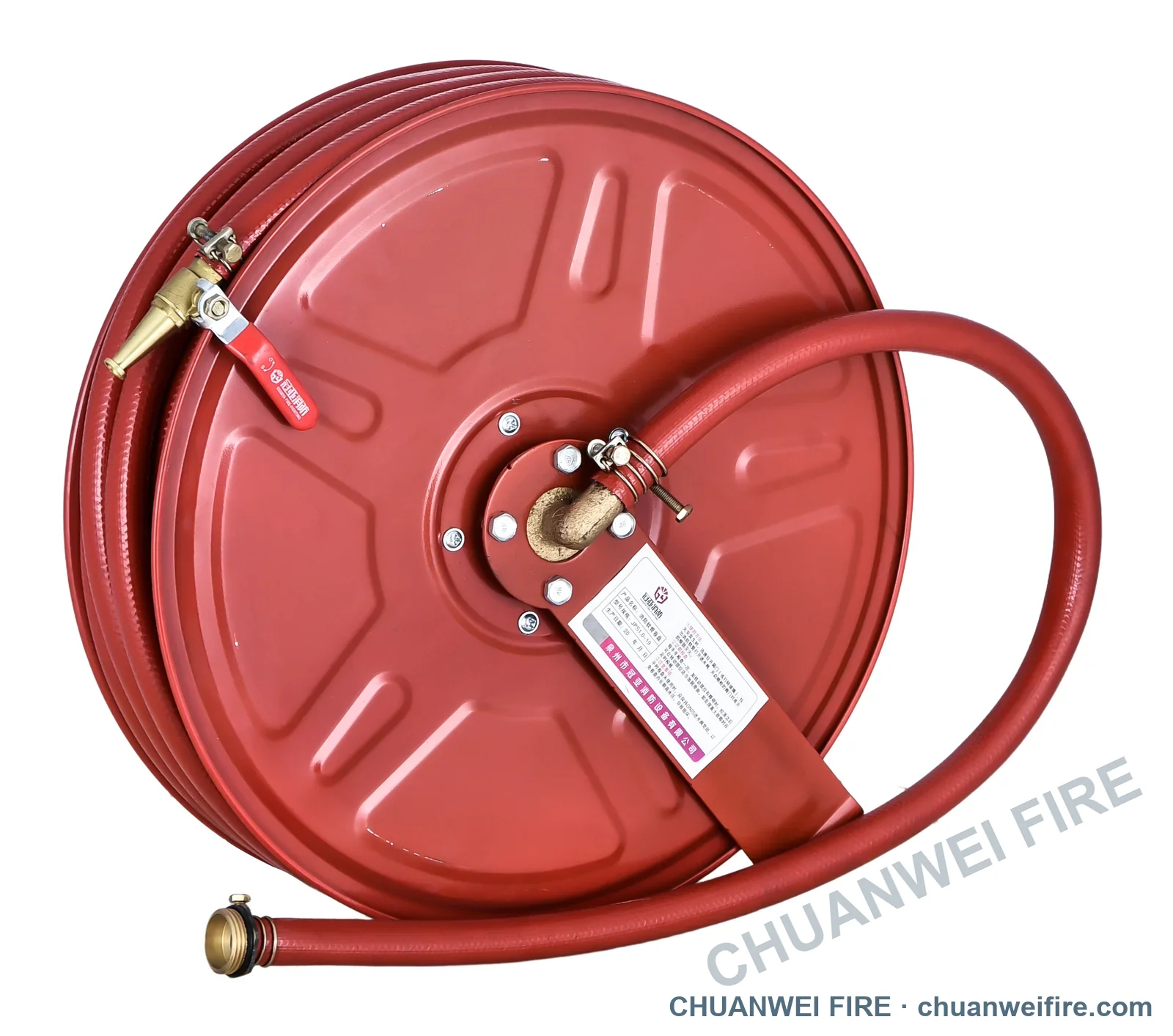

Photograph shows the complete JPS jet/spray hose reel assembly. The visible physical GUANYA / 冠亚 product markings are retained; CHUANWEI FIRE identifies the website and export-sales presentation.
Technical overview
Confirmed construction and operating data
Critical product data is presented in HTML for clear international sourcing. The reel is produced to a national standard; no foreign approval is claimed on this page.
Series specifications
- Product type
- Jet / Spray Fire Hose Reel
- Hose
- 19 mm / ¾ in semi-rigid hose
- Hose lengths
- 20 / 25 / 30 m
- Pressure classes
- 0.8 / 1.0 / 1.6 MPa
- Reel plate
- 400 / 430 / 450 mm (0.8, 1.0 MPa); 0.7 mm plate, diameter on request (1.6 MPa)
- Nozzle
- Full-copper jet / spray nozzle
- Quick coupling
- Copper
- Inlet
- Iron, DN25 / 1 in
- Hub
- Aluminium (0.8 MPa); iron (1.0 / 1.6 MPa)
- Installation
- Indoor hydrant box wall-mounted
- Standard
- GB 15090 (national fire hose reel standard); no foreign approval implied
Available models
Configurations for quotation
International size and pressure are the primary selection fields. JPS codes are retained only as factory references.
| International configuration | Pressure | Hose length | Reel diameter | Factory reference |
|---|---|---|---|---|
| Jet / Spray Fire Hose Reel | 0.8 MPa | 20 m / 65.6 ft | 400 mm | JPS0.8-19/20D |
| Jet / Spray Fire Hose Reel | 0.8 MPa | 25 m / 82 ft | 430 mm | JPS0.8-19/25D |
| Jet / Spray Fire Hose Reel | 0.8 MPa | 30 m / 98.4 ft | 450 mm | JPS0.8-19/30D |
| Jet / Spray Fire Hose Reel | 1.0 MPa | 20 m / 65.6 ft | 400 mm | JPS1.0-19/20E |
| Jet / Spray Fire Hose Reel | 1.0 MPa | 25 m / 82 ft | 430 mm | JPS1.0-19/25E |
| Jet / Spray Fire Hose Reel | 1.0 MPa | 30 m / 98.4 ft | 450 mm | JPS1.0-19/30E |
| Jet / Spray Fire Hose Reel | 1.6 MPa | 20 m / 65.6 ft | On request | JPS1.6-19/20F |
| Jet / Spray Fire Hose Reel | 1.6 MPa | 25 m / 82 ft | On request | JPS1.6-19/25F |
| Jet / Spray Fire Hose Reel | 1.6 MPa | 30 m / 98.4 ft | On request | JPS1.6-19/30F |
OEM / ODM capability
Configured to the approved drawing or sample
Manufacturing options are confirmed against the buyer's technical schedule. Standards and marking are confirmed together with the approved conformity documentation.
Send your hose reel schedule
Include pressure, hose length, inlet connection and quantity.
