European-Style First-Aid Fire Hose Reel
RIA 25 Fire Hose Reel
A wall-mounted fire hose reel with semi-rigid hose for first-aid firefighting in indoor hydrant and hose-line systems. Available in 20, 25 and 30 m hose lengths.
Hose length, inlet connection and marking are confirmed against the approved drawing, sample or order schedule before production.
Real product views

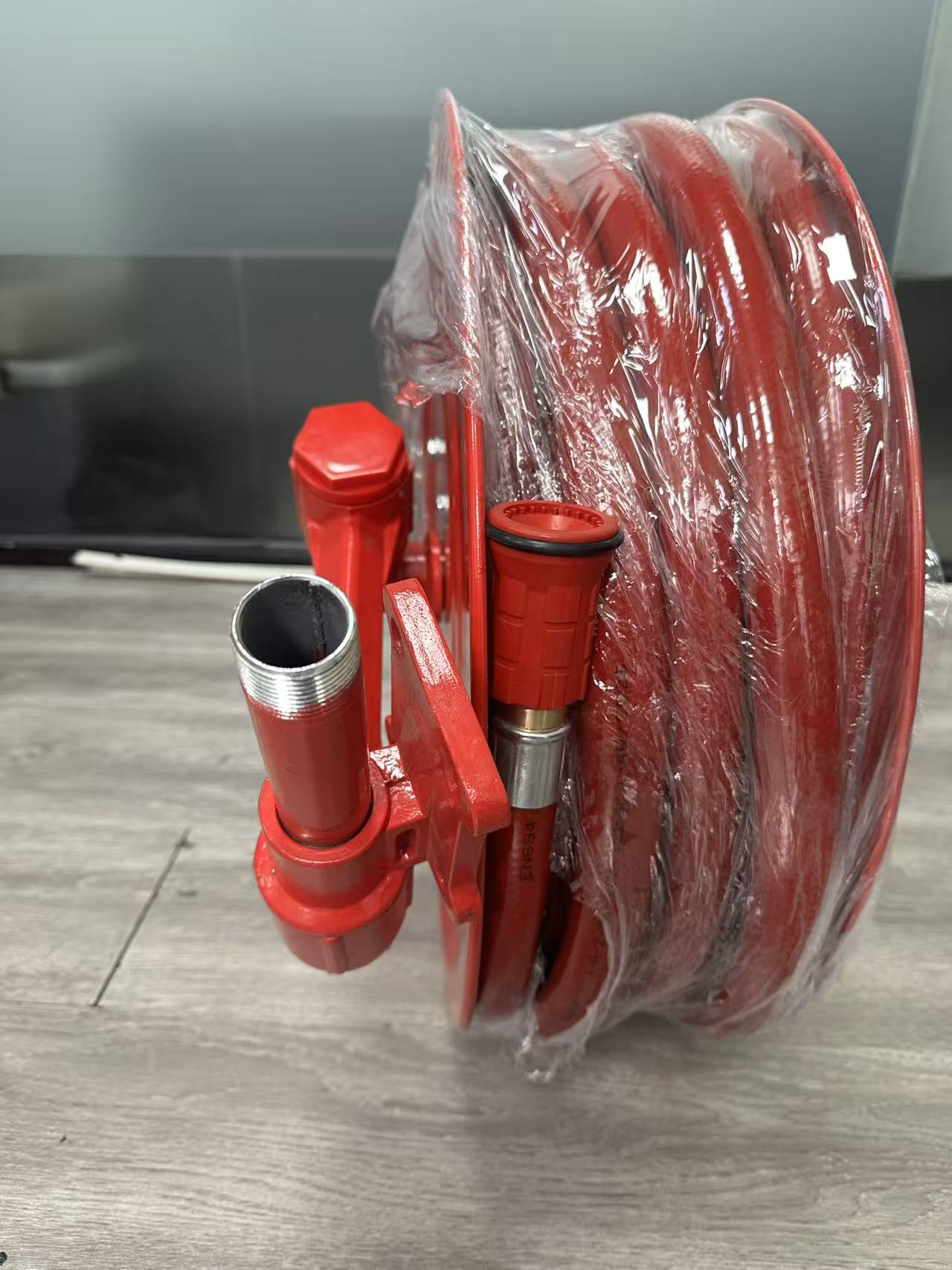

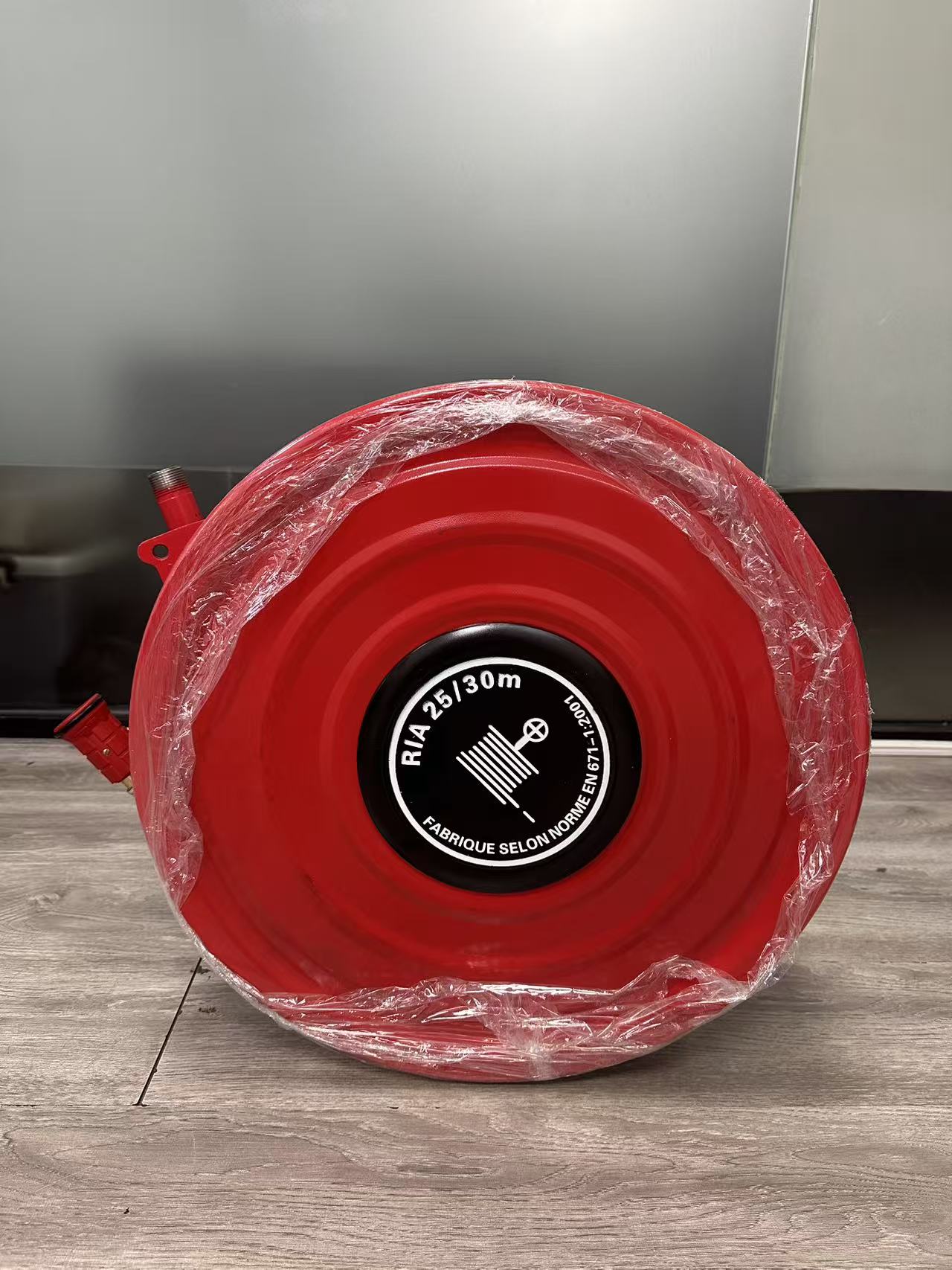

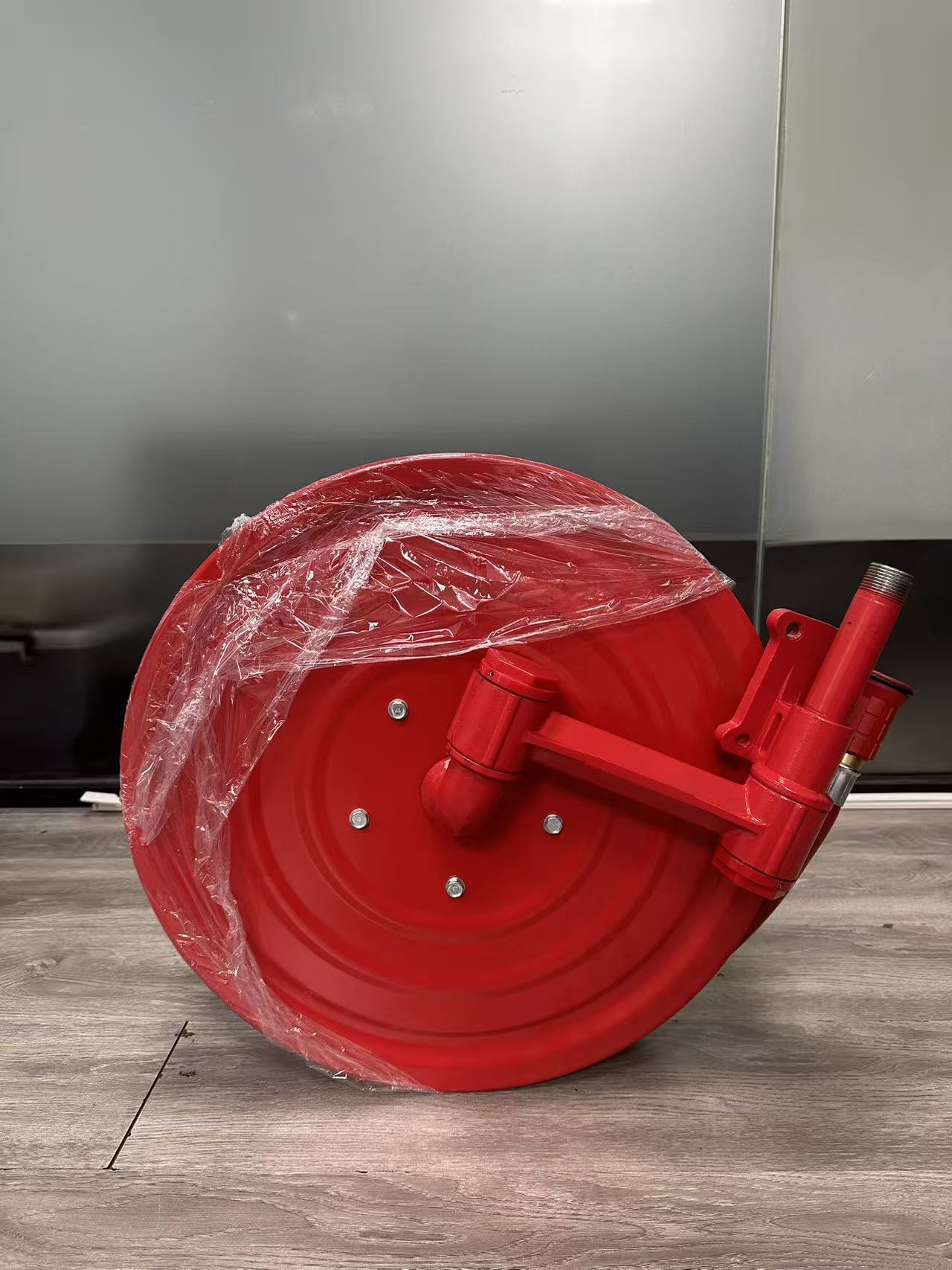

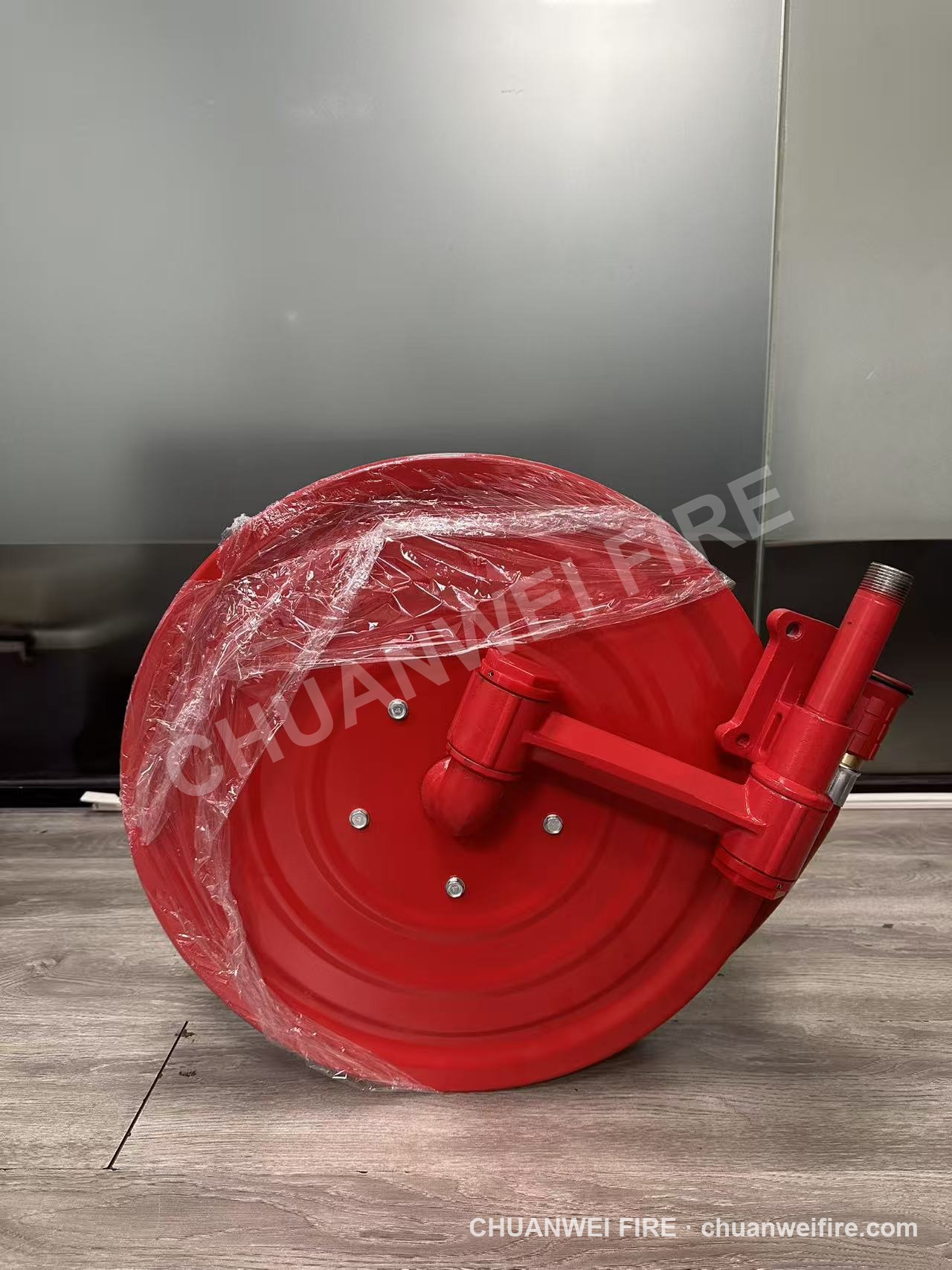

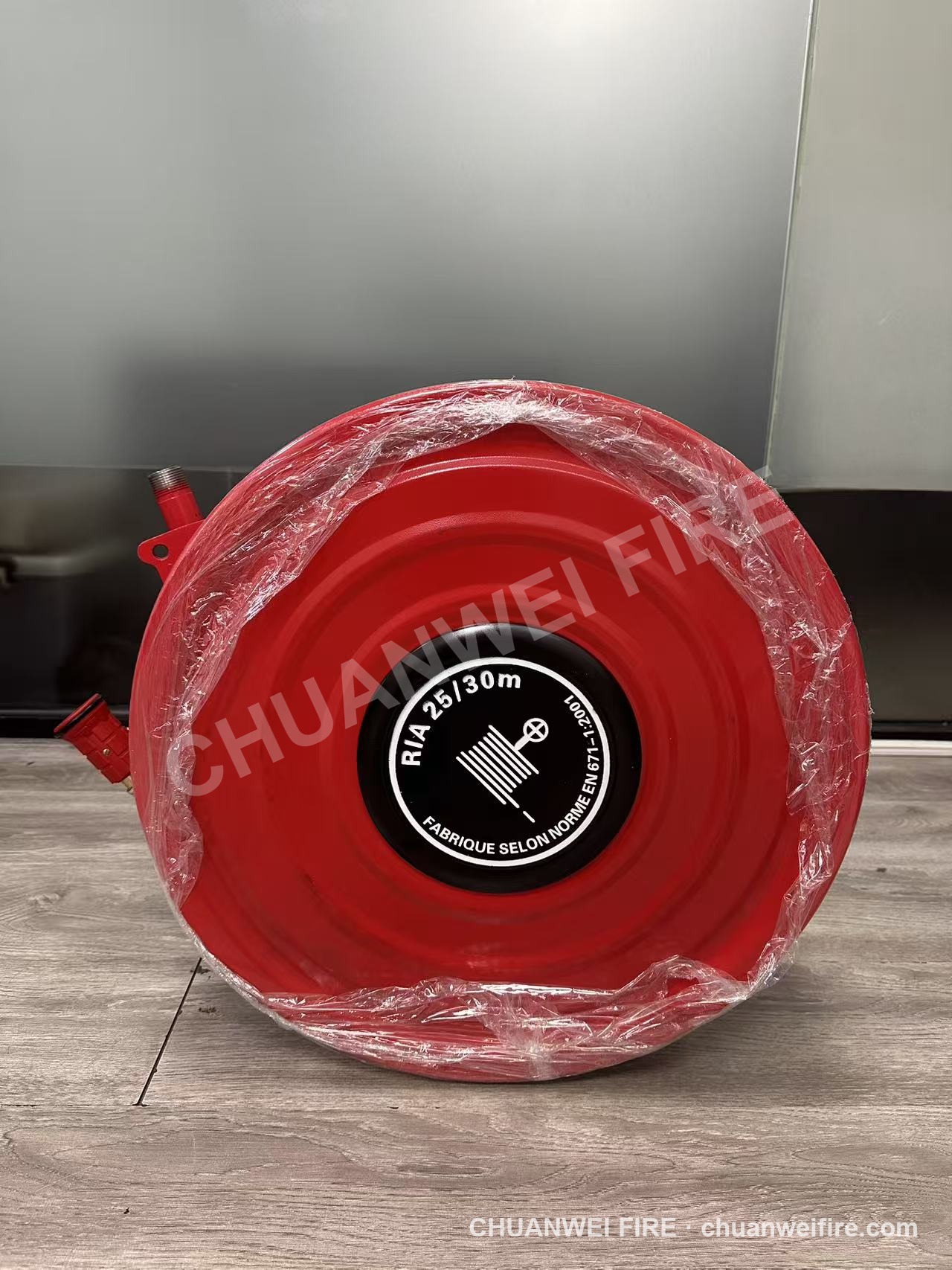

Front, rear and inlet/outlet detail

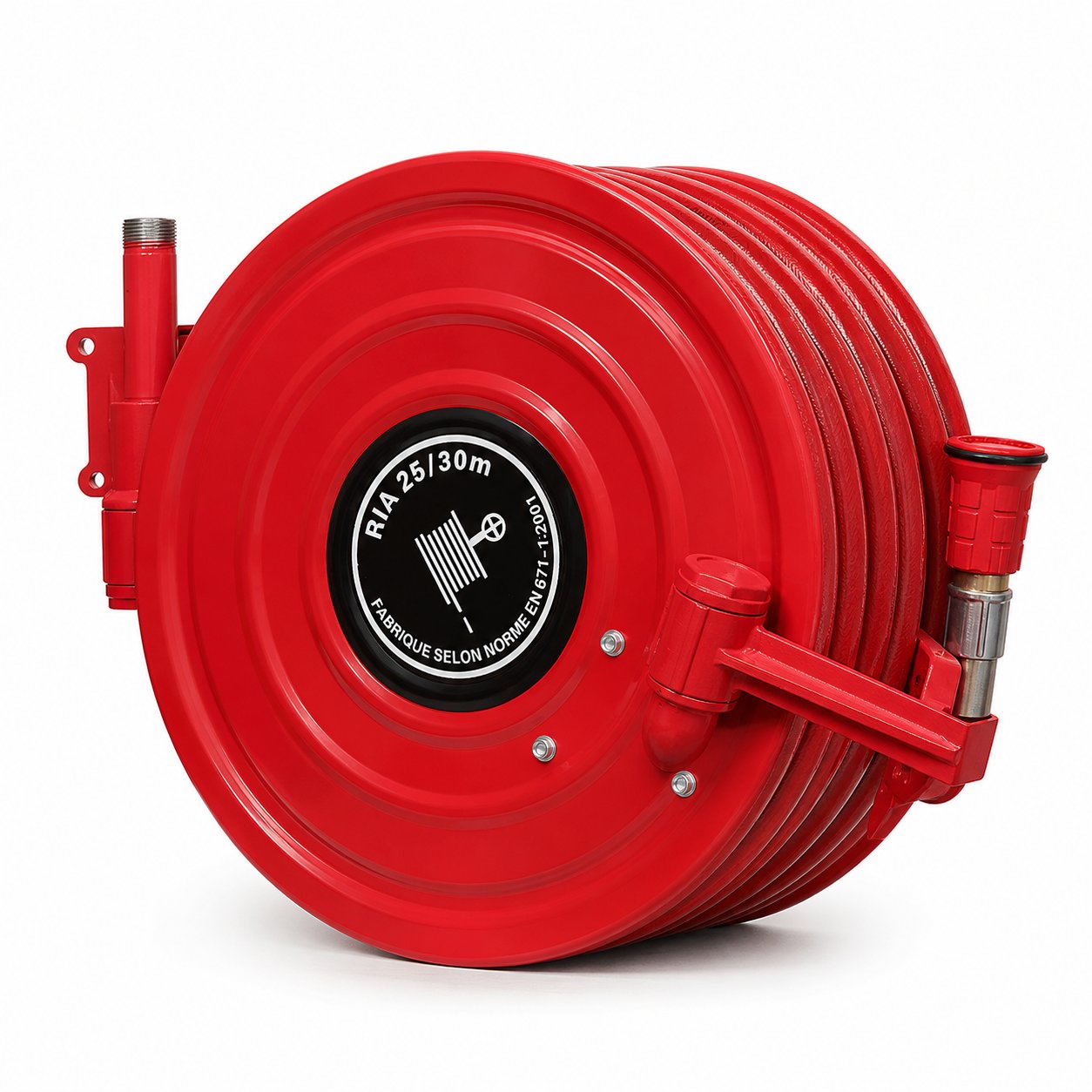

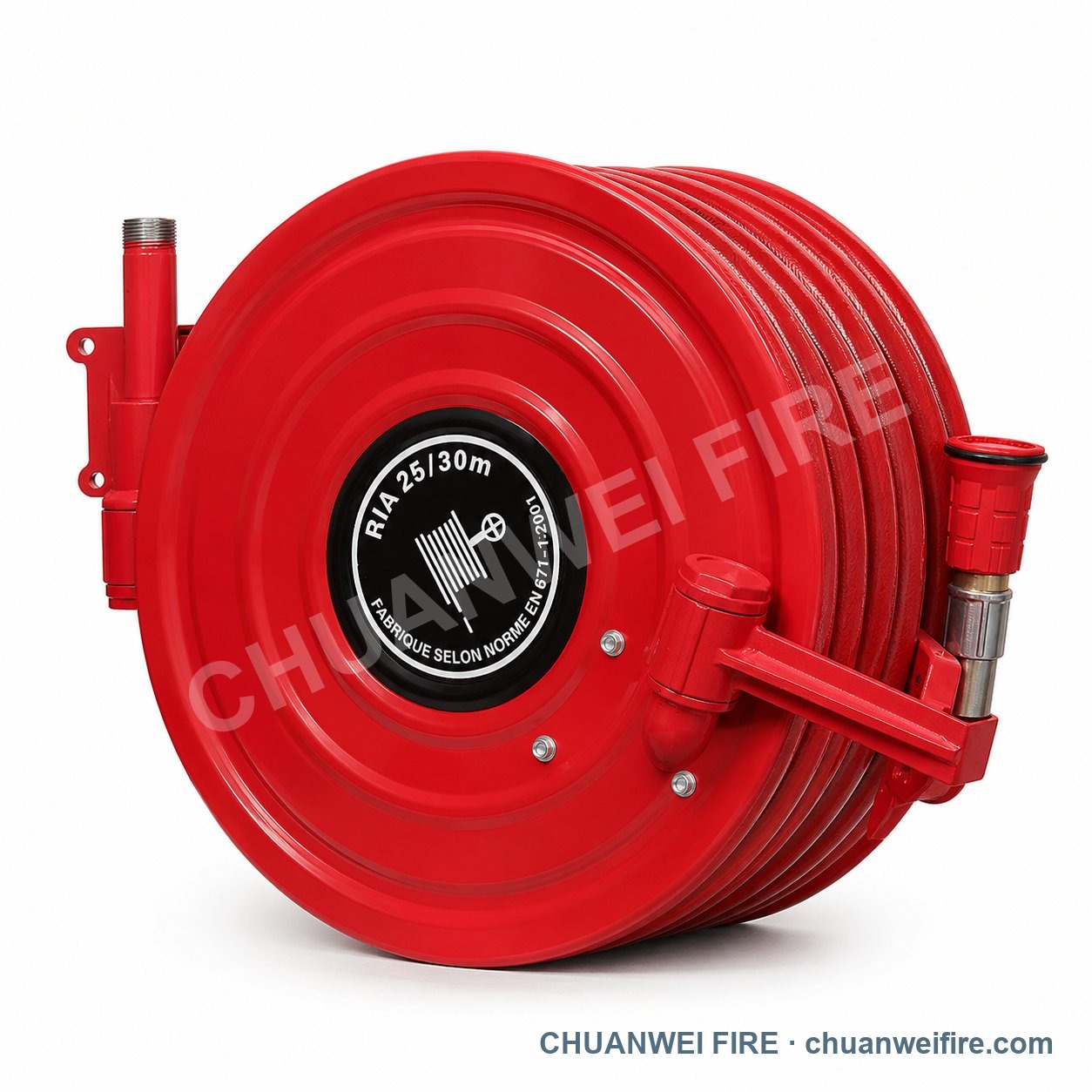

Photographs show the complete RIA 25 hose reel assembly.
Technical overview
Construction and operating data
Compare hose length, connection and pressure ratings for your order. If your project specifies EN 671-1, request conformity documents matching the selected model before ordering.
Series specifications
- Product type
- RIA 25 Fire Hose Reel (first-aid hose reel)
- Project standard requirements
- EN 671-1: model-specific conformity documentation requires verification
- Hose
- 25 mm / 1 in semi-rigid hose
- Hose lengths
- 20 / 25 / 30 m
- Maximum working pressure
- 1.2 MPa / 12 bar / approx. 174 psi
- Test pressure
- 1.8 MPa
- Burst pressure
- ≥ 3.6 MPa
- Inlet
- DN25 / G1 BSP
- Nozzle
- Brass, on/off function
- Reel support & housing
- Ductile iron
- Inlet control valve
- Brass ball valve
- Reel diameter
- 550 mm / 21.7 in (30 m version)
- Overall dimensions
- Total width 300 mm; reel-body width 200 mm
- Installation
- Indoor wall-mounted swing arm
Available models
Three hose lengths for quotation
Hose length is the primary selection field. Reel diameter for the 30 m version is confirmed at 550 mm; other lengths are confirmed on the order schedule.
| International configuration | Hose length | Working pressure | Reel diameter | Model |
|---|---|---|---|---|
| RIA 25 Fire Hose Reel | 20 m / 65.6 ft | 1.2 MPa | Available on request | RIA 25/20m |
| RIA 25 Fire Hose Reel | 25 m / 82 ft | 1.2 MPa | Available on request | RIA 25/25m |
| RIA 25 Fire Hose Reel | 30 m / 98.4 ft | 1.2 MPa | 550 mm | RIA 25/30m |
OEM / ODM capability
Configured to the approved drawing or sample
Manufacturing and assembly options are confirmed against the buyer's technical schedule. Standards and marking are confirmed together with the approved conformity documentation.
Send your hose reel schedule
Include hose length, inlet connection and quantity.
