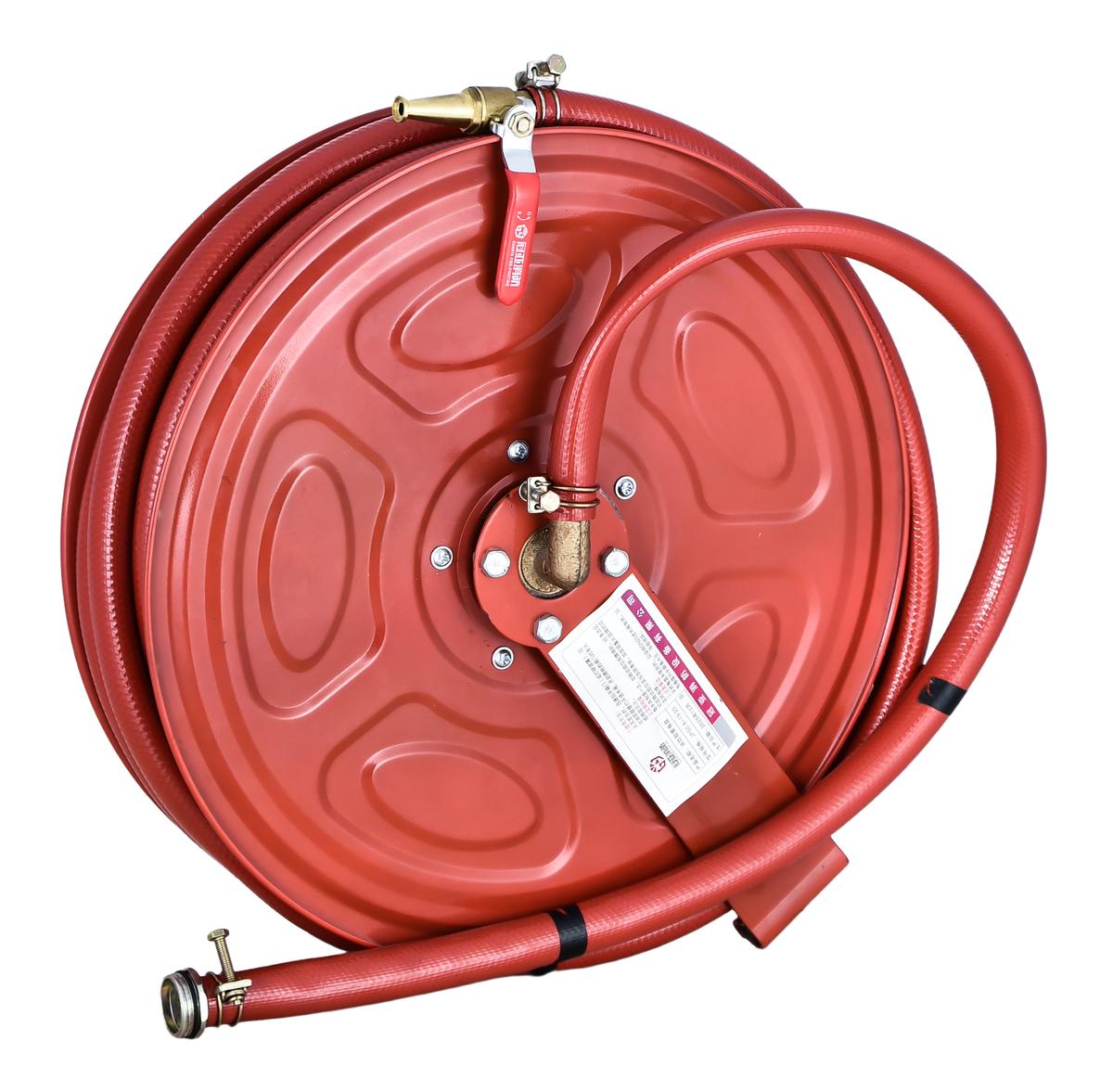

Heavy-Duty Fire Hose Reel
An upgraded JPS fire hose reel with thicker hose, reel plates and nozzle, plus a high-pressure 1.6 MPa range using 0.7 mm reel plates.
19 mm / ¾ in hose20 / 25 / 30 mHeavier components0.7 mm plate (1.6 MPa)
Inlet connection, reel-plate diameter and marking are confirmed against the approved drawing, sample or order schedule before production.
Series specifications
- Product type
- Heavy-Duty Fire Hose Reel
- Hose
- 19 mm / ¾ in semi-rigid hose
- Hose lengths
- 20 / 25 / 30 m
- Heavy-duty (0.8 MPa)
- Thicker hose, reel plates and nozzle
- High-pressure (1.6 MPa)
- 0.7 mm reel plates; standard hose; thicker copper nozzle
- Reel plate
- 400 / 430 / 450 mm (0.8 MPa); diameter on request (1.6 MPa)
- Inlet
- Iron, DN25 / 1 in
- Nozzle
- Copper alloy; thicker copper nozzle
- Hub
- Aluminium (0.8 MPa); iron (1.6 MPa)
- Installation
- Indoor hydrant box wall-mounted
- Standard
- GB 15090 (national fire hose reel standard); no foreign approval implied
Available models
Configurations for quotation
Heavy-duty and high-pressure configurations are shown below. JPS codes are retained only as factory references.
| International configuration | Pressure | Hose length | Reel diameter | Factory reference |
|---|---|---|---|---|
| Heavy-Duty Fire Hose Reel | 0.8 MPa | 20 m / 65.6 ft | 400 mm | JPS0.8-19/20 |
| Heavy-Duty Fire Hose Reel | 0.8 MPa | 25 m / 82 ft | 430 mm | JPS0.8-19/25 |
| Heavy-Duty Fire Hose Reel | 0.8 MPa | 30 m / 98.4 ft | 450 mm | JPS0.8-19/30 |
| High-Pressure Fire Hose Reel | 1.6 MPa | 20 m / 65.6 ft | On request | JPS1.6-19/20 |
| High-Pressure Fire Hose Reel | 1.6 MPa | 25 m / 82 ft | On request | JPS1.6-19/25 |
| High-Pressure Fire Hose Reel | 1.6 MPa | 30 m / 98.4 ft | On request | JPS1.6-19/30 |
OEM / ODM capability
Configured to the approved drawing or sample
Manufacturing options are confirmed against the buyer's technical schedule. Standards and marking are confirmed together with the approved conformity documentation.
Reel & nameplate brandingCustom nameplate, logo and coating color.
Hose & pressureHose length and duty level selected to the order.
Nozzle & couplingNozzle and quick-coupling configuration reviewed before manufacturing.
Export packingCarton or wooden-case packing prepared according to the order.
Send your hose reel schedule
Include pressure, hose length, inlet connection and quantity.
