Fire gate valves

Grooved OS&Y Gate Valves

Handwheel-operated rising-stem gate valves with grooved ends. The DN150 sample shows the exposed stem, yoke and grooved pipe connections.

Grooved ends Handwheel; OS&Y rising stem DN150 sample

Confirm the required size, working pressure, groove dimensions and installation clearance with the quotation.

Product images

Grooved rising-stem configuration

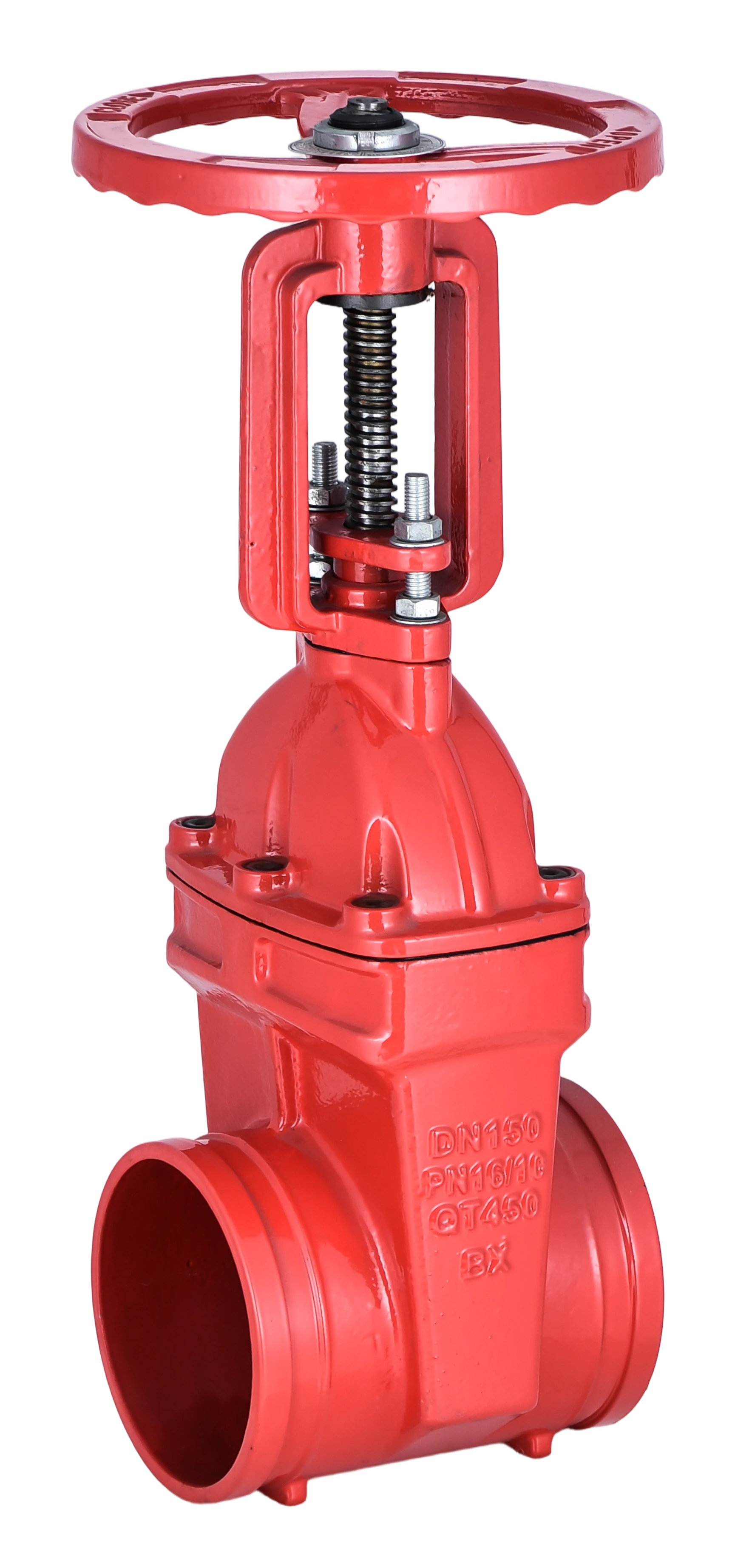

Supplied product photograph showing the handwheel, exposed threaded stem and grooved ends.

Grooved OS&Y gate valve — DN150 sample1 / 1

Specifications

The configuration below describes the photographed sample. Request the size-specific drawing and technical data for your order.

Available configuration

Use this configuration to identify the requested valve. Confirm the final size and pressure with the order.

Configuration	Connection	Photographed size
Grooved OS&Y Gate Valves	Grooved ends	DN150 sample

The photographed sample does not establish the full available size range or a single pressure rating for all sizes.

Quotation confirmation

Send the required nominal size, working pressure, quantity and destination.

Grooved connectionProvide the coupling specification or mating drawing to confirm groove dimensions.

Pressure and materialsSpecify the working pressure and required body, stem and seal materials.

Installation clearanceRequest the size-specific drawing to check space for the rising stem and handwheel.

Include nominal size, working pressure, coupling details, quantity and destination.
