Configuration A and configuration B
Fire hose nozzles with a side operating lever and black grip, available in two inlet configurations. Select the required reference and inlet size from the table below.
DN and GN codes are selection references, not factory model numbers. Confirm the exact inlet coupling and matching component with your quotation.
Product images

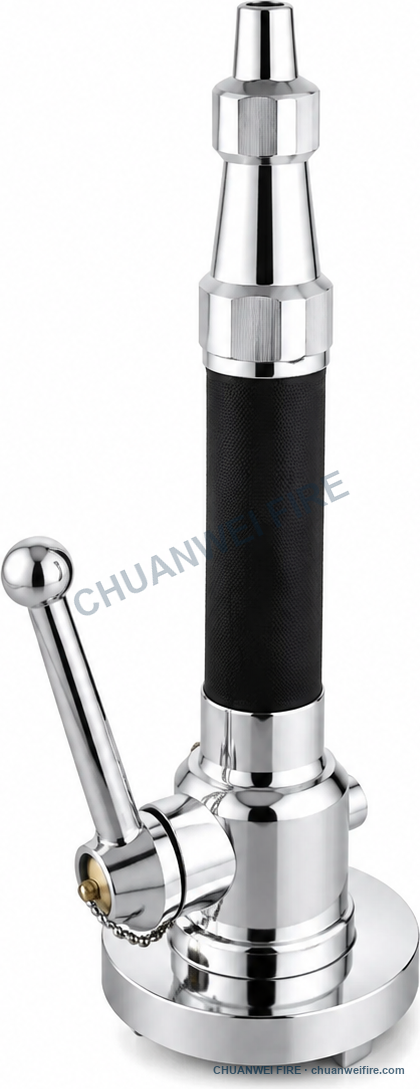

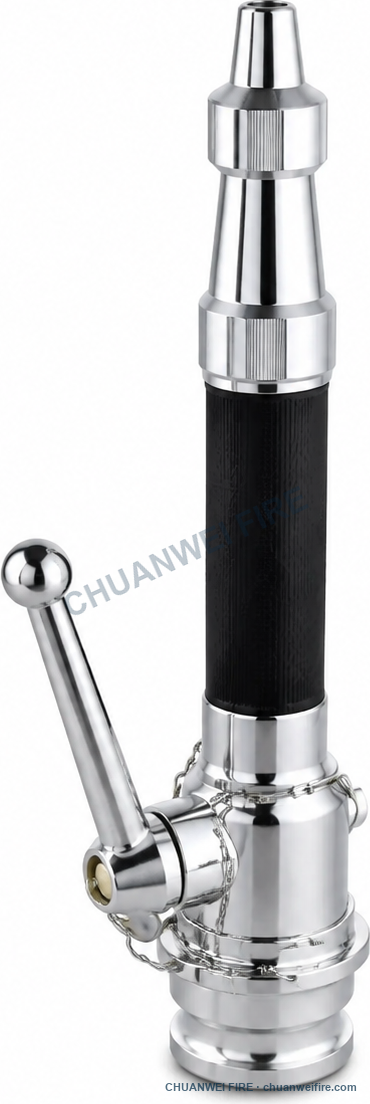

Representative display images for configurations A and B. Request the product photo and mating-coupling details for the selected size.
Specifications
The available selections are listed below. Construction details and performance data remain subject to confirmation for the selected version.
Available selections
Use the selection reference and corresponding inlet size when requesting a quotation.
| Configuration | Selection reference | Inlet size |
|---|---|---|
| Configuration A | DN-010 | 1½ in |
| Configuration A | DN-011 | 2 in |
| Configuration A | DN-012 | 2½ in |
| Configuration B | GN-020 | 2 in |
| Configuration B | GN-021 | 2½ in |
Compare the specifications for each named configuration below. Values apply only to the configuration shown.
Applies to the aluminum-alloy, rubber-grip version with BS 336 coupling. Other inlet configurations have separate specifications.
Flow is not assigned to a test pressure in this specification. Verify the required mating coupling.
Length, weight and straight-jet mode below apply only to the 2 in version.
Quotation confirmation
Send the selection reference, inlet size and mating-coupling details to identify the required configuration.
Start with the selection reference or inlet size and quantity. Add the mating coupling and destination when available.
