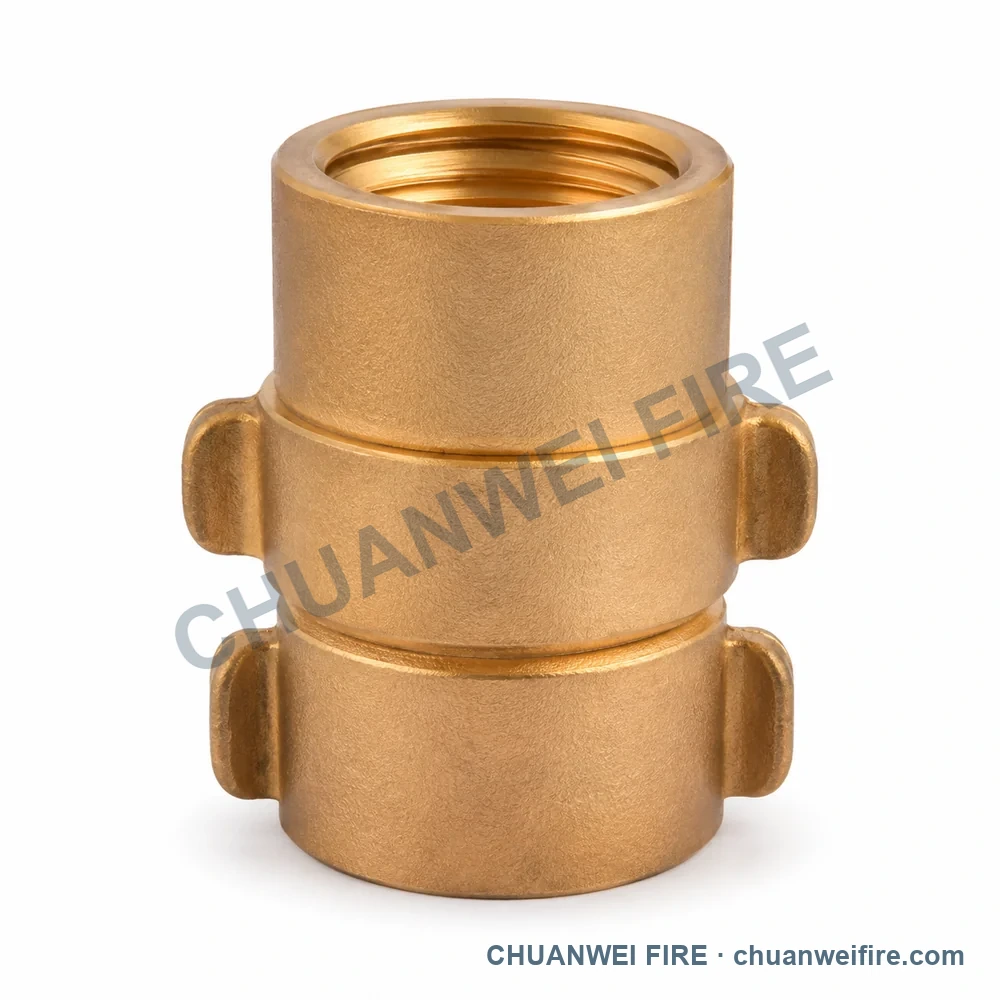

Double-Lug Fire Hose Adapter — UHC-015 / UHC-016
Connection or dimension references: inlet 1.5 in NH · inlet 2.5 in NH
5 configurations to compare
Compact Spray Nozzles and Coupling Adapters
Use the configuration images to identify the required product, then confirm connection, material and performance data with the quotation.
5 illustrated configurations
Configuration images are illustrations. Request the product photo, connection and performance details for your selected configuration before ordering.
Available configurations

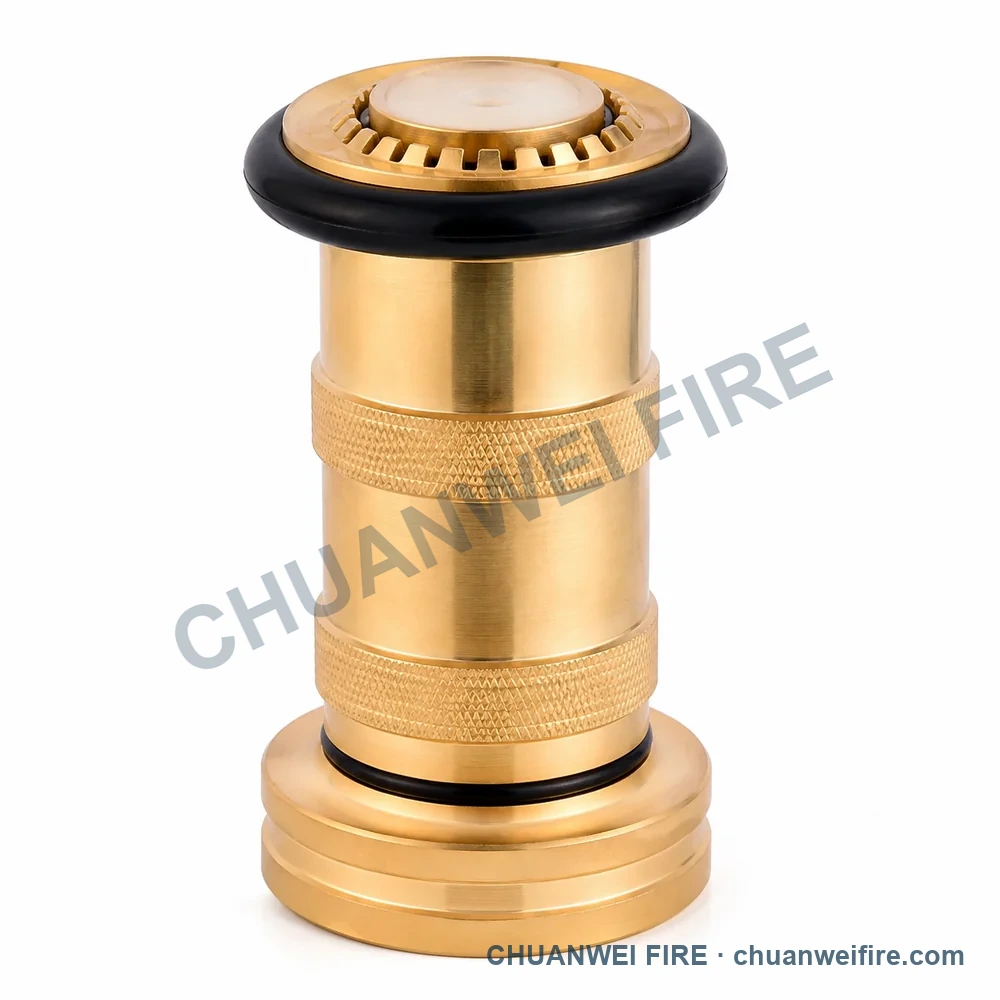

Sealed Compact Spray Fire Hose Nozzle — UN-045 / UN-046 / UN-047 / UN-048
Connection or dimension references: inlet 1 in BSP; outlet 16 mm · inlet 1 in NPT; outlet 16 mm · inlet 1.5 in BSP; outlet 28.5 mm · inlet 1.5 in NPT; outlet 28.5 mm

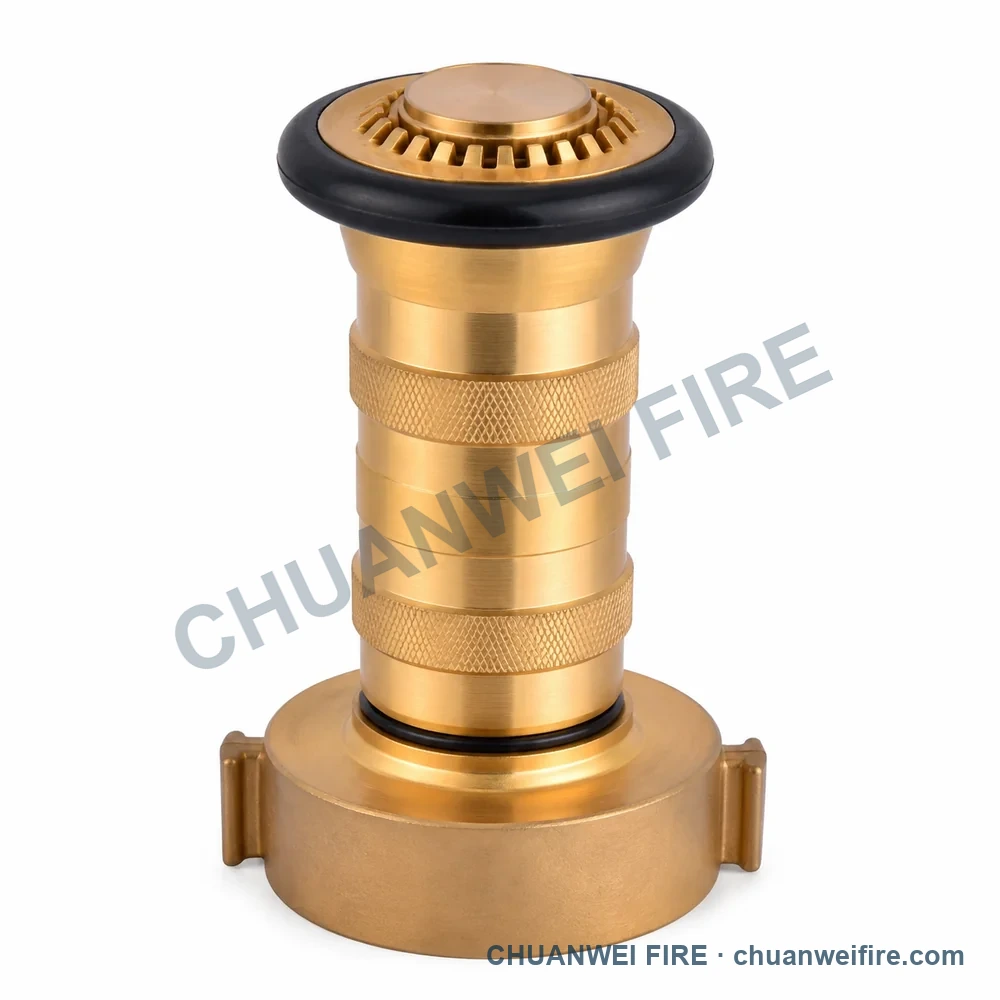

Double-Lug Base Spray Fire Hose Nozzle — UN-048 / UN-049
Connection or dimension references: inlet 2.5 in BSP; outlet 29 mm · inlet 2.5 in NH; outlet 29 mm

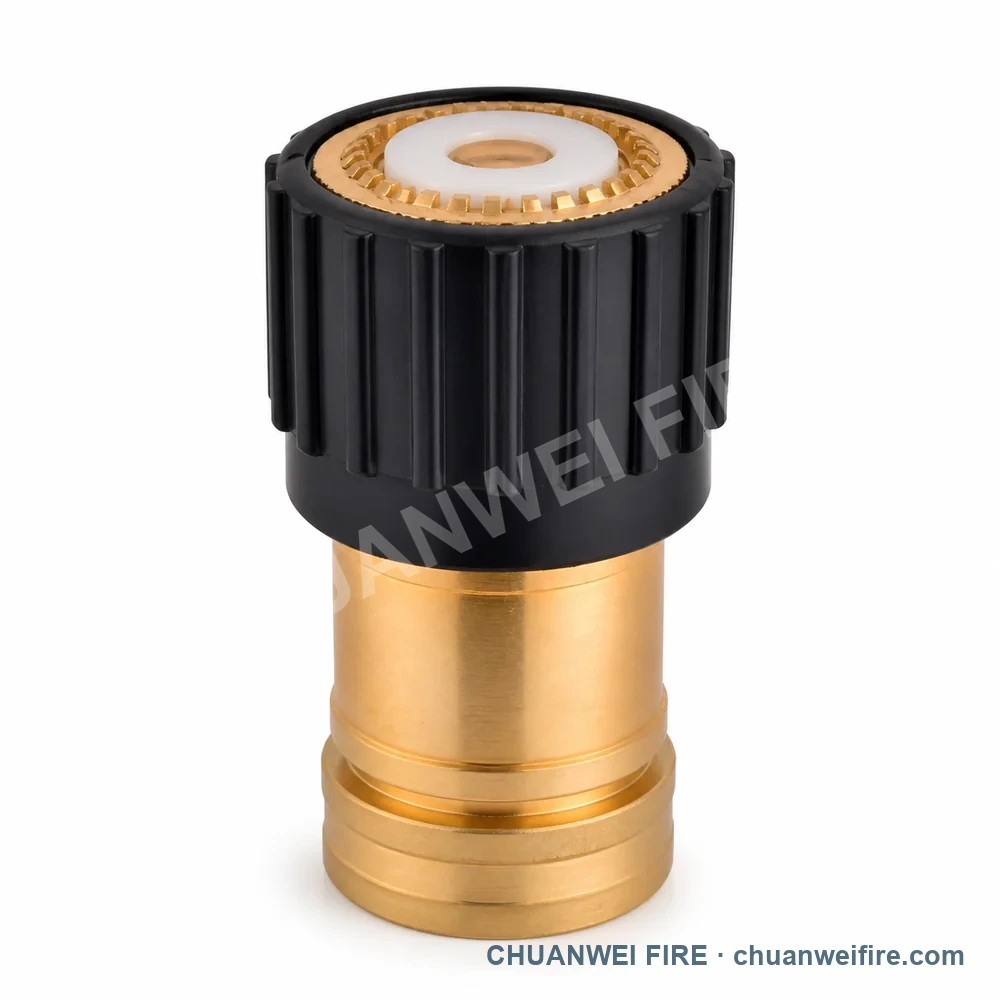

Wide-Head Fire Hose Nozzle — UN-050 / UN-051 / UN-052
Connection or dimension references: inlet 1.5 in BSP; outlet 20 mm · inlet 2 in BSP; outlet 28 mm · inlet 2.5 in BSP; outlet 33 mm

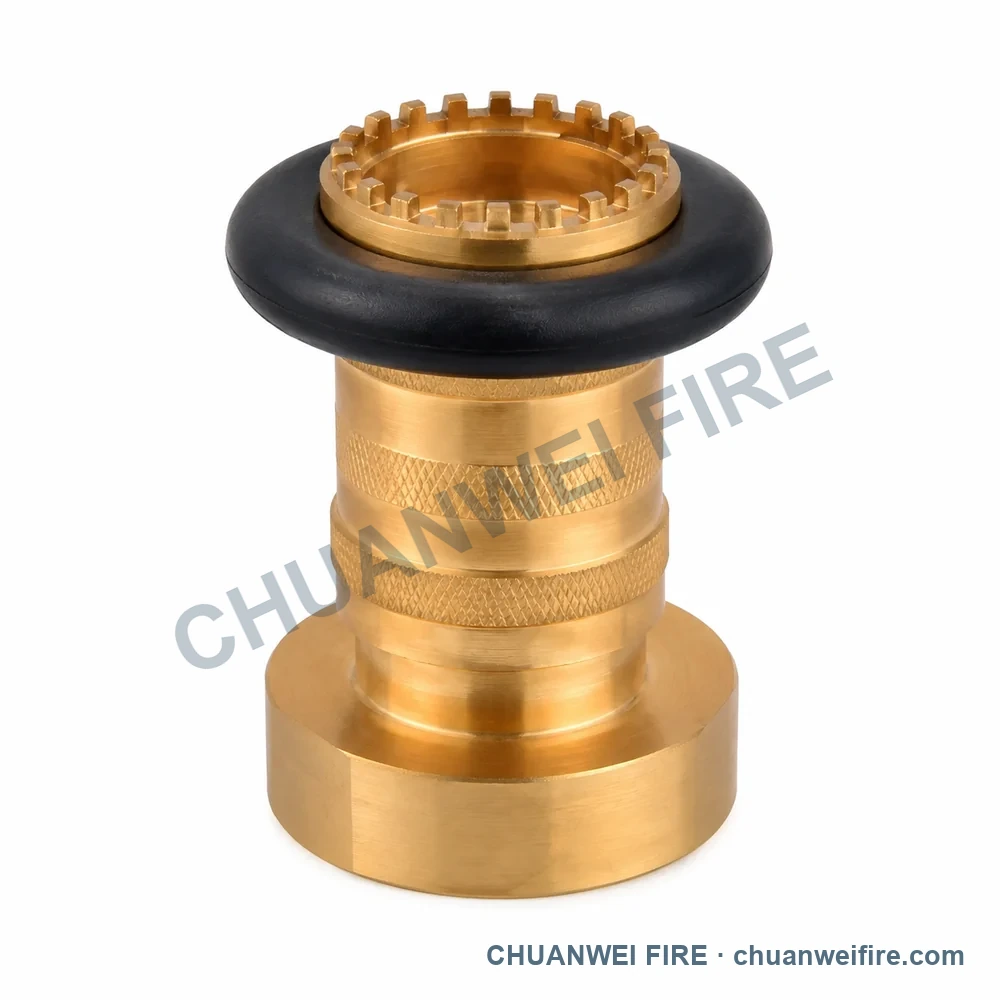

Serrated-Tip Sealed Fire Hose Nozzle — UN-053
Connection or dimension references: inlet 1.5 in BSP; outlet 29 mm
Configuration images
5 configurations to compare
Illustrations for comparing available configurations. Request the product photo and drawing for your selected configuration to confirm connections and dimensions.
Double-Lug Fire Hose Adapter — UHC-015 / UHC-0161 / 5
Specifications
Product selection details
Compare connection and dimension references to choose your configuration. Final order specifications are confirmed with the quotation.
- Product family
- Compact Spray Nozzles and Coupling Adapters
- Available configurations
- 5 illustrated configurations
Available configurations
Configurations and connection references
Compare the configuration and connection or dimension references in each row.
| Configuration | Connection or dimension references |
|---|---|
| Double-Lug Fire Hose Adapter — UHC-015 / UHC-016 | inlet 1.5 in NH · inlet 2.5 in NH |
| Sealed Compact Spray Fire Hose Nozzle — UN-045 / UN-046 / UN-047 / UN-048 | inlet 1 in BSP; outlet 16 mm · inlet 1 in NPT; outlet 16 mm · inlet 1.5 in BSP; outlet 28.5 mm · inlet 1.5 in NPT; outlet 28.5 mm |
| Double-Lug Base Spray Fire Hose Nozzle — UN-048 / UN-049 | inlet 2.5 in BSP; outlet 29 mm · inlet 2.5 in NH; outlet 29 mm |
| Wide-Head Fire Hose Nozzle — UN-050 / UN-051 / UN-052 | inlet 1.5 in BSP; outlet 20 mm · inlet 2 in BSP; outlet 28 mm · inlet 2.5 in BSP; outlet 33 mm |
| Serrated-Tip Sealed Fire Hose Nozzle — UN-053 | inlet 1.5 in BSP; outlet 29 mm |
Configuration details
Compare the specifications for each named configuration below. Values apply only to the configuration shown.
Adjustable NH/NST nozzle — 1½ in
Twist adjustment: straight stream, fog and shutoff. The pressure designation is not a maximum-pressure rating or a flow-at-pressure test claim.
- Connection
- 1½ in NH/NST female
- Material
- Polycarbonate body; brass components
- Flow
- 75 US gpm / approx. 284 L/min
- Pressure designation
- 100 psi
- Overall dimensions
- 73 × 73 × 117 mm (W × D × H)
- Use limitation
- Not for electrical fires
Confirm the mating connection from the required drawing or sample before ordering.
Quotation confirmation
Confirm the configuration before production
Start with the configuration and quantity. Add size, connection, working pressure and destination when available; we will review the supply details with you.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Compact Spray Nozzles and Coupling Adapters requirement
Start with the configuration and quantity. Size, connection and project requirements can follow.
