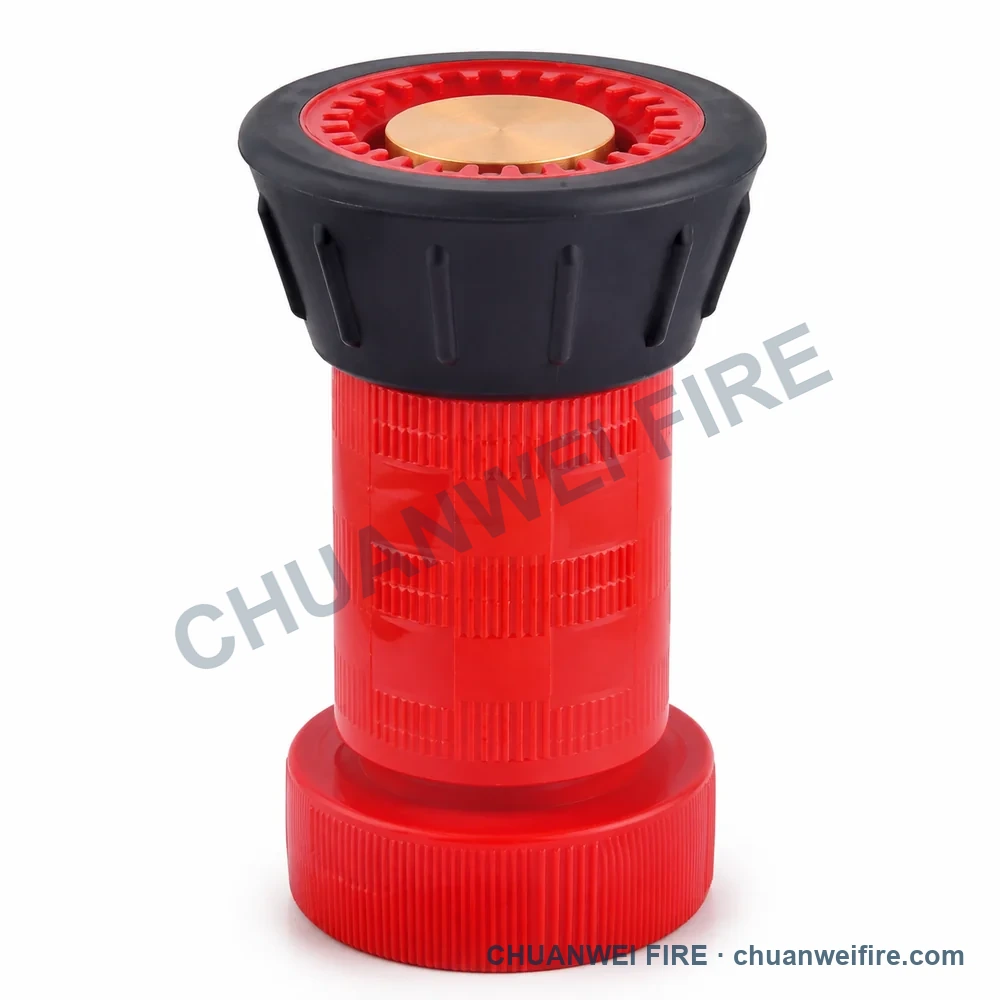

Red Black Head Compact Fire Hose Nozzle
Source connection or dimension data: inlet 1 in BSP · inlet 1.5 in BSP · inlet 2.5 in BSP
5 directly selectable configurations from the supplied catalog
Red-Grip Fire Hose Nozzles
Use the configuration images to identify the required product, then confirm connection, material and performance data with the quotation.
5 illustrated configurations
Supplied electronic catalog page 23
To be confirmed with the quotation
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Available configurations

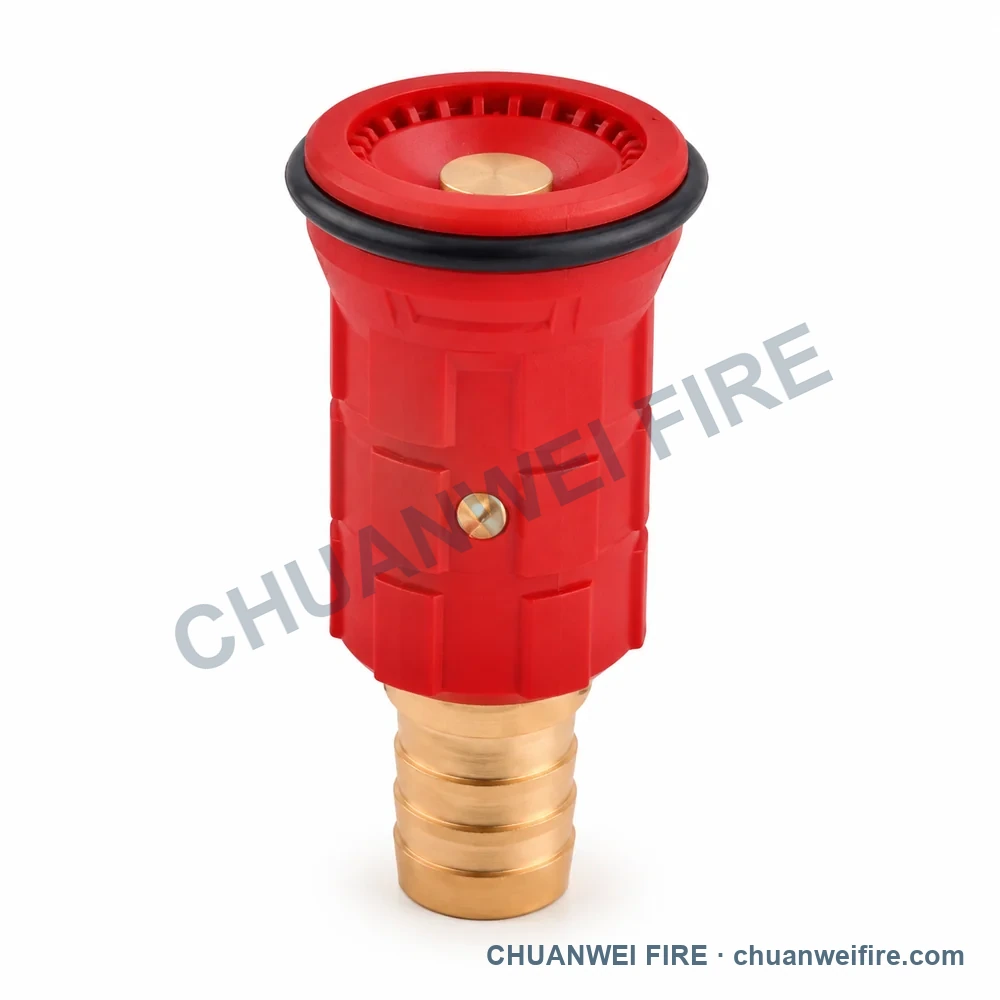

Red Brass-Finish Tail Compact Fire Hose Nozzle
Source connection or dimension data: inlet 1 in

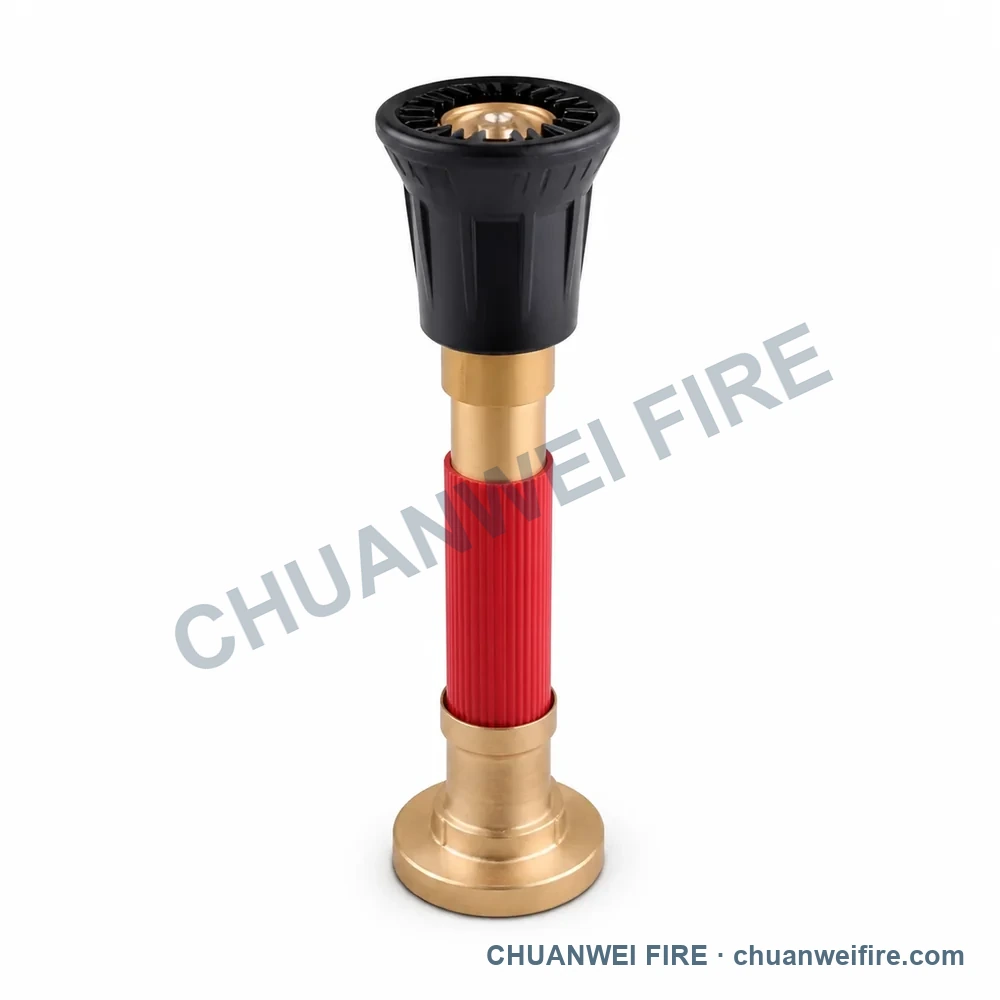

Red-Grip Disc-Base Long Fire Hose Nozzle
Source connection or dimension data: inlet 1.5 in · inlet 2 in · inlet 2.5 in

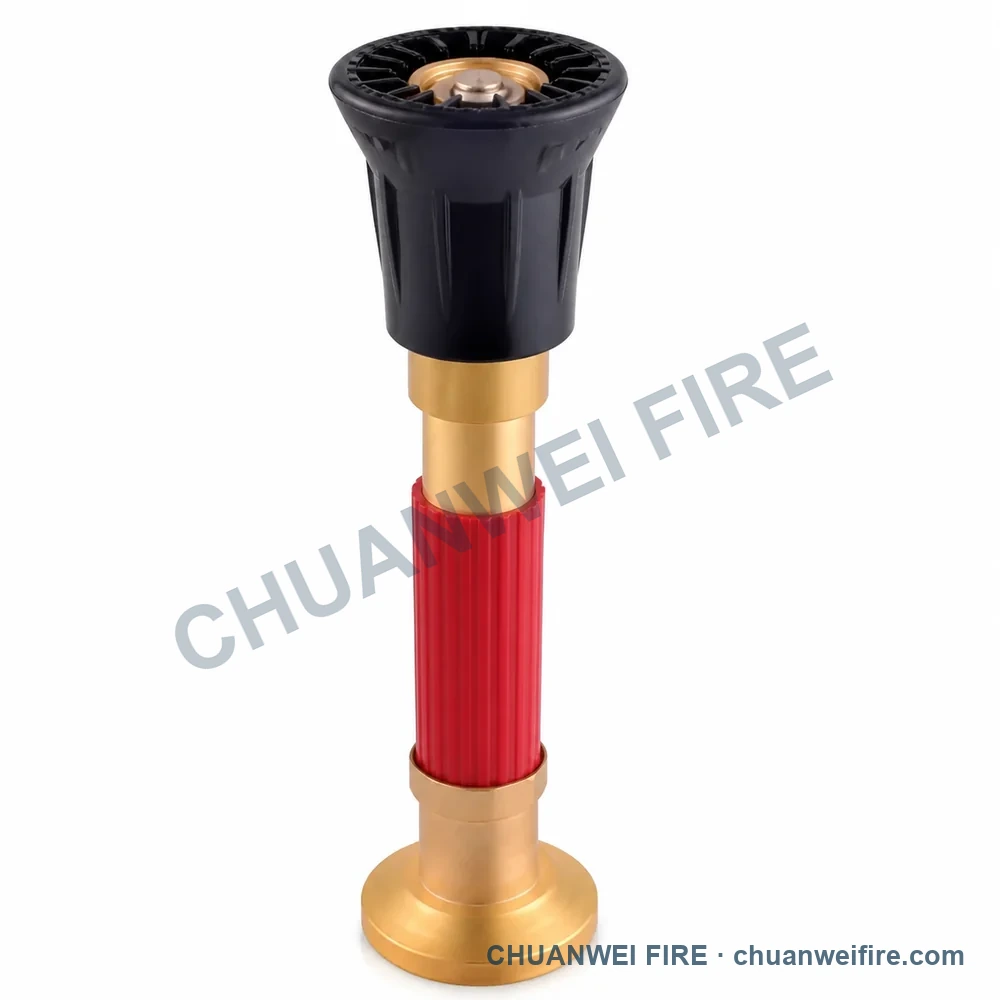

Red-Grip Flat-Base Long Fire Hose Nozzle
Source connection or dimension data: inlet 2.5 in BSP

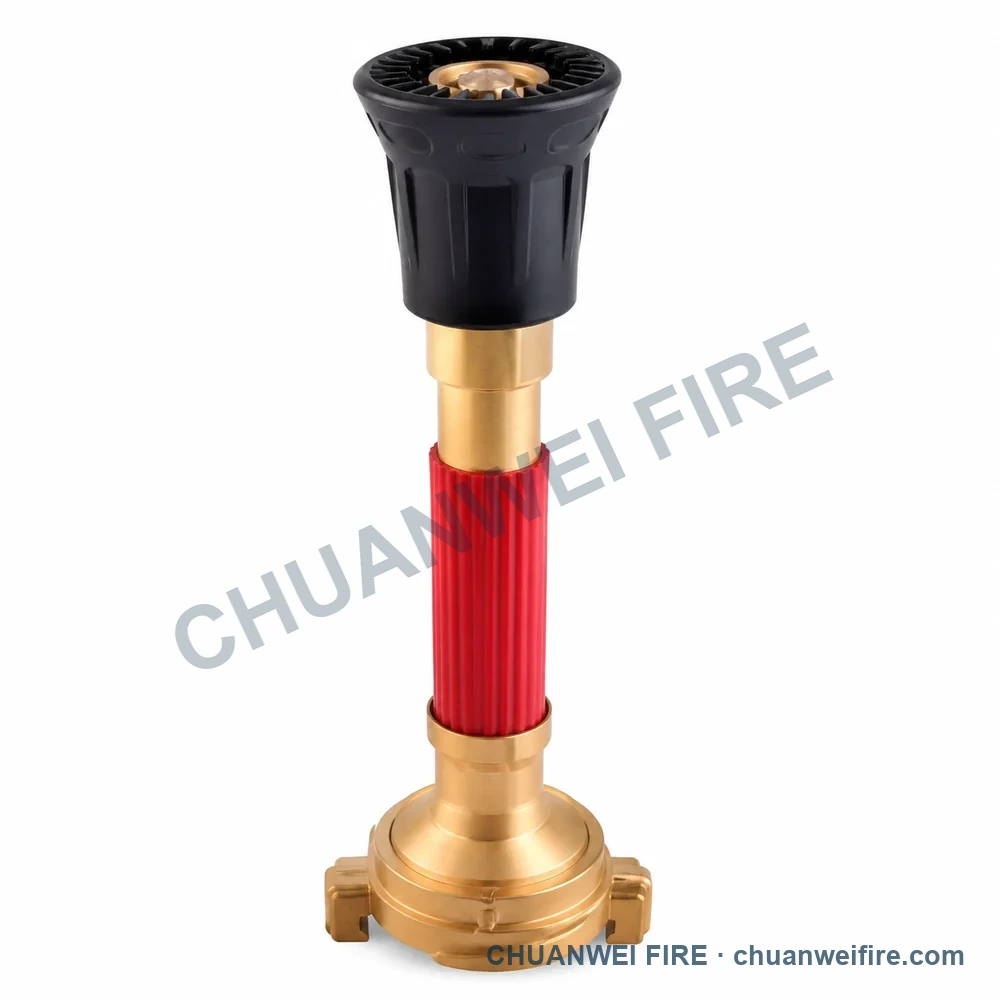

Red-Grip Claw-Coupled Long Fire Hose Nozzle
Source connection or dimension data: inlet 2 in GOST · inlet 2.5 in GOST
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Configuration images
5 configurations to compare
Open each image to compare the general arrangement. Confirm small details, threads and cast markings against an original photo, mating sample or approved drawing.
Red Black Head Compact Fire Hose Nozzle1 / 5
Data scope
Confirmed source scope and quotation checks
Visible connection and dimension values were transcribed from the catalog to support configuration selection. Final order specifications are confirmed in the quotation.
- Product family
- Red-Grip Fire Hose Nozzles
- Available configurations
- 5 illustrated configurations
- Selection data source
- Supplied electronic catalog page 23
- CHUANWEI factory model
- To be confirmed with the quotation
- Technical data status
- Preliminary catalog data; order confirmation required
Available configurations
Configurations and linked source-catalog data
Each row shows a configuration and the connection or dimension entries visible in the supplied catalog.
| Configuration | Source connection or dimension data |
|---|---|
| Red Black Head Compact Fire Hose Nozzle | inlet 1 in BSP · inlet 1.5 in BSP · inlet 2.5 in BSP |
| Red Brass-Finish Tail Compact Fire Hose Nozzle | inlet 1 in |
| Red-Grip Disc-Base Long Fire Hose Nozzle | inlet 1.5 in · inlet 2 in · inlet 2.5 in |
| Red-Grip Flat-Base Long Fire Hose Nozzle | inlet 2.5 in BSP |
| Red-Grip Claw-Coupled Long Fire Hose Nozzle | inlet 2 in GOST · inlet 2.5 in GOST |
Quotation confirmation
Confirm the configuration before production
Send the configuration image, size, connection, material, working pressure, quantity and destination. The quotation and approved drawing lock the final supply specification.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Red-Grip Fire Hose Nozzles requirement
Include the configuration, connection, material, pressure, quantity and destination country.
