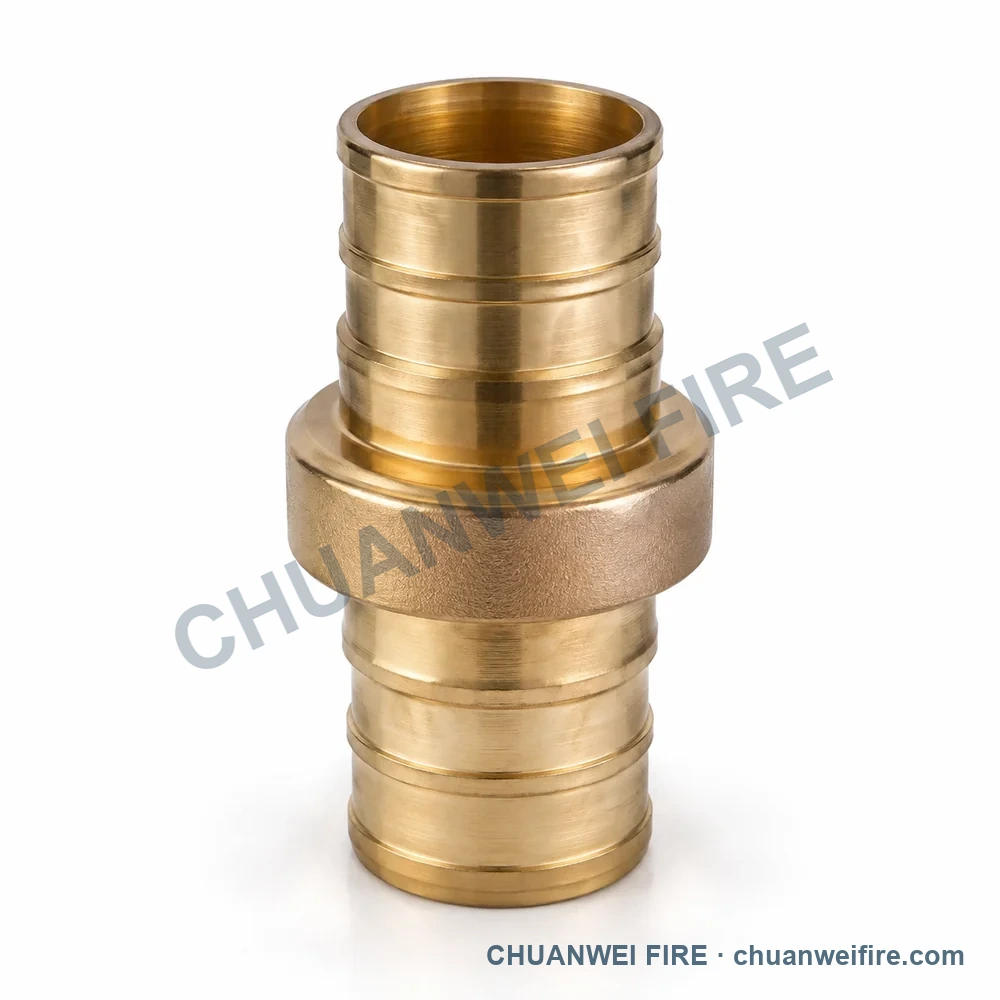

NH Fire Hose Coupling — UHC-010 / UHC-011 / UHC-012
Connection or dimension references: inlet 1.5 in NH; outlet 38 mm · inlet 2 in NH; outlet 51 mm · inlet 2.5 in NH; outlet 63 mm
5 configurations to compare
Fire Hose Couplings — NH, GOST, UNI and BS 336
Use the configuration images to identify the required product, then confirm connection, material and performance data with the quotation.
5 illustrated configurations
Configuration images are illustrations. Request the product photo, connection and performance details for your selected configuration before ordering.
Available configurations

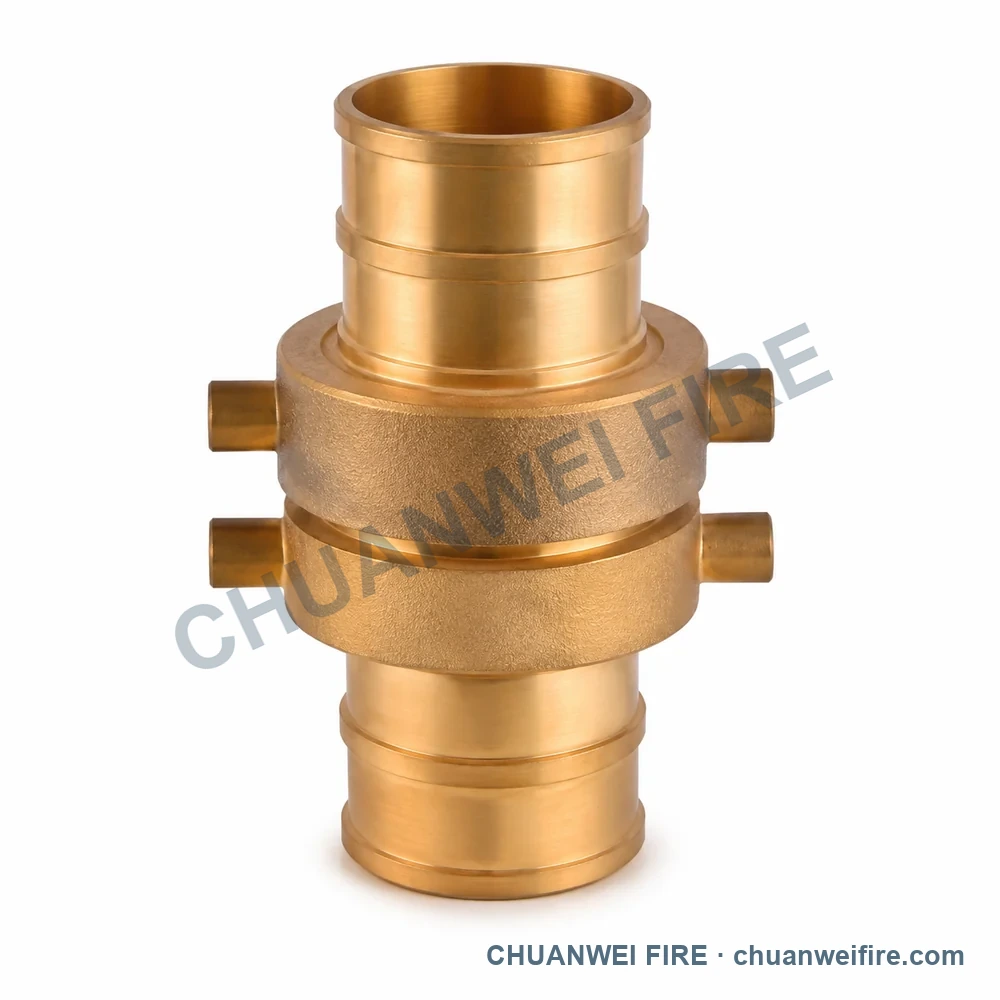

GOST Fire Hose Coupling — RHC-010 / RHC-011
Connection or dimension references: inlet 2 in GOST; outlet 51 mm · inlet 2.5 in GOST; outlet 63 mm

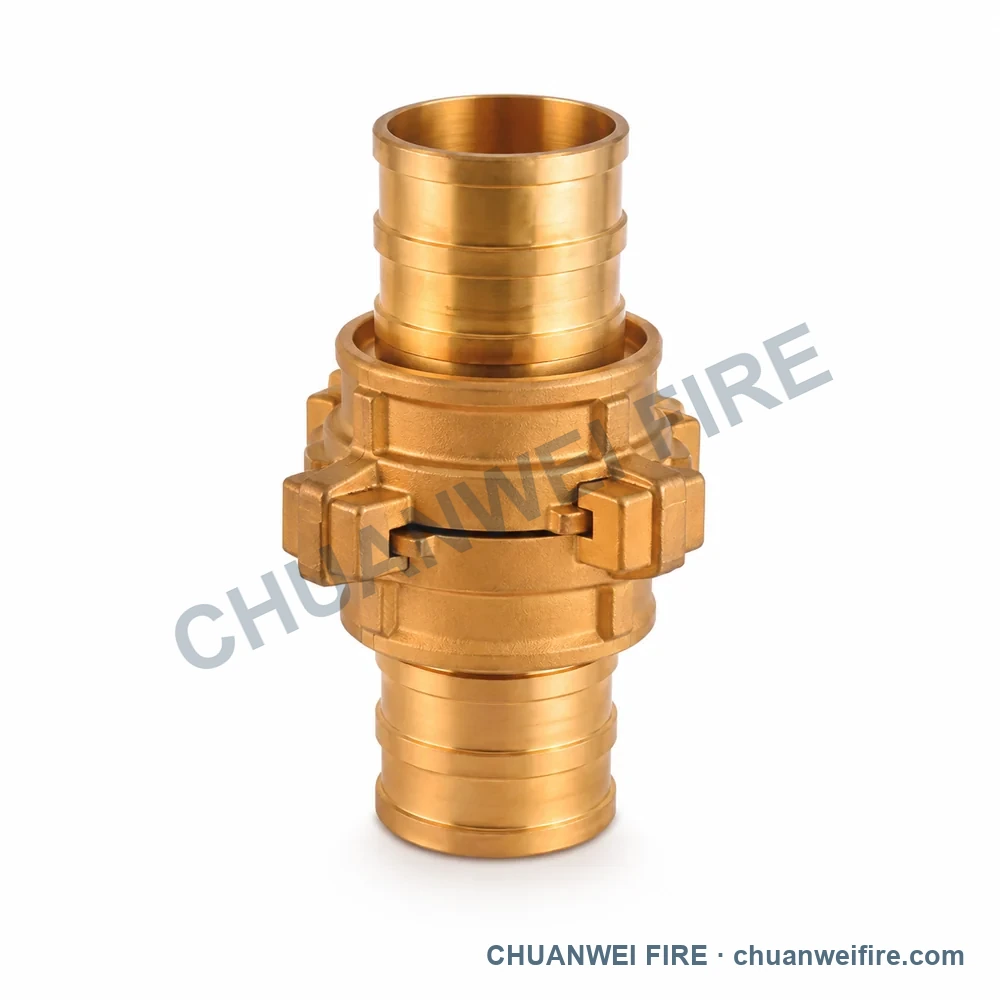

UNI Fire Hose Coupling — IHC-011 / IHC-012
Connection or dimension references: inlet UNI45; outlet 45 mm · inlet UNI70; outlet 70 mm

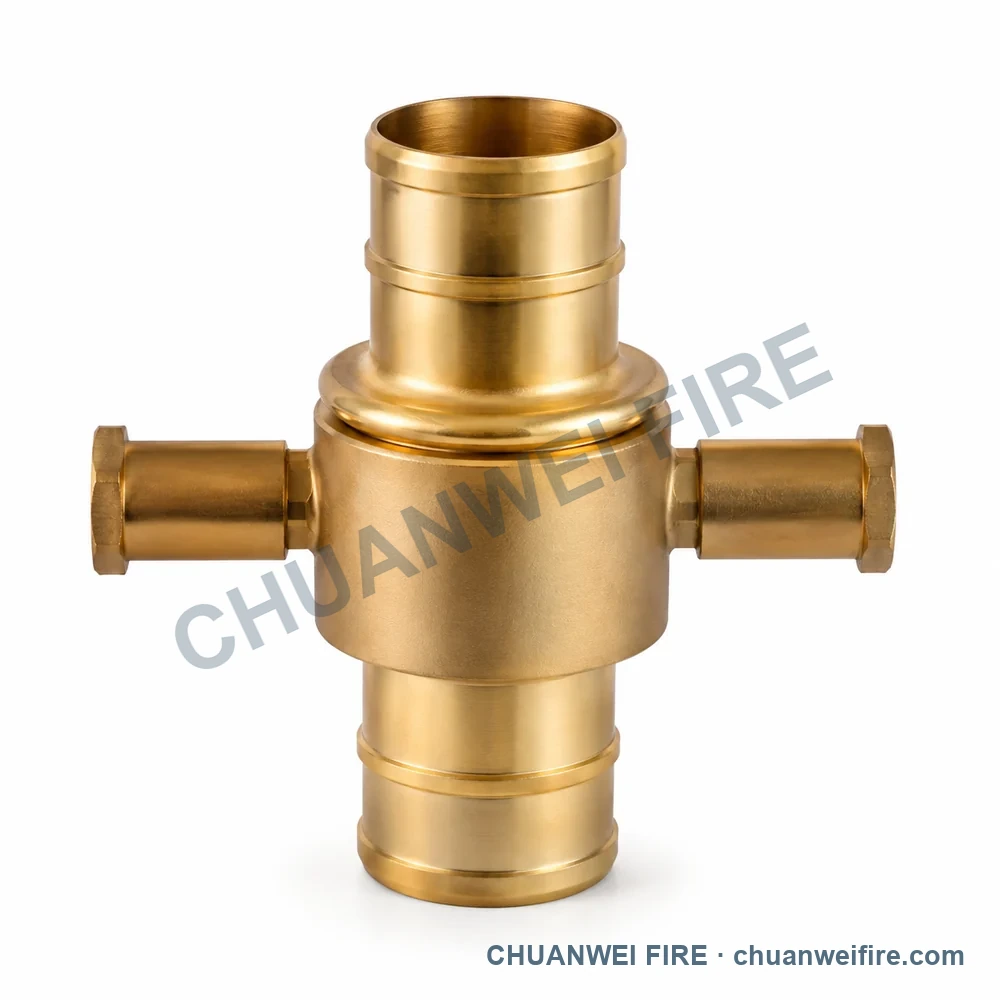

BS336 Fire Hose Coupling — GHC-010 / GHC-011 / GHC-012 / GHC-013 / GHC-014
Connection or dimension references: inlet 1.5 in BS336; outlet 38 mm · inlet 2 in BS336; outlet 51 mm · inlet 2.5 in BS336; outlet 38 mm · inlet 2.5 in BS336; outlet 51 mm · inlet 2.5 in BS336; outlet 63 mm

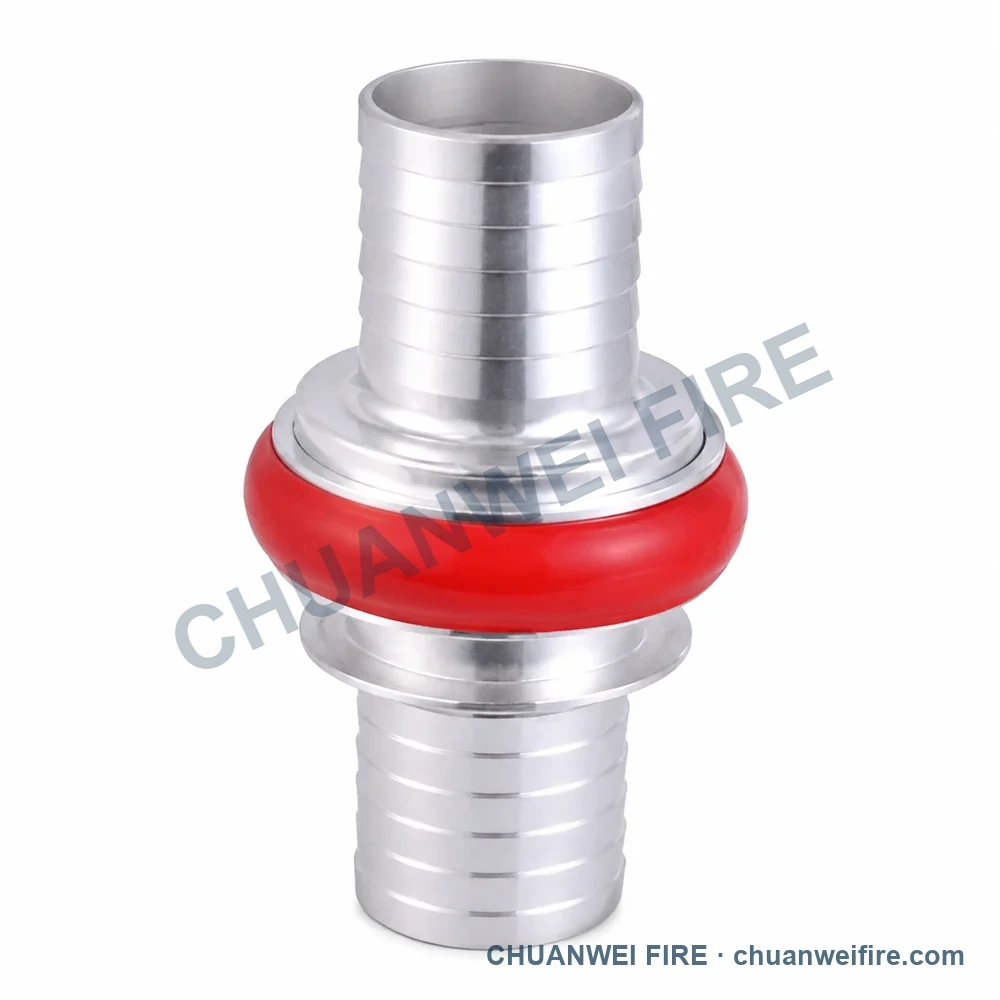

Sealed Fire Hose Coupling — MHS-010 / MHS-011
Connection or dimension references: inlet 1.5 in; outlet 38 mm · inlet 2.5 in; outlet 63 mm
Configuration images
5 configurations to compare
Illustrations for comparing available configurations. Request the product photo and drawing for your selected configuration to confirm connections and dimensions.
NH Fire Hose Coupling — UHC-010 / UHC-011 / UHC-0121 / 5
Specifications
Product selection details
Compare connection and dimension references to choose your configuration. Final order specifications are confirmed with the quotation.
- Product family
- Fire Hose Couplings — NH, GOST, UNI and BS 336
- Available configurations
- 5 illustrated configurations
Available configurations
Configurations and connection references
Compare the configuration and connection or dimension references in each row.
| Configuration | Connection or dimension references |
|---|---|
| NH Fire Hose Coupling — UHC-010 / UHC-011 / UHC-012 | inlet 1.5 in NH; outlet 38 mm · inlet 2 in NH; outlet 51 mm · inlet 2.5 in NH; outlet 63 mm |
| GOST Fire Hose Coupling — RHC-010 / RHC-011 | inlet 2 in GOST; outlet 51 mm · inlet 2.5 in GOST; outlet 63 mm |
| UNI Fire Hose Coupling — IHC-011 / IHC-012 | inlet UNI45; outlet 45 mm · inlet UNI70; outlet 70 mm |
| BS336 Fire Hose Coupling — GHC-010 / GHC-011 / GHC-012 / GHC-013 / GHC-014 | inlet 1.5 in BS336; outlet 38 mm · inlet 2 in BS336; outlet 51 mm · inlet 2.5 in BS336; outlet 38 mm · inlet 2.5 in BS336; outlet 51 mm · inlet 2.5 in BS336; outlet 63 mm |
| Sealed Fire Hose Coupling — MHS-010 / MHS-011 | inlet 1.5 in; outlet 38 mm · inlet 2.5 in; outlet 63 mm |
Configuration details
Compare the specifications for each named configuration below. Values apply only to the configuration shown.
Brass instantaneous coupling — 2½ in
Hose-tail diameter is a separate selection field from nominal coupling size and hose inside diameter.
- Nominal size
- 2½ in
- Material
- Brass body
- Hose-tail diameter options
- 38 / 51 / 63 mm
- Operation
- Male / female instantaneous coupling
Confirm the mating connection from the required drawing or sample before ordering.
Brass NH/NST expansion-ring coupling — 2½ in
Select the pressure option and hose-tail requirement with the exact supplied configuration. The options below are not a complete combination matrix.
- Nominal size
- 2½ in NH/NST
- Material
- Brass body
- Operation
- Expansion-ring connection
- Working pressure
- 1.6 MPa / 16 bar; 2.5 MPa / 25 bar
- Hose-tail diameter options
- 73 mm / 2-13/16 in / 3 in
Confirm the mating connection from the required drawing or sample before ordering.
Quotation confirmation
Confirm the configuration before production
Start with the configuration and quantity. Add size, connection, working pressure and destination when available; we will review the supply details with you.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Fire Hose Couplings — NH, GOST, UNI and BS 336 requirement
Start with the configuration and quantity. Size, connection and project requirements can follow.
