Four cabinet configurations and six standard size options
Solid-door and windowed fire equipment cabinets available in carbon steel or with an aluminium frame and steel sheet panels, with sheet thickness customizable for the order.
The listed selection dimensions are in H × W × D order. Confirm the material grade, sheet thickness, mounting, openings, internal equipment, finish and approved drawing before production. Images are configuration illustrations.
H × W × D: 750 × 750 × 250 mm
Material options: Carbon steel; aluminium frame with steel sheet panels
Sheet thickness: Customizable
H × W × D: 800 × 800 × 280 mm
Material options: Carbon steel; aluminium frame with steel sheet panels
Sheet thickness: Customizable
H × W × D: 800 × 1000 × 250 mm
Material options: Carbon steel; aluminium frame with steel sheet panels
Sheet thickness: Customizable
H × W × D: 1100 × 800 × 300 mm
Material options: Carbon steel; aluminium frame with steel sheet panels
Sheet thickness: Customizable
H × W × D: 1000 × 800 × 280 mm
Material options: Carbon steel; aluminium frame with steel sheet panels
Sheet thickness: Customizable
H × W × D: 1700 × 800 × 300 mm
Material options: Carbon steel; aluminium frame with steel sheet panels
Sheet thickness: Customizable
Cabinet configuration images
Use these illustrations to select the door and window arrangement. They do not establish exact dimensions, construction details, material grade, sheet thickness or included equipment.
Specifications
Compare cabinet arrangements, regular dimensions, material options and customizable sheet thickness. Final construction follows your order drawing.
Standard size options
Dimensions are stated as height × width × depth in millimetres. These are regular selection sizes; custom dimensions and sheet thickness can be reviewed for the order.
| Cabinet configuration | H × W × D | Material options | Sheet thickness |
|---|---|---|---|

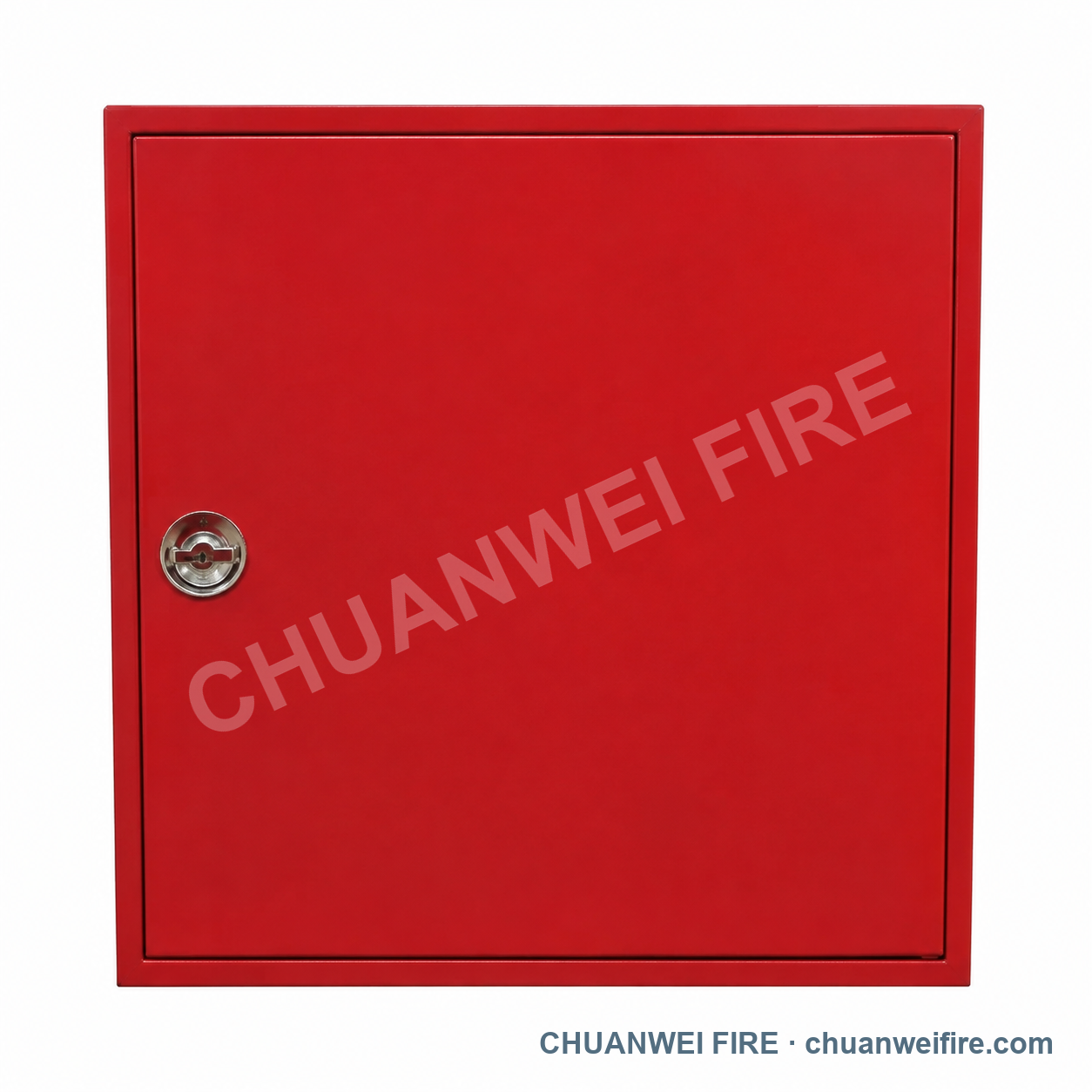

| Solid-Door Fire Equipment Cabinet | 750 × 750 × 250 mm | Carbon steel; aluminium frame with steel sheet panels | Customizable |
| Solid-Door Fire Equipment Cabinet | 800 × 800 × 280 mm | Carbon steel; aluminium frame with steel sheet panels | Customizable |

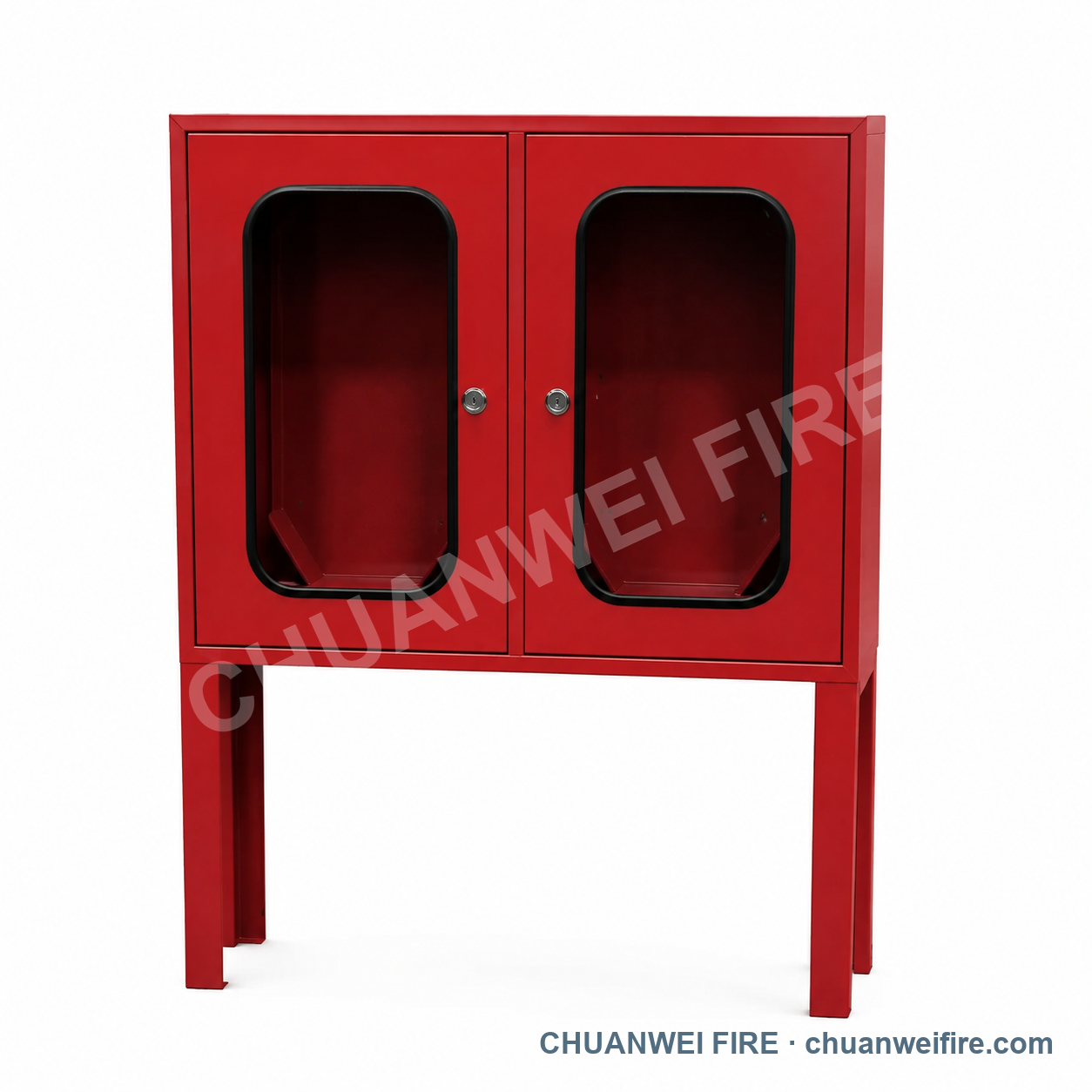

| Double-Windowed-Door Fire Equipment Cabinet | 800 × 1000 × 250 mm | Carbon steel; aluminium frame with steel sheet panels | Customizable |

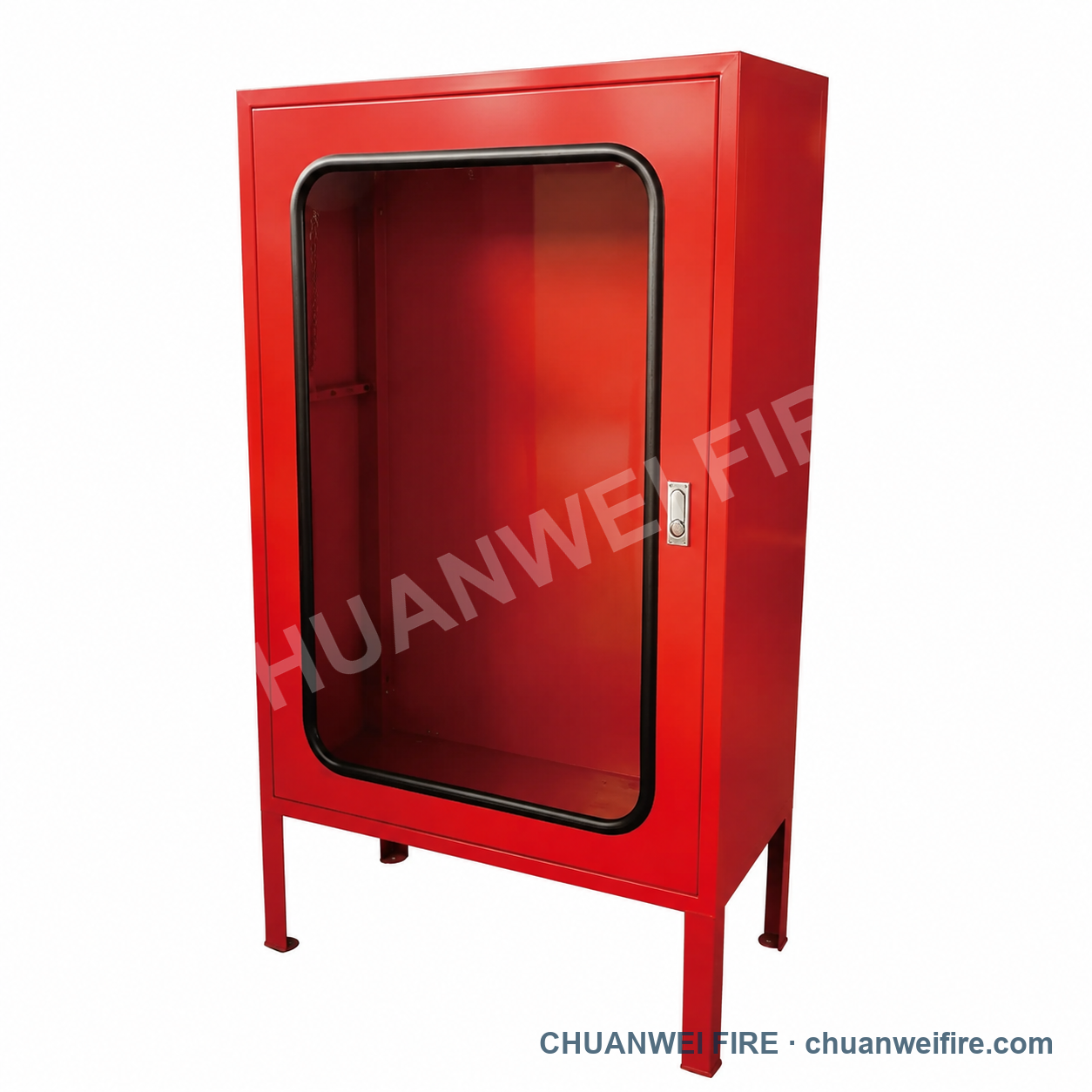

| Single-Windowed-Door Fire Equipment Cabinet | 1100 × 800 × 300 mm | Carbon steel; aluminium frame with steel sheet panels | Customizable |
| Single-Windowed-Door Fire Equipment Cabinet | 1000 × 800 × 280 mm | Carbon steel; aluminium frame with steel sheet panels | Customizable |

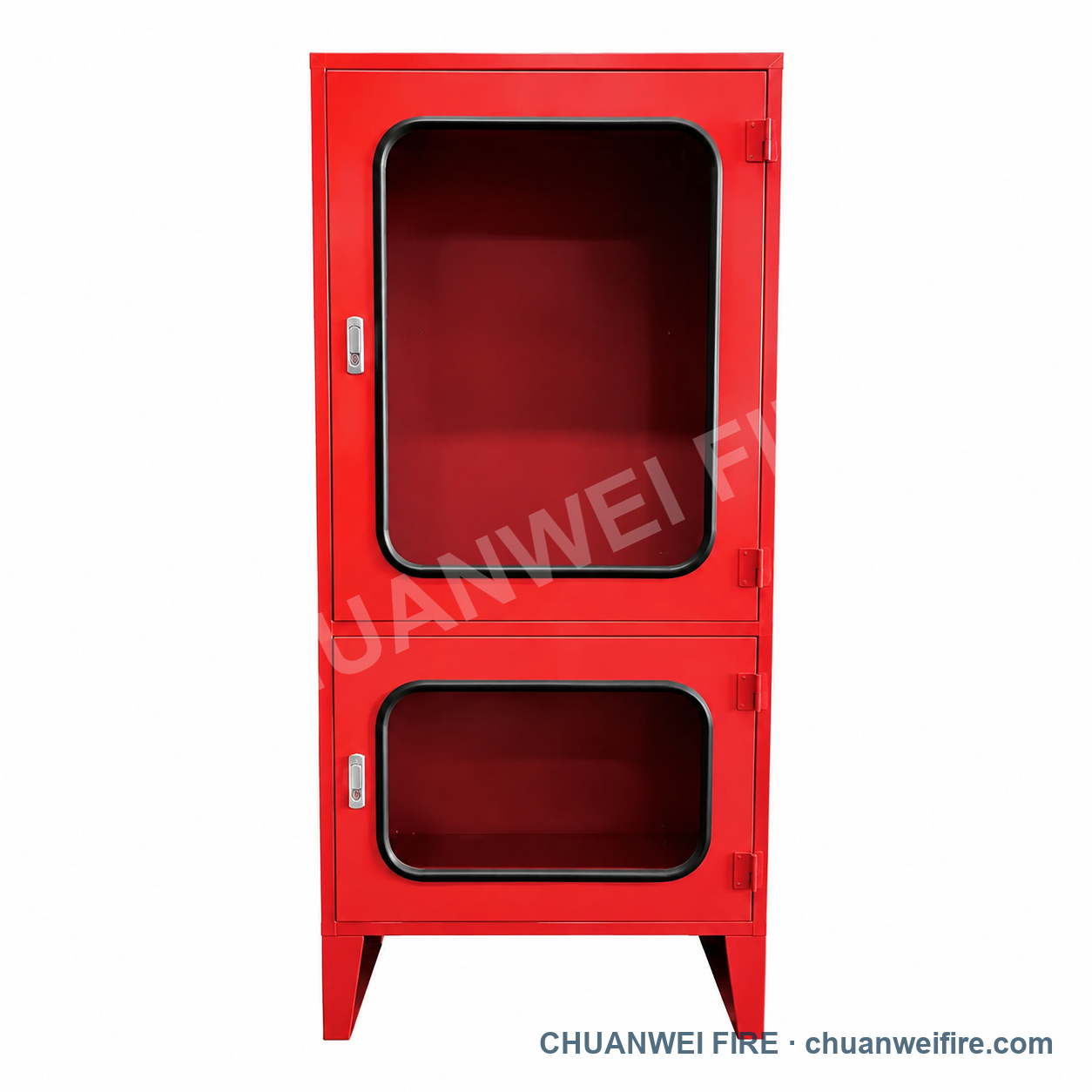

| Stacked-Windowed-Door Fire Equipment Cabinet | 1700 × 800 × 300 mm | Carbon steel; aluminium frame with steel sheet panels | Customizable |
Quotation confirmation
Send the cabinet configuration, H × W × D, material, sheet thickness, mounting method, internal equipment list, finish, quantity and destination. The quotation and drawing will lock the production specification.
Start with cabinet configuration, H × W × D and quantity. Add material, sheet thickness, mounting, internal equipment and destination when available.
