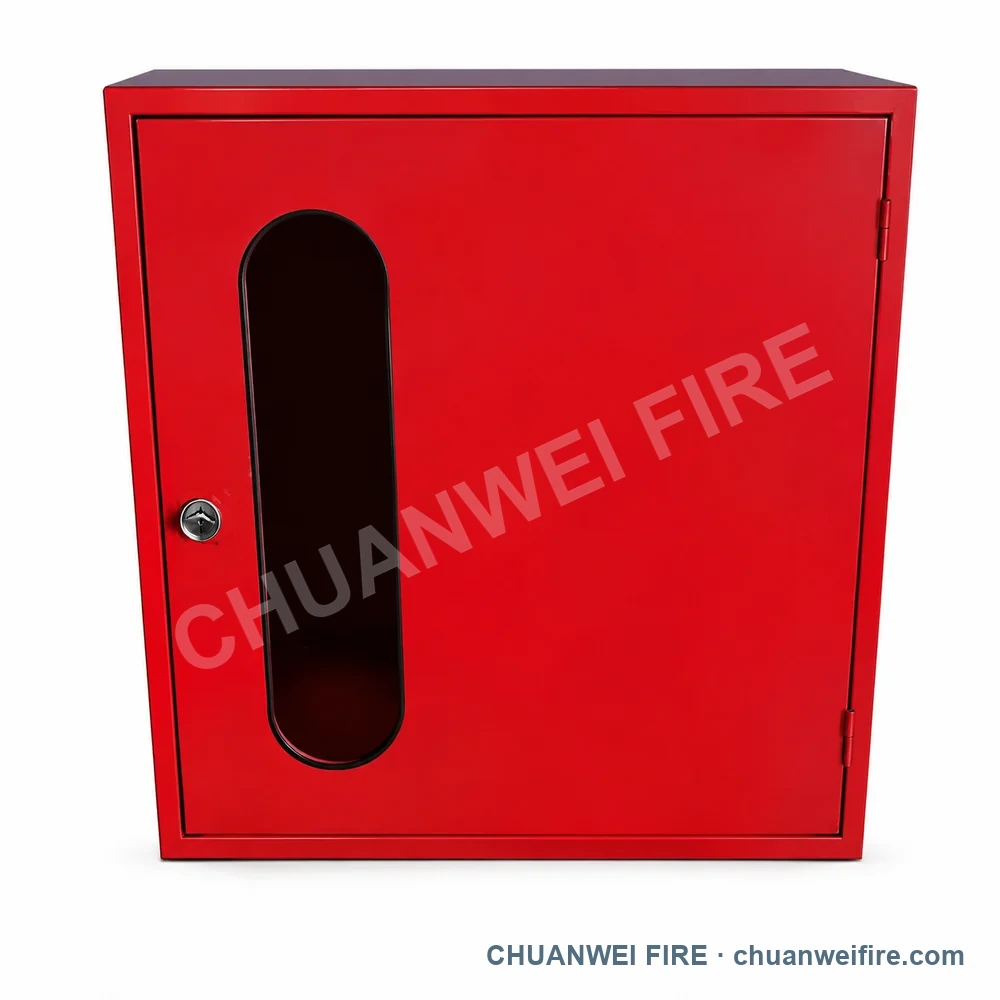

Red Narrow-Window Hose Reel Cabinet
Source connection or dimension data: dimension 750 × 750 × 250 mm
4 directly selectable configurations from the supplied catalog
Hose Reel, Extinguisher and Combined Cabinets
Four additional cabinet configurations available in carbon steel or with an aluminium frame and steel sheet panels, with sheet thickness customizable for the order.
4 illustrated configurations
Supplied electronic catalog page 30
To be confirmed with the quotation
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Available configurations

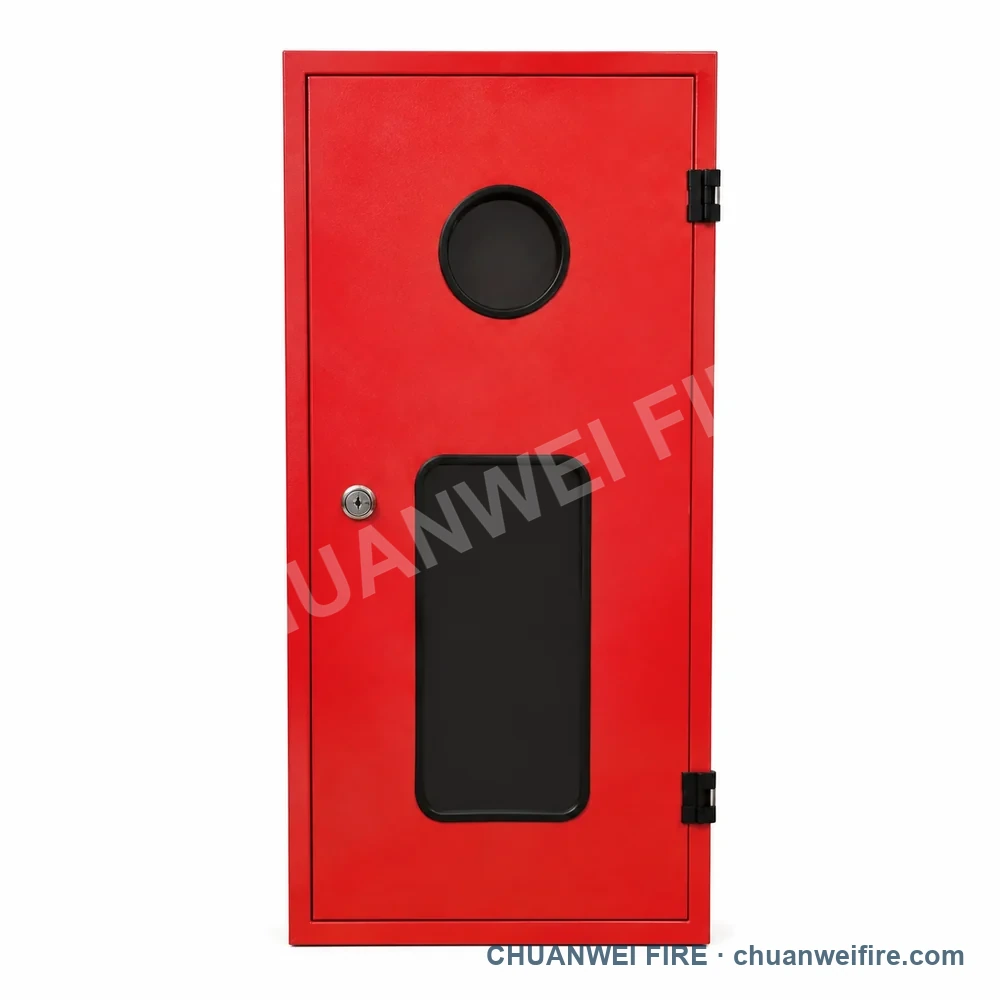

Red Single-Extinguisher Cabinet
Source connection or dimension data: dimension 350 × 750 × 350 mm

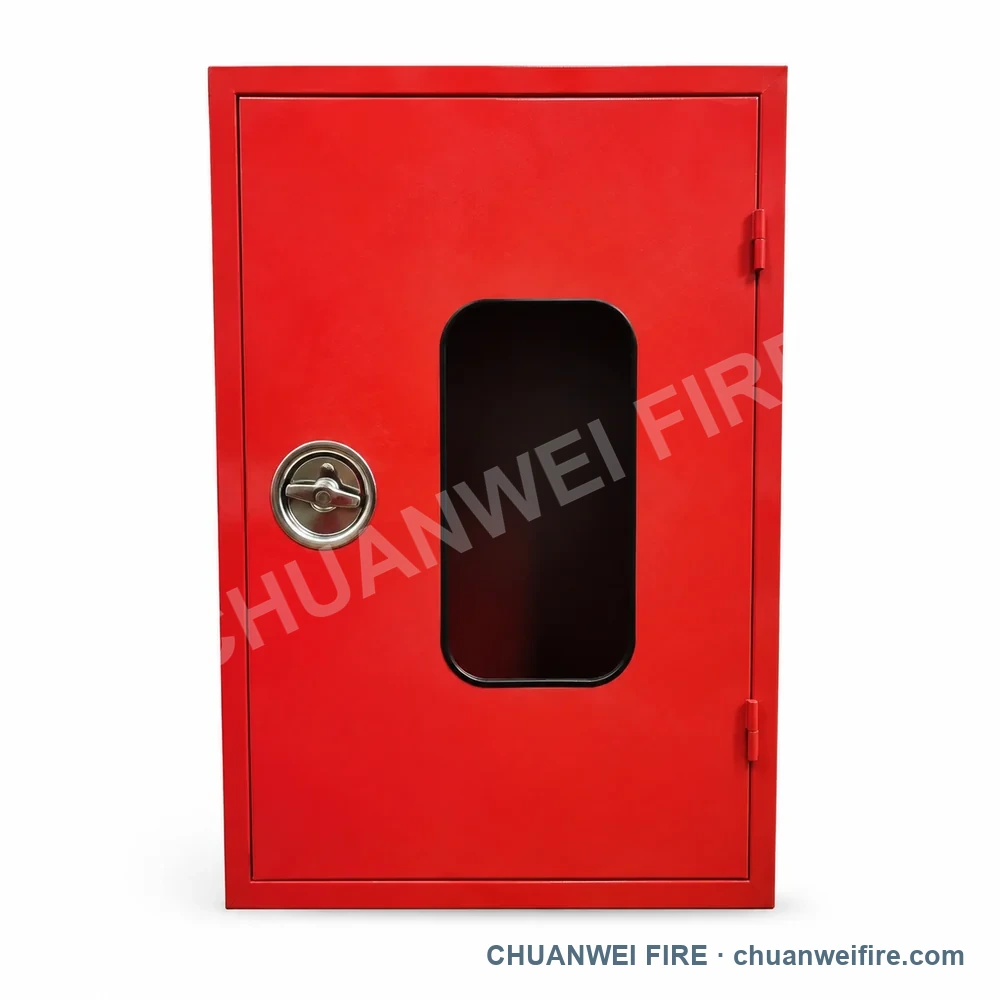

Red Center-Window Fire Equipment Cabinet
Source connection or dimension data: dimension 400 × 600 × 300 mm

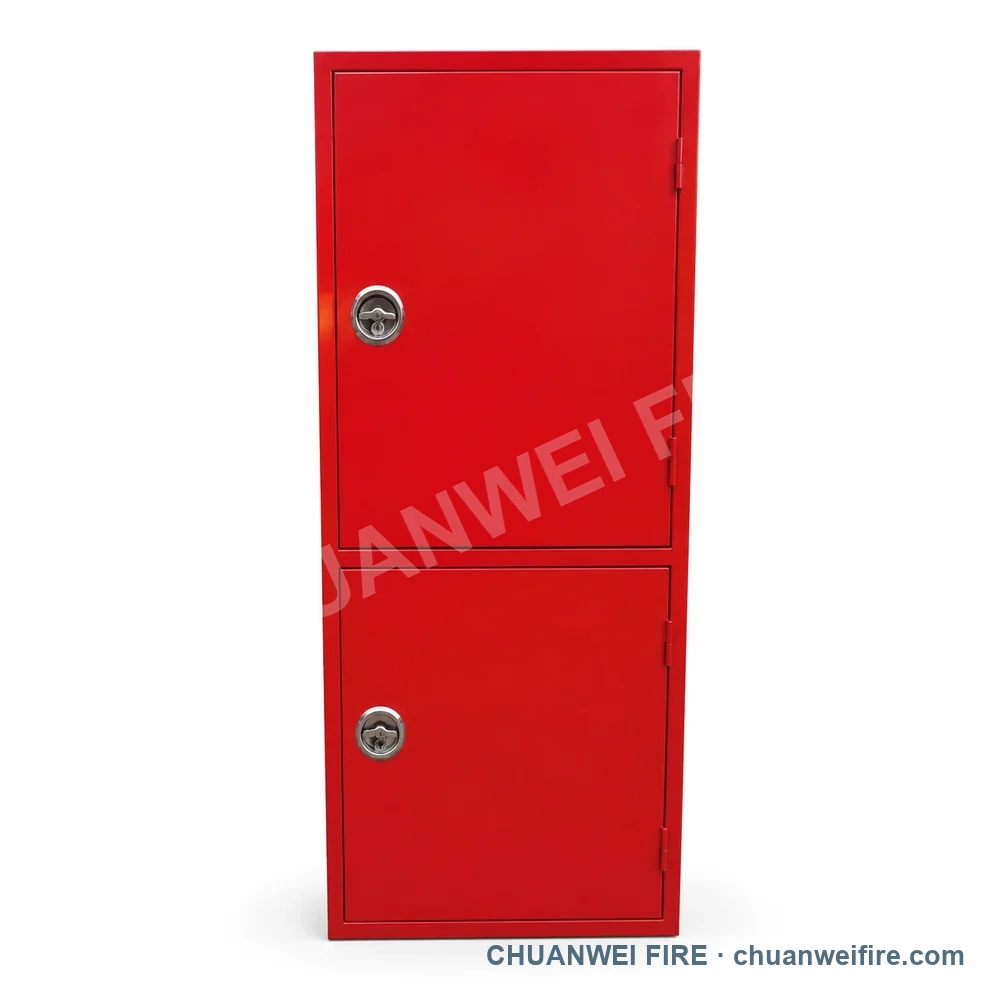

Red Stacked Solid-Door Fire Equipment Cabinet
Source connection or dimension data: dimension 1700 × 800 × 300 mm
The final specification and product arrangement are confirmed in the quotation and approved drawing.
Configuration images
4 configurations to compare
Open each image to compare the general arrangement. Confirm small details, threads and cast markings against an original photo, mating sample or approved drawing.
Red Narrow-Window Hose Reel Cabinet1 / 4
Data scope
Confirmed source scope and quotation checks
Visible connection and dimension values were transcribed from the catalog to support configuration selection. Final order specifications are confirmed in the quotation.
- Product family
- Hose Reel, Extinguisher and Combined Cabinets
- Available configurations
- 4 illustrated configurations
- Selection data source
- Supplied electronic catalog page 30
- Cabinet material options
- Carbon steel; or aluminium frame with steel sheet panels; customizable sheet thickness
- CHUANWEI factory model
- To be confirmed with the quotation
- Technical data status
- Preliminary catalog data; order confirmation required
Available configurations
Configurations and linked source-catalog data
Each row shows a configuration and the connection or dimension entries visible in the supplied catalog.
| Configuration | Source connection or dimension data |
|---|---|
| Red Narrow-Window Hose Reel Cabinet | dimension 750 × 750 × 250 mm |
| Red Single-Extinguisher Cabinet | dimension 350 × 750 × 350 mm |
| Red Center-Window Fire Equipment Cabinet | dimension 400 × 600 × 300 mm |
| Red Stacked Solid-Door Fire Equipment Cabinet | dimension 1700 × 800 × 300 mm |
Quotation confirmation
Confirm the configuration before production
Send the configuration image, size, connection, material, working pressure, quantity and destination. The quotation and approved drawing lock the final supply specification.
Connection and sizeConfirm inlet/outlet direction, nominal size, thread, coupling or flange against a mating sample or drawing where required.
Material and finishConfirm body material, alloy grade, seal material, finish and color. The visible color does not establish the material.
Pressure and documentsState working pressure, test pressure, medium and required documents with the quotation request.
Image and approved drawingReview the original photo or sample and approved drawing to confirm small details, markings and dimensions before production.
Send your Hose Reel, Extinguisher and Combined Cabinets requirement
Include the configuration, connection, material, pressure, quantity and destination country.
