Dry-Barrel Pillar Fire Hydrant
French-Pattern Dry-Barrel Hydrant
A dry-barrel pillar configuration with the main valve below the frost line and a drainable upper barrel, for freezing climates. French operating and symmetric-coupling details require drawing confirmation.
Exact inlet, outlets, pressure, flange drilling and operating key are confirmed from the approved buyer drawing before quotation.
Product views

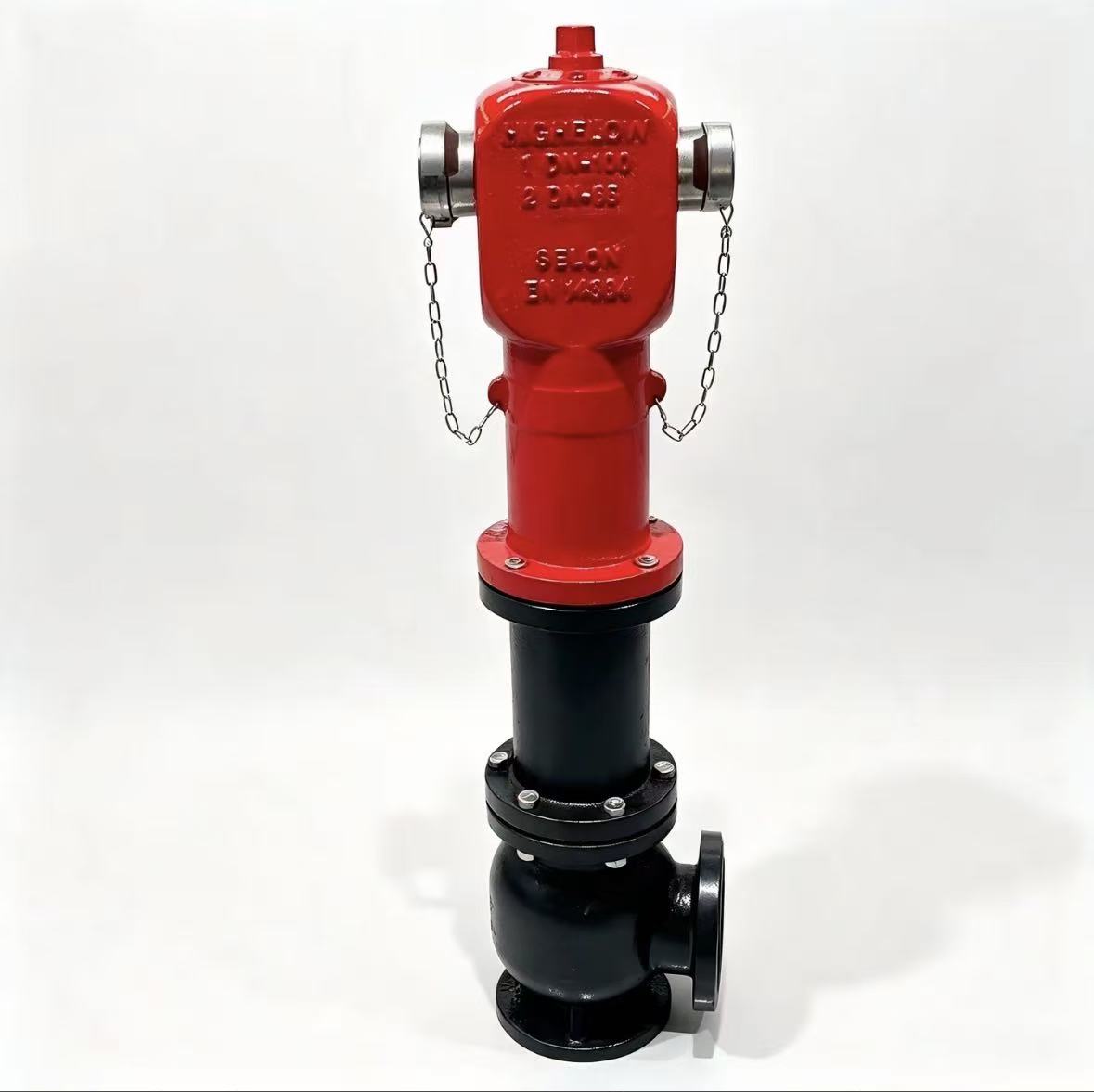

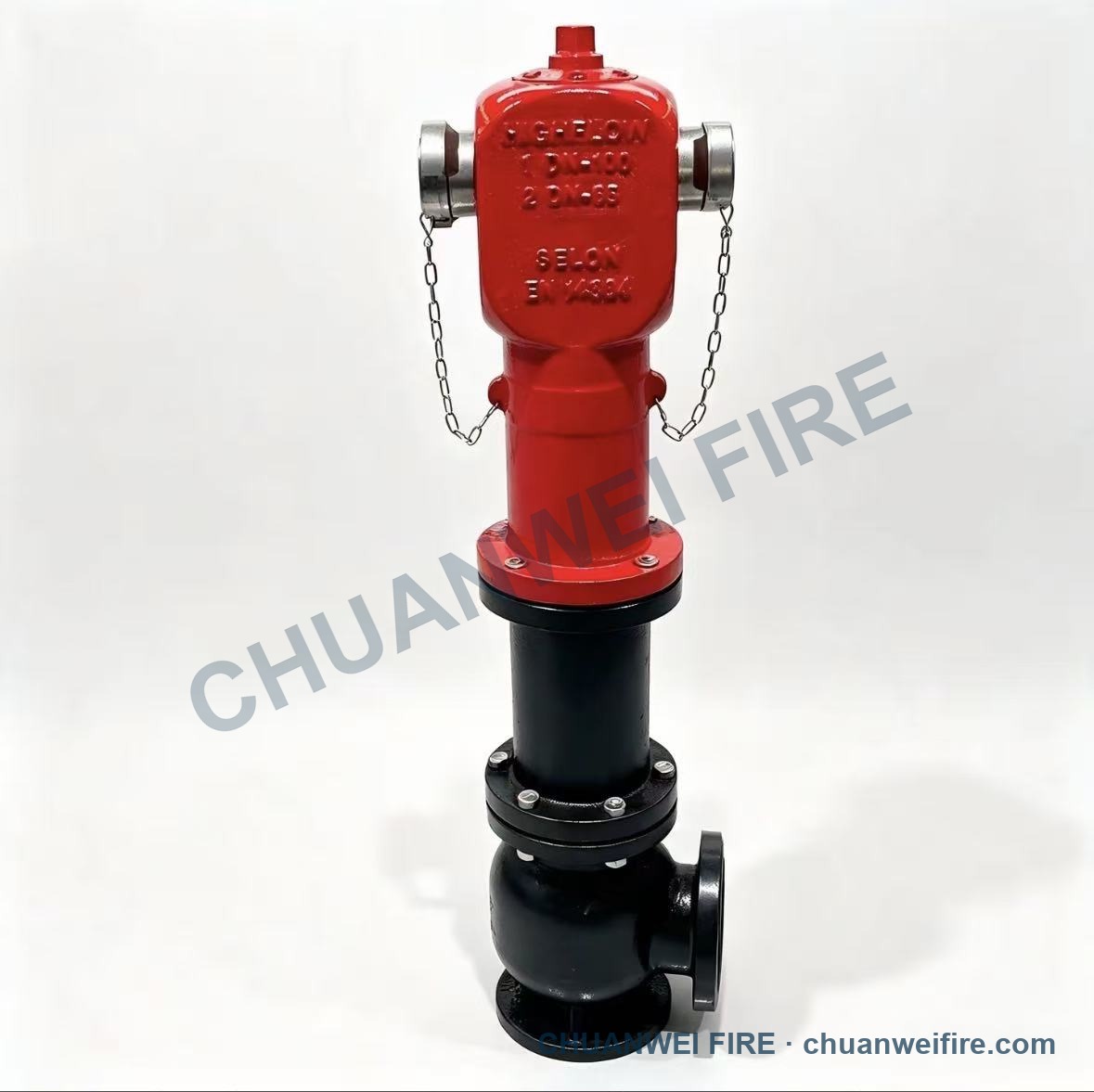

Front and rear angle

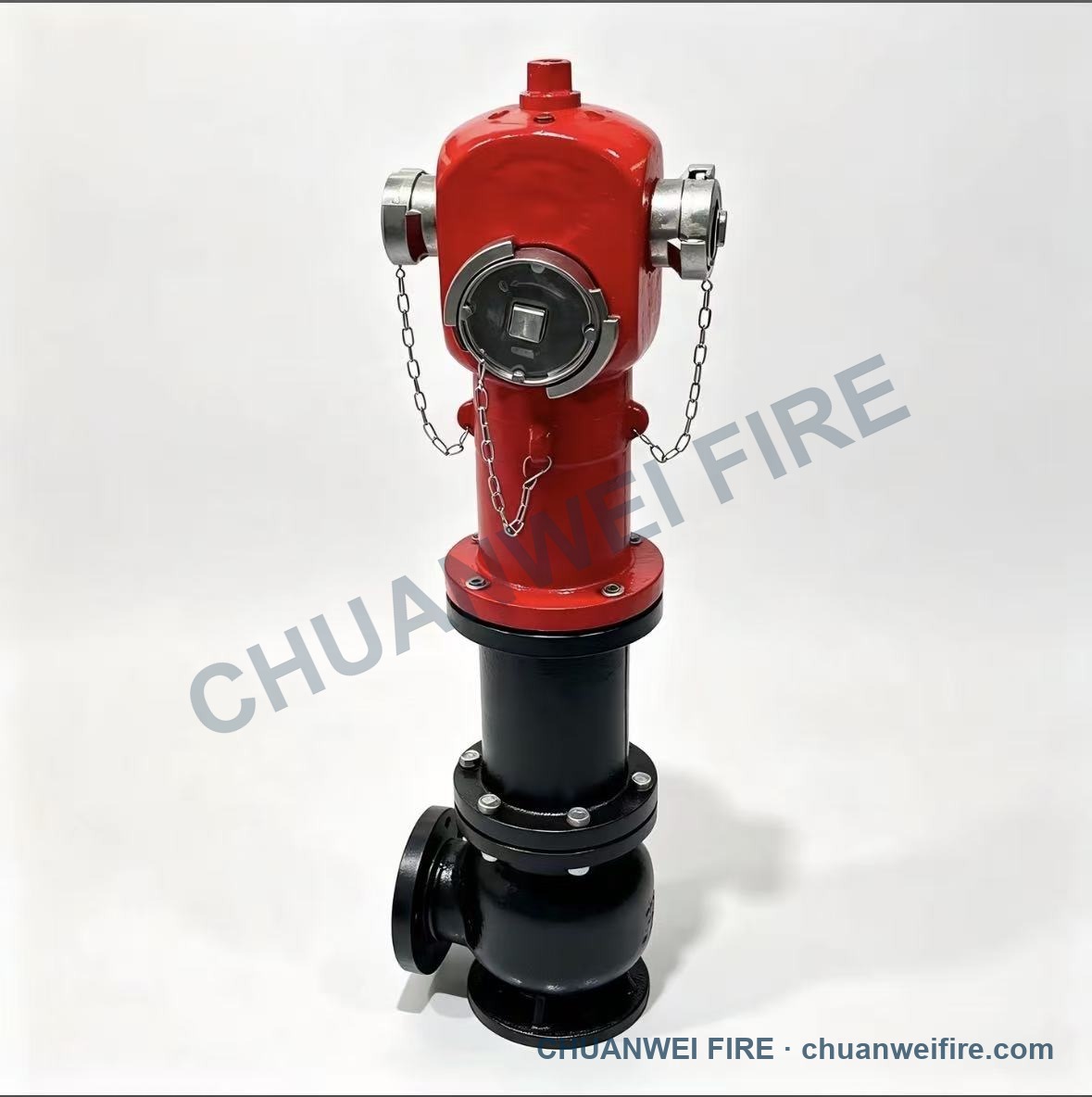

Photographs show the dry-barrel pillar and French outlet arrangement. The visible physical GUANYA / 冠亚 product markings are retained; CHUANWEI FIRE identifies the website and export-sales presentation.
Configuration
Dry-barrel cold-climate arrangement
Dry-barrel hydrants keep the water column below the frost line and drain the upper barrel. The reference below identifies this photographed configuration for quotation.
| Field | Value |
|---|---|
| Quotation reference | CW-FR-DB-3 |
| Barrel | Dry barrel (main valve below frost line, drainable upper barrel) |
| Outlets | Two side outlets + one front outlet |
| Inlet connection | Lower flanged elbow |
| Market basis | EN 14384 basis, French operating and coupling interfaces |
Available options
Configure the hydrant to your market
Options are reviewed against the approved drawing or order schedule. Standards named here are specification references for project review, not certification claims.
Selectable options
- Outlet interface
- French symmetric coupling pattern, or approved custom coupling per drawing
- Inlet connection
- Lower flanged elbow, vertical flanged base, or project mating flange
- Operation
- French operating arrangement per drawing
- Appearance & marking
- Coating color, cast lettering, nameplate language, customer logo
Send your hydrant specification
Include quotation reference, inlet/outlet sizes, pressure class, flange or coupling drawing, quantity and destination.
