British-Type Pillar Fire Hydrant
British-Type Pillar Fire Hydrant (BS-750)
An above-ground wet pillar fire hydrant with a DN100 inlet and two 2½-inch BS336 instantaneous outlets, for British-pattern fire-service connection.
Outlet couplings, flange drilling and marking are confirmed against the approved drawing, sample or order schedule before production.
Product views

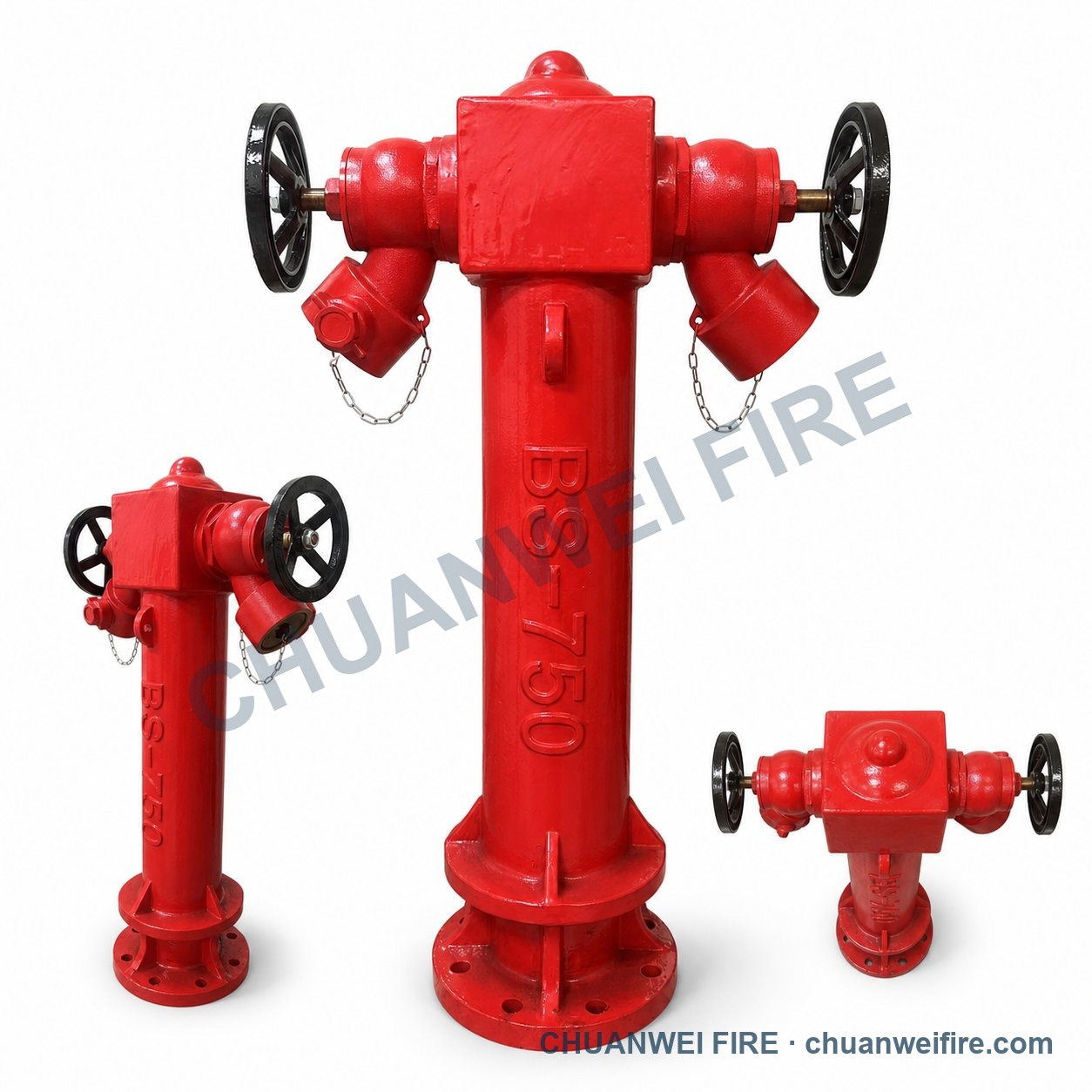

Front and multi-angle views

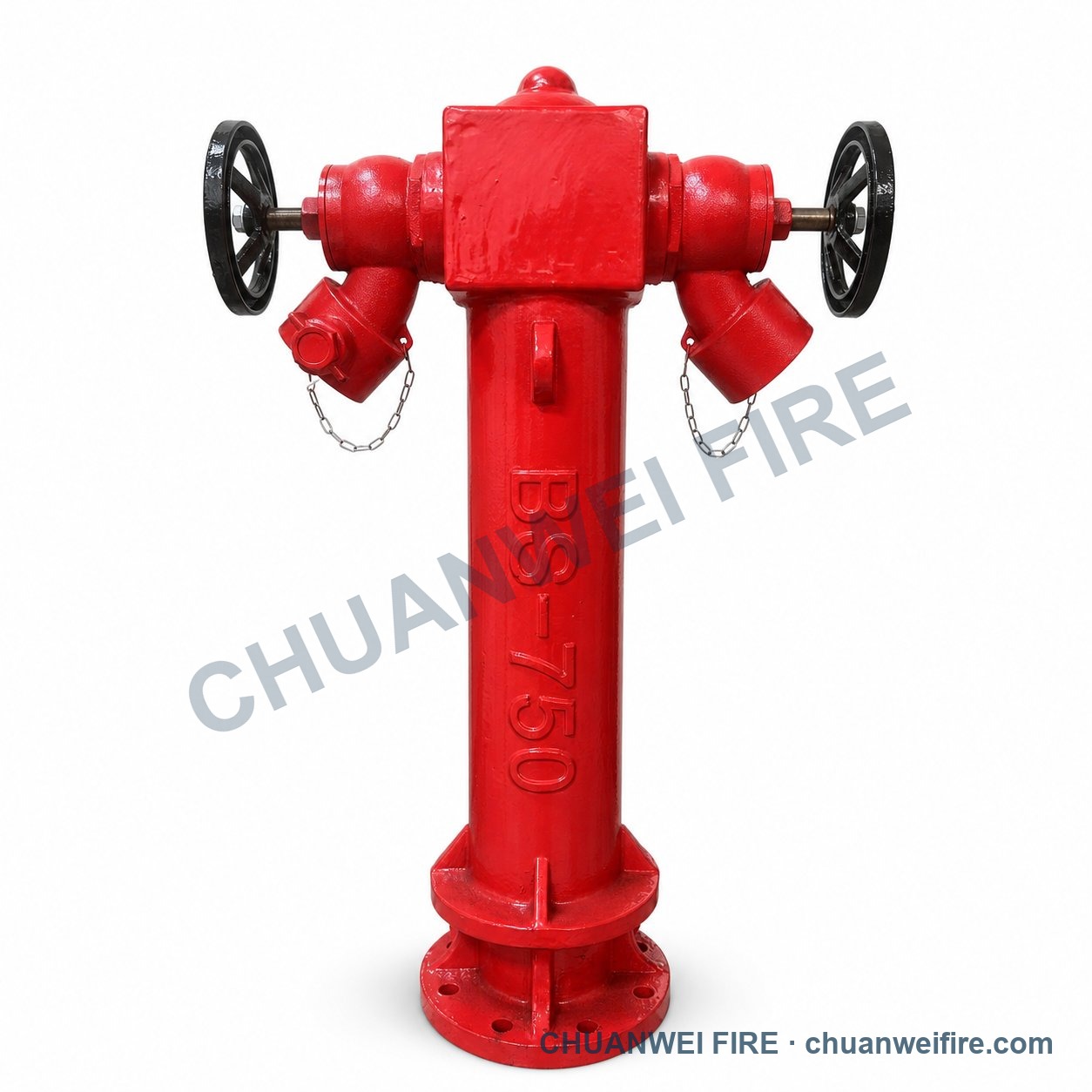

Photographs show the wet pillar body, two side outlets with BS336 couplings, handwheels and outlet guard chain. The visible physical GUANYA / 冠亚 product markings are retained; CHUANWEI FIRE identifies the website and export-sales presentation.
Series specifications
- Product type
- British-Type Pillar Fire Hydrant (above-ground wet pillar)
- Model / marking
- BS-750
- Inlet
- DN100 / 4 in, flange to BS4504
- Outlet
- 2 × 2½ in / 65 mm BS336 instantaneous couplings
- Working pressure
- 1.6 MPa / 16 bar
- Shell test pressure
- 2.4 MPa / 24 bar
- Seat test pressure
- 1.76 MPa / 17.6 bar
- Body
- Ductile iron
- Outlet valve
- Brass / gunmetal, by actual configuration
- Stem
- Stainless steel
- Handwheels
- Grey cast iron
- Structure
- Wet barrel
- Typical overall height
- Approx. 830 mm
- Unit weight
- Approx. 20 kg
Configuration
Two-way wet pillar arrangement
The reference below identifies this photographed configuration for quotation.
| Field | Value |
|---|---|
| Quotation reference | BS-750 |
| Type | Above-ground wet pillar fire hydrant |
| Outlets | Two 2½ in BS336 instantaneous outlets |
| Inlet | DN100 / 4 in, BS4504 flange |
| Opening | Top operating nut |
Send your hydrant specification
Include quotation reference, inlet/outlet sizes, flange or coupling drawing, quantity and destination.
