K80 Metric · Standard response · Concealed pendent

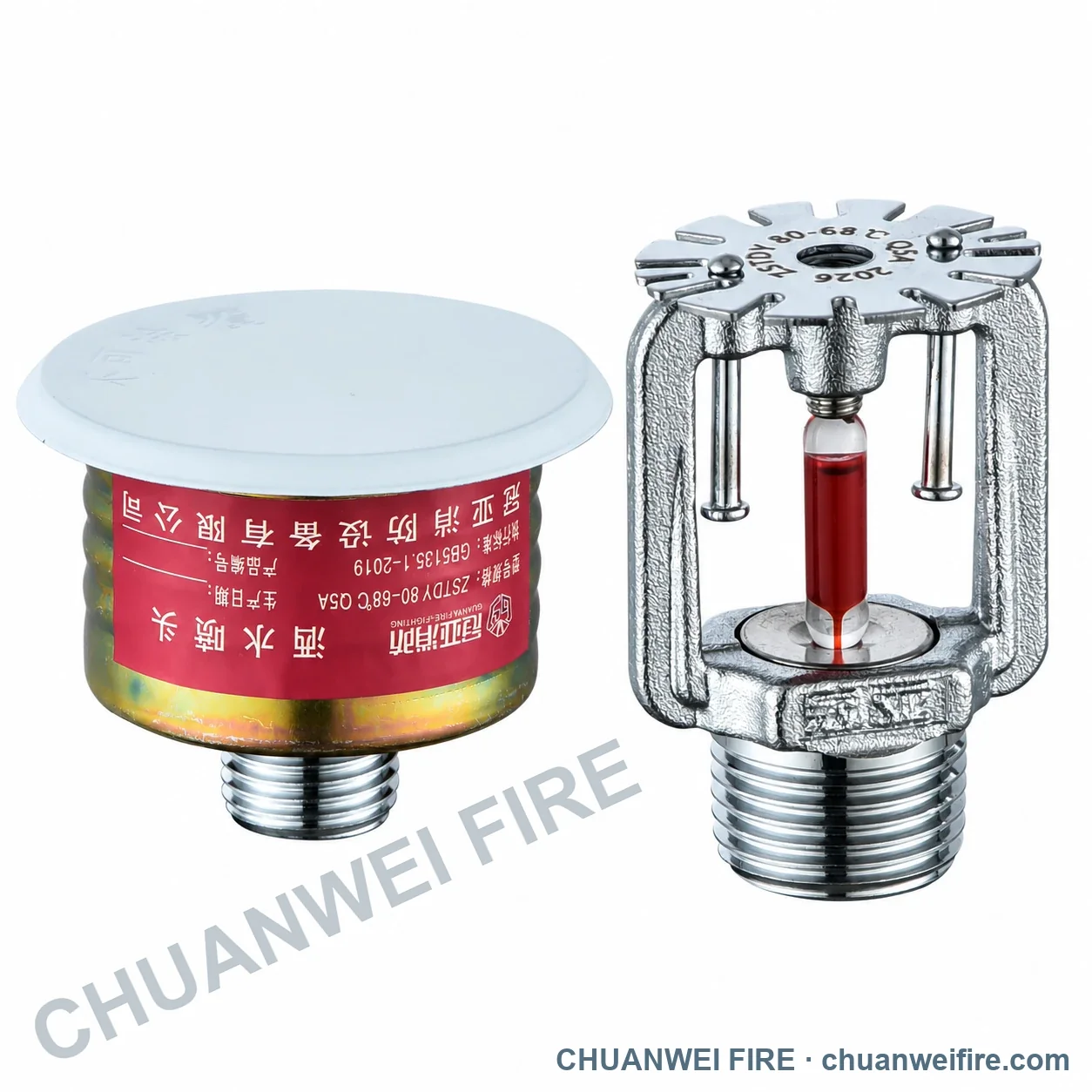

K80 metric standard-response concealed pendent sprinklers. The covered and exposed 68°C samples below belong to this series.
Specify the exact sprinkler model and its matched cover assembly when ordering.
Product images

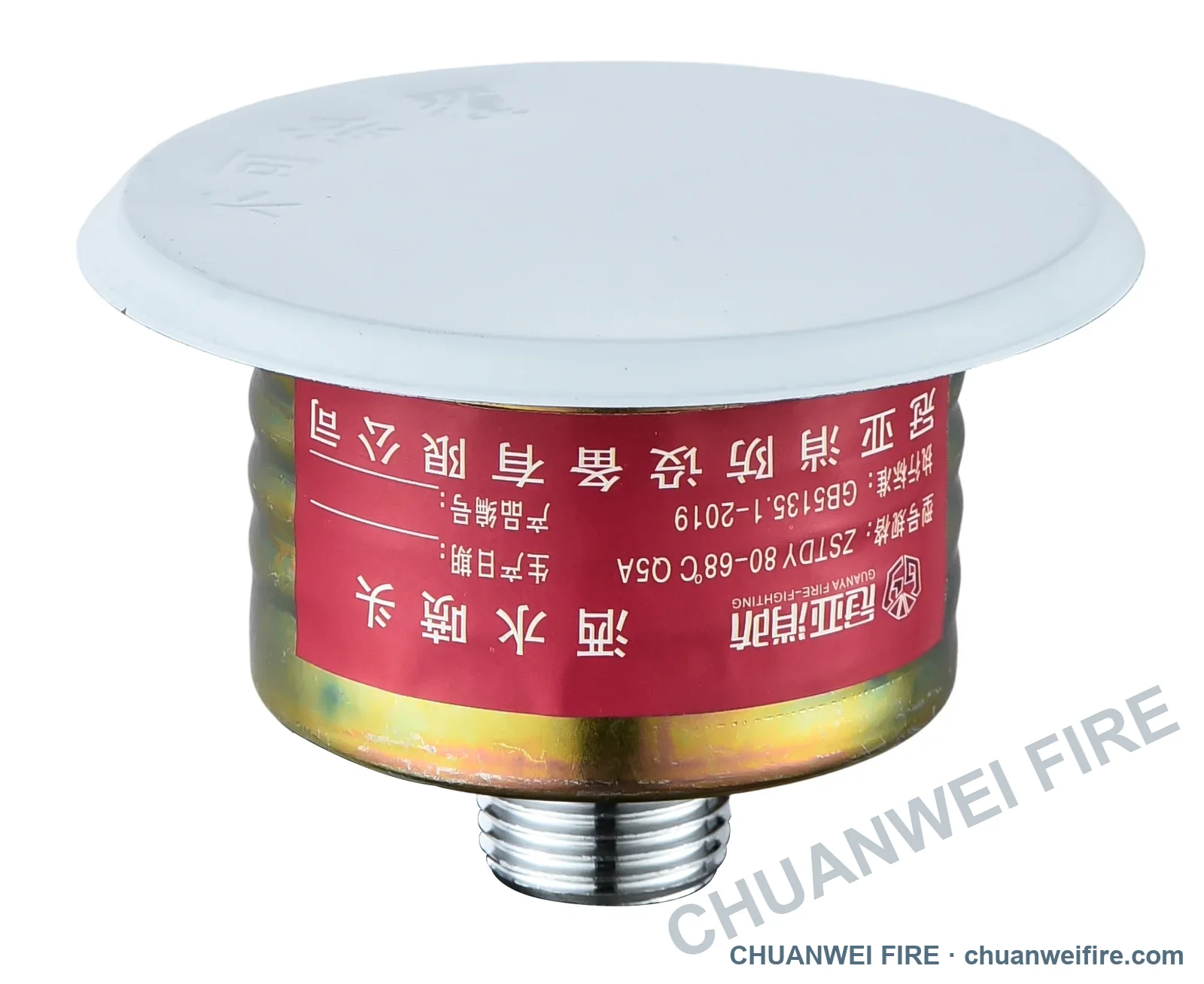

Compare the 68°C assembly with the sprinkler mechanism shown separately.
Specifications
These specifications apply to the 68°C sample shown. Additional named configurations below have their own specifications.
Available configurations

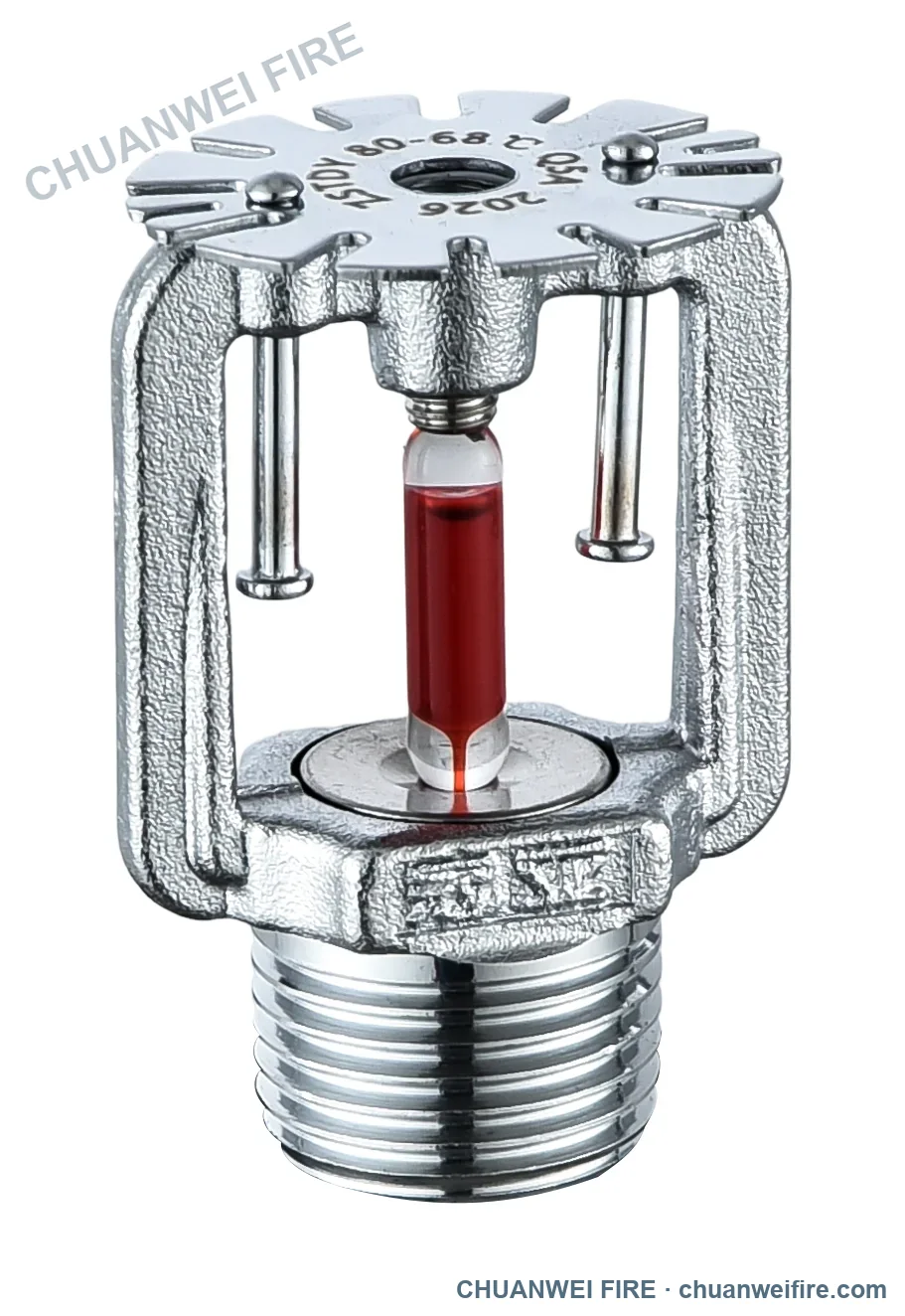

The pictured concealed sprinkler has a K80 metric flow coefficient, standard response and a 68°C sprinkler temperature rating.
| Factory model | K-factor (metric) | Response type | Operating temperature |
|---|---|---|---|
| ZSTDY80-68°C Q5A | K80 | Standard response | 68°C / 155°F |
Compare the construction and visible markings. Open a photograph to enlarge it; confirm the required configuration with the quotation.
Compare the specifications for each named configuration below. Values apply only to the configuration shown.
DN15 nominal size with an electroplated copper frame. Select the thread size and matched cover assembly with the order.
Working-pressure upper limit for this DN15 model. Select the exact thread size and matched cover assembly when ordering.

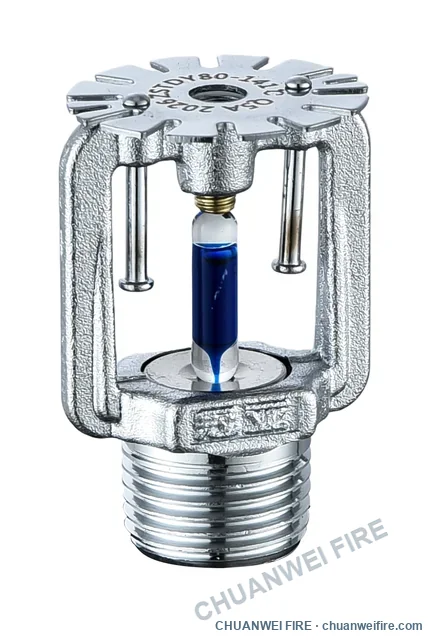

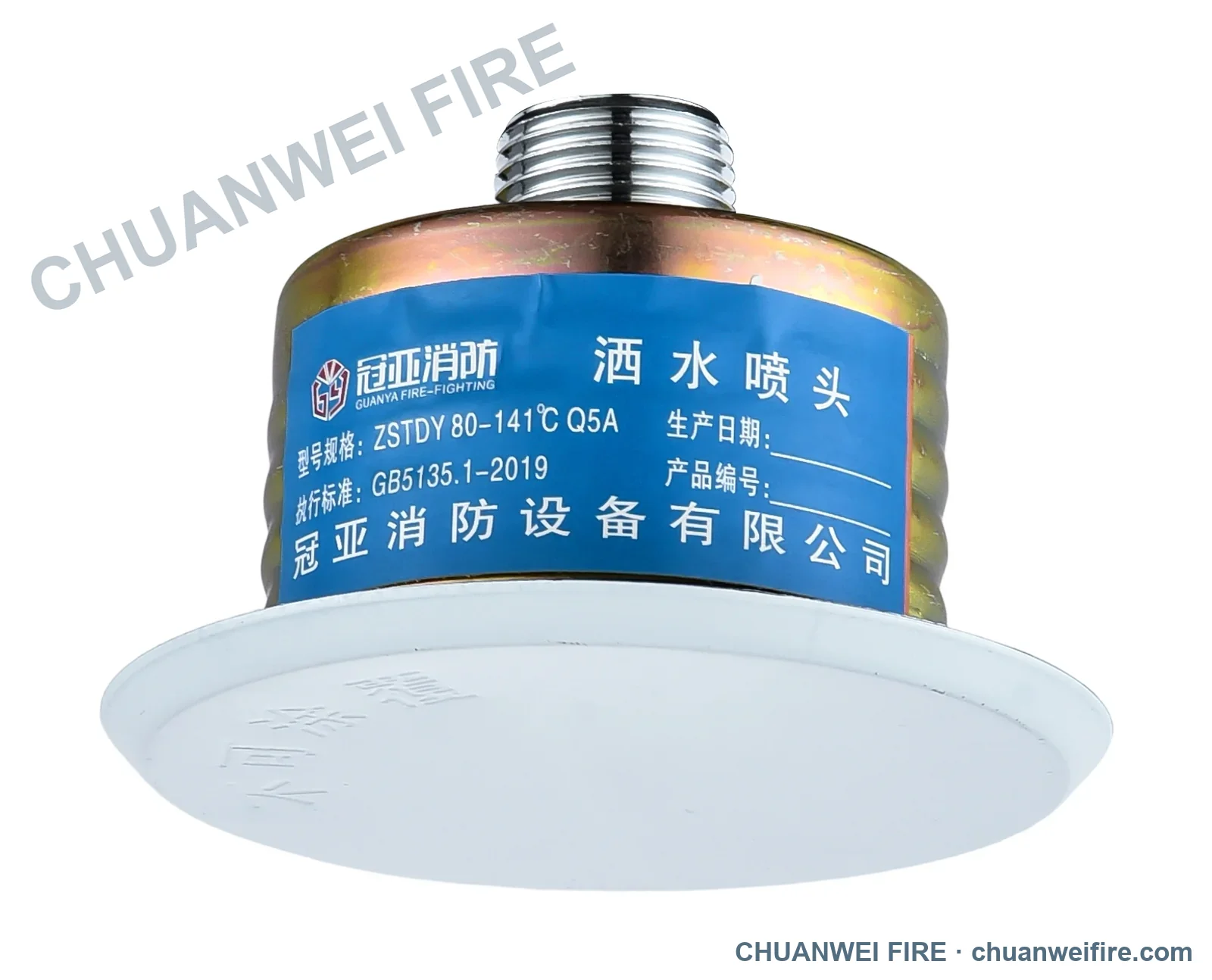

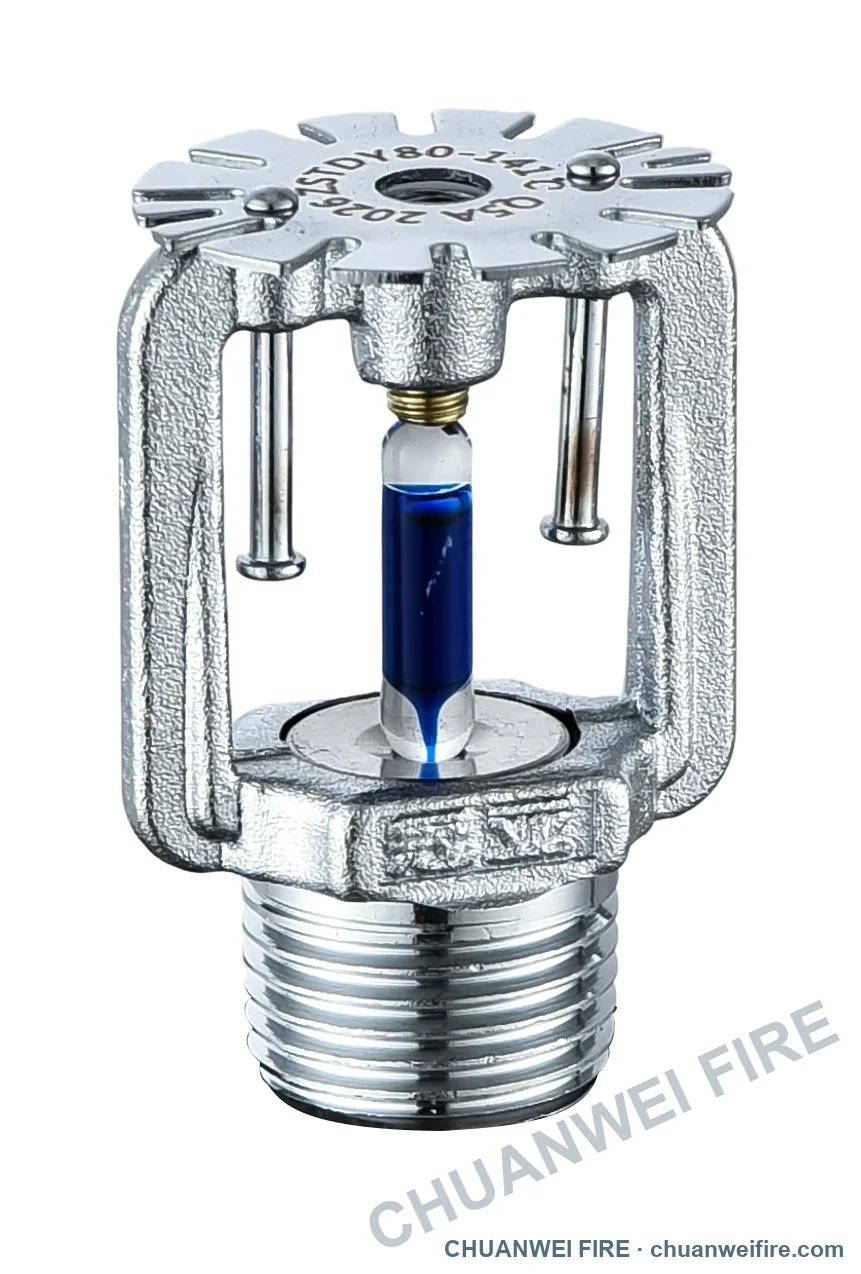

Specifications for the DN15 standard-response model at 141°C. Order a matched cover assembly; the sprinkler rating does not specify the cover release temperature.
Quotation details
Send the exact sprinkler model, connection, working pressure, matched cover requirement and quantity.
Include the factory model, connection requirement, working pressure and quantity.
