01SR
Standard Response Standard Spray
Glass-bulb sprinklers for common pendent, upright and horizontal sidewall configurations.
- K-factor
- K5.6 (80), K8.0 (115)
- Temperature
- 57–260°C / 135–500°F
- Styles
- Pendent · Upright · HSW
Automatic sprinkler & nozzle range
Fire Sprinklers, Organized for Global Sourcing.
Select by response type, installation orientation, K-factor and temperature—not by unfamiliar domestic model codes. We support distributors, contractors and OEM/ODM projects with a broad manufacturing range.
K5.6–K25.2Available flow ranges
57–260°CTemperature options
OEM / ODMBranding & packing review
Product families
Choose the right sprinkler category
Each family below groups compatible orientations, response types and flow coefficients. Final model codes, threads and compliance documents are confirmed against your destination market and project specification.
02QR
Quick Response Standard Spray
Quick-response glass-bulb range with pendent, upright and horizontal sidewall variants.
- K-factor
- K5.6 (80), K8.0 (115)
- Temperature
- 57–141°C / 135–286°F
- Styles
- Pendent · Upright · HSW
03EC / QR

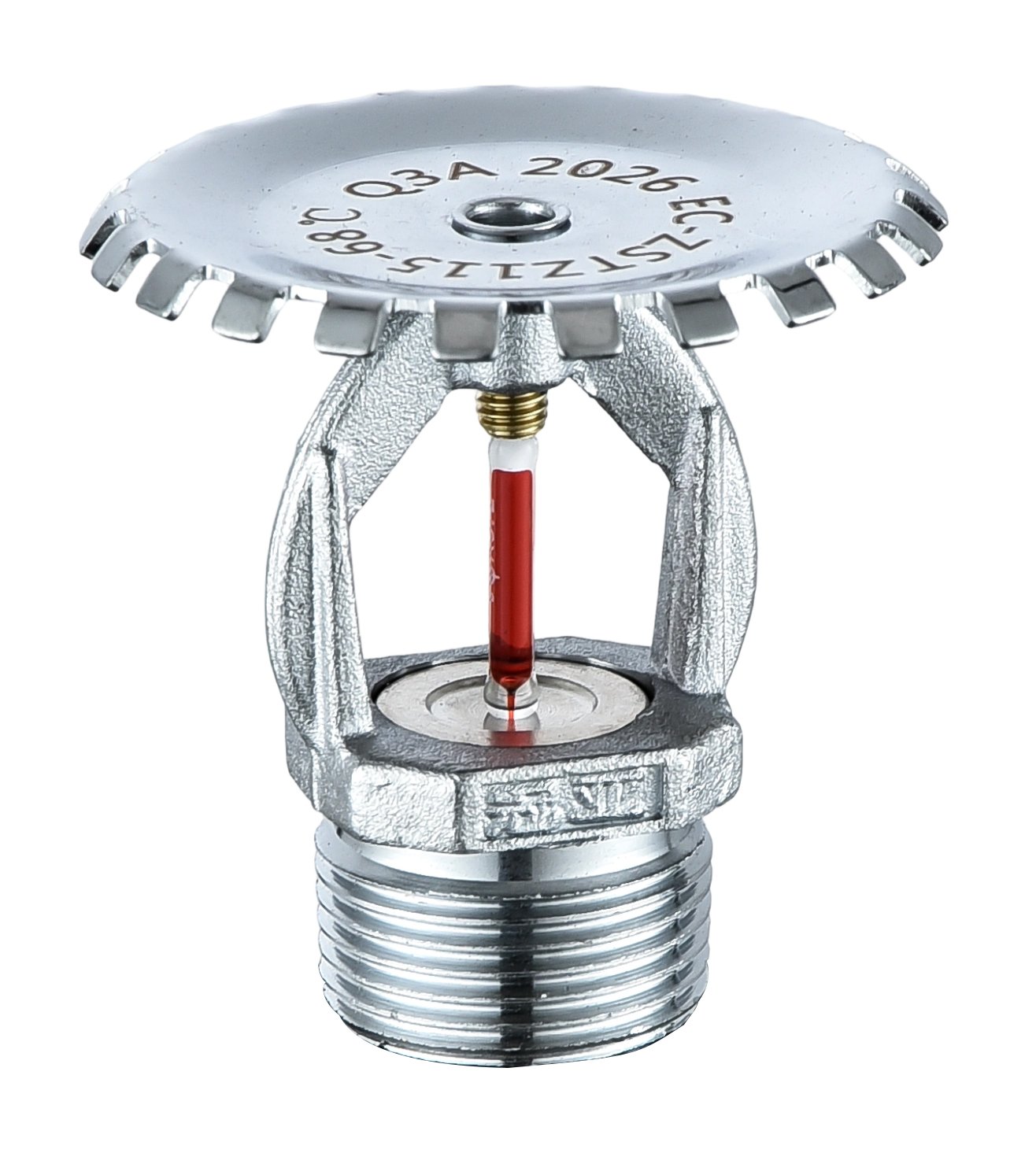

Extended Coverage Quick Response
Quick-response sprinklers designed as an extended-coverage family. Compared with standard-coverage QR sprinklers, the distinguishing requirement is the larger listed design coverage—not a faster response category.
- K-factor
- K8.0 (115)
- Temperature
- 68°C / 155°F
- Styles
- Pendent · Upright · HSW
04Fusible

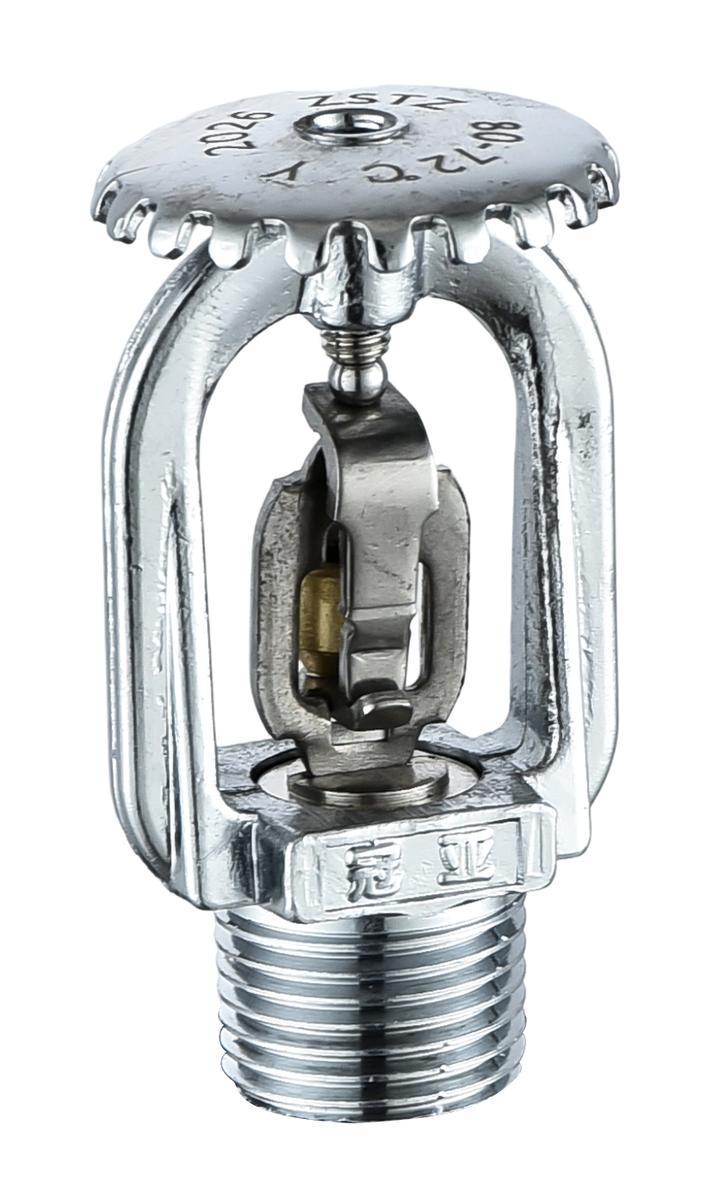

Fusible Element Sprinklers
Fusible-element alternatives for pendent and upright installation across multiple temperature classes.
- K-factor
- K5.6 (80)
- Temperature
- 72, 74, 140, 180, 204°C
- Styles
- Pendent · Upright
05Concealed

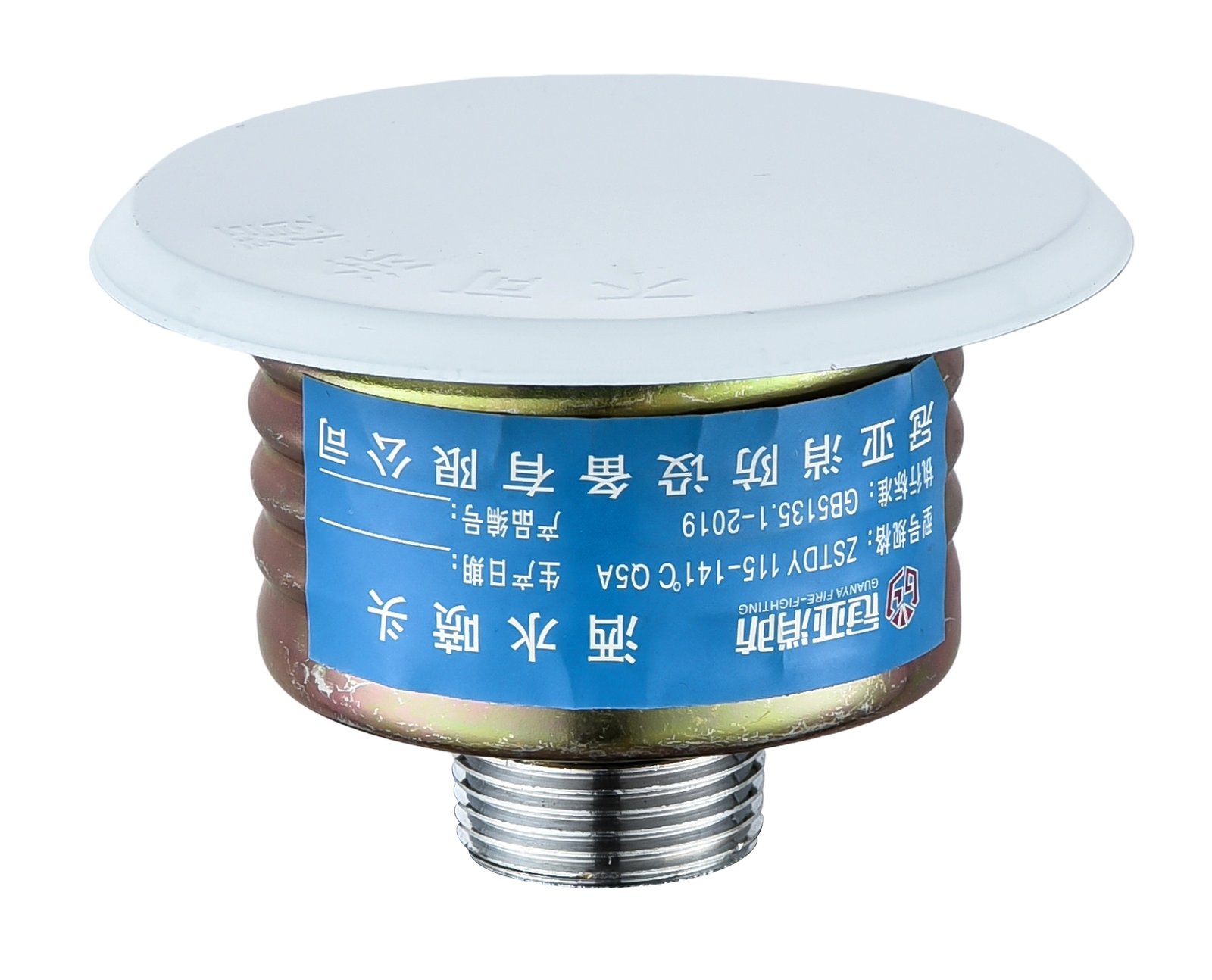

Concealed Pendent Sprinklers
Flat-cover concealed pendent range in standard- and quick-response configurations.
- K-factor
- K5.6 (80), K8.0 (115)
- Temperature
- 57–141°C / 135–286°F
- Response
- Standard · Quick
06Storage

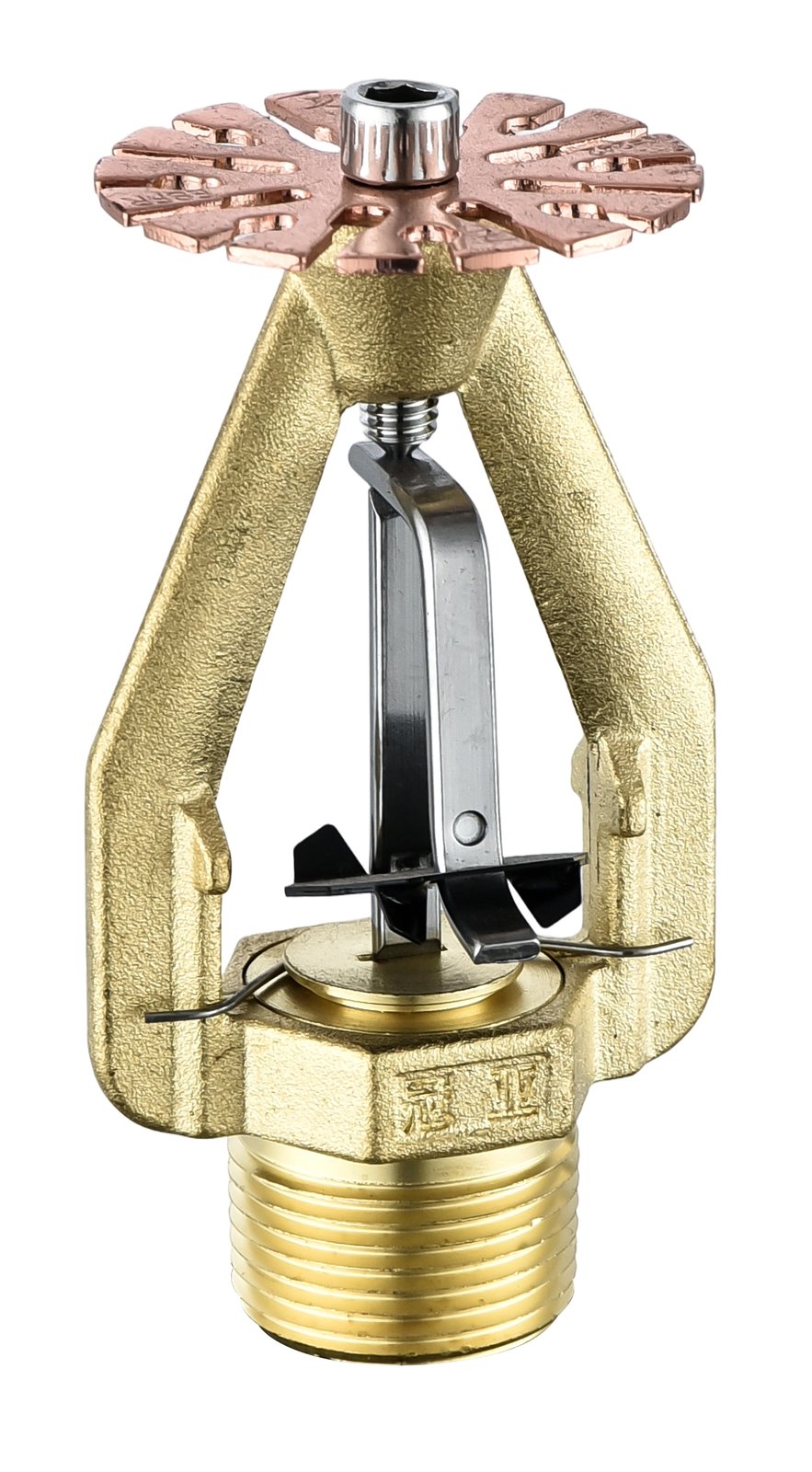

Large K-factor & ESFR Sprinklers
Two related but different groups: large K-factor spray sprinklers and ESFR sprinklers for storage fire protection. A large K-factor alone does not make a sprinkler ESFR; the exact model and project design criteria must be confirmed.
- Large K spray
- K11.2 (161) · K14.0 (202)
- ESFR
- K14.0 (202) · K16.8 (242) · K25.2 (363)
- Temperature
- 68°C / 155°F large K; 74°C / 165°F ESFR
07Dry

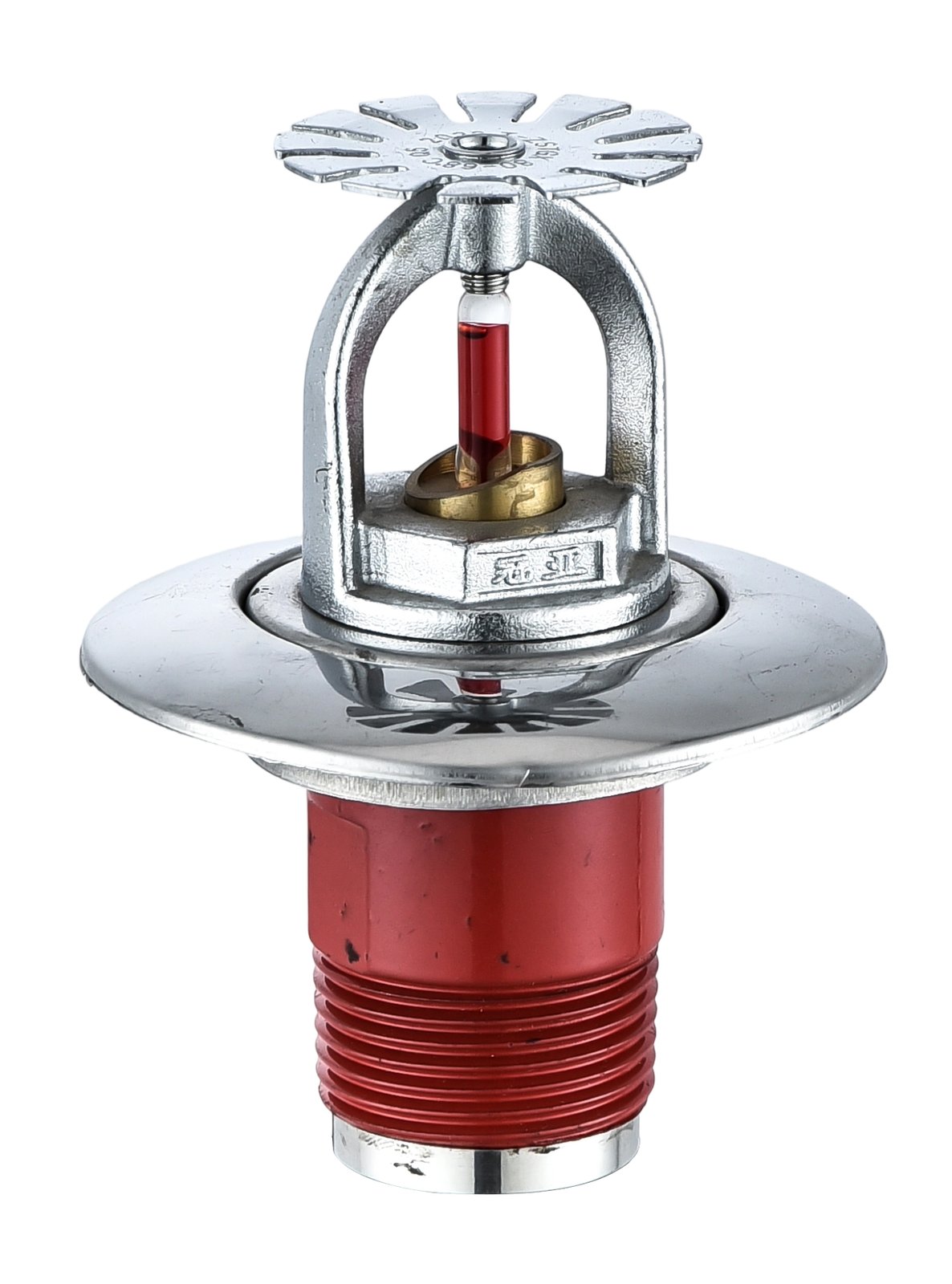

Dry Sprinklers
Extended dry-barrel configurations available in standard- and quick-response versions with selectable lengths.
- K-factor
- K5.6 (80)
- Temperature
- 68°C / 155°F
- Length
- 100 mm · 145 mm · custom review
08Open nozzle

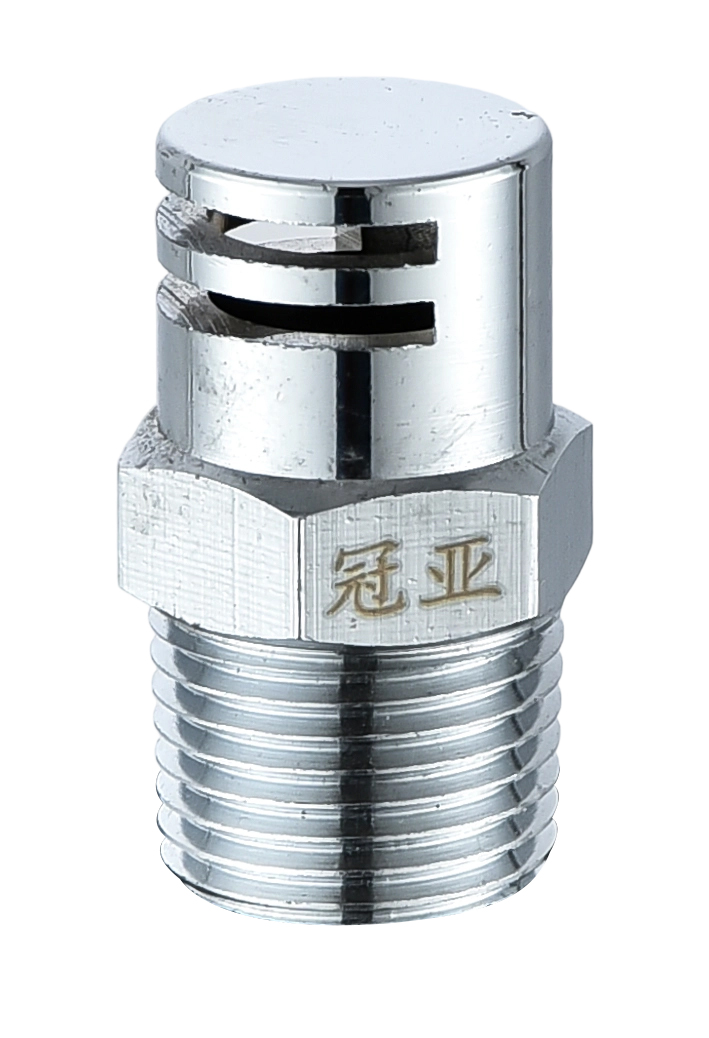

Water Mist Nozzles
Compact open-nozzle range including standard water-mist and impingement-style configurations.
- Connection size
- DN15 / ½″ · DN20 / ¾″ · DN25 / 1″
- Configurations
- Standard · Impingement
- Flow data
- Available by model
09Open nozzle

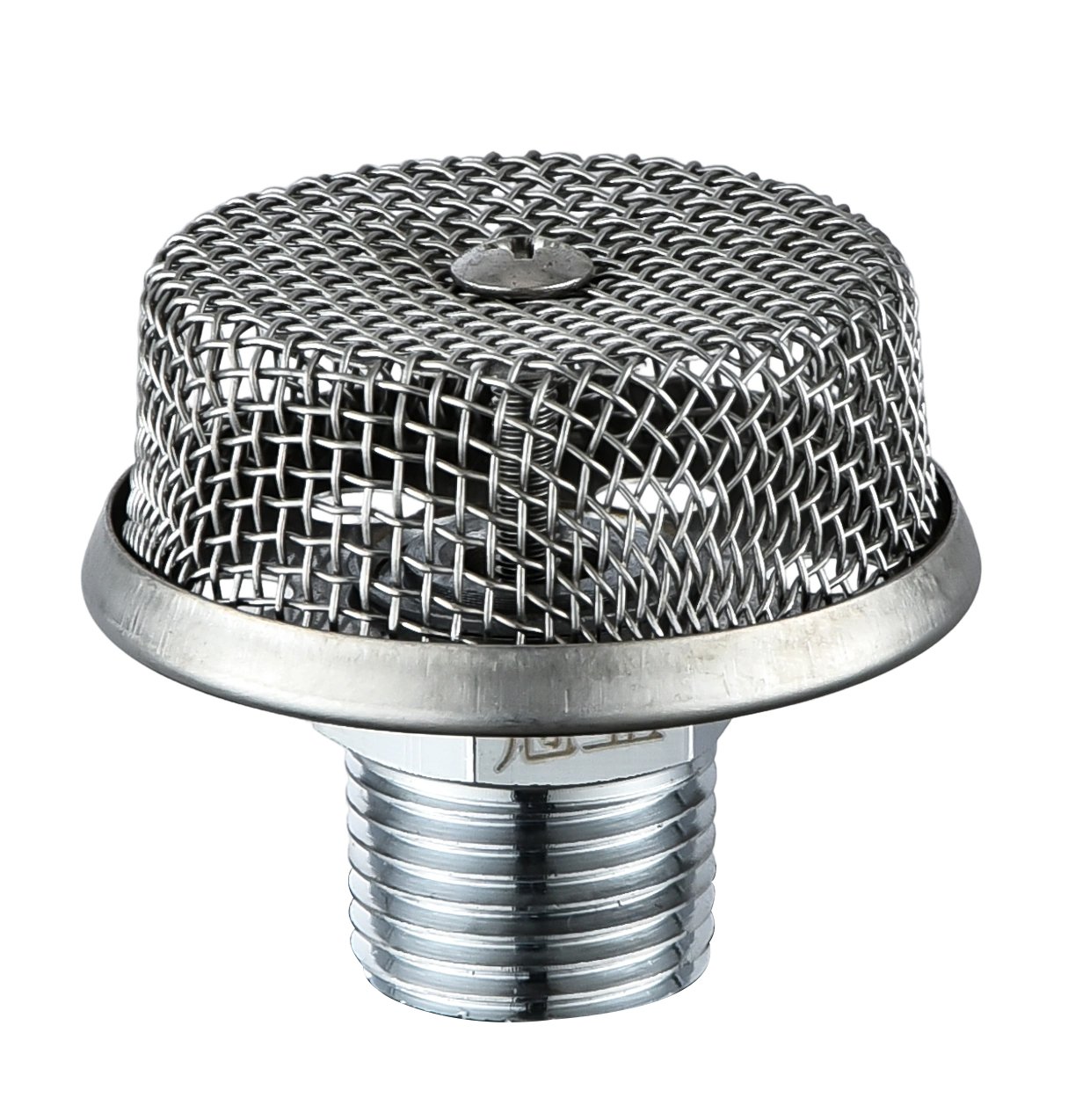

Water Curtain Nozzles
Open water-curtain nozzle options in pendent and horizontal discharge configurations.
- Connection size
- DN15 / ½″ · DN20 / ¾″ · DN25 / 1″
- Configurations
- Pendent · Horizontal
- Slot options
- Model-dependent
10Deluge

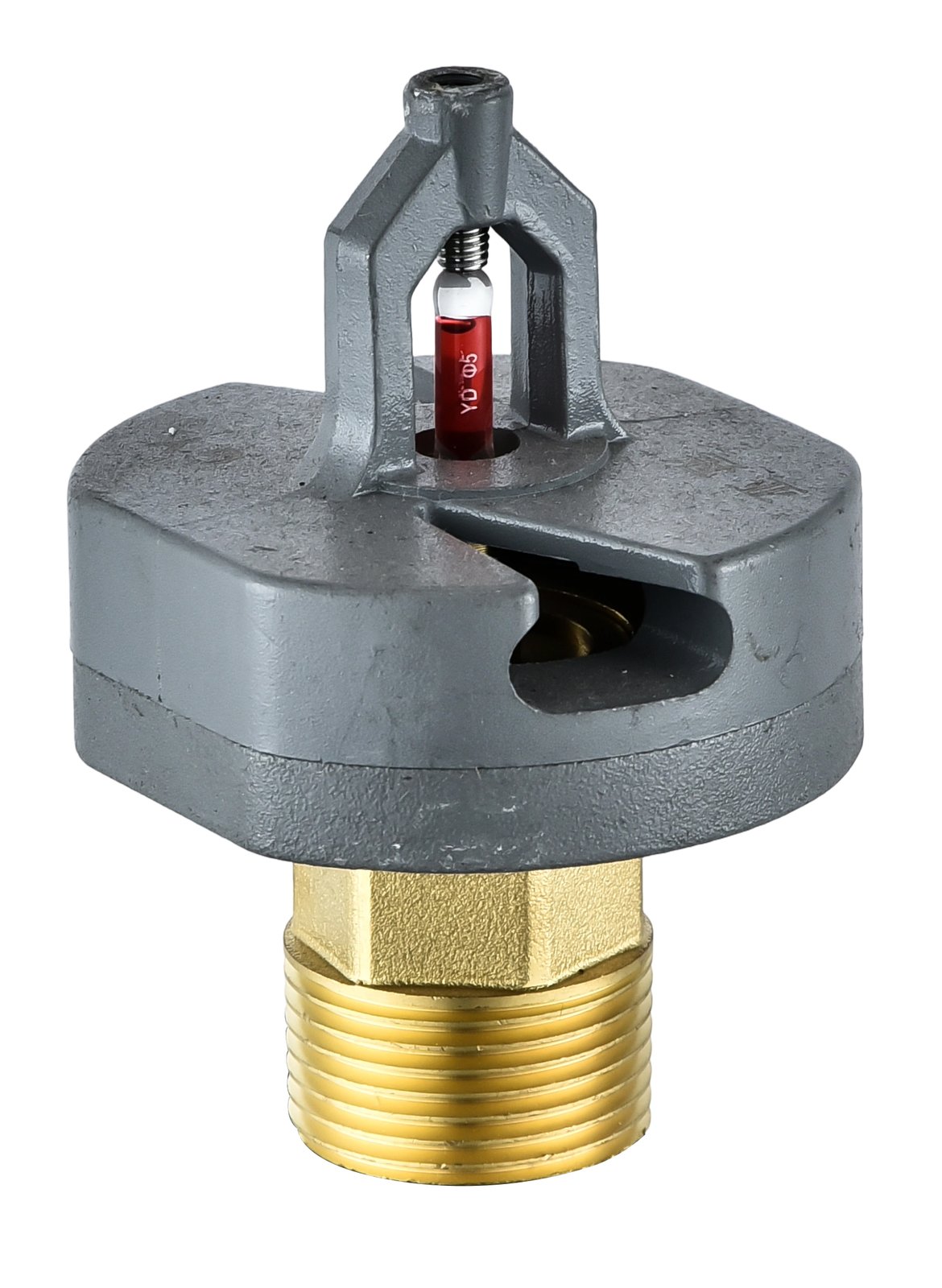

Deluge-System Sprinklers
Deluge-system sprinkler options in multiple metric flow-coefficient ranges. The photographed sample visibly includes a glass-bulb heat-responsive element, so it is not presented as an open sprinkler; open configurations must have no actuator or heat-responsive element and are confirmed separately.
- Connection size
- DN20 / ¾″ · DN25 / 1″
- Metric K range
- 90 · 115 · 145 · 155 · 175 · 200
- System type
- Open deluge application
Coverage comparison
Quick response does not define coverage area
Response type describes how quickly the thermal element operates. Coverage classification describes the design area permitted for the sprinkler. Both values—and the required flow and pressure—must come from the exact product technical data.
Quick Response Standard Spray
Fast-response thermal element with standard spray coverage. Common options in our range include pendent, upright and horizontal sidewall styles.
Quick Response Extended Coverage
Also quick response, but developed for a larger design coverage area. Our factory list includes K8.0 (metric 115), 68°C / 155°F upright, pendent and sidewall options; exact coverage, spacing, flow and pressure remain subject to the matching technical sheet.
Selection guide
International K-factor reference
The U.S. K-factor is shown first, followed by the corresponding metric value commonly used in our factory records. Availability still depends on sprinkler family and orientation.
K5.680 metric½″ / DN15 range
K8.0115 metric¾″ / DN20 range
K11.2161 metricLarge K-factor
K14.0202 metricLarge K / ESFR options
K16.8242 metricESFR range
K25.2363 metricESFR range
Available glass-bulb temperature markings
57°C / 135°F68°C / 155°F79°C / 175°F93°C / 200°F141°C / 286°F182°C / 360°F260°C / 500°F
Temperature availability varies by response type, K-factor and orientation. Confirm the exact marking and technical sheet before specification.
OEM / ODM
One range, configured for your market.
We review private-label marking, surface finish, protective bulb guards, cover plates and export packaging against the selected product and order quantity.
Private-label marking reviewFinish and cover optionsBulb protection for transportExport carton and label brief
Technical inquiry
Tell us what the project needs.
For a useful quotation, include destination country, sprinkler family, K-factor, temperature, orientation and estimated quantity.
